The utility model discloses an anti-collision logistics sorting trolley, which comprises a bottom plate, universal wheels are fixedly connected to both sides of the bottom of the bottom plate, and a locking plate is arranged on the right side of the universal wheels. The left side of the bottom plate is fixedly connected with a casing, the front and back sides of the inner cavity of the casing are provided with sliding devices, and the front and rear sides of the right side of the inner cavity of the casing are provided with buffer devices. Includes mounting plate. The utility model achieves the advantage of anti-collision function and solves the problem of the existing The sorting trolley does not have the anti-collision function. When people collide with the sorting trolley, it can effectively protect the car body and will not cause damage to the car body, which is convenient for people to use and improves the score. The practicality of picking carts.

Description

Commodity circulation of anticollision is with letter sorting small handcart

Technical Field

The utility model relates to the technical field of logistics sorting, in particular to an anti-collision sorting trolley for logistics.

Background

The logistics sorting is a technical means of fully utilizing various machines, transportation equipment, computer systems, comprehensive operation coordination and the like, and through the overall planning and technical application of a logistics system, the related operation and content of logistics are labor-saving, efficient and reasonable, and the logistics process is completed quickly, accurately and reliably.

Need use the letter sorting small handcart at commodity circulation letter sorting in-process, present letter sorting small handcart does not have the function of anticollision, when people use the letter sorting small handcart when the collision appears, unable effectual protection automobile body causes the automobile body to appear damaging easily, and inconvenient people use, has reduced the practicality of letter sorting small handcart.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Aiming at the defects of the prior art, the utility model provides the anti-collision sorting trolley for logistics, which has the advantage of an anti-collision function and solves the problem that the existing sorting trolley does not have the anti-collision function.

(II) technical scheme

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides an anticollision's letter sorting small handcart for commodity circulation, includes the bottom plate, the equal fixedly connected with universal wheel in both sides of bottom plate bottom, the right side of universal wheel is provided with the lock plate, the left side fixedly connected with casing of bottom plate, the front and the back of casing inner chamber all are provided with slider, the front side and the rear side on casing inner chamber right side all are provided with buffer.

Preferably, buffer includes the mounting panel, the left side fixedly connected with gasbag of mounting panel, the left side fixedly connected with connecting plate of gasbag, the left side fixedly connected with buffer beam of connecting plate.

Preferably, a moving plate is fixedly connected to the left side of the buffer rod, a moving column is fixedly connected to both the front side and the rear side of the left side of the moving plate, and the left side of the moving column penetrates through the left side of the housing and is fixedly connected with the buffer pad.

Preferably, the front side and the rear side of the left side of the inner cavity of the shell are both fixedly connected with springs, and the right sides of the springs are fixedly connected with the left side of the moving plate.

Preferably, the sliding device comprises a sliding groove, an inner cavity of the sliding groove is connected with a sliding block in a sliding mode, and the inner side of the sliding block is fixedly connected with the front side and the back side of the moving plate.

Preferably, the top of the bottom plate is fixedly connected with a placing box, and the front side and the back side of the bottom plate are fixedly connected with sponge plates.

(III) advantageous effects

Compared with the prior art, the utility model provides an anti-collision sorting trolley for logistics, which has the following beneficial effects:

1. according to the utility model, through the mutual matching of the bottom plate, the universal wheels, the shell, the sliding device, the buffering device, the moving plate, the moving column, the buffering cushion, the spring and the sponge plate, the advantage of anti-collision function is achieved, the problem that the existing sorting trolley does not have the anti-collision function is solved, when people use the sorting trolley to collide, the trolley body can be effectively protected, the trolley body cannot be damaged, the use of the sorting trolley is facilitated, and the practicability of the sorting trolley is improved.

2. The air bag fixing device has the advantages that the spring is arranged, the effect of good buffering effect is added to the movable plate when the movable plate works and is used, the problem of poor buffering effect of the movable plate when the movable plate works and is used is solved, the effect of stable movement is realized to the movable plate when the movable plate works and is used by arranging the sliding groove and the sliding block, the problem of shaking of the movable plate when the movable plate works and is used is solved, the effect of stable fixation is realized to the air bag when the air bag works and is used by arranging the mounting plate, and the problem of falling of the air bag when the air bag works and is used is solved.

Drawings

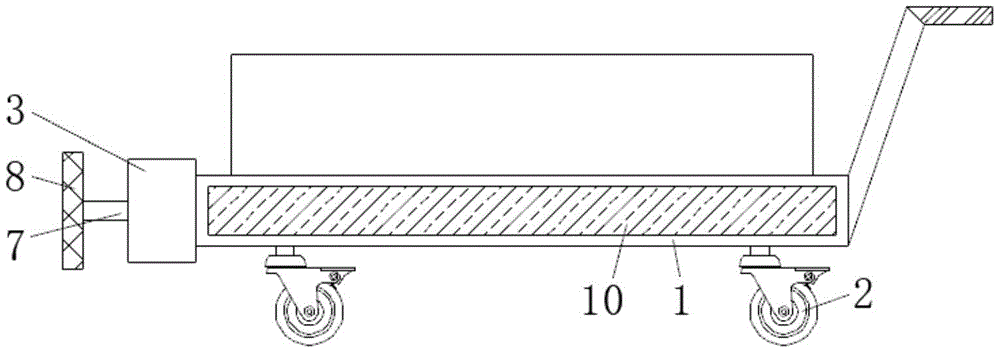

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a top view of the base plate structure of the present invention;

fig. 3 is a top sectional view of the housing structure of the present invention.

In the figure: 1. a base plate; 2. a universal wheel; 3. a housing; 4. a sliding device; 41. a chute; 42. a slider; 5. a buffer device; 51. mounting a plate; 52. an air bag; 53. a connecting plate; 54. a buffer rod; 6. moving the plate; 7. moving the column; 8. a cushion pad; 9. a spring; 10. a sponge plate.

Detailed Description

The following detailed description of the present invention is given for the purpose of better understanding technical solutions of the present invention by those skilled in the art, and the present description is only exemplary and explanatory and should not be construed as limiting the scope of the present invention in any way.

It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.

It should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like refer to the orientation or positional relationship shown in the drawings, or the orientation or positional relationship which the present invention is used to usually place, are only used for convenience of describing the present invention and simplifying the description, and do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention. Furthermore, the terms "first," "second," "third," and the like are used solely to distinguish one from another and are not to be construed as indicating or implying relative importance.

Furthermore, the terms "horizontal", "vertical", "overhang" and the like do not imply that the components are required to be absolutely horizontal or overhang, but may be slightly inclined. For example, "horizontal" merely means that the direction is more horizontal than "vertical" and does not mean that the structure must be perfectly horizontal, but may be slightly inclined.

In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1-3, an anti-collision sorting trolley for logistics comprises a bottom plate 1, a placing box fixedly connected to the top of the bottom plate 1, sponge plates 10 fixedly connected to the front and back of the bottom plate 1, universal wheels 2 fixedly connected to both sides of the bottom plate 1, a locking plate arranged on the right sides of the universal wheels 2, a housing 3 fixedly connected to the left side of the bottom plate 1, springs 9 fixedly connected to the front and back sides of the left side of the inner cavity of the housing 3, springs 9 arranged on the front and back sides of the inner cavity of the housing 3, a good buffering effect on a moving plate 6 during operation, a problem of poor buffering effect of the moving plate 6 during operation, springs 9 fixedly connected to the left side of the moving plate 6, sliding devices 4 arranged on the front and back sides of the inner cavity of the housing 3, the sliding devices 4 including sliding grooves 41, and sliding blocks 42 arranged on the sliding grooves 41 and sliding blocks 42, and a stable movement effect on the moving plate 6 during operation, the problem of the movable plate 6 shaking during working and using is solved, the inner cavity of the sliding groove 41 is connected with the sliding block 42 in a sliding manner, the inner side of the sliding block 42 is fixedly connected with the front and the back of the movable plate 6, the front side and the back side on the right side of the inner cavity of the shell 3 are respectively provided with the buffer device 5, each buffer device 5 comprises the mounting plate 51, the airbag 52 is fixed and stabilized during working and using by arranging the mounting plate 51, the problem that the airbag 52 falls off during working and using is solved, the airbag 52 is fixedly connected to the left side of the mounting plate 51, the connecting plate 53 is fixedly connected to the left side of the airbag 52, the buffer rod 54 is fixedly connected to the left side of the connecting plate 53, the movable plate 6 is fixedly connected to the left side of the buffer rod 54, the movable plate 7 is fixedly connected to the front side and the back side of the left side of the movable plate 6, the left side of the movable column 7 penetrates through the left side of the shell 3 and is fixedly connected with the buffer pad 8, through setting up bottom plate 1, universal wheel 2, casing 3, slider 4, buffer 5, movable plate 6, remove post 7, blotter 8, the advantage that has the anticollision function has been reached in mutually supporting of spring 9 and sponge board 10, the problem that current letter sorting small handcart does not have the anticollision function has been solved, when people use letter sorting small handcart the collision appears, can effectual protection automobile body, can not cause the automobile body to appear damaging, made things convenient for people to use, the practicality of letter sorting small handcart has been improved.

When the anti-collision device is used, when the cushion pad 8 collides, the cushion pad 8 starts to buffer on the moving plate 6 through the moving column 7, the moving plate 6 starts to buffer through the spring 9, meanwhile, the moving plate 6 drives the slider 42 to start buffering in the sliding groove 41, the synchronous moving plate 6 starts to buffer through the buffer rod 54, the buffer rod 54 starts to buffer on the air bag 52 through the connecting plate 53 and the mounting plate 51, so that the air bag 52 counteracts the impact force, and the anti-collision function is achieved.

All the standard parts used in the present application document can be purchased from the market, all the parts in the present application document can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each part adopts the conventional means such as bolts, rivets, welding and the like mature in the prior art, and the machines, the parts and the equipment adopt the conventional models in the prior art, and the detailed description is not provided.

It should be noted that, in this document, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

The principles and embodiments of the present invention are explained herein using specific examples, which are presented only to assist in understanding the method and its core concepts of the present invention. It should be noted that there are no specific structures but a few objective structures due to the limited character expressions, and that those skilled in the art may make various improvements, decorations or changes without departing from the principle of the utility model or may combine the above technical features in a suitable manner; such modifications, variations, combinations, or adaptations of the utility model using its spirit and scope, as defined by the claims, may be directed to other uses and embodiments, or may be learned by practice of the utility model.

Claims

1. An anti-collision logistics sorting trolley, comprising a bottom plate (1), characterized in that: both sides of the bottom of the bottom plate (1) are fixedly connected with universal wheels (2), and the universal The right side of the wheel (2) is provided with a locking plate, the left side of the bottom plate (1) is fixedly connected with a casing (3), and the front and back sides of the inner cavity of the casing (3) are provided with sliding devices ( 4), the front side and the rear side of the inner cavity of the housing (3) are provided with buffer devices (5).

2. The anti-collision logistics sorting trolley according to claim 1, characterized in that: the buffer device (5) comprises a mounting plate (51), and the left side of the mounting plate (51) An airbag (52) is fixedly connected, a connecting plate (53) is fixedly connected to the left side of the airbag (52), and a buffer rod (54) is fixedly connected to the left side of the connecting plate (53).

3. The anti-collision logistics sorting trolley according to claim 2, characterized in that: the left side of the buffer rod (54) is fixedly connected with a moving plate (6), and the moving plate ( 6) The front side and the rear side of the left side are fixedly connected with a moving column (7), the left side of the moving column (7) penetrates to the left side of the casing (3) and is fixedly connected with a buffer pad (8).

4. A kind of anti-collision logistics sorting trolley according to claim 1, characterized in that: the front side and the rear side of the left side of the inner cavity of the housing (3) are fixedly connected with a spring (9 ), the right side of the spring (9) is fixedly connected with the left side of the moving plate (6).

5. The anti-collision logistics sorting trolley according to claim 1, wherein the sliding device (4) comprises a chute (41), and the inner cavity of the chute (41) A sliding block (42) is slidably connected, and the inner side of the sliding block (42) is fixedly connected with the front and the back of the moving plate (6).

6. The anti-collision logistics sorting trolley according to claim 1, characterized in that: the top of the bottom plate (1) is fixedly connected with a placing box, and the front and back of the bottom plate (1) Both are fixedly connected with a sponge plate (10).
