CN216323615U - Waste material processing apparatus is used in wind power plant construction - Google Patents
Waste material processing apparatus is used in wind power plant construction Download PDFInfo
- Publication number
- CN216323615U CN216323615U CN202123000512.2U CN202123000512U CN216323615U CN 216323615 U CN216323615 U CN 216323615U CN 202123000512 U CN202123000512 U CN 202123000512U CN 216323615 U CN216323615 U CN 216323615U
- Authority
- CN
- China
- Prior art keywords
- hollow
- waste
- column spinner
- wind power
- hollow column
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cleaning In General (AREA)
Abstract
本实用新型涉及废料处理技术领域，尤其是一种风能电站建设用废料处理装置，针对现有技术中不能将废料表面粘附的杂质进行清理的问题，现提出如下方案，其包括底座，底座的顶部安装有工作箱，工作箱的顶部安装有清洗箱，清洗箱的内部转动连接有空心旋转柱，空心旋转柱的内部安装有空心旋转杆，空心旋转杆的两端均延伸至空心旋转柱的外部，且空心旋转杆的两端分别与清洗箱的两侧内壁固接，清洗箱的内部安装有驱动空心旋转柱旋转的旋转机构，本实用新型不仅可以将废料进行清理，而且可以将清洗之后的废料进行烘干，避免废料表面粘附的杂质对废料的回收利用造成影响，从而提高了废料进行回收利用的品质，更加方便人们进行使用。
The utility model relates to the technical field of waste disposal, in particular to a waste disposal device for wind power station construction. In view of the problem in the prior art that impurities adhering to the surface of the waste cannot be cleaned up, the following scheme is proposed, which comprises a base, a base of the base A working box is installed on the top, a cleaning box is installed on the top of the working box, a hollow rotating column is connected to the inside of the cleaning box, and a hollow rotating rod is installed inside the hollow rotating column, and both ends of the hollow rotating rod extend to the hollow rotating column. Outside, and the two ends of the hollow rotating rod are respectively fixed with the inner walls of the two sides of the cleaning box, and the inside of the cleaning box is equipped with a rotating mechanism that drives the rotation of the hollow rotating column. The waste is dried to avoid the impact of the impurities on the surface of the waste on the recycling of the waste, thereby improving the quality of the waste for recycling and making it more convenient for people to use.
Description
Technical Field
The utility model relates to the technical field of waste treatment, in particular to a waste treatment device for wind power station construction.
Background
In the process of constructing the wind power station, a lot of waste materials are generated, the waste materials are waste materials generated in the process of constructing the wind power station, but the waste materials still have great value, if the waste materials are not recycled, a lot of waste is caused, and if the waste materials are discarded and buried at will, problems of environmental pollution and the like are caused.
Present wind power plant construction is with waste material processing apparatus is all directly carrying out useless bits of broken glass with the waste material at the in-process that uses, then carries out recycle, but these waste materials are under the condition of placing for a long time, and the surface can be stained with impurity, if directly carry out useless bits of broken glass, can make impurity and waste material mix, and then influence the waste material and carry out recycle's quality, and inconvenient people use.
Therefore, it is necessary to develop a waste treatment apparatus for wind power plant construction to solve the above problems.
SUMMERY OF THE UTILITY MODEL
The utility model provides a waste treatment device for wind power station construction, which solves the problem that impurities adhered to the surface of waste cannot be cleaned in the prior art.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a waste material processing apparatus for wind power station construction, includes the base, the work box is installed at the top of base, the washing case is installed at the top of work box, the inside rotation of washing case is connected with hollow column spinner, the internally mounted of hollow column spinner has hollow rotary rod, the both ends of hollow rotary rod all extend to the outside of hollow column spinner, and the both ends of hollow rotary rod respectively with wash the both sides inner wall rigid coupling of case, the internally mounted of washing case has the rotary mechanism of drive hollow column spinner rotation, the externally mounted of hollow column spinner has multiunit clearance mechanism, clearance mechanism includes two rotation axes of rotation connection outside hollow column spinner and installs the cleaning roller at two rotation axis one end, and the externally mounted of cleaning roller has a plurality of clearance brushes, the externally mounted of hollow rotary rod has first bevel gear, two the one end of rotation axis all extends to the inside of hollow column spinner, and two rotation axis lie in the inside one end of hollow column spinner all install with first bevel gear engaged's second bevel gear, wash one side of case and install stoving mechanism, wash the case and seted up the toper discharge gate with the junction of work box, and one side of toper discharge gate installs stock stop, wash the top of case and install the feeder hopper.
Preferably, rotary mechanism is including installing the action wheel and installing in hollow column spinner outside and with the driven wheel of action wheel meshing at the inner wall of washing case one side, the external mounting of washing case has the rotatory rotating electrical machines of drive action wheel.
Preferably, stoving mechanism is including installing air-blower and the heating cabinet at washing case one side outer wall, the internally mounted of heating cabinet has a plurality of heater strips, the air intake of air-blower passes through the top intercommunication of pipeline and heating cabinet, air-supply line and hollow rotary rod intercommunication are passed through to the bottom of heating cabinet, the opening has all been seted up with the outside of hollow column spinner to hollow rotary rod.
Preferably, the stock stop is including offering the cavity in toper discharge gate one side and installing the pneumatic cylinder at cavity one side inner wall, the baffle is installed to the output of pneumatic cylinder.
Preferably, the discharge gate has been seted up to one side of work box, the internally mounted of work box has the hang plate that is used for to the discharge gate guide, a plurality of delivery ports have been seted up to the inside of hang plate, the top of base has been placed and has been connect the workbin, and connects the workbin to be located one side of discharge gate.
Preferably, the top of wasing the case is installed the inlet tube, the outlet pipe is installed to one side of work box.
The utility model has the technical effects and advantages that:
1. when a plurality of rotation axes rotate around hollow column spinner, through the meshing of first bevel gear and second bevel gear, a plurality of rotation axes can carry out the rotation, thereby can drive a plurality of cleaning rollers and carry out the rotation, when a plurality of cleaning rollers rotate around hollow column spinner, can also make a plurality of cleaning rollers carry out the rotation like this, thereby further improved the efficiency of clearing up the waste material, the impurity of avoiding waste material surface adhesion causes the influence to the recycle of waste material, thereby improved the waste material and carried out recycle's quality.
2. The inside of heating cabinet is taken in with outside wind suction through the air-blower that is equipped with, the wind that enters into the inside of heating cabinet can heat through a plurality of heater strips, then enter into the inside of hollow rotary rod, the wind that enters into the inside of hollow rotary rod can enter into the inside of wasing the case through a plurality of openings, thereby dry the waste material after accomplishing the washing, the efficiency of work has not only been improved like this, and avoid the water stain of adhesion to cause the influence to waste recycling's quality on the waste material, waste recycling's quality has been improved.
Drawings

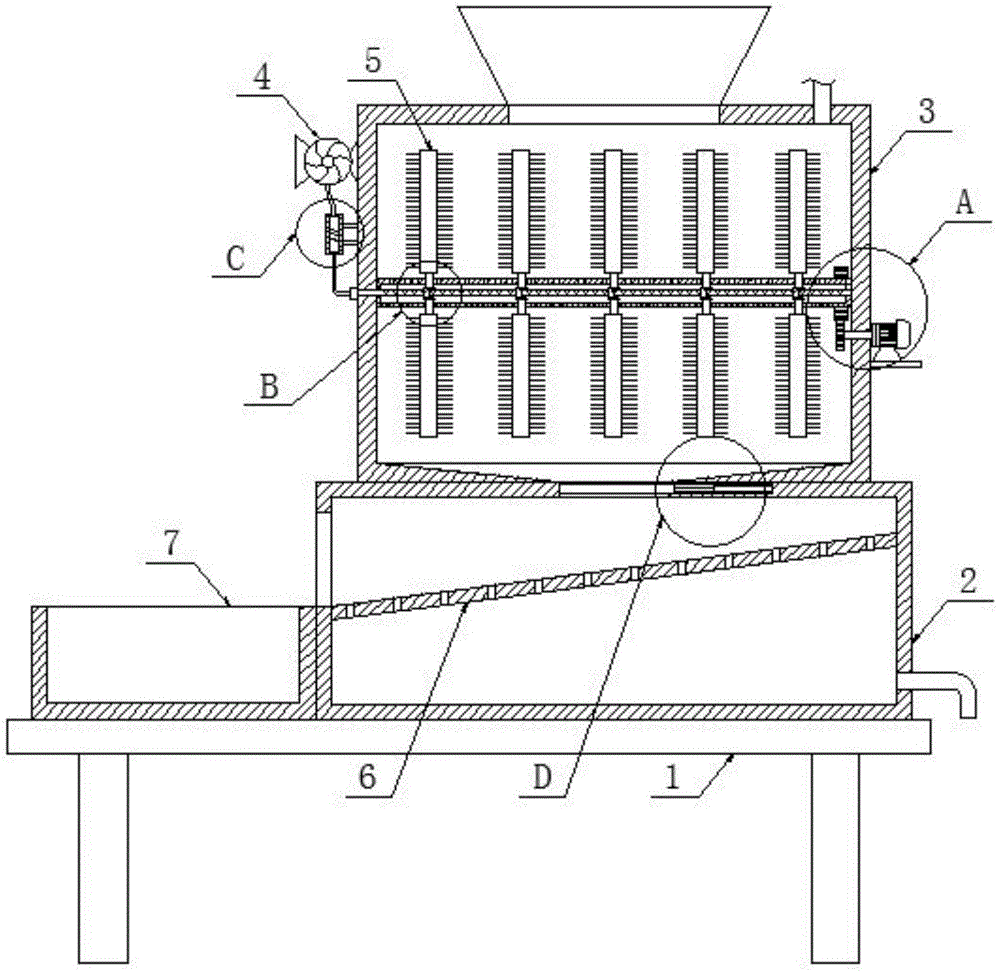

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is an enlarged schematic view of the structure at a in fig. 1 according to the present invention.
Fig. 3 is an enlarged schematic view of the structure at B in fig. 1 according to the present invention.
Fig. 4 is an enlarged schematic view of the structure at C in fig. 1 according to the present invention.
Fig. 5 is an enlarged schematic view of the structure of fig. 1 at D according to the present invention.
In the figure: 1. a base; 2. a work box; 3. a cleaning tank; 4. a blower; 5. cleaning the roller; 6. an inclined plate; 7. a material receiving box; 8. a rotating electric machine; 9. a heating box; 10. a hollow rotating column; 11. a hollow rotating rod; 12. a driving wheel; 13. a driven wheel; 14. a first bevel gear; 15. a second bevel gear; 16. a rotating shaft; 17. heating wires; 18. a conical discharge hole; 19. a pneumatic cylinder; 20. and a baffle plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
The utility model provides a waste treatment device for wind power station construction, which comprises a base 1, wherein a working box 2 is arranged at the top of the base 1, a cleaning box 3 is arranged at the top of the working box 2, a hollow rotating column 10 is rotatably connected inside the cleaning box 3, a hollow rotating rod 11 is arranged inside the hollow rotating column 10, two ends of the hollow rotating rod 11 extend to the outside of the hollow rotating column 10, two ends of the hollow rotating rod 11 are respectively fixedly connected with the inner walls of two sides of the cleaning box 3, a rotating mechanism for driving the hollow rotating column 10 to rotate is arranged inside the cleaning box 3, a plurality of groups of cleaning mechanisms are arranged outside the hollow rotating column 10, each cleaning mechanism comprises two rotating shafts 16 rotatably connected to the outside of the hollow rotating column 10 and a cleaning roller 5 arranged at one end of the two rotating shafts 16, and a plurality of cleaning brushes are arranged outside the cleaning roller 5, a first bevel gear 14 is installed outside the hollow rotating rod 11, one end of each of two rotating shafts 16 extends to the inside of the hollow rotating column 10, and one end of each of the two rotating shafts 16, which is located inside the hollow rotating column 10, is installed with a second bevel gear 15 meshed with the first bevel gear 14, when the plurality of rotating shafts 16 rotate around the hollow rotating column 10, through the meshing of the first bevel gear 14 and the second bevel gear 15, the plurality of rotating shafts 16 can rotate, so as to drive the plurality of cleaning rollers 5 to rotate, so that the plurality of cleaning rollers 5 can also rotate while the plurality of cleaning rollers 5 rotate around the hollow rotating column 10, thereby further improving the cleaning of the waste materials, avoiding the influence of impurities adhered to the surface of the waste materials on the recycling of the waste materials, a drying mechanism is installed on one side of the cleaning box 3, a conical discharge port 18 is formed at the connection part of the cleaning box 3 and the working box 2, and a material stop mechanism is installed on one side of the conical discharge port 18, and a feed hopper is installed at the top of the cleaning box 3.
As shown in fig. 1-5, the rotating mechanism comprises a driving wheel 12 mounted on the inner wall of one side of the cleaning tank 3 and a driven wheel 13 mounted on the outside of the hollow rotating column 10 and engaged with the driving wheel 12, a rotating motor 8 for driving the driving wheel 12 to rotate is mounted on the outside of the cleaning tank 3, the drying mechanism comprises an air blower 4 and a heating tank 9 mounted on the outer wall of one side of the cleaning tank 3, a plurality of heating wires 17 are mounted inside the heating tank 9, an air inlet of the air blower 4 is communicated with the top of the heating tank 9 through a pipeline, the bottom of the heating tank 9 is communicated with the hollow rotating rod 11 through an air inlet pipe, the hollow rotating rod 11 and the outside of the hollow rotating column 10 are both provided with openings, the air blower 4 is used for sucking external air into the heating tank 9, the air entering the heating tank 9 is heated through the plurality of heating wires 17 and then enters the inside of the hollow rotating rod 11, the wind introduced into the inside of the hollow rotating rod 11 enters the inside of the washing tank 3 through a plurality of openings, thereby drying the waste material after cleaning, which not only improves the working efficiency, but also avoids the influence of water stain adhered on the waste material on the quality of the waste material recycling, improves the quality of the waste material recycling, the material stop mechanism comprises a cavity arranged at one side of a conical discharge port 18 and a pneumatic cylinder 19 arranged at the inner wall at one side of the cavity, a baffle 20 is arranged at the output end of the pneumatic cylinder 19, a discharge port is arranged at one side of a working box 2, an inclined plate 6 for guiding the material to the discharge port is arranged inside the working box 2, a plurality of water outlets are arranged inside the inclined plate 6, a material receiving box 7 is arranged at the top of the base 1, and the material receiving box 7 is positioned at one side of the discharge hole, the top of the cleaning box 3 is provided with a water inlet pipe, and one side of the working box 2 is provided with a water outlet pipe.
The working principle of the utility model is as follows: in a specific implementation process, firstly, the waste is poured into the cleaning box 3 through the feeding hopper, then, external water is injected into the cleaning box 3 through the water inlet pipe, at the moment, the rotating motor 8 is started, the driving wheel 12 is driven to rotate when the rotating motor 8 rotates, the hollow rotating column 10 is driven to rotate through the matching of the driving wheel 12 and the driven wheel 13, the rotating shafts 16 are driven to rotate in the rotating process of the hollow rotating column 10, the cleaning rollers 5 are driven to rotate when the rotating shafts 16 rotate, so that impurities adhered to the surface of the waste can be cleaned under the rotation of the cleaning rollers 5 and the action of the cleaning brushes, the cleaning efficiency of the waste is improved, when the rotating shafts 16 rotate around the hollow rotating column 10, through the meshing of the first bevel gear 14 and the second bevel gear 15, the rotation shafts 16 can rotate, so that the cleaning rollers 5 can be driven to rotate, when the cleaning rollers 5 rotate around the hollow rotating column 10, the cleaning rollers 5 can also rotate, the cleaning of the waste is further improved, the influence on the recycling of the waste caused by impurities adhered to the surface of the waste is avoided, after the waste is cleaned, the pneumatic cylinder 19 can drive the baffle plate 20 to move to one side of the cavity, the conical discharge hole 18 is opened, the opened outlet meets the passing of the impurities and water flow, the waste cannot fall off, then the cleaned sewage in the cleaning box 3 can flow into the inner part of the working box 2 through the outlet, then the cleaned sewage flows into the bottom of the working box 2 through the water outlets, finally flows out through the water outlet pipe, and after all water in the cleaning box 3 flows out, the cleaning box 4 can be started, the blower 4 draws external wind into the inside of the heating compartment 9, the wind introduced into the inside of the heating compartment 9 is heated by the plurality of heating wires 17, and then into the inside of the hollow rotary rod 11, the wind entering the inside of the hollow rotary rod 11 enters the inside of the washing tank 3 through a plurality of openings, thereby drying the cleaned waste, not only improving the working efficiency, but also avoiding the water stain adhered on the waste from influencing the recycling quality of the waste, improving the recycling quality of the waste, after the waste material is dried, the pneumatic cylinder 19 will drive the baffle 20 to move continuously to the inner part of the cavity, the baffle 20 is thus moved inside the cavity, so that the waste material enters the inside of the work box 2 through the conical outlet 18 and then enters the receiving box 7 through the outlet under the action of the inclined plate 6.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the utility model.
Claims (6)
1. The utility model provides a waste material processing apparatus is used in wind power plant construction, includes base (1), its characterized in that: work box (2) is installed at the top of base (1), washing case (3) is installed at the top of work box (2), the internal rotation of washing case (3) is connected with hollow column spinner (10), the internally mounted of hollow column spinner (10) has hollow rotary rod (11), the both ends of hollow rotary rod (11) all extend to the outside of hollow column spinner (10), and the both ends of hollow rotary rod (11) respectively with wash the both sides inner wall rigid coupling of case (3), the internally mounted of washing case (3) has the rotary mechanism of drive hollow column spinner (10) rotation, the externally mounted of hollow column spinner (10) has multiunit clearance mechanism, clearance mechanism is including rotating two outside rotation axis (16) of connecting at hollow column spinner (10) and installing clearance roller (5) in two rotation axis (16) one end, and the externally mounted of cleaning roller (5) has a plurality of clearance brushes, the externally mounted of hollow rotary rod (11) has first bevel gear (14), two the one end of rotation axis (16) all extends to the inside of hollow column spinner (10), and two rotation axis (16) are located the inside one end of hollow column spinner (10) and all install second bevel gear (15) with first bevel gear (14) meshing, the stoving mechanism is installed to one side of wasing case (3), toper discharge gate (18) have been seted up with the junction of work box (2) to washing case (3), and the stock stop is installed to one side of toper discharge gate (18), the feeder hopper is installed at the top of wasing case (3).
2. The waste treatment plant for the construction of wind power plants according to claim 1, characterized in that: the rotating mechanism comprises a driving wheel (12) arranged on the inner wall of one side of the cleaning box (3) and a driven wheel (13) arranged outside the hollow rotating column (10) and meshed with the driving wheel (12), and a rotating motor (8) for driving the driving wheel (12) to rotate is arranged outside the cleaning box (3).
3. The waste treatment plant for the construction of wind power plants according to claim 1, characterized in that: stoving mechanism is including installing air-blower (4) and heating cabinet (9) at washing case (3) one side outer wall, the internally mounted of heating cabinet (9) has a plurality of heater strips (17), the air intake of air-blower (4) passes through the top intercommunication of pipeline with heating cabinet (9), the bottom of heating cabinet (9) is passed through air-supply line and hollow rotary rod (11) intercommunication, the opening has all been seted up with the outside of hollow column spinner (10) in hollow rotary rod (11).
4. The waste treatment plant for the construction of wind power plants according to claim 1, characterized in that: the stock stop is including offering cavity and installing pneumatic cylinder (19) at cavity one side inner wall in toper discharge gate (18) one side, baffle (20) are installed to the output of pneumatic cylinder (19).
5. The waste treatment plant for the construction of wind power plants according to claim 1, characterized in that: the discharge gate has been seted up to one side of work box (2), the internally mounted of work box (2) has hang plate (6) that are used for to the discharge gate guide, a plurality of delivery ports have been seted up to the inside of hang plate (6), the top of base (1) has been placed and has been connect workbin (7), and connects workbin (7) to be located one side of discharge gate.
6. The waste treatment plant for the construction of wind power plants according to claim 1, characterized in that: the top of wasing case (3) installs the inlet tube, the outlet pipe is installed to one side of work box (2).
