Abstract
一种便携式解压收纳筒，涉及收纳设备领域，具体涉及一种带按压泡泡的便携式解压收纳筒。它包含收纳筒顶盖、收纳筒体、拉链带、拉链头，拉链带上端缝制于收纳筒顶盖底部，拉链带下端缝制于收纳筒体顶部，拉链头与拉链带相连接；所述的收纳筒体上设置有若干空白按压泡泡、字母按压泡泡，所述的收纳筒顶盖上设置有挂环。不仅具有较高的美观度，同时还是一种解压及学习道具，通过在筒体上设置带字母的按压泡泡，使得其除了具有收纳功能外还能够通过按压泡泡进行缓解压力，无需另外购买解压道具，还能通过按压泡泡上的字母进行学习，极大的提高了收纳筒的实用性。
A portable decompression storage cylinder relates to the field of storage equipment, in particular to a portable decompression storage cylinder with pressing bubbles. It includes a top cover of a storage cylinder, a storage cylinder, a zipper tape, and a zipper puller, the upper end of the zipper belt is sewn on the bottom of the top cover of the storage cylinder, the lower end of the zipper belt is sewn on the top of the storage cylinder, and the zipper head is connected with the zipper belt; the A plurality of blank pressing bubbles and letter pressing bubbles are arranged on the storage cylinder body of the storage cylinder, and a hanging ring is arranged on the top cover of the storage cylinder. It not only has high aesthetics, but also is a decompression and learning prop. By setting pressing bubbles with letters on the cylinder, it can relieve pressure by pressing the bubbles in addition to the storage function, no need to buy additionally. Unzip the props, and you can also learn by pressing the letters on the bubbles, which greatly improves the practicability of the storage tube.
Description
Technical Field
The utility model relates to a portable decompression storage barrel, relates to the field of storage equipment, and particularly relates to a portable decompression storage barrel with a pressing bubble.
Background
The storage barrel and the storage bag are articles commonly used in daily life of people, the storage bag is used for storing some flexible articles, such as paper documents, certificates and the like, the storage barrel is used for storing some articles which are long in length and easy to damage, such as pens, cosmetics and the like, the articles in life can be conveniently classified and stored by using the storage equipment, and the storage barrel and the storage bag are convenient for people to carry and use.
The existing storage barrel is simple in structure, single in function, poor in attractiveness and incapable of bringing different use experiences to people in daily use, and only has simple storage and carrying functions.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a portable decompression storage cylinder, which not only has higher aesthetic degree, but also is a decompression and learning tool, and the pressing bubble with letters is arranged on the cylinder body, so that the portable decompression storage cylinder not only has a storage function, but also can relieve pressure by pressing the bubble, does not need to purchase additional decompression tools, and can learn by pressing the letters on the bubble, thereby greatly improving the practicability of the storage cylinder.
In order to achieve the purpose, the utility model adopts the following technical scheme: the zipper comprises a storage barrel top cover 1, a storage barrel body 2, a zipper strip 3 and a zipper head 4, wherein the upper end of the zipper strip 3 is sewn at the bottom of the storage barrel top cover 1, the lower end of the zipper strip 3 is sewn at the top of the storage barrel body 2, and the zipper head 4 is connected with the zipper strip 3; the storage barrel body 2 is provided with a plurality of blank pressing bubbles 2-1 and letter pressing bubbles 2-2, the storage barrel top cover 1 is provided with a hanging ring 5, and the hanging ring 5 and the storage barrel top cover 1 are of an integrated structure.
The blank pressing bubbles 2-1 are arranged in 12 numbers, every 6 blank pressing bubbles 2-1 are in a row, and the two rows of blank pressing bubbles 2-1 respectively form a first blank writing area 2-3 and a second blank writing area 2-5.
The first blank writing area 2-3 and the second blank writing area 2-5 are arranged oppositely.
The number of the letter pressing bubbles 2-2 is 48, every 24 letter pressing bubbles 2-2 form one group, and the two groups of letter pressing bubbles 2-2 respectively form a first letter area 2-4 and a second letter area 2-6.
The first letter zone 2-4 is formed by sequentially sequencing four columns of English letters A-F, G-L, M-R, S-X, and the second letter zone 2-6 has the same structure as the first letter zone 2-4.
The bottom of the storage cylinder top cover 1 is provided with an upper sewing area 1-1, and the upper sewing area 1-1 is connected with the upper end of the zipper strip 3.
The upper end of the containing cylinder body 2 is provided with a lower sewing area 2-7, and the lower sewing area 2-7 is connected with the lower end of the zipper strip 3.
The storage cylinder top cover 1 is also provided with a pattern modeling area 1-2.
The working principle of the utility model is as follows: first blank writing area 2-3 and second blank writing area 2-5 can write name or other marks with the pen, first letter area 2-4, second letter area 2-6 can supply to learn english letter usefulness, blank is pressed bubble 2-1, the letter is pressed bubble 2-2 and all can be pressed and is alleviated pressure, use as decompressing props, can automatic recover after the bubble is pressed, link 5 and containing cylinder top cap 1 are the structure of the same kind, and link 5 is the plastic material, have certain ductility, can be better with other links and colludes the cooperation use, through setting up mutual opposition first blank writing area 2-3, second blank writing area 2-5, first letter area 2-4 and second letter area 2-6 can mark and study when different positions, make things convenient for people's use.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

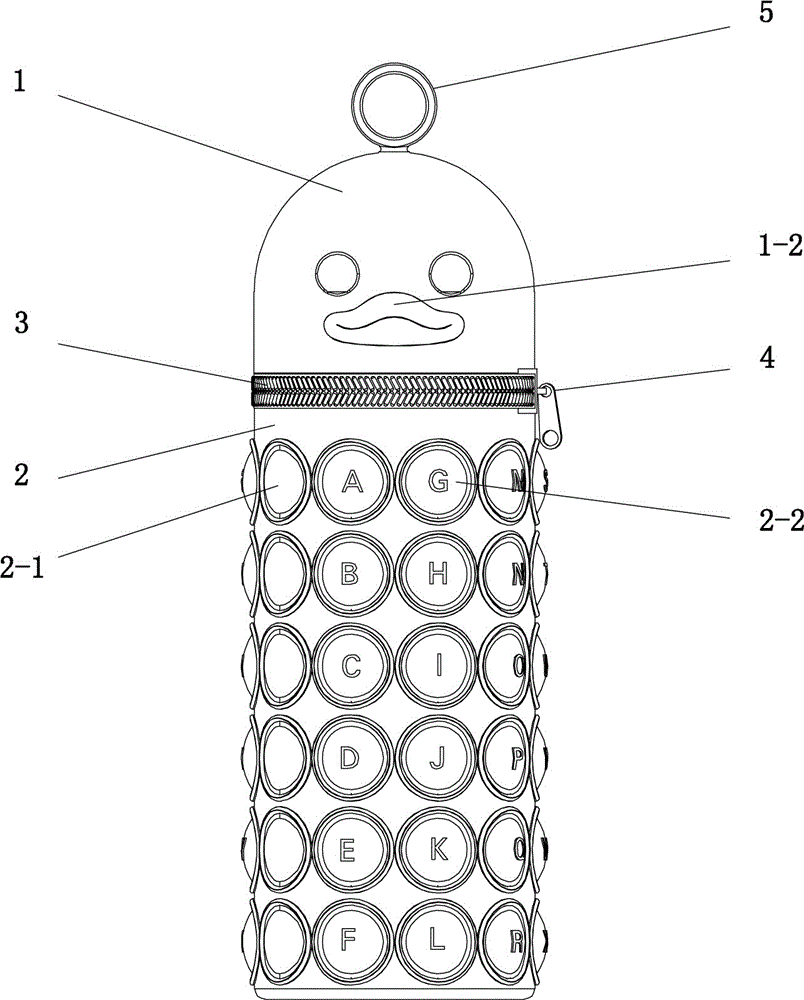

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic diagram of the exploded structure of FIG. 1;
fig. 3 is another angular view of the cartridge 2 of fig. 1;
fig. 4 is a bottom view of the cartridge 2 of fig. 2.
Description of reference numerals: the novel storage barrel comprises a storage barrel top cover 1, a storage barrel body 2, a zipper strip 3, a zipper slider 4, a hanging ring 5, an upper sewing area 1-1, a pattern modeling area 1-2, blank pressing bubbles 2-1, letter pressing bubbles 2-2, a first blank writing area 2-3, a second blank writing area 2-5, a first letter area 2-4, a second letter area 2-6 and a lower sewing area 2-7.
Detailed Description
Example 1
Referring to fig. 1 to 4, the technical solution adopted by the present embodiment is: the zipper comprises a storage barrel top cover 1, a storage barrel body 2, a zipper strip 3 and a zipper head 4, wherein the upper end of the zipper strip 3 is sewn at the bottom of the storage barrel top cover 1, the lower end of the zipper strip 3 is sewn at the top of the storage barrel body 2, and the zipper head 4 is connected with the zipper strip 3; the storage barrel body 2 is provided with a plurality of blank pressing bubbles 2-1 and letter pressing bubbles 2-2, the top cover 1 of the storage barrel body is provided with a hanging ring 5, and the hanging ring 5 and the top cover 1 of the storage barrel body are of an integrated structure. Blank pressing papaw 2-1, the letter is pressed papaw 2-2 and all can be pressed and is alleviated pressure, and as decompressing the stage property and using, the papaw can recover automatically after pressing, and link 5 is the one-piece structure with storage cylinder top cap 1, and link 5 is the plastic material, has certain ductility, can be better with other links collude the cooperation and use.
Furthermore, 12 blank pressing bubbles 2-1 are arranged, every 6 blank pressing bubbles 2-1 are in a row, and the two rows of blank pressing bubbles 2-1 respectively form a first blank writing area 2-3 and a second blank writing area 2-5. The first and second writing areas 2-3 and 2-5 may be used to write names or other indicia with a pen.
Further, the first blank writing area 2-3 and the second blank writing area 2-5 are arranged oppositely. The writing area is oppositely arranged, and the content of the written marks can be seen at different positions.
Furthermore, 48 letter pressing bubbles 2-2 are arranged, each 24 letter pressing bubbles 2-2 form one group, and the two groups of letter pressing bubbles 2-2 respectively form a first letter area 2-4 and a second letter area 2-6. The first letter region 2-4 and the second letter region 2-6 can be used for learning English letters. The opposite arrangement of the letter region can be used for watching and learning at different positions.
Furthermore, the first letter zone 2-4 is formed by sequentially sequencing four columns of English letters A-F, G-L, M-R, S-X, and the second letter zone 2-6 has the same structure as the first letter zone 2-4.
Further, an upper sewing area 1-1 is arranged at the bottom of the storage cylinder top cover 1, and the upper sewing area 1-1 is connected with the upper end of the zipper strip 3.
Further, the upper end of the containing cylinder body 2 is provided with a lower sewing area 2-7, and the lower sewing area 2-7 is connected with the lower end of the zipper strip 3.
Furthermore, the storage cylinder top cover 1 is also provided with a pattern modeling area 1-2. The pattern modeling area 1-2 is customized individually to meet different requirements.
Example 2
The difference between this embodiment and embodiment 1 lies in that link 5 is the metal link, and link 5 is the riveting relation with storage cylinder top cap 1, and other structures are the same with embodiment 1 with the connected mode, adopt metal link in use difficult because of dragging the collision and damage, have prolonged storage cylinder's life.
After the technical scheme is adopted, the utility model has the beneficial effects that: not only have higher pleasing to the eye degree, still one kind simultaneously decompresses and study stage property, through set up the pressing bubble of taking the letter on the barrel for it can also alleviate pressure through pressing the bubble except having the function of accomodating, need not to purchase in addition and decompress the stage property, can also learn through the letter on pressing the bubble, very big improvement the practicality of containing barrel.
The above description is only for the purpose of illustrating the technical solutions of the present invention and not for the purpose of limiting the same, and other modifications or equivalent substitutions made by those skilled in the art to the technical solutions of the present invention should be covered within the scope of the claims of the present invention without departing from the spirit and scope of the technical solutions of the present invention.
Claims (9)
1. The utility model provides a portable storage cylinder that decompresses, it contains storage cylinder top cap (1), storage cylinder body (2), zipper strip (3), draws zipper head (4), and zipper strip (3) upper end is made up in storage cylinder top cap (1) bottom, and zipper strip (3) lower extreme is made up in storage cylinder body (2) top, draws zipper head (4) to be connected its characterized in that with zipper strip (3): the storage barrel body (2) is provided with a plurality of blank pressing bubbles (2-1) and letter pressing bubbles (2-2), and the storage barrel top cover (1) is provided with a hanging ring (5).
2. A portable decompression cartridge according to claim 1, wherein: the blank pressing bubbles (2-1) are arranged in 12 numbers, every 6 blank pressing bubbles (2-1) are in a row, and the two rows of blank pressing bubbles (2-1) respectively form a first blank writing area (2-3) and a second blank writing area (2-5).
3. A portable decompression cartridge according to claim 2, wherein: the first blank writing area (2-3) and the second blank writing area (2-5) are arranged oppositely.
4. A portable decompression cartridge according to claim 1, wherein: the letter pressing bubbles (2-2) are arranged in total (48), every (24) letter pressing bubbles (2-2) form one group, and the two groups of letter pressing bubbles (2-2) respectively form a first letter area (2-4) and a second letter area (2-6).
5. A portable decompression cartridge according to claim 4, wherein: the first letter area (2-4) is formed by sequentially sequencing four columns of English letters A-F, G-L, M-R, S-X, and the second letter area (2-6) and the first letter area (2-4) have the same structure.
6. A portable decompression cartridge according to claim 1, wherein: the bottom of the storage cylinder top cover (1) is provided with an upper sewing area (1-1), and the upper sewing area (1-1) is connected with the upper end of the zipper strip (3).
7. A portable decompression cartridge according to claim 1, wherein: the upper end of the storage cylinder body (2) is provided with a lower sewing area (2-7), and the lower sewing area (2-7) is connected with the lower end of the zipper strip (3).
8. A portable decompression cartridge according to claim 1, wherein: the storage cylinder top cover (1) is also provided with a pattern modeling area (1-2).
9. A portable decompression cartridge according to claim 1, wherein: the hanging ring (5) is a metal hanging ring, and the hanging ring (5) is riveted with the storage cylinder top cover (1).
