Abstract

The utility model relates to the technical field of monitoring equipment, in particular to an intelligent electricity utilization safety monitoring terminal which comprises a device main body, wherein the device main body comprises a clamping groove, a base and clamping holes, the clamping groove is formed below the left side and the right side of the device main body, the base is installed at the bottom end of the device main body, the clamping holes are transversely arranged at equal intervals to the front side and the rear side of the top end of the device main body, and sliding plates are installed in the middle of the front side and the rear side of the device main body. Through installing the slide, the slide can protect the bolt in the jack for lead to the unable power cord of dismantling the insert card piece in later stage in the difficult entering bolt of external dust.

Description

Intelligent type power utilization safety monitoring terminal

Technical Field

The utility model relates to the technical field of monitoring equipment, in particular to an intelligent electricity utilization safety monitoring terminal.

Background

The intelligent electricity utilization safety monitoring terminal checks information states of equipment and voltage, frequency, current, electric leakage, temperature, fault electric arc, electric quantity statistics and the like of a line in real time;

but current wisdom formula power consumption safety monitoring terminal is fixing to required position, after inserting the power cord, wisdom formula power consumption safety monitoring terminal often exposes outdoors with the power cord joint region, and the piling up of trying the dust produces the conflagration extremely easily to bolt when fixed to the power cord is most directly exposed outdoors, and long-time dust is piled up and is corroded the bolt extremely easily and lead to power cord and the unable dismantlement of wisdom formula power consumption safety monitoring terminal.

SUMMERY OF THE UTILITY MODEL

The present invention is directed to an intelligent power consumption safety monitoring terminal, so as to solve the problems in the background art.

In order to achieve the purpose, the utility model provides the following technical scheme: the device comprises a device main body, the device main body includes draw-in groove, base and card hole, the draw-in groove is seted up to the left and right sides below of device main part, pedestal mounting is to the bottom of device main part, the card hole is horizontal equidistance and arranges and set up to both sides around the top of device main part, and first circuit board passes through the inside top of nut fixed to the device main part, and the second circuit board passes through the top middle part that the nut is fixed to the base, both sides mid-mounting has the slide around the device main part, both sides below fixedly connected with baffle around the device main part, the plug wire fixture block that is horizontal equidistance and arranges is installed to both sides bottom around the device main part.

Further preferably, a sliding groove matched with the sliding plate is formed in one side face, close to the sliding plate, of the device main body, and the bottom end of the sliding plate is tightly attached to the upper portion of the clamping hole.

It is further preferred that the baffle is inclined fifteen degrees upwardly from a side close to the apparatus body to a side remote from the apparatus body.

Further preferably, the top end of the baffle is an outer convex arc surface.

Further preferably, the inside below fixedly connected with card line base of plug wire fixture block, the top of plug wire fixture block is provided with the card line board, the downthehole bolt that is equipped with of card, and the bolt bottom extends to card line board top.

Further preferably, the wire base is inclined thirty degrees from top to bottom away from one side of the device body.

Further preferably, the cross section of the line clamping plate is in an inclined 7 shape.

Compared with the prior art, the utility model has the beneficial effects that:

1. this kind of wisdom formula power consumption safety monitoring terminal, through installing the slide, the slide can protect the bolt in the jack for lead to the unable power cord of inserting in the follow stage dismantlement plug card piece in the difficult entering bolt of external dust.

2. This kind of wisdom formula power consumption safety monitoring terminal, through installing the baffle, the baffle can block the regional top of plug wire fixture block for dust impurity is difficult for dropping inside the plug wire fixture block, and in case water spills carelessly to the device main part top simultaneously and flows to the plug wire fixture block region time, the baffle can block the regional water of convection current to plug wire fixture block, and curved baffle can be to the water of blockking to both sides water conservancy diversion simultaneously.

3. This kind of wisdom formula power consumption safety monitoring terminal, through installing the card line board, in case when water ash dirt got into the card line of plug block, ash dirt water all can be through the radian of card line base to keeping away from device main part lopsidedness water conservancy diversion to when the card line board receives the bolt to drive downwards with external power cord and card line base fixed, the card line board of 7 characters can play the nature of sheltering from to the power cord of fixed card line base top, make dust impurity or water all be difficult for entering card line base and power cord contact area.

Drawings

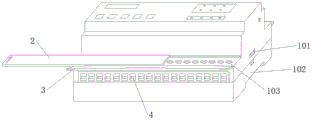

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a partial structural view of the main body of the device of the present invention;

FIG. 3 is a schematic view of a partial structure of a plug card block according to the present invention;

FIG. 4 is a schematic top plan view of the device body and base of the present invention in disassembled configuration;

in the figure: the device comprises a device body 1, a card slot 101, a base 102, a card hole 103, a first circuit board 104, a second circuit board 105, a sliding plate 2, a baffle 3, a plug wire fixture block 4, a card wire base 401 and a card wire board 402.

Detailed Description

Referring to fig. 1-4, the present embodiment provides a technical solution: the utility model provides an intelligent power consumption safety monitoring terminal, including device main part 1, device main part 1 includes draw-in groove 101, base 102 and card hole 103, draw-in groove 101 is seted up to the left and right sides below of device main part 1, base 102 installs to the bottom of device main part 1, card hole 103 is horizontal equidistance and arranges and set up to the top front and back both sides of device main part 1, first circuit board 104 passes through the inside top of nut fixed to device main part 1, second circuit board 105 passes through the top middle part that the nut is fixed to base 102, both sides mid-mounting has slide 2 around the device main part 1, both sides below fixedly connected with baffle 3 around the device main part 1, plug wire fixture block 4 that is horizontal equidistance and arranges is installed to the both sides bottom around device main part 1.

Preferably, the device main part 1 is close to the side of slide 2 and has been seted up with slide 2 assorted spout, and the card hole 103 top of closely laminating in slide 2's bottom, when fixed back to external power cord and plug wire fixture block 4, the user can move slide 2 right through manual stirring for slide 2 is sheltered from to card hole 103 region, makes the difficult corruption of bolt in the card hole 103 lead to the card pause to damage.

Preferably, the baffle 3 is inclined upwards by fifteen degrees from the side close to the device body 1 to the side far away from the device body 1, and the baffle 3 with the inclined angle can block water quality and dust flowing to the area of the plug wire fixture block 4.

Preferably, the top of baffle 3 is evagination arc surface, and when baffle 3 stopped water or dust, water and dust can carry out the water conservancy diversion to both sides through the inclination of baffle 3 for 3 upper surfaces of baffle are difficult for attaching to impurity or quality of water.

Preferably, a wire clamping base 401 is fixedly connected to the lower portion of the inside of the plug wire clamping block 4, a wire clamping plate 402 is arranged above the plug wire clamping block 4, a bolt is arranged in the clamping hole 103, and the bottom end of the bolt extends to the upper portion of the wire clamping plate 402.

Preferably, one side surface of the wire clamping base 401, which is far away from the device body 1, is inclined by thirty degrees from top to bottom, so that when water is carelessly splashed into the wire plugging fixture block 4, the water can be guided to the side far away from the device body 1 through the inclination angle of the wire clamping base 401, and the water is not easy to remain in the wire plugging fixture block 4.

Preferably, the cross section of the wire clamping plate 402 is in an inclined 7 shape, when the bolt in the rotating clamping hole 103 drives the wire clamping plate 402 to tightly attach a power line to the upper side of the wire clamping base 401, the 7-shaped wire clamping plate 402 can shield the wire plugging fixture block 4 from the side of the device main body 1 and the wire clamping base 401, so that dust and water are not easy to enter the region of the wire plugging fixture block 4.

The working principle is as follows:

firstly, a user inserts a power line to be accessed into the plug wire fixture block 4, then, when the bolt in the clamping hole 103 is rotated by an external tool to drive the wire clamping plate 402 to downwards tightly attach the power line to the upper part of the wire clamping base 401, the 7-shaped wire clamping plate 402 can shield one side of the plug wire fixture block 4, which is far away from the device main body 1, from the wire clamping base 401, so that dust and water are not easy to enter the area of the plug wire fixture block 4;

then, slide 2 can move right along the spout behind the bolt that uses in the card hole 103, shelters from card hole 103 top for dust impurity is difficult for getting into and causes the corrosion damage to the bolt in the card hole 103, and finally, baffle 3 can block certainly the dust that 4 regional drops of bolt fixture block, makes difficult dust impurity that piles up in the plug wire fixture block 4 cause the potential safety hazard.

Claims (7)

1. The utility model provides an intelligent power consumption safety monitoring terminal, includes device main part (1), device main part (1) includes draw-in groove (101), base (102) and card hole (103), draw-in groove (101) are seted up to the left and right sides below of device main part (1), base (102) are installed to the bottom of device main part (1), card hole (103) are horizontal equidistance and arrange and set up to the top front and back both sides of device main part (1), and first circuit board (104) are fixed to the inside top of device main part (1) through the nut, and second circuit board (105) are fixed to the top middle part of base (102) through the nut, its characterized in that: the device is characterized in that sliding plates (2) are mounted in the middle of the front side and the rear side of the device main body (1), baffle plates (3) are fixedly connected to the lower portions of the front side and the rear side of the device main body (1), and plug wire clamping blocks (4) which are transversely arranged at equal intervals are mounted at the bottom ends of the front side and the rear side of the device main body (1).

2. The intelligent power consumption safety monitoring terminal of claim 1, wherein: a side face, close to the sliding plate (2), of the device main body (1) is provided with a sliding groove matched with the sliding plate (2), and the bottom end of the sliding plate (2) is tightly attached to the upper portion of the clamping hole (103).

3. The intelligent power consumption safety monitoring terminal of claim 1, wherein: the baffle (3) inclines upwards by fifteen degrees from one side close to the device body (1) to one side far away from the device body (1).

4. The intelligent electricity safety monitoring terminal of claim 1 or 3, wherein: the top end of the baffle (3) is an outward convex arc surface.

5. The intelligent power consumption safety monitoring terminal of claim 1, wherein: the wire clamping device is characterized in that a wire clamping base (401) is fixedly connected to the lower portion of the inner portion of the wire plugging clamping block (4), a wire clamping plate (402) is arranged above the wire plugging clamping block (4), a bolt is arranged in the clamping hole (103), and the bottom end of the bolt extends to the upper portion of the wire clamping plate (402).

6. The intelligent power consumption safety monitoring terminal of claim 5, wherein: the side surface of the wire clamping base (401) far away from the device main body (1) inclines for thirty degrees from top to bottom.

7. The intelligent power consumption safety monitoring terminal of claim 5, wherein: the cross section of the wire clamping plate (402) is in an inclined 7 shape.
