Abstract
The utility model relates to the technical field of glasses leg hinges, and discloses a glasses leg hinge structure which comprises a hinge frame, wherein the inner surface of the hinge frame is fixedly connected with a first frame, the upper surface of the first frame is fixedly connected with a second frame, the inner bottom surface of the second frame is connected with two sliding plates in a sliding manner, the outer surface of the hinge frame is movably connected with a rotating rod, the outer surface of the rotating rod is fixedly connected with a bidirectional threaded rod, and by arranging a movable plate, when the movable plate is acted by external force, the movable plate can change the angle and incline, because the external surface of the telescopic rod is provided with the spring, therefore, when the mirror bracket is arranged at the bottom, the two telescopic rods can be lifted due to the limiting effect of the spring to drive the idler wheels to slide to drive the two movable plates to move relatively to clamp the mirror bracket tightly.
Description
Technical Field
The utility model relates to the technical field of glasses leg hinges, in particular to a glasses leg hinge structure.
Background
Glasses (glasses) are a combination of lenses and frames for vision improvement, eye protection, or decorative purposes. The glasses can correct various vision problems including myopia, hyperopia, astigmatism, presbyopia, strabismus or amblyopia, and the glasses comprise lenses and a frame. The glasses include myopia glasses, hyperopia glasses, presbyopic glasses, astigmatic glasses, plain glasses, computer goggles, swimming goggles, night vision goggles, electronic competition game goggles, electronic competition goggles, sunglasses, toy glasses and sunglasses 15. There are also special glasses for watching 3D stereoscopic images or virtual real images.
Along with glasses use more and more extensively in people's daily life, not only can regard as the hinge that the correction of people's eyes can also provide help for people in various environment, consequently the demand of glasses is bigger and bigger because the hinge of the constitution part of glasses be spectacle frame, glasses leg and connection, but most glasses leg hinges all are the application that the pertinence used can not be extensive on the market at present, consequently, this novel glasses leg hinge structure can be better through adjustable glasses leg hinge structure this problem of solution.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide an indoor transformer cabinet body which is convenient to install and wide in application range.
The technical purpose of the utility model is realized by the following technical scheme: a transformer cabinet body applied indoors comprises a hinged frame, wherein a first frame is fixedly connected to the inner surface of the hinged frame, a second frame is fixedly connected to the upper surface of the first frame, two sliding plates are slidably connected to the inner bottom surface of the second frame, a rotating rod is movably connected to the outer surface of the hinged frame, a bidirectional threaded rod is fixedly connected to the outer surface of the rotating rod, the outer surface of the bidirectional threaded rod is in threaded connection with the inner surfaces of the two sliding plates, two fixed plates are fixedly connected to the inner surface of the second frame, telescopic rods are fixedly connected to the upper surfaces of the two fixed plates, the output end of each telescopic rod is movably connected with a roller, two movable plates are movably connected to the inner surface of the second frame, the outer surface of each roller is slidably connected with the lower surfaces of the movable plates, and a third frame is fixedly connected to the inner surface of the hinged frame, the inside top surface fixedly connected with slide bar of third frame, the surface sliding connection of slide bar has first concave plate, the surface swing joint of articulated frame has the second threaded rod, the surface of second threaded rod and the internal surface threaded connection of first concave plate, the internal surface fixedly connected with second concave plate of third frame.
Through adopting above-mentioned technical scheme, can become adjustable state with the junction of mirror holder and mirror leg, both guaranteed both ends can fixed connection, also guaranteed the wide advantage of this glasses leg hinge structure application scope.
The utility model is further provided with: the lower end of the second threaded rod is movably connected with the inner surface of the second concave plate, and the upper end of the second threaded rod is provided with a first baffle.
Through adopting above-mentioned technical scheme, first baffle is for making things convenient for operating personnel to twist the second threaded rod rather than pleasing to the eye.
The utility model is further provided with: the inner surfaces of the two sliding plates are provided with first rubber pads, and the inner surfaces of the two movable plates are provided with second rubber pads.
Through adopting above-mentioned technical scheme, first rubber pad and second rubber pad all are for the connection of better protection mirror holder and glasses leg hinge.
The utility model is further provided with: two the output of telescopic link all is provided with the spring, and the surface of bull stick is provided with the second baffle.
By adopting the technical scheme, the second baffle is convenient for operators to twist the rotating rod and is not attractive.
The utility model is further provided with: the one end that the bull stick was kept away from to two-way threaded rod and the internal surface swing joint of first frame, two the lower surface of fly leaf all is provided with the spout.
Through adopting above-mentioned technical scheme, the spout is for the slip of convenient gyro wheel for the fly leaf can take place the slope.
The utility model is further provided with: two the surface of fly leaf all is provided with the hinge, and the output of telescopic link is provided with the limiting plate.
Through adopting above-mentioned technical scheme, the limiting plate on the telescopic link can provide a spacing effect for the spring.
The utility model has the beneficial effects that: along with the increasing demand of the glasses, the production and the assembly of the glasses are expanded, but hinge chains between spectacle frames and spectacle legs on the market are usually only matched singly, so that most spectacle frames and spectacle legs cannot be matched, and the replacement of accessories is very troublesome after the spectacle frames and the spectacle legs are damaged for a long time; due to the flexibility of the adjustable structure, the parts can be replaced and maintained more conveniently in daily life.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings needed to be used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings based on these drawings without creative efforts.

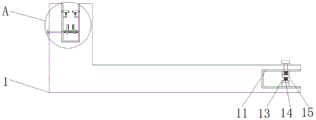

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is an enlarged view of the utility model at a in fig. 1.
Fig. 3 is a cross-sectional view of the third frame of fig. 1 in a transverse direction according to the present invention.
In the figure, 1, a hinge frame; 2. a first frame; 3. a second frame; 4. a sliding plate; 5. a rotating rod; 6. A bidirectional threaded rod; 7. a fixing plate; 8. a telescopic rod; 9. a roller; 10. a movable plate; 11. a third frame; 12. a slide bar; 13. a first concave plate; 14. a second threaded rod; 15. a second concave plate.
Detailed Description
The technical solution of the present invention will be clearly and completely described below with reference to specific embodiments. It is to be understood that the described embodiments are merely a few embodiments of the utility model, and not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments of the present invention without any inventive step, are within the scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a technical scheme of a transformer cabinet body applied indoors comprises a hinged frame 1, wherein a first frame 2 is fixedly connected to the inner surface of the hinged frame 1, a second frame 3 is fixedly connected to the upper surface of the first frame 2, two sliding plates 4 are slidably connected to the inner bottom surface of the second frame 3, a rotating rod 5 is movably connected to the outer surface of the hinged frame 1, a two-way threaded rod 6 is fixedly connected to the outer surface of the rotating rod 5, the outer surface of the two-way threaded rod 6 is in threaded connection with the inner surfaces of the two sliding plates 4, two fixed plates 7 are fixedly connected to the inner surface of the second frame 3, telescopic rods 8 are fixedly connected to the upper surfaces of the two fixed plates 7, an output end of each telescopic rod 8 is movably connected with a roller 9, two movable plates 10 are movably connected to the inner surface of the second frame 3, the outer surface of each roller 9 is slidably connected to the lower surface of each movable plate 10, and a third frame 11 is fixedly connected to the inner surface of the hinged frame 1, the inside top surface fixedly connected with slide bar 12 of third frame 11, the surface sliding connection of slide bar 12 has first notch plate 13, and the surface swing joint of articulated frame 1 has second threaded rod 14, and the surface of second threaded rod 14 and the internal surface threaded connection of first notch plate 13, the internal surface fixedly connected with second notch plate 15 of third frame 11.
Preferably, the lower end of the second threaded rod 14 is movably connected with the inner surface of the second concave plate 15, and the upper end of the second threaded rod 14 is provided with a first baffle which is convenient for an operator to twist the second threaded rod 14 and is not beautiful.
Preferably, the inner surfaces of the two sliding plates 4 are provided with first rubber pads, the inner surfaces of the two movable plates 10 are provided with second rubber pads, and the first rubber pads and the second rubber pads are used for better protecting the connection between the spectacle frame and the spectacle leg hinge.
Preferably, the output ends of the two telescopic rods 8 are provided with springs, the outer surface of the rotating rod 5 is provided with a second baffle, and the second baffle is convenient for operators to twist the rotating rod 5 and is not attractive.
Preferably, one end of the bidirectional threaded rod 6, which is far away from the rotating rod 5, is movably connected with the inner surface of the first frame 2, and the lower surfaces of the two movable plates 10 are both provided with sliding grooves, which are used for facilitating the sliding of the rollers 9, so that the movable plates 10 can be inclined.
Preferably, the outer surfaces of the two movable plates 10 are provided with hinges, the output end of the telescopic rod 8 is provided with a limiting plate, and the limiting plate on the telescopic rod 8 can provide a limiting effect for the spring.
The working principle is as follows: the security of each structure of this device of prior inspection before the use, through setting up fly leaf 10, receive the exogenic action as fly leaf 10, the fly leaf 10 will take place the change of angle and take place the slope, because the surface of telescopic link 8 is provided with the spring, so when the bottom is installed to the mirror holder, two telescopic links 8 will drive gyro wheel 9 because the spacing effect of spring will rise and begin to slide and drive two fly leaves 10 relative motion and press from both sides the mirror holder tightly, through setting up the commentaries on classics futilely 5, will drive two-way threaded rod 6 when wrench movement bull stick 5 and begin to rotate. The two sliding plates 4 are driven to displace by the rotation of the two-way threaded rod 6, and the two sliding plates 4 move relatively and parallelly to clamp the spectacle frame because the sliding plates 4 are connected with the bottom surface of the second frame 3 in a sliding manner.
Through setting up third frame 11, slide bar 12 inside third frame 11 has played a spacing effect, can let first notch plate 13 do displacement from top to bottom, just can reach this effect through rotating threaded rod 14, just so can make first notch plate 13 and the cooperation of second notch plate 14 clip the mirror leg.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Moreover, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus, and any standard components found in known art that may be commercially available or commercially available and may be readily customized based on the teachings of the specification and the drawings, and that the particular connection between the various components is by conventional means well known in the art, and that the machine, component, or apparatus is by model and circuit connection is by conventional means well known in the art, and will not be described in detail herein.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. A spectacle arm hinge structure, includes articulated frame (1), its characterized in that: the inner surface of the hinged frame (1) is fixedly connected with a first frame (2), the upper surface of the first frame (2) is fixedly connected with a second frame (3), the inner bottom surface of the second frame (3) is slidably connected with two sliding plates (4), the outer surface of the hinged frame (1) is movably connected with a rotating rod (5), the outer surface of the rotating rod (5) is fixedly connected with a bidirectional threaded rod (6), the outer surface of the bidirectional threaded rod (6) is in threaded connection with the inner surfaces of the two sliding plates (4), the inner surface of the second frame (3) is fixedly connected with two fixed plates (7), the upper surfaces of the two fixed plates (7) are both fixedly connected with telescopic rods (8), the output ends of the telescopic rods (8) are movably connected with idler wheels (9), and the inner surface of the second frame (3) is movably connected with two movable plates (10), the surface of gyro wheel (9) and the lower surface sliding connection of fly leaf (10), the internal surface fixedly connected with third frame (11) of articulated frame (1), the inside top surface fixedly connected with slide bar (12) of third frame (11), the surface sliding connection of slide bar (12) has first concave plate (13), the surface swing joint of articulated frame (1) has second threaded rod (14), the surface of second threaded rod (14) and the internal surface threaded connection of first concave plate (13), the internal surface fixedly connected with second concave plate (15) of third frame (11).
2. The temple hinge structure of claim 1, wherein: the lower end of the second threaded rod (14) is movably connected with the inner surface of the second concave plate (15), and a first baffle plate is arranged at the upper end of the second threaded rod (14).
3. The temple hinge structure of claim 1, wherein: the inner surfaces of the two sliding plates (4) are provided with first rubber pads, and the inner surfaces of the two movable plates (10) are provided with second rubber pads.
4. The temple hinge structure of claim 1, wherein: the output ends of the two telescopic rods (8) are provided with springs, and the outer surface of the rotating rod (5) is provided with a second baffle.
5. The temple hinge structure of claim 1, wherein: one end, far away from the rotating rod (5), of the bidirectional threaded rod (6) is movably connected with the inner surface of the first frame (2), and the lower surfaces of the movable plates (10) are provided with sliding grooves.
6. The temple hinge structure of claim 1, wherein: the outer surfaces of the two movable plates (10) are provided with hinges, and the output end of the telescopic rod (8) is provided with a limiting plate.
