CN216308821U

CN216308821U - Quick gauge for mounting plate of high-voltage box of new energy automobile charger

Info

Publication number: CN216308821U
Application number: CN202122570479.0U
Authority: CN
Inventors: 邹福宏
Original assignee: Zhejiang Zoupai Technology Co ltd
Current assignee: Zhejiang Zoupai Technology Co ltd
Priority date: 2021-10-25
Filing date: 2021-10-25
Publication date: 2022-04-15
Anticipated expiration: 2031-10-25

Abstract

The utility model discloses a quick inspection tool for a high-voltage box mounting plate of a new energy vehicle charger, which comprises a base plate, a handle and a positioning mechanism. The surface of the base plate is provided with more than two measuring holes, a handle is fixed on one side of the base plate, and the base plate is A positioning mechanism is also provided on one side of the handle, and the handle is detachably connected with the positioning mechanism. The utility model proposes a quick inspection tool for a high-voltage box mounting plate of a new energy vehicle charger. By drilling a plurality of inspection holes on the base plate, the inspection holes and the holes of all the pressure riveting nuts to be inspected are one by one during inspection. Correspondingly, the staff can quickly find out the substandard products and improve the detection efficiency.

Description

Quick gauge for mounting plate of high-voltage box of new energy automobile charger

Technical Field

The utility model relates to the technical field of automobile accessories, in particular to a quick gauge for a high-voltage box mounting plate of a new energy automobile charger.

Background

In the mounting plate manufacturing process, in order to determine whether the position and the size of the pressure riveting nut meet the production requirements, a micrometer and a vernier caliper are usually adopted for detection, the detection speed is low, the efficiency is low, the manual reading error rate is high, and the final quality of a product is influenced.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problems of low manual detection speed and low efficiency. In order to overcome the defects of the prior art, the utility model provides the quick detection tool for the high-voltage box mounting plate of the new energy automobile charger.

In order to achieve the purpose, the utility model adopts the following technical scheme:

the utility model provides a quick detection tool for a high-voltage box mounting plate of a new energy automobile charger, which comprises a base plate, a handle and a positioning mechanism, wherein more than two measuring holes are formed in the surface of the base plate, the handle is fixed on one side of the base plate, the positioning mechanism is further arranged on one side of the base plate, and the handle is detachably connected with the positioning mechanism.

In a preferred technical scheme of the utility model, the positioning mechanism comprises a supporting table, a telescopic guide pillar, a positioning block, a magnetic adsorption component and a connecting component, wherein the telescopic guide pillar is fixedly arranged on the supporting table, the positioning block is fixedly arranged below the supporting table, a working cavity is formed in the supporting table, the magnetic adsorption component is arranged in the working cavity, and the connecting component is fixedly arranged at the top of the telescopic guide pillar.

In a preferred technical scheme of the utility model, the magnetic adsorption component comprises a press switch, a power supply and an electromagnet, the press switch is embedded in the top of the support platform, the power supply and the electromagnet are fixedly arranged in the working cavity, and the press switch and the electromagnet are both electrically connected with the power supply.

In a preferred technical scheme of the utility model, the connecting assembly comprises a fixing block, a scale and a fastening bolt, the fixing block is fixedly arranged on the telescopic guide pillar, a through hole is formed in one side of the fixing block, the handle is inserted into the through hole, the scale is fixedly arranged on the handle, a threaded hole is further formed in the fixing block, the threaded hole is communicated with the through hole, and the fastening bolt is in threaded connection with the threaded hole.

In a preferred embodiment of the present invention, the base plate and the grip are integrally formed.

The utility model has the beneficial effects that:

1. the utility model provides a quick detection tool for a high-voltage box mounting plate of a new energy automobile charger.

2. The utility model provides a quick detection tool for a high-voltage box mounting plate of a new energy automobile charger, which is provided with a positioning mechanism, replaces the traditional mode of manually moving a base plate to align detection holes, and realizes quick alignment, so that the economic loss caused by misjudgment of workers due to misoperation is prevented.

Drawings

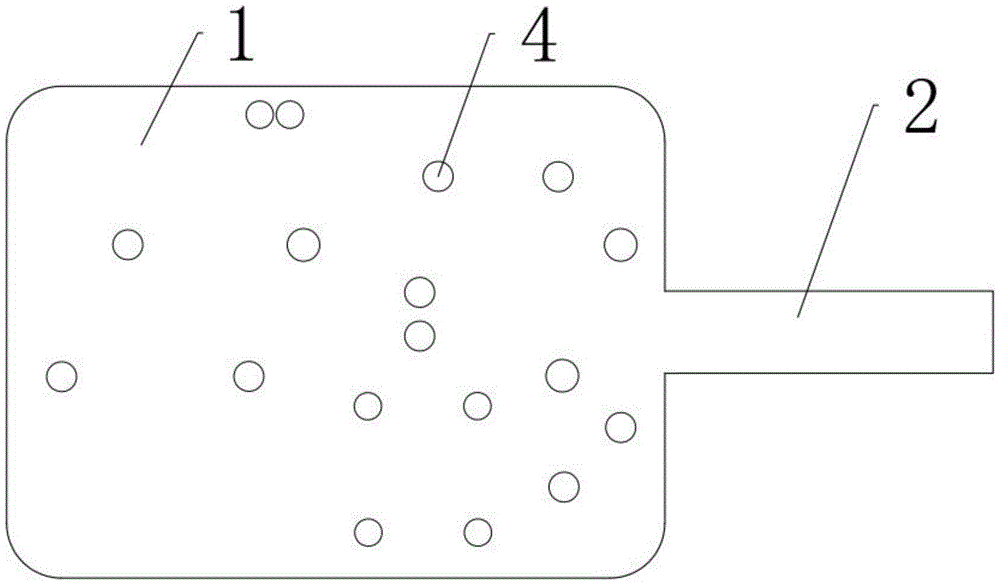

FIG. 1 is a schematic structural view of a gauge;

FIG. 2 is a schematic view of the positioning mechanism;

fig. 3 is a schematic view of the working state of the present invention.

In the figure:

1. a substrate; 2. a grip; 3. a positioning mechanism; 31. a support table; 32. a telescopic guide post; 33. positioning blocks; 34. a magnetic adsorption assembly; 341. a push switch; 342. a power source; 343. an electromagnet; 35. a connecting assembly; 351. a fixed block; 352. a scale; 353. fastening a bolt; 354. a through hole; 355. a threaded hole; 36. a working chamber; 4. and (6) measuring the hole.

Detailed Description

The technical scheme of the utility model is further explained by the specific implementation mode in combination with the attached drawings.

As shown in fig. 1-3, the embodiment provides a quick detection tool for a new energy automobile charger high-voltage box mounting plate, which includes a substrate 1, a handle 2 and a positioning mechanism 3, wherein the surface of the substrate 1 is provided with more than two measuring holes 4, the handle 2 is fixed on one side of the substrate 1, the positioning mechanism 3 is further arranged on one side of the substrate 1, and the handle 2 is detachably connected with the positioning mechanism 3. In this embodiment, the aperture and the position of the measuring hole 4 correspond to the press-riveting nut to be detected one by one. During the use, at first with 3 joints of positioning mechanism in waiting to detect the edge of piece, and then make measuring hole 4 on the base plate 1 and wait to detect the hole site automatic alignment of the pressure rivet nut, improved staff's alignment speed, then the staff can once carry out manual identification to a plurality of hole sites through observing measuring hole 4 to select unqualified product fast, improve detection speed and detection efficiency.

Specifically, positioning mechanism 3 includes supporting bench 31, flexible guide pillar 32, locating piece 33, magnetism adsorbs subassembly 34 and coupling assembling 35, and flexible guide pillar 32 sets firmly on supporting bench 31, and locating piece 33 sets firmly in supporting bench 31 below, has seted up working chamber 36 in the supporting bench 31, and magnetism adsorbs subassembly 34 to set up in working chamber 36, and the top of flexible guide pillar 32 sets firmly coupling assembling 35. The during operation, at first place brace table 31 on waiting to detect the piece, and make locating piece 33 joint in waiting to detect the border position of piece, thereby realize quick location, then push down handle 2, handle 2 drives coupling assembling 35 and moves down and compress flexible guide pillar 32 in step, make brace table 31 compressed tightly in waiting to detect a surface, and then make magnetism adsorb subassembly 34 start, thereby on being fixed in to waiting to detect the piece with brace table 31, avoid detecting in-process base plate 1 to slide, cause measuring hole 4 dislocation, the influence detects speed.

Specifically, the magnetic adsorption assembly 34 includes a push switch 341, a power source 342, and an electromagnet 343, the push switch 341 is embedded on the top of the supporting platform 31, the power source 342 and the electromagnet 343 are fixedly disposed in the working chamber 36, and the push switch 341 and the electromagnet 343 are electrically connected to the power source 342. In this embodiment, when the grip 2 moves downwards, the push switch 341 is triggered to energize the power source 342 and the electromagnet 343, so that the electromagnet 343 generates magnetic force, and the support platform 31 is firmly adsorbed on the surface of the object to be measured, thereby preventing the object to be measured from shaking during measurement and affecting the measurement result; after the detection is completed, the handle 2 moves up under the action of the telescopic guide pillar 32, so that the press switch 341 resets, the electromagnet 343 loses the magnetic force, the support table 31 is not adsorbed on the piece to be detected, and at the moment, the worker can take away the substrate 1 and detect the next piece to be detected, so that the operation is convenient.

Specifically, coupling assembling 35 includes fixed block 351, scale 352 and fastening bolt 353, and fixed block 351 sets firmly on flexible guide pillar 32, and through-hole 354 has been seted up to fixed block 351 one side, and handle 2 pegs graft in through-hole 354, has set firmly scale 352 on the handle 2, has still seted up threaded hole 355 on the fixed block 351, and threaded hole 355 and through-hole 354 intercommunication, fastening bolt 353 threaded connection are in threaded hole 355. In this embodiment, the scale 352 is used to measure the extension length of the grip 2, so that the worker can adjust the position of the substrate 1 in time according to the model of the product, thereby improving the detection speed. The fastening bolt 353 is adjusted to fix the grip 2, so that the grip can be prevented from sliding in the through hole 354 to influence the detection result.

Specifically, the base plate 1 and the grip 2 are integrally formed. The base plate 1 and the handle 2 are integrally formed to replace welding fixation, so that no weak point exists at the joint, and the service life of the equipment is prolonged.

While the utility model has been described with reference to a preferred embodiment, it will be understood by those skilled in the art that various changes may be made and equivalents may be substituted for elements thereof without departing from the spirit and scope of the utility model. The present invention is not to be limited by the specific embodiments disclosed herein, and other embodiments that fall within the scope of the claims of the present application are intended to be within the scope of the present invention.

Claims

1. The utility model provides a new energy automobile quick-witted high-pressure box mounting panel of charging quick-witted which characterized in that: the measuring device comprises a base plate (1), a handle (2) and a positioning mechanism (3), wherein more than two measuring holes (4) are formed in the surface of the base plate (1), the handle (2) is fixed on one side of the base plate (1), the positioning mechanism (3) is further arranged on one side of the base plate (1), and the handle (2) is detachably connected with the positioning mechanism (3).

2. The quick gauge for the mounting plate of the high-voltage box of the new energy automobile charger according to claim 1 is characterized in that: positioning mechanism (3) are including supporting bench (31), flexible guide pillar (32), locating piece (33), magnetism adsorbs subassembly (34) and coupling assembling (35), and flexible guide pillar (32) set firmly on supporting bench (31), and locating piece (33) set firmly in supporting bench (31) below, has seted up working chamber (36) in supporting bench (31), and magnetism adsorbs subassembly (34) to set up in working chamber (36), and the top of flexible guide pillar (32) has set firmly coupling assembling (35).

3. The quick gauge for the mounting plate of the high-voltage box of the new energy automobile charger according to claim 2 is characterized in that: the magnetic adsorption component (34) comprises a press switch (341), a power supply (342) and an electromagnet (343), the press switch (341) is embedded at the top of the support table (31), the power supply (342) and the electromagnet (343) are fixedly arranged in the working cavity (36), and the press switch (341) and the electromagnet (343) are both electrically connected with the power supply (342).

4. The quick gauge for the mounting plate of the high-voltage box of the new energy automobile charger according to claim 2 is characterized in that: coupling assembling (35) are including fixed block (351), scale (352) and fastening bolt (353), and fixed block (351) set firmly in on flexible guide pillar (32), through-hole (354) have been seted up to fixed block (351) one side, handle (2) are pegged graft in through-hole (354), have set firmly scale (352) on handle (2), still have seted up threaded hole (355) on fixed block (351), and threaded hole (355) and through-hole (354) intercommunication, fastening bolt (353) threaded connection are in threaded hole (355).

5. The quick gauge for the mounting plate of the high-voltage box of the new energy automobile charger according to claim 1 is characterized in that: the base plate (1) and the handle (2) are integrally formed.
