CN216307547U - Energy-saving LED lamp convenient to mount - Google Patents

Abstract

The present application relates to an energy-saving and easy-to-install LED lamp, which comprises a lamp housing, mounting plates are arranged on both sides of the lamp housing, a filling block is arranged in the lamp housing, and a lamp plate is also arranged in the lamp housing, LED lamp beads are installed on the lamp board, and a lamp cover is also sleeved on the lamp housing. Two fixing plates are hingedly connected to the filling block. The light plates are matched, and the fixed plate is also provided with a chute, a limit block is slidably arranged in the chute, the limit block is hingedly connected with a limit link, and a sliding rod is also slidably sleeved on the filling block. The top end of the sliding rod is fixedly connected with a pressure plate, and a spring is connected between the pressure plate and the filling block. In this application, the installation plate can be used to facilitate the installation of the lamp housing, and the limit rod can be used to push the limiter. The position block slides in the chute, and pushes the fixed plate to rotate, which is convenient to squeeze and fix the light plate, and it is convenient to disassemble and assemble.

Description

An energy-saving and easy-to-install LED lamp

technical field

The present application relates to the technical field of LED lamps, and in particular, to an LED lamp that is energy-saving and easy to install.

Background technique

The LED light is an electroluminescent semiconductor material chip, which is cured on the bracket with silver glue or white glue, and then connects the chip and the circuit board with silver or gold wires, and is sealed with epoxy resin around it to protect the inner core wire. As a category of general lighting, LED lights are named from traditional lighting bulbs and energy-saving lamps, and LED lights have the characteristics of low cost, high luminous efficiency, large luminous area, no glare and no ghosting.

However, the existing LED lamps are mostly bonded to the lamp housing through glue after the circuit connection is completed, which is not convenient for disassembly and assembly. Therefore, those skilled in the art provide an energy-saving and easy-to-install LED lamp to solve the above-mentioned problems in the background art.

Utility model content

In order to solve the problems raised in the above-mentioned background art, the present application provides an LED lamp that is energy-saving and easy to install.

An energy-saving and easy-to-install LED lamp provided by the application adopts the following technical solutions:

An energy-saving and easy-to-install LED lamp includes a lamp housing, mounting plates are arranged on both sides of the lamp housing, a filling block is arranged in the lamp housing, a lamp plate is also arranged in the lamp housing, and the lamp plate is arranged in the lamp housing. LED lamp beads are installed thereon, and the lamp housing is also sleeved with a lamp cover. The filling block is hingedly connected with two fixing plates. The bottom of the fixing plate is provided with a buffer pad, and the fixing plate is matched with the lamp plate. , and the fixing plate is also provided with a chute, a limit block is slidably arranged in the chute, and a limit link is hingedly connected to the limit block.

By adopting the above technical solution, the lamp housing can be easily installed through the installation plate, and the limit block can be pushed to slide in the chute through the limit link, and the fixed plate can be pushed to rotate, so that the lamp plate can be easily squeezed It is easy to fix and disassemble.

Preferably, the filling block is also slidably provided with a sliding rod, the top end of the sliding rod is fixedly connected with a pressure plate, a spring is connected between the pressure plate and the filling block, and the top end of the limit link is hingedly connected to the pressure plate.

By adopting the above technical solution, the set spring can push the pressure plate to reset, and when the pressure plate pushes the sliding rod to slide down, the limit link can be pushed to rotate.

Preferably, a wiring cavity is also opened in the filling block, an electrode plate is hingedly connected in the wiring cavity, the sliding rod is matched with the electrode plate, and both ends of the lamp board are provided with terminals, and the terminals extend to the wiring inside the cavity and electrically connected to the electrode plate.

By adopting the above technical solution, the electrode plate can be pushed to be squeezed downward through the provided sliding rod, and the terminal can be squeezed and fixed by the electrode plate, so as to facilitate the connection of the circuit.

Preferably, slideways are provided on both inner walls of the lamp housing, trigger blocks are slidably arranged in the slideways, and latches are connected to both sides of the lampshade, and the latches are matched with the slideways.

By adopting the above-mentioned technical scheme, by setting the slideway, it can be matched with the clamping block, so that the lampshade can be fixed in the lamp housing.

Preferably, grooves are provided on both sides of the lamp housing, a button is arranged in the groove, the middle of the button is hingedly connected in the groove, and the button is matched with the trigger block.

By adopting the above technical solution, the trigger block can be pushed to reset through the provided button, so that the clamping block can be pushed out of the slideway conveniently and the lampshade can be easily taken out.

To sum up, the present application includes the following beneficial technical effects:

1. When the pressure plate slides down, the slide bar can be pushed down and the spring can be squeezed, and the limit link can be pushed to rotate at the same time. Flip down, the light board can be squeezed and fixed through the buffer pad at the bottom of the fixed board, and the electrode board can be pushed to deflect downward through the sliding rod, and the electrode board can be electrically connected with the terminal to complete the circuit connection and facilitate installation.

2. The lampshade can be easily fixed in the lamp housing through the matching of the clamping block and the slideway, the pressure plate can be pressed down through the lampshade, and the button can be squeezed through the matching of the clamping block and the trigger block, and the trigger can be pushed by pressing the button. The block is reset, which is convenient to squeeze the block out of the slideway, so that it is convenient to take out the lampshade.

Description of drawings

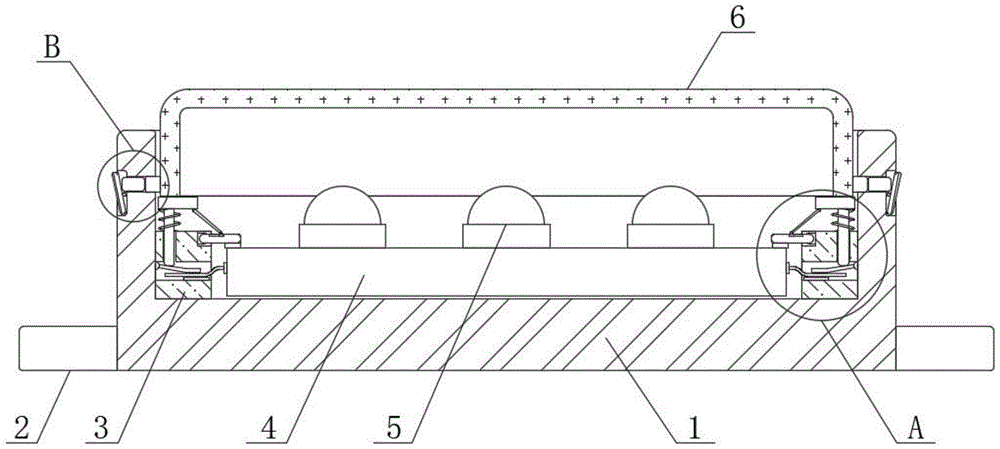

FIG. 1 is a schematic structural diagram of a side view section of an LED lamp that is energy-saving and easy to install in an embodiment of the present application;

FIG. 2 is an enlarged schematic view of the structure of part A in FIG. 1 of an energy-saving and easy-to-install LED lamp according to an embodiment of the present application;

FIG. 3 is an enlarged schematic view of the structure of part B in FIG. 1 of an energy-saving and easy-to-install LED lamp according to an embodiment of the present application.

Description of reference numerals: 1. Lamp housing; 2. Mounting plate; 3. Filling block; 4. Lamp plate; 5. LED lamp beads; 6. Lampshade; 7. Fixing plate; 8. Cushioning pad; 10, limit block; 11, limit link; 12, slide rod; 13, pressure plate; 14, spring; 15, wiring cavity; 16, electrode plate; 17, terminal; 18, slideway; 19, trigger block ; 20, block; 21, groove; 22, button.

Detailed ways

The present application will be further described in detail below in conjunction with accompanying drawings 1-3.

The embodiment of the present application discloses an LED lamp that is energy-saving and easy to install. Referring to Figures 1-3, an energy-saving and easy-to-install LED lamp includes a lamp housing 1, both sides of the lamp housing 1 are provided with mounting plates 2, and the lamp housing 1 is provided with a filling block 3, and the lamp housing 1 is also provided with The lamp board 4, the LED lamp beads 5 are installed on the lamp board 4, and the lamp cover 6 is also sleeved on the lamp housing 1, and two fixed plates 7 are hingedly connected to the filling block 3, and the bottom of the fixed plate 7 is provided with a buffer pad 8 , the fixed plate 7 is matched with the light plate 4, and the fixed plate 7 is also provided with a chute 9, and a limit block 10 is slidably arranged in the chute 9, and the limit block 10 is hingedly connected to the limit link 11. The installation plate 2 can facilitate the installation of the lamp housing 1, and through the limit link 11, the limit block 10 can be pushed to slide in the chute 9, and the fixed plate 7 can be pushed to rotate, so that the lamp plate 4 can be easily squeezed and fixed. Disassembly is easier.

In this application, a sliding rod 12 is also slidably sleeved on the filling block 3 , the top of the sliding rod 12 is fixedly connected with a pressure plate 13 , a spring 14 is connected between the pressure plate 13 and the filling block 3 , and the top of the limit link 11 is hinged Connected to the pressing plate 13, the spring 14 can push the pressing plate 13 to reset, and when the pressing plate 13 pushes the sliding rod 12 to slide down, the limiting link 11 can be pushed to rotate.

In the present application, the filling block 3 is further provided with a wiring cavity 15, the wiring cavity 15 is hingedly connected with an electrode plate 16, the sliding rod 12 is matched with the electrode plate 16, and both ends of the lamp board 4 are provided with terminals 17, and The terminal 17 extends into the wiring cavity 15 and is electrically connected with the electrode plate 16. The sliding rod 12 can push the electrode plate 16 to squeeze down, and the electrode plate 16 can squeeze and fix the terminal 17, which is convenient for communication. line.

In the present application, slideways 18 are provided on both inner walls of the lamp housing 1 , a trigger block 19 is slidably arranged in the slideway 18 , and latching blocks 20 are connected to both sides of the lampshade 6 , and the latching blocks 20 are connected to the slideway 18 . Matchingly, by arranging the slideway 18 , it can cooperate with the clamping block 20 , thereby fixing the lampshade 6 in the lamp housing 1 .

In the present application, grooves 21 are formed on both sides of the lamp housing 1, a button 22 is arranged in the groove 21, the middle of the button 22 is hingedly connected in the groove 21, and the button 22 is matched with the trigger block 19. The button 22 can push the trigger block 19 to reset, so that the clamping block 20 can be pushed out of the slideway 18 conveniently, and the lampshade 6 can be easily taken out.

The implementation principle of an energy-saving and easy-to-install LED lamp according to the embodiment of the present application is as follows: when in use, the LED lamp beads 5 are first installed on the lamp board 4, and then the lamp board 4 is placed in the lamp housing 1, so that the terminals 17 are inserted into the lamp housing 1. In the wiring cavity 15, then press down the lampshade 6, under the cooperation of the clamping block 20 and the slideway 18, the lampshade 6 can be easily installed in the lamp housing 1, and the pressure plate 13 can be pressed down through the lampshade 6. When sliding down, the slide bar 12 can be pushed down and the spring 14 can be squeezed, and the limit link 11 can be pushed to rotate at the same time, and the limit block 10 can be pushed to slide in the chute 9 through the limit link 11, and the fixed The plate 7 is turned down, and the light plate 4 can be squeezed and fixed by the buffer pad 8 at the bottom of the fixing plate 7, and the electrode plate 16 can be pushed downward by the sliding rod 12 to deflect downward, and the electrode plate 16 can be electrically connected with the terminal 17. The button 22 can be squeezed through the cooperation of the clamping block 20 and the triggering block 19, and the triggering block 19 can be reset by pressing the button 22, which is convenient for the clamping block 20 to be squeezed out of the slideway 18, thereby It is convenient to take out the lampshade 6, and it is convenient to disassemble and assemble.

The above are all preferred embodiments of the present application, and are not intended to limit the protection scope of the present application. Therefore: all equivalent changes made according to the structure, shape and principle of the present application should be covered within the scope of the present application. Inside.

Claims (5)

1. The utility model provides an energy-conserving simple to operate's LED lamp, includes lamp body (1), its characterized in that, the both sides of lamp body (1) all are provided with mounting panel (2), and are provided with filling block (3) in lamp body (1), still be provided with lamp plate (4) in lamp body (1), install LED lamp pearl (5) on lamp plate (4), and still overlap on lamp body (1) and be equipped with lamp shade (6), the articulated two fixed plates (7) that are connected with on filling block (3), the bottom of fixed plate (7) is provided with blotter (8), fixed plate (7) cooperate with lamp plate (4), and still seted up spout (9) on fixed plate (7), it is provided with stopper (10) to slide in spout (9), the articulated connecting rod that is connected with spacing (11) on stopper (10).

2. An energy-saving and convenient-to-install LED lamp as claimed in claim 1, wherein: the packing block (3) is further provided with a sliding rod (12) in a sliding sleeved mode, a pressing plate (13) is fixedly connected to the top end of the sliding rod (12), a spring (14) is connected between the pressing plate (13) and the packing block (3), and the top end of a limiting connecting rod (11) is connected to the pressing plate (13) in a hinged mode.

3. An energy-saving and convenient-to-install LED lamp as claimed in claim 1, wherein: wiring chamber (15) have still been seted up in filling block (3), the articulated plate electrode (16) that is connected with in wiring chamber (15), the both ends of lamp plate (4) all are provided with wiring end (17), and wiring end (17) extend to wiring chamber (15) in and with plate electrode (16) electric connection.

4. An energy-saving and convenient-to-install LED lamp as claimed in claim 1, wherein: slide (18) have all been seted up on the both sides inner wall of lamp body (1), it triggers piece (19) to slide to be provided with in slide (18), the both sides of lamp shade (6) all are connected with fixture block (20), and fixture block (20) and slide (18) cooperate.

5. An energy-saving LED lamp convenient to install according to claim 4, characterized in that: grooves (21) are formed in the two sides of the lamp shell (1), a button (22) is arranged in each groove (21), the middle of each button (22) is hinged in each groove (21), and the buttons (22) are matched with the trigger blocks (19).
