CN216293124U

CN216293124U - Medical convenient nursing trousers

Info

Publication number: CN216293124U
Application number: CN202122494576.6U
Authority: CN
Inventors: 胡梅芳; 赵如萍
Original assignee: Taizhou Peoples Hospital
Current assignee: Taizhou Peoples Hospital
Priority date: 2021-10-15
Filing date: 2021-10-15
Publication date: 2022-04-15
Anticipated expiration: 2031-10-15

Abstract

The utility model relates to a kind of medical convenient nursing trousers, comprising a trousers body, the trousers body is a high-waist structure, the trousers body comprises a shorts part and two trouser legs, the shorts part is made of elastic fabric, and the crotch part of the shorts part is provided with a crotch opening The front end of the crotch opening is located at the front transverse crotch of the shorts, and the front end of the crotch opening is pointed; the rear end of the crotch opening extends to the waist, and the rear end of the crotch opening is flat; The detachable crotch piece is also made of elastic fabric, the inner surface of the detachable crotch piece is provided with a sanitary pad placement area, the sanitary pad placement area is provided with a water-proof cushion, and the sanitary pad placement area is provided with leak-proof rubber strips around it. The surface of the leak-proof strip is covered with plastic film. The utility model has ingenious structure, reasonable design, simple and convenient nursing operation, is beneficial to keep the patient's perineum and buttocks clean and dry, facilitates medical examination of the perineum and buttocks, and can greatly reduce the workload of nursing staff.

Description

Medical convenient nursing trousers

Technical Field

The utility model relates to nursing articles, in particular to medical convenient nursing trousers, and belongs to the technical field of medical nursing articles.

Background

Many patients need perineum nursing clinically, for example, gynecological women, obstetrical pregnant and lying-in women need to observe, check, treat and nurse, and bedridden patients need to use and replace diapers, sanitary napkins, toilet paper and the like at perineum.

But the patient trousers commonly used in hospitals at present can cause a great deal of inconvenience to the perineum nursing work: firstly, patient trousers are often easy to be dirty, and the trousers or underpants need to be frequently replaced and cleaned, so that the workload of nursing staff is increased. Secondly, the trousers need to be taken off when changing the dressing, so that the operation is complicated, the trousers are easy to be exposed, and the privacy is exposed.

Disclosure of Invention

The utility model aims to overcome the defects in the prior art, and provides the medical convenient nursing trousers which are ingenious in structure, reasonable in design, simple and convenient in nursing operation, beneficial to keeping the perineum and the hip of a patient clean and dry, convenient for medical physical examination of the perineum and the hip and capable of greatly reducing the workload of nursing staff.

According to the technical scheme provided by the utility model: medical convenient nursing trousers, including the trousers body, its characterized in that: the trousers body is of a high waist structure and comprises a short trousers part and two trousers legs, wherein the short trousers part is made of elastic fabric, a crotch opening is formed in the crotch part of the short trousers part, the front end of the crotch opening is positioned at the front transverse crotch of the short trousers part, and the front end of the crotch opening is in a pointed shape; the rear end of the crotch opening extends to the waist of the trousers, and the rear end of the crotch opening is in a flat-head shape; the detachable crotch piece is also made of elastic fabric, a sanitary pad placing area is arranged on the inner surface of the detachable crotch piece, a water-resisting cushion layer is arranged in the sanitary pad placing area, a leakage-proof rubber strip is arranged around the sanitary pad placing area, and a plastic film is covered on the surface of the leakage-proof rubber strip.

As a further improvement of the present invention, the waterproof cushion layer comprises a soft cotton surface layer and a waterproof lining, and the waterproof lining and the soft cotton surface layer are sequentially sewn on the inner surface of the detachable crotch piece.

As a further improvement of the utility model, the short trouser part is detachably connected with the two trouser legs.

As a further improvement of the utility model, the tip of the front end of the detachable crotch piece is connected with the shorts part by a button or a snap fastener, the two sides of the detachable crotch piece are connected with the shorts part by a magic tape, and the rear end of the detachable crotch piece is connected with the waist of the trousers by a button or a snap fastener.

As a further improvement of the utility model, the waist of trousers comprises an elastic band, and the elastic band is provided with an adjusting buckle capable of adjusting the size of the waist.

As a further improvement of the utility model, the warm baby placing bag is arranged at the position of the front side surface of the trousers body, which is positioned right above the crotch opening.

Compared with the prior art, the utility model has the following advantages:

1) the perineum cleaning device is ingenious in structure and reasonable in design, the crotch opening is arranged, and the plurality of detachable crotch pieces matched in shape are arranged on the crotch opening, so that when the perineum of a patient needs to be nursed, only the detachable crotch pieces with clean sanitary pads need to be replaced correspondingly, the perineum can be cleaned in the replacement process, the whole operation process is simple and convenient, the perineum and the buttocks of the patient can be kept clean and dry, the medical physical examination of the perineum and the buttocks is facilitated, the workload of nursing staff is greatly reduced, and a patient with bleeding perineum can detach the crotch for weighing, and the bleeding amount is accurately measured.

2) The short pants part and the detachable crotch piece are both made of elastic fabrics, and the short pants part and the detachable crotch piece have elasticity, so that the short pants part and the detachable crotch piece can play a role in shaping and fixing the toilet paper/sanitary pad.

Drawings

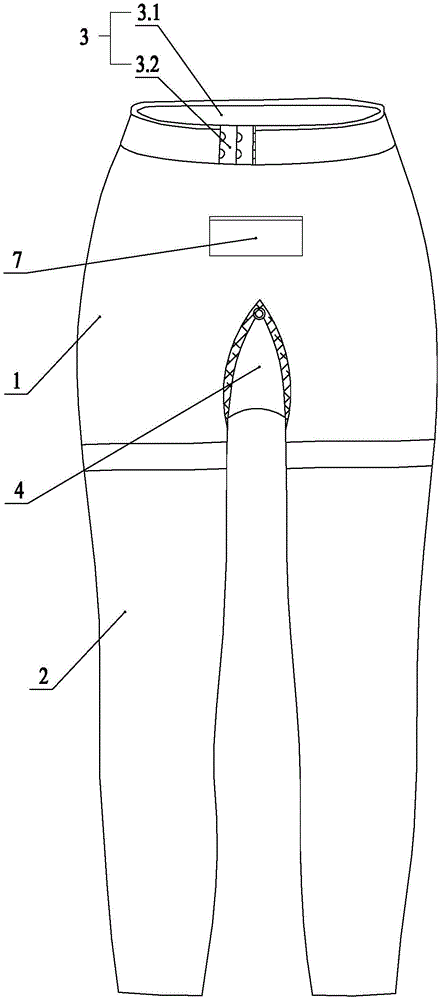

Fig. 1 is a schematic front structural view of an embodiment of the present invention.

Fig. 2 is a schematic diagram of a back structure according to an embodiment of the utility model.

Figure 3 is a schematic view of a detachable crotch panel according to an embodiment of the present invention.

Description of reference numerals: 1-shorts part, 2-legs, 3-waist, 3.1-elastic band, 3.2-adjusting buckle, 4-detachable crotch piece, 5-water-proof cushion layer, 5.1-soft surface layer, 5.2-waterproof lining, 6-leak-proof adhesive tape, 7-warm baby placing bag.

Detailed Description

The utility model is further illustrated by the following specific figures and examples.

As shown in fig. 1 to 3, the embodiment discloses a pair of medical convenient nursing pants, which comprises a pants body, wherein the pants body is of a high waist structure and comprises a pants part 1 and two pants legs 2, the pants part 1 is made of elastic fabric, a crotch opening is formed in the crotch part of the pants part 1, the front end of the crotch opening is located at the front transverse crotch of the pants part 1, and the front end of the crotch opening is in a pointed shape; the rear end of the crotch opening extends to the waist 3, and the rear end of the crotch opening is flat-head-shaped; the trousers crotch opening is provided with a detachable crotch piece 4 matched with the shape of the trousers crotch piece, the detachable crotch piece 4 is also made of elastic fabric, a sanitary pad placing area is arranged on the inner surface of the detachable crotch piece 4, a water-resisting cushion layer 5 is arranged on the sanitary pad placing area, leakage-proof rubber strips 6 are arranged around the sanitary pad placing area, and plastic films are coated on the surfaces of the leakage-proof rubber strips 6.

When the medical convenient nursing trousers are used, a patient wears the medical convenient nursing trousers, the medical convenient nursing trousers are provided with a plurality of detachable crotch pieces 4, when the perineum of the patient needs nursing, a new detachable crotch piece 4 to be replaced is prepared, a clean sanitary pad or sanitary paper is installed in a sanitary pad placing area of the detachable crotch piece 4, and a plastic film on the leakage-proof adhesive tape 6 is torn off; then assisting the patient to turn over, unfastening and removing the dirty detachable crotch piece 4 from front to back in a proper position, and when removing the dirty detachable crotch piece 4, paying attention to wrap the dirty sanitary pad or the sanitary paper in; then wash perineum, wash the completion back, change new detachable crotch piece 4 from back to front, whole operation process is simple and convenient, can clear up the perineum region at any time, keeps patient's perineum, buttock clean and dry, need not drop whole trousers in the nursing process to just need not change washing trousers yet, nursing staff's that can significantly reduce work load. The trousers body adopts the high waist design to have the function of supporting the abdomen, and the short pants part 1 and the detachable crotch piece 4 have elasticity, thus the function of shaping and fixing the toilet paper/sanitary pad can be realized. The leakage-proof rubber strip 6 can avoid the side leakage of dirt. When the perineum and the hip are examined by medical science, the snap fasteners on the front part are directly unfastened without taking off the trousers, thereby being convenient for the patient with inconvenient movement.

As shown in fig. 3, in this embodiment, the waterproof pad layer 5 includes a soft cotton surface layer 5.1 and a waterproof liner 5.2, and the waterproof liner 5.2 and the soft cotton surface layer 5.1 are sequentially sewn on the inner surface of the detachable crotch sheet 4. So set up, waterproof lining 5.2 ensures that the sanitary pad is placed the district and has good waterproof performance, and the gentle top layer of cotton 5.1 then lets the patient use comfortable.

As shown in fig. 1 and fig. 2, in this embodiment, the short pants part 1 and the two pants legs 2 are detachably connected by a detachable connection (a velcro tape or a zipper). Due to the arrangement, the medical convenient nursing pants can adopt different wearing modes in different seasons, for example, the trouser legs 2 can be directly taken off in summer, only the pants part 1 in the pants style is reserved, and a patient can wear the pants cool; the trouser legs 2 made of proper cloth are selected according to the temperature in other seasons, for example, the trouser legs 2 made of single-layer cotton cloth can be replaced when the trousers are used in spring and autumn or in an air-conditioned room, and the trouser legs 2 made of warm keeping down/cotton/down can be replaced when the trousers are used in winter, so that the patients can wear warm and comfortable.

According to the medical convenient nursing pants, the wrapping skirt is preferably matched with the medical convenient nursing pants, the outer side face of one end of the upper side of the wrapping skirt is provided with the magic tape stabbing hair, and the inner side face of the other end of the wrapping skirt is provided with the magic tape round hair. So set up, the skirt can also be wrapped up in with wearing when the medical convenient nursing trousers are worn to the patient, wrap up in skirt waist size prefabricated system has a plurality of specifications, the patient is earlier according to self abdominal girth selection suitable size, can paste the sticking connection of thorn hair and magic tape circle hair through the magic when wearing and adjust the elasticity, wrap up in the skirt and still play the effect of sheltering from in cold-proof while, avoid the exposure of crotch portion, maintain the patient image, the patient of being convenient for gets off the bed and moves about, not only beautifully but also simple and convenient.

As shown in fig. 1 to 3, in the present embodiment, the front end tip of the detachable crotch piece 4 is preferably connected to the pants part 1 by a button or a snap, both sides of the detachable crotch piece 4 are preferably connected to the pants part 1 by a hook and loop fastener, and the rear end of the detachable crotch piece 4 is preferably connected to the waist 3 by a hook and loop fastener or a snap. So set up, button or snap-fastener connection can ensure that both ends connect reliably around the formula of shirking crotch piece 4, and the magic is pasted the connection and then can make between both sides and the shorts portion 1 of formula of shirking crotch piece 4 shirk conveniently. The trouser waist 3 comprises an elastic 3.1, and an adjusting buckle 3.2 capable of adjusting the size of the waist is arranged on the elastic 3.1.

For pregnant women, the front piece of the short pants part 1 can be designed into various specifications according to the size of the pregnant week so as to adapt to the abdominal uplifting degree of the pregnant women in different pregnancy periods.

As shown in fig. 1, in the present embodiment, a baby warmer pocket 7 is provided at a position on the front side of the pants body directly above the crotch opening. So set up, the patient of body cold, palace cold can also be according to the self condition put into warm baby at warm baby placing bag 7.

The above description is only for the preferred embodiment of the present invention, and the above specific embodiments are not intended to limit the present invention. Various modifications and alterations may occur to those skilled in the art without departing from the spirit and scope of the utility model, and such modifications and alterations should be accorded the broadest interpretation so as to encompass all such modifications and alterations.

Claims

1. Medical convenient nursing trousers, including the trousers body, its characterized in that: the trousers body is of a high waist structure and comprises a short trousers part (1) and two trousers legs (2), wherein the short trousers part (1) is made of elastic fabric, a crotch opening is formed in the crotch part of the short trousers part (1), the front end of the crotch opening is positioned at the front transverse crotch of the short trousers part (1), and the front end of the crotch opening is in a pointed shape; the rear end of the crotch opening extends to the waist (3), and the rear end of the crotch opening is flat-head-shaped; the split-type trousers crotch piece (4) matched with the shape of the opening of the crotch is arranged in a matched mode, the split-type trousers crotch piece (4) is also made of elastic fabric, a sanitary pad placing area is arranged on the inner surface of the split-type trousers crotch piece (4), a water-resisting pad layer (5) is arranged in the sanitary pad placing area, leakage-proof rubber strips (6) are arranged on the periphery of the sanitary pad placing area, and a plastic film covers the surfaces of the leakage-proof rubber strips (6).

2. The medical convenience care pant of claim 1, wherein: the waterproof cushion layer (5) comprises a soft cotton surface layer (5.1) and a waterproof lining (5.2), and the waterproof lining (5.2) and the soft cotton surface layer (5.1) are sequentially sewn on the inner surface of the detachable crotch piece (4).

3. The medical convenience care pant of claim 1, wherein: the short trousers part (1) is detachably connected with the two trousers legs (2).

4. The medical convenience care pant of claim 1, wherein: the front tip of the detachable crotch piece (4) is connected with the short trousers part (1) by a button or a snap fastener, the two sides of the detachable crotch piece (4) are connected with the short trousers part (1) by a soft magic tape, and the rear end of the detachable crotch piece (4) is connected with the waist of trousers (3) by the soft magic tape or the snap fastener.

5. The medical convenience care pant of claim 1, wherein: the trouser waist (3) comprises an elastic band (3.1), and an adjusting buckle (3.2) capable of adjusting the size of the waist is arranged on the elastic band (3.1).

6. The medical convenience nursing trousers according to any one of claims 1-5, wherein: the warm baby placing bag (7) is arranged at the position, located right above the crotch opening, of the front side face of the trousers body.
