Quick convenient picking tool of folium mori

Technical Field

The utility model relates to the technical field of branch and leaf collecting tools, in particular to a rapid and convenient mulberry leaf picking tool.

Background

The mulberry industry is the traditional dominant agricultural industry in China, the silkworm breeding at the present stage is mainly completed manually, the labor intensity is high, the labor productivity is low, the comprehensive mechanization rate of the mulberry production is low, the method is not suitable for the development direction of scale, standardization and mechanization of modern agriculture, and the continuous stable and healthy development of the mulberry production is influenced. Especially, the mulberry leaf picking mainly adopts manual picking, which causes the problems of high labor cost and low productivity, and seriously restricts the development of the silkworm industry.

In recent years, researchers have also developed some mulberry leaf pickers, such as: a mulberry leaf picking machine with eccentric cam and comb teeth rod type with publication number CN103959987A, a picking device with worm and gear type driving automatic mulberry leaf picking machine with publication number CN103650769A, and the like. The appearance of the mulberry leaf picker improves the efficiency of picking mulberry leaves to a certain extent, but the mulberry leaf picker has a complex and heavy structure and cannot be flexibly used in a hilly area, namely, the mulberry leaf harvesting in the hilly area at the present stage is mainly based on the traditional manual picking. Therefore, a mulberry leaf picking tool which is light in structure, flexible to operate and suitable for hilly areas is urgently needed.

SUMMERY OF THE UTILITY MODEL

Based on the above, one of the objectives of the present invention is to provide a rapid and convenient picking tool for mulberry leaves, which can be used in hilly areas to make the picking efficiency of mulberry leaves higher.

In order to achieve the purpose, the technical scheme of the utility model is as follows:

a rapid and convenient picking tool for mulberry leaves, which comprises:

the handle comprises a first handle and a second handle, and the bottoms of the first handle and the second handle are movably connected;

the picking disc comprises a first picking disc and a second picking disc, the first picking disc is connected to the upper end of the first handle, and the second picking disc is connected to the upper end of the second handle;

the collection points are distributed on the surface of the picking disc.

Furthermore, holes are formed in the bottoms of the first handle and the second handle, and the first handle and the second handle are movably connected through the holes through bearings.

Further, the picking tool also includes a rebounding assembly mounted between the first handle and the second handle.

Furthermore, the rebounding assembly is a V-shaped spring piece, two top ends of the V-shaped spring piece are respectively attached to the inner portions of the first handle and the second handle, and the bottom end of the V-shaped spring piece is fixed through the bearing.

Further, the picking tool further comprises a connecting assembly, the connecting assembly is arranged between the handle and the picking disc, the top end of the connecting assembly is connected with the picking disc, and the bottom end of the connecting assembly is fixed to the top end of the handle through screws.

Further, the picking tool further comprises a rubber anti-slip friction sleeve, and the rubber anti-slip friction sleeve is wrapped outside the handle and the connecting assembly.

Furthermore, the first picking disc and the second picking disc are semicircular picking discs, and the middle parts of the semicircular picking discs are concentric semicircular hollows.

Furthermore, the collection points are 38 mulberry leaf collection nails which are uniformly distributed on the surface of the picking disc.

Further, the mulberry leaf collecting nails are iron nails with the length of 4 cm; the handle and the picking disc are made of iron or copper or aluminum alloy.

Furthermore, the diameter of the semicircular picking disc is 5-7cm, and the diameter of the concentric semicircular hollow is 3 cm.

Compared with the prior art, the utility model has the following advantages:

(1) compared with the traditional manual picking, the mulberry leaf picking tool provided by the utility model has the advantages that the picking disc is used for quickly picking mulberry leaves on the whole branches, meanwhile, the collection points distributed on the surface of the picking disc can collect the mulberry leaves in the picking process, and the mulberry leaves can be directly transferred to the storage container from the collection points after the mulberry leaves of the whole branches are picked, so that the picking labor and time are greatly saved, and the mulberry leaf picking efficiency is improved.

(2) Compared with a mulberry leaf picking machine in the prior art, the mulberry leaf picking tool is light in structure, convenient to operate and suitable for mulberry leaf picking work in hilly areas.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below. It is obvious that the drawings in the following description are some embodiments of the utility model, and that for a person skilled in the art, other drawings can be derived from them without inventive exercise.

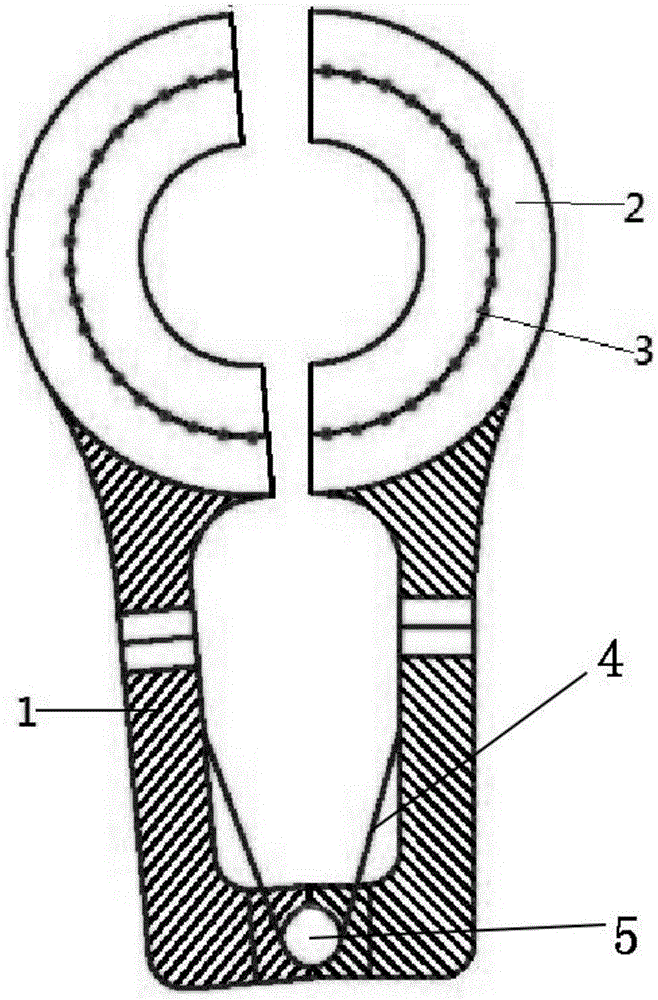

FIG. 1 is a schematic view showing an opened state of a picking tray of a mulberry leaf picking tool according to the present invention;

FIG. 2 is a schematic side view of the mulberry leaf picking tool of the present invention.

In the figure, 1-handle, 2-picking disc, 3-collecting point, 4-spring leaf and 5-bearing.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention. It is to be understood that the embodiments described are only a few embodiments of the present invention, and not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

The examples are given for the purpose of better illustration of the utility model, but the utility model is not limited to the examples. Therefore, those skilled in the art should appreciate that they can readily use the disclosed conception and specific embodiments as a basis for modifying or modifying other embodiments without departing from the scope of the present invention.

Example 1

The utility model relates to a rapid and convenient picking tool for mulberry leaves, which mainly comprises a handle 1, a picking disc 2 and collecting points 3, wherein the handle is connected with the picking disc, the collecting points are distributed on the surface of the picking disc, and the structure of the whole picking tool is shown in figure 1 when the picking disc is opened.

The iron handle 1 is divided into a first handle and a second handle at the left and right, holes with the same diameter are drilled at the bottoms of the first handle and the second handle, bearings 5 are arranged in the holes, so that the first handle and the second handle are movably connected, and the first handle and the second handle can be opened and closed through the bearings 5 in the picking work.

A V-shaped spring piece 4 is arranged between the first handle and the second handle, two top ends of the V-shaped spring piece 4 are respectively attached to the inner parts of the first handle and the second handle, and the bottom end of the V-shaped spring piece 4 is fixed through a bearing 5. V-shaped spring pieces 4 between the first handle and the second handle can enable the two handles to reset in the use process of the picking tool, and the picking tool is convenient and labor-saving.

Install an iron coupling assembling respectively on first handle, second handle top, coupling assembling sets up at handle 1 and picks between the dish 2, and the coupling assembling top is connected with picking dish 2, and the screw fixation is passed through on 1 top of handle in the coupling assembling bottom. The outer surfaces of the first handle, the second handle and the connecting component comprise rubber anti-slip friction sleeves to ensure the safety of mulberry leaf picking work.

Picking dish 2 and controlling and be divided into first picking dish and second and pick the dish, first picking dish is connected first handle upper end, and the second is picked the dish and is connected second handle upper end. The first picking disc and the second picking disc are both semicircular picking discs, the diameters of the first picking disc and the second picking disc are 6cm, and the middle parts of the first picking disc and the second picking disc are concentrically provided with semicircular hollows with the diameters of 3 cm. It can be understood that the diameter of the picking disc and the diameter of the semicircular hollow can be reasonably adjusted according to the actual condition of picking work, and the picking disc can be completely sleeved on the mulberry branches.

Referring to fig. 2, a collection point 3 is arranged on the surface of the picking disc 2, the collection point is 38 mulberry leaf collection nails with the length of 4cm, and the mulberry leaf collection nails are uniformly distributed on the surface of the picking disc 2. The mulberry leaf collecting iron nail can be vertical to the surface of the picking disc 2, and can also slightly open outwards for a certain angle. In the mulberry leaf picking process, the mulberry leaves can be clamped between the mulberry leaf collecting iron nails or poked on the mulberry leaf collecting iron nails to finish the mulberry leaf collection.

When the mulberry leaf picking tool in the embodiment is used for picking mulberry leaves, one hand holds the upper end of a mulberry branch, the other hand holds the handle 1 of the picking tool, and the spring piece 4 at the handle 1 of the picking tool is used for expanding the disc 2 at the front end, so that the mulberry branch is clamped in the disc 2. Then the handle 1 is held tightly, the mulberry leaves on the mulberry branches are picked up from top to bottom, and when the mulberry leaves reach the lower end, the mulberry leaves are all collected on the disc mulberry leaf collecting point 3. And finally, loosening the handle 1, taking out the picking device from the mulberry branch, and taking out the collected mulberry leaves and putting the mulberry leaves into a container for containing the mulberry leaves.

The mulberry leaf picking tool in the embodiment has a simple structure, is convenient to operate, can be used for picking mulberry leaves in hilly areas, and greatly improves the working efficiency and reduces labor loss compared with manual picking.

While the present invention has been described with reference to the embodiments shown in the drawings, the present invention is not limited to the embodiments, which are illustrative and not restrictive, and it will be apparent to those skilled in the art that various changes and modifications can be made therein without departing from the spirit and scope of the utility model as defined in the appended claims.

Claims

1. A quick convenient picking tool for mulberry leaves is characterized in that the picking tool comprises:

the collection points are distributed on the surface of the picking disc.

2. The rapid and convenient mulberry leaf picking tool according to claim 1, is characterized in that:

holes are formed in the bottoms of the first handle and the second handle, and the first handle and the second handle are movably connected through the holes through bearings.

3. The rapid and convenient mulberry leaf picking tool according to claim 2, is characterized in that: the picking tool further comprises a rebounding assembly mounted between the first handle and the second handle.

4. The rapid and convenient mulberry leaf picking tool according to claim 3, is characterized in that: the rebounding assembly is a V-shaped spring piece, two top ends of the V-shaped spring piece are respectively attached to the inner parts of the first handle and the second handle, and the bottom end of the V-shaped spring piece is fixed through the bearing.

5. The rapid and convenient mulberry leaf picking tool according to claim 1, is characterized in that: the picking tool further comprises a connecting assembly, the connecting assembly is arranged between the handle and the picking disc, the top end of the connecting assembly is connected with the picking disc, and the bottom end of the connecting assembly is fixed to the top end of the handle through screws.

6. The rapid and convenient mulberry leaf picking tool according to claim 5, is characterized in that: the picking tool further comprises a rubber anti-slip friction sleeve, and the rubber anti-slip friction sleeve is wrapped outside the handle and the connecting assembly.

7. The rapid and convenient mulberry leaf picking tool according to claim 1, is characterized in that: the first picking disc and the second picking disc are semicircular picking discs, and the middle parts of the semicircular picking discs are concentric semicircular hollows.

8. The rapid and convenient mulberry leaf picking tool according to claim 1, is characterized in that: the collection points are 38 mulberry leaf collection nails which are uniformly distributed on the surface of the picking disc.

9. The rapid and convenient mulberry leaf picking tool according to claim 8, is characterized in that: the mulberry leaf collecting nails are iron nails with the length of 4 cm; the handle and the picking disc are made of iron or copper or aluminum alloy.

10. The rapid and convenient mulberry leaf picking tool according to claim 7, is characterized in that: the diameter of the semicircular picking disc is 5-7cm, and the diameter of the concentric semicircular hollow is 3 cm.
