Abstract
The utility model relates to the technical field of detection tools, and particularly discloses a map lamp function detection tool which comprises a bottom plate and an outer cover fixed on the bottom plate, wherein a bearing plate is slidably mounted on the bottom plate, a product fixing jig for fixing a map lamp is fixed on the bearing plate, and a plug connector assembly and a proximity switch are arranged on the product fixing jig. According to the map lamp function detection tool, the product fixing jig is arranged, the photoelectric sensor and the correlation optical fiber assembly are arranged around the product fixing jig, so that whether a map lamp can be accurately fixed on the product fixing jig or not can be detected, the map lamp can be detected in a leak-proof manner, defective products can be conveniently detected by pressing the switch of each detection device through the downward pressing air point, and the function of preventing defective products from flowing out can be effectively achieved; the whole product detection process is simple, automatic operation is realized, and the production efficiency is effectively improved.
Description
Technical Field
The utility model relates to the technical field of detection tools, in particular to a map lamp function detection tool.
Background
The existing vehicle is generally provided with a map lamp, which is used when driving at night, can be used for checking maps and reading data in the process, and is also a good sound decorative lamp, so that a romantic atmosphere is manufactured in the vehicle and the sound is convenient to operate.
At present, the assembly of map lamps is basically completed by manual operation, and the following defects exist: firstly, defective products occur in workshops due to poor phenomena of neglected assembly, wrong assembly, incomplete assembly, particularly half-embedding and the like; secondly, the assembly efficiency is low, and the large-scale requirement cannot be met; finally, the assembly workers have high labor intensity and easily hurt hands.
Aiming at the problems, the utility model provides a map lamp function detection tool.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model aims to solve the problems that the map lamp function detection tool is provided aiming at the defects in the prior art, and the problem that a workshop is defective due to poor phenomena such as missing installation, wrong installation and improper assembly of the existing map lamp function detection tool, particularly a half-embedding phenomenon and the like can be solved; and the problems that the assembly efficiency is low and the scale requirement cannot be met can be solved.
(II) technical scheme
The technical scheme adopted by the utility model for solving the technical problems is as follows: a map lamp function detection tool comprises a bottom plate, wherein a bearing plate is slidably mounted on the bottom plate, a product fixing jig for fixing a map lamp is fixed on the bearing plate, and a plug connector assembly and a proximity switch are arranged on the product fixing jig; a photoelectric sensor is arranged on the bearing plate between the product fixing jigs; the positions of the bottom plate, which are positioned at the two sides of the bearing plate, are symmetrically provided with correlation optical fiber components;
and a plurality of pressing cylinders for starting the detection equipment are arranged above the bottom plate.
Preferably, a fixing frame is arranged on the bottom plate, a fixing plate is arranged at the upper end of the fixing frame, a plurality of through holes are formed in the fixing plate, and the pressing cylinder penetrates through the through holes to be arranged on the fixing plate.
Preferably, the telescopic link of push down cylinder lower extreme is connected with the cylinder extension bar, the lower extreme of cylinder extension bar is provided with the cylinder buffer head.
Preferably, the bottom plate is provided with an outer cover, the outer cover is arranged outside the pressing cylinder, and the side wall of the outer cover is provided with an opening through which the bearing plate and the product fixing jig can pass.
In the technical scheme, the map lamp is placed on the product fixing jig, the photoelectric sensor and the correlation optical fiber assembly confirm that the map lamp is placed in place, the indicating lamp is lightened to remind the start of the tool, the connector assembly is inserted into the map lamp to electrify the map lamp, the map lamp on the bearing plate slides to an operation position, the buttons are clicked according to detection sequences when the air cylinder is pressed down to work, the function detection is carried out, and after the detection is finished, the map lamp is driven to exit through the movement of the bearing plate.
The map lamp is driven by the loading board and is removed the operation position, and the loading board is removed the lower extreme of push down the cylinder from the opening part of dustcoat together with the map lamp promptly, and push down the cylinder work, and a plurality of push down the cylinder and carry out work according to each detection order for extension rod drive cylinder buffer head moves down together, according to the precedence order, presses the button of check out test set, and then conveniently detects the map lamp.
Preferably, the inner wall of dustcoat is located the position of push down the cylinder installs spacing subassembly, spacing subassembly includes the perpendicular to limiting plate on the bottom plate, the outer wall of limiting plate is provided with spacing buffering head.
In the technical scheme, the limiting assembly is arranged to be beneficial to limiting the position of the bearing plate, the bearing plate is prevented from moving to an operation position and deviating, and when the bearing plate moves to the lower end of the pressing cylinder, the side wall of the bearing plate is in contact with the limiting buffer head, the bearing plate and the map lamp are located at the operation position together.
Preferably, a movable cylinder is arranged on the bottom plate and close to the limiting assembly, and the tail end of a telescopic rod of the movable cylinder is connected with the lower end face of the bearing plate.
Preferably, the bottom plate is symmetrically provided with two guide rails, and the length direction of the guide rails is consistent with that of the movable cylinder;
the lower terminal surface symmetry of loading board be provided with guide rail assorted sliding block, the sliding block with guide rail sliding connection.
In above-mentioned technical scheme, cooperate between through guide rail and the sliding block for sliding connection between loading board and the bottom plate, wherein, moving cylinder's setting is favorable to driving loading board and map lamp and removes the operation position together.
Preferably, the product fixing jig comprises four side columns and a middle supporting part, grooves are formed in the upper surfaces of the side columns, and the grooves in the four side columns are matched with the four corners of the map lamp.
In the technical scheme, the side columns and the grooves are arranged to support four sides of the map lamp, and the middle supporting portion is arranged to support the middle of the map lamp.
Preferably, a plug connector assembly and a proximity switch are arranged on the bearing plate at a position close to the side column; wherein, the map lamp is installed on the fixed tool of product by the accuracy after, starts the frock, and the connector subassembly inserts the map lamp, makes map lamp go up the electricity, and this structure is favorable to detecting whether the map lamp can normally work bright lamp.
Preferably, a groove-shaped photoelectric switch is arranged on the bottom plate and close to the limiting assembly.
Preferably, a button assembly for controlling the tool is arranged on the bottom plate.
(III) advantageous effects
1. According to the map lamp function detection tool, the product fixing jig is arranged, the photoelectric sensor and the correlation optical fiber assembly are arranged around the product fixing jig, so that whether a map lamp can be accurately fixed on the product fixing jig can be detected, the map lamp can be detected in a leak-proof mode, defective products can be conveniently detected by pressing the switch of each detection device through the downward pressing air point, and the function of preventing defective products from flowing out can be effectively achieved; the whole product detection process is simple, automatic operation is realized, and the production efficiency is effectively improved.
2. The map lamp function detection tool provided by the utility model has the advantages that the position of the bearing plate is favorably limited by the limiting component, the bearing plate is prevented from deviating when being moved to the operation position, and when the bearing plate is moved to the lower end of the pressing cylinder and the side wall of the bearing plate is contacted with the limiting buffer head, the bearing plate and a map lamp are located at the operation position together.
Drawings

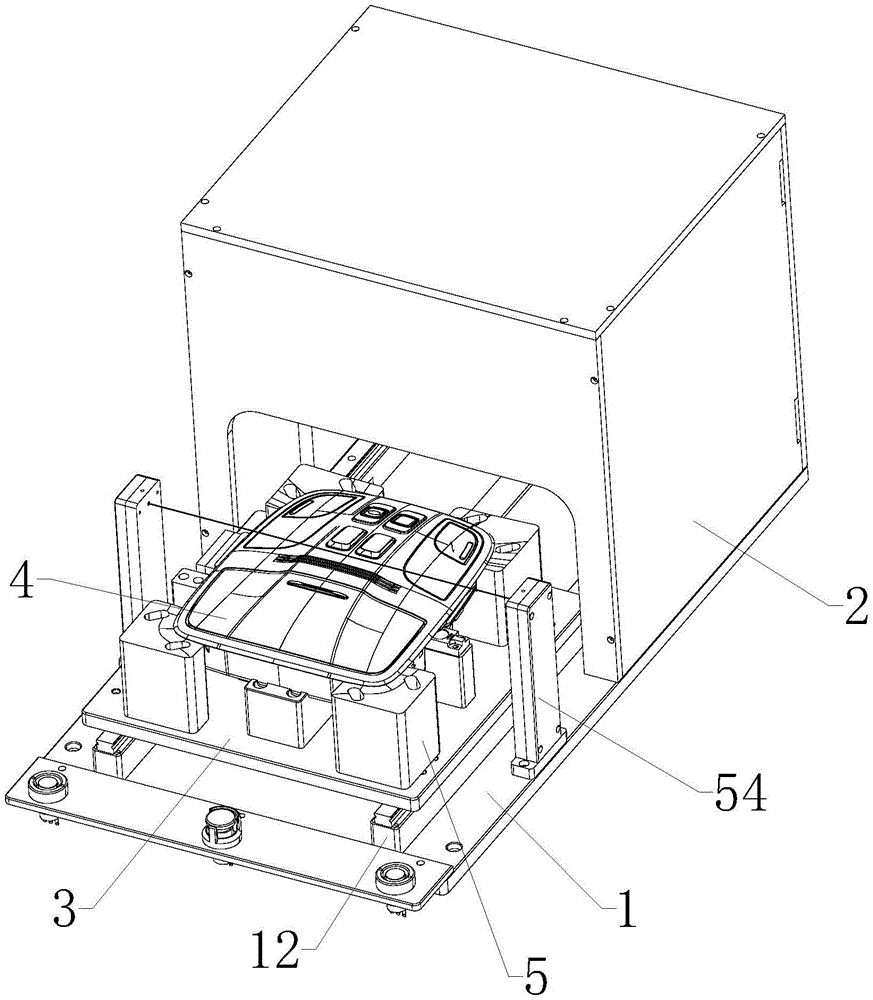

FIG. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is an overall view of the present invention with the cover omitted.
Wherein: the device comprises a base plate 1, a movable air cylinder 11, a guide rail 12, a groove type photoelectric switch 13, a housing 2, an opening 21, a fixed frame 22, a downward-pressing air cylinder 23, a fixing plate 24, a through hole 25, an air cylinder extension rod 26, an air cylinder buffer head 27, a limit component 28, a limit plate 281, a limit buffer head 282, a bearing plate 3, a map lamp 4, a product fixing jig 5, a plug connector component 51, a proximity switch 52, a photoelectric sensor 53, an optical fiber component 54 correlation, a side column 55, a middle supporting part 56 and a groove 57.
Detailed Description
The following detailed description of embodiments of the present invention is provided in connection with the accompanying drawings and examples. The following examples are intended to illustrate the utility model but are not intended to limit the scope of the utility model.
Referring to fig. 1-2, a map lamp function detects frock, includes bottom plate 1, its characterized in that: a bearing plate 3 is slidably mounted on the bottom plate 1, a product fixing jig 5 for fixing a map lamp 4 is fixed on the bearing plate 3, and a plug connector assembly 51 and a proximity switch 52 are arranged on the product fixing jig 5; a photoelectric inductor 53 is arranged on the position, between the product fixing jigs 5, of the bearing plate 3; opposite-emission optical fiber assemblies 54 are symmetrically arranged at the positions, located at the two sides of the bearing plate 3, on the bottom plate 1;
a plurality of pressing cylinders 23 for starting the detection equipment are arranged above the bottom plate 1.
The bottom plate is provided with a fixing frame, the upper end of the fixing frame 22 is a fixing plate 24, the fixing plate 24 is provided with a plurality of through holes 25, and the pressing cylinder 23 penetrates through the fixing plate 24 through the through holes 25.
The telescopic rod at the lower end of the pressing cylinder 23 is connected with a cylinder extension bar 26, and the lower end of the cylinder extension bar 26 is provided with a cylinder buffer head 27.
The bottom plate 1 is provided with an outer cover 2, the outer cover 2 is arranged outside the downward-pressing cylinder 23, the side wall of the outer cover 2 is provided with an opening 21, and the opening 21 is used for a bearing plate and a product fixing jig 5 to pass through.
In the technical scheme, the map lamp 4 is placed on the product fixing jig 5, the photoelectric sensor 53 and the correlation optical fiber assembly 54 confirm that the map lamp 4 is placed in place, the indicator light is lightened for reminding, the tool is started, the connector assembly is inserted into the map lamp 4, the map lamp 4 is powered on, the bearing plate 3 with the map lamp 4 slides to an operation position, the press cylinder 23 is pressed to work, the buttons are clicked according to each detection sequence, the function detection is carried out, and after the detection is completed, the bearing plate 3 is moved to drive the map lamp 4 to exit.
The inner wall of dustcoat 2 is located the position of push down cylinder 23 is installed spacing subassembly 28, spacing subassembly 28 includes the perpendicular to spacing board 281 on the bottom plate 1, the outer wall of spacing board 281 is provided with spacing buffering head 282.
In the above technical solution, the position of the bearing plate 3 is limited by the limiting component 28, so as to prevent the bearing plate 3 from shifting to the operating position, and when the bearing plate 3 shifts to the lower end of the down-pressing cylinder 23 and the side wall of the bearing plate 3 contacts with the limiting buffer head 282, the bearing plate 3 and the map lamp 4 are located at the operating position together.
A movable cylinder 11 is arranged on the bottom plate 1 and close to the limiting assembly 28, and the tail end of an expansion link of the movable cylinder 11 is connected with the lower end face of the bearing plate 3.
Two guide rails 12 are symmetrically arranged on the bottom plate 1, and the length direction of the guide rails 12 is consistent with that of the movable cylinder 11;
the lower terminal surface symmetry of loading board 3 be provided with guide rail 12 assorted sliding block, the sliding block with guide rail 12 sliding connection.
In the above technical scheme, through cooperation between guide rail 12 and the sliding block for sliding connection between loading board 3 and bottom plate 1, wherein, moving cylinder 11 is provided with and does benefit to and drives loading board 3 and map lamp 4 and remove the operation position together.
The product fixing jig 5 comprises four side columns 55 and a middle supporting part 56, grooves 57 are formed in the upper surfaces of the side columns 55, and the grooves 57 in the four side columns 55 are matched with four corners of the map lamp 4.
In the above technical solution, the side columns 55 and the grooves 57 are arranged to support four sides of the map lamp 4, and the middle support portion 56 is arranged to support the middle of the map lamp 4.
A plug connector component 51 and a proximity switch 52 are arranged on the bearing plate 3 at a position close to the side column 55; wherein, map lamp 4 is installed by the accuracy on the fixed tool 5 of product after, starts the frock, and connector assembly inserts map lamp 4, makes map lamp 4 go up the electricity, and this structure is favorable to detecting whether map lamp 4 can normally work bright lamp.
A groove-shaped photoelectric switch 13 is arranged on the bottom plate 1 and close to the limiting component 28.
The bottom plate 1 is provided with a button assembly used for controlling the tool.
The product fixing jig 5 is arranged, the photoelectric sensor 53 and the correlation optical fiber assembly 54 are arranged around the product fixing jig 5, so that whether the map lamp 4 can be accurately fixed on the product fixing jig 5 or not can be detected, the map lamp 4 can be detected to prevent neglected loading, defective products can be conveniently detected by pressing the switch of each detection device through the downward air pressing point, and the function of preventing the defective products from flowing out can be effectively achieved; the whole product detection process is simple, automatic operation is realized, and the production efficiency is effectively improved.
The above is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, it is possible to make several improvements and modifications without departing from the technical principle of the present invention, and these improvements and modifications should also be considered as the protection scope of the present invention.
Claims (10)
1. The utility model provides a map lamp function detects frock, includes bottom plate (1), its characterized in that: the map lamp fixing device is characterized in that a bearing plate (3) is slidably mounted on the bottom plate (1), a product fixing jig (5) for fixing a map lamp (4) is fixed on the bearing plate (3), and a plug connector assembly (51) and a proximity switch (52) are arranged on the product fixing jig (5); a photoelectric sensor (53) is arranged on the bearing plate (3) and positioned between the product fixing jigs (5); opposite-emission optical fiber assemblies (54) are symmetrically arranged at the positions, located at the two sides of the bearing plate (3), on the bottom plate (1);
and a plurality of pressing cylinders (23) for starting the detection equipment are arranged above the bottom plate (1).
2. The map lamp function detection tool of claim 1, wherein: the bottom plate is provided with a fixing frame, the upper end of the fixing frame (22) is provided with a fixing plate (24), the fixing plate (24) is provided with a plurality of through holes (25), and the pressing cylinder (23) penetrates through the through holes (25) to be arranged on the fixing plate (24).
3. The map lamp function detection tool of claim 2, wherein: the telescopic link of push down cylinder (23) lower extreme is connected with cylinder extension bar (26), the lower extreme of cylinder extension bar (26) is provided with cylinder buffer head (27).
4. The map lamp function detection tool of claim 1, wherein: the bottom plate (1) is provided with an outer cover (2), the outer cover (2) is arranged outside the pressing cylinder (23), the side wall of the outer cover (2) is provided with an opening (21), and the opening (21) is used for the bearing plate and the product fixing jig (5) to pass through.
5. The map lamp function detection tool of claim 4, wherein: the inner wall of dustcoat (2) is located spacing subassembly (28) are installed to the position of push down cylinder (23), spacing subassembly (28) include the perpendicular to limiting plate (281) on bottom plate (1), the outer wall of limiting plate (281) is provided with spacing buffering head (282).
6. The map lamp function detection tool of claim 5, wherein: a movable air cylinder (11) is arranged on the bottom plate (1) and close to the limiting assembly (28), and the tail end of a telescopic rod of the movable air cylinder (11) is connected with the lower end face of the bearing plate (3).
7. The map lamp function detection tool of claim 6, wherein: two guide rails (12) are symmetrically arranged on the bottom plate (1), and the length direction of the guide rails (12) is consistent with that of the movable cylinder (11);
the lower terminal surface symmetry of loading board (3) be provided with guide rail (12) assorted sliding block, the sliding block with guide rail (12) sliding connection.
8. The map lamp function detection tool of claim 1, wherein: the product fixing jig (5) comprises four side columns (55) and a middle supporting part (56), grooves (57) are formed in the upper surfaces of the side columns (55), and the grooves (57) in the four side columns (55) are matched with four corners of the map lamp (4).
9. The map lamp function detection tool of claim 8, wherein: and a plug connector component (51) and a proximity switch (52) are arranged on the bearing plate (3) at a position close to the side column (55).
10. The map lamp function detection tool of claim 5, wherein: and a groove-shaped photoelectric switch (13) is arranged on the bottom plate (1) and close to the limiting component (28).
