Abstract
本实用新型公开了一种空调机房监测系统，包括用于监测空调机房设备运行情况和空调机房环境情况的监测单元、与监测单元连接来获取空调机房设备运行情况数据和空调机房环境情况数据的数据采集单元、与数据采集单元连接来对数据采集单元采集的数据进行处理的数据处理单元，其中，监测系统还包括与数据处理单元连接来对数据处理单元处理后的数据进行传输的数据传输单元，数据传输单元通过无线连接有PC机，PC机上安装有智能监控平台，PC机通过云平台连接有客户端；监测单元包括若干传感器。本实用新型通过设置在空调机房内的传感器，可实时监测空调机房内设备的运行情况和空调机房的环境情况。
The utility model discloses an air-conditioning machine room monitoring system, which comprises a monitoring unit for monitoring the operation condition of the air-conditioning machine room equipment and the environmental conditions of the air-conditioning machine room; an acquisition unit, a data processing unit connected with the data acquisition unit to process the data collected by the data acquisition unit, wherein the monitoring system further includes a data transmission unit connected with the data processing unit to transmit the data processed by the data processing unit, The data transmission unit is wirelessly connected with a PC, an intelligent monitoring platform is installed on the PC, and the PC is connected with a client through the cloud platform; the monitoring unit includes several sensors. The utility model can monitor the running condition of the equipment in the air conditioning machine room and the environment condition of the air conditioning machine room in real time through the sensors arranged in the air conditioning machine room.
Description
技术领域technical field
本实用新型涉及监测系统技术领域，具体涉及一种空调机房的监测系统。The utility model relates to the technical field of monitoring systems, in particular to a monitoring system for an air-conditioning machine room.
背景技术Background technique
计算机房、电信机房、服务器机房、实验室、电力试验室、精密仪器室、银行、医院磁共振室、手术室、恒温恒湿车间等对环境要求较高的场合一般均需要配备有空调机房。Computer room, telecommunication room, server room, laboratory, power laboratory, precision instrument room, bank, hospital magnetic resonance room, operating room, constant temperature and humidity workshop and other occasions with high environmental requirements generally need to be equipped with air-conditioning room.
现有的空调机房，大都存在设备多，连线复杂的问题，在日常运行或出现系统陈旧、老化时，设备容易出现运行故障，而且故障点不易判断。因此，能有效对空调机房进行监测，是现阶段本技术人员亟需解决的问题。Most of the existing air-conditioning rooms have problems of many equipment and complicated connections. During daily operation or when the system is outdated or aged, the equipment is prone to operating failures, and the fault point is not easy to determine. Therefore, the ability to effectively monitor the air-conditioning room is an urgent problem to be solved by the technicians at this stage.
实用新型内容Utility model content
本实用新型需要解决的技术问题是提供一种空调机房监测系统，可有效对空调机房进行监测。The technical problem to be solved by the utility model is to provide an air-conditioning machine room monitoring system, which can effectively monitor the air-conditioning machine room.
为解决上述技术问题，本实用新型所采取的技术方案如下。In order to solve the above technical problems, the technical solutions adopted by the present invention are as follows.
空调机房监测系统，包括用于监测空调机房设备运行情况和空调机房环境情况的监测单元、与监测单元连接来获取空调机房设备运行情况数据和空调机房环境情况数据的数据采集单元、与数据采集单元连接来对数据采集单元采集的数据进行处理的数据处理单元，其中，所述监测系统还包括与数据处理单元连接来对数据处理单元处理后的数据进行传输的数据传输单元，数据传输单元通过无线连接有PC机，PC机上安装有智能监控平台，PC机通过云平台连接有客户端；所述监测单元包括若干传感器。An air-conditioning room monitoring system, including a monitoring unit for monitoring the operation of the equipment in the air-conditioning room and the environmental conditions of the air-conditioning room, a data acquisition unit connected to the monitoring unit to obtain data on the operation of the equipment in the air-conditioning room and the environmental conditions of the air-conditioning room, and a data acquisition unit A data processing unit connected to process the data collected by the data acquisition unit, wherein the monitoring system further includes a data transmission unit connected with the data processing unit to transmit the data processed by the data processing unit, the data transmission unit is wireless A PC is connected, an intelligent monitoring platform is installed on the PC, and a client is connected to the PC through the cloud platform; the monitoring unit includes several sensors.
优选的，所述空调机房设备包括循环泵、冷却塔和空调风柜。Preferably, the air-conditioning equipment room includes a circulating pump, a cooling tower and an air-conditioning fan cabinet.
优选的，所述监测单元包括循环泵监测单元，循环泵监测单元包括设置在循环泵上的压力传感器、第一温度传感器和压差传感器，压力传感器、温度传感器和压差传感器的输出端分别与数据采集单元连接。Preferably, the monitoring unit includes a circulating pump monitoring unit, the circulating pump monitoring unit includes a pressure sensor, a first temperature sensor and a differential pressure sensor arranged on the circulating pump, the output ends of the pressure sensor, the temperature sensor and the differential pressure sensor are respectively Data acquisition unit connection.
优选的，所述监测单元包括冷却塔监测单元，冷却塔监测单元包括设置在冷却塔上的水位传感器和温湿度传感器。Preferably, the monitoring unit includes a cooling tower monitoring unit, and the cooling tower monitoring unit includes a water level sensor and a temperature and humidity sensor arranged on the cooling tower.
优选的，所述监测单元包括空调风柜监测单元，空调风柜监测单元包括设置在空调风柜上的第二温度传感器和风压传感器。Preferably, the monitoring unit includes an air-conditioning fan cabinet monitoring unit, and the air-conditioning fan cabinet monitoring unit includes a second temperature sensor and a wind pressure sensor provided on the air-conditioning fan cabinet.
优选的，所述监测单元包括空调机房监测单元，空调机房监测单元包括设置在空调机房内的第三温度传感器、烟雾传感器以及供电线路上的若干电压传感器和若干电流传感器。Preferably, the monitoring unit includes an air conditioner room monitoring unit, and the air conditioner room monitoring unit includes a third temperature sensor, a smoke sensor, and several voltage sensors and several current sensors on the power supply line arranged in the air conditioner room.
优选的，所述监测系统还包括设置在空调机房内的图像采集单元，图像采集单元的输出端通过无线与PC机连接。Preferably, the monitoring system further includes an image acquisition unit disposed in the air-conditioning room, and the output end of the image acquisition unit is wirelessly connected to the PC.
优选的，所述PC机连接有现场报警单元。Preferably, the PC is connected with an on-site alarm unit.
由于采用了以上技术方案，本实用新型所取得技术进步如下。Due to the adoption of the above technical solutions, the technical progress achieved by the present utility model is as follows.
本实用新型通过设置在空调机房内的传感器，可实时监测空调机房内设备的运行情况和空调机房的环境情况；通过将监测的数据传送给PC机上安装的智能监控平台，可对监测的数据进行统计和分析；通过设置的报警单元，当空调机房内存在问题时，可向维护人员发出警报；通过设置的像采集单元，可方便维护人员对空调机房内的监控；通过PC机连接的客户端，可方便相关人员远程监控。The utility model can monitor the running conditions of the equipment in the air-conditioning room and the environment of the air-conditioning room in real time through the sensors arranged in the air-conditioning room; and by transmitting the monitored data to the intelligent monitoring platform installed on the PC, the monitored data can be monitored. Statistics and analysis; through the set alarm unit, when there is a problem in the air conditioner room, an alarm can be sent to the maintenance personnel; through the set image acquisition unit, it is convenient for the maintenance personnel to monitor the air conditioner room; the client connected through the PC , which can facilitate the remote monitoring of relevant personnel.
附图说明Description of drawings

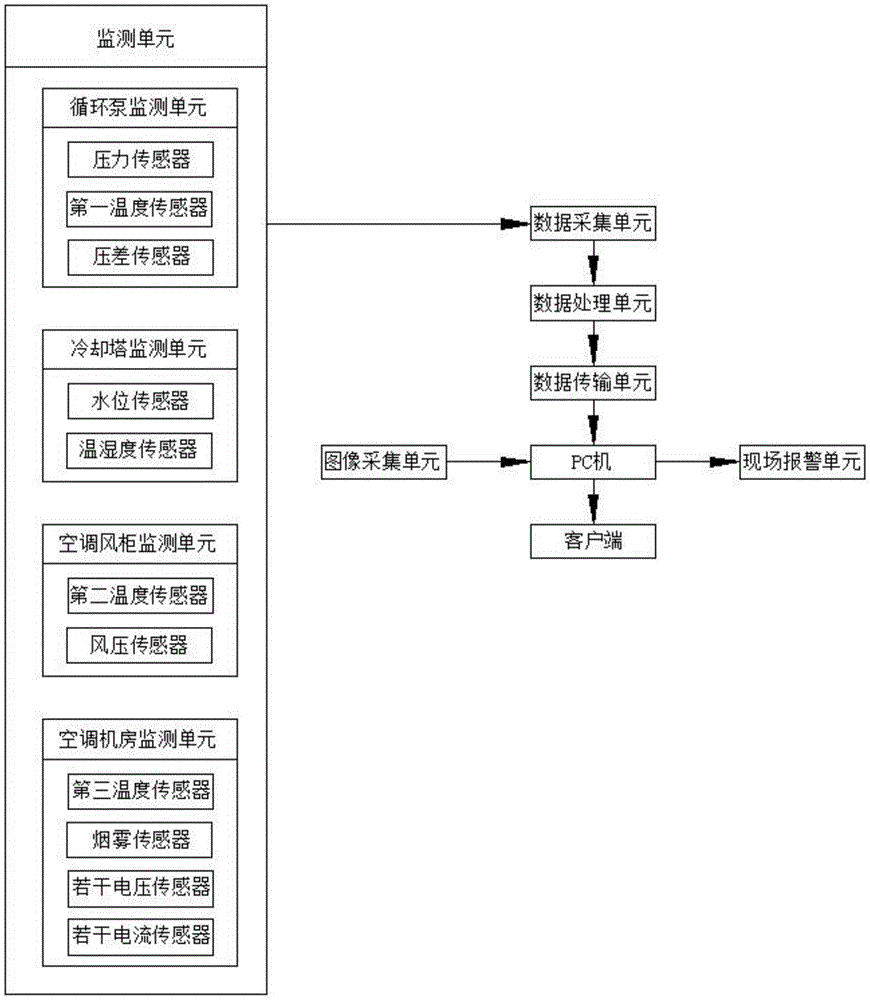

图1为本实用新型的结构框图。Fig. 1 is a structural block diagram of the utility model.
具体实施方式Detailed ways
下面将结合附图和具体实施方式对本实用新型进行进一步详细说明。The present utility model will be described in further detail below with reference to the accompanying drawings and specific embodiments.
一种空调机房监测系统，结合图1所示，包括监测单元、数据采集单元、数据处理单元、数据传输单元和PC机，其中，监测单元包括若干传感器，用于监测空调机房设备运行情况和空调机房环境情况；数据采集单元与监测单元连接，用于获取空调机房设备运行情况数据和空调机房环境情况数据；数据处理单元与数据采集单元连接，用于对数据采集单元采集的数据进行处理；数据传输单元与数据处理单元连接，用于对数据处理单元处理后的数据进行传输；PC机与数据传输单元连接，PC机上安装有智能监控平台，通过监测单元监测的数据来对空调机房设备运行情况和空调机房环境进行分析报警。An air conditioner room monitoring system, as shown in FIG. 1, includes a monitoring unit, a data acquisition unit, a data processing unit, a data transmission unit and a PC, wherein the monitoring unit includes several sensors for monitoring the operation of the air conditioner room equipment and the air conditioner. The environment of the computer room; the data acquisition unit is connected to the monitoring unit, and is used to obtain the data of the operation of the equipment in the air-conditioning computer room and the environmental conditions of the air-conditioning computer room; the data processing unit is connected to the data acquisition unit, and is used to process the data collected by the data acquisition unit; data The transmission unit is connected with the data processing unit to transmit the data processed by the data processing unit; the PC is connected with the data transmission unit, and an intelligent monitoring platform is installed on the PC, and the operation status of the equipment in the air-conditioning room is monitored by the data monitored by the monitoring unit. And the air-conditioning room environment for analysis and alarm.
空调机房设备包括循环泵、冷却塔和空调风柜。监测单元包括循环泵监测单元、冷却塔监测单元、空调风柜监测单元和空调机房监测单元。Air-conditioning room equipment includes circulating pumps, cooling towers and air-conditioning fan cabinets. The monitoring unit includes a circulating pump monitoring unit, a cooling tower monitoring unit, an air-conditioning fan cabinet monitoring unit and an air-conditioning machine room monitoring unit.
循环泵监测单元包括压力传感器、第一温度传感器和压差传感器，压力传感器、第一温度传感器和压差传感器均设置在循环泵上，实现循环水压力、温度和压差的监测。The circulating pump monitoring unit includes a pressure sensor, a first temperature sensor and a differential pressure sensor. The pressure sensor, the first temperature sensor and the differential pressure sensor are all arranged on the circulating pump to monitor the pressure, temperature and differential pressure of the circulating water.
冷却塔监测单元包括水位传感器和温湿度传感器，水位传感器和温湿度传感器均设置在冷却塔上，实现冷却水水位和温度的监测。The cooling tower monitoring unit includes a water level sensor and a temperature and humidity sensor. The water level sensor and the temperature and humidity sensor are both arranged on the cooling tower to monitor the cooling water level and temperature.
空调风柜监测单元包括第二温度传感器和风压传感器，第二温度传感器和风压传感器均设置在空调风柜上，实现空调风柜温度和风压的监测。The air-conditioning wind cabinet monitoring unit includes a second temperature sensor and a wind pressure sensor, and the second temperature sensor and the wind pressure sensor are both arranged on the air-conditioning wind cabinet to monitor the temperature and wind pressure of the air-conditioning wind cabinet.
空调机房监测单元包括第三温度传感器、烟雾传感器、电压传感器和电流传感器，其中，第三温度传感器设置在空调机房内，用于监测空调机房室内的温度；烟雾传感器设置在空调机房内，用于监测空调机房内的烟雾，可预防火灾及其蔓延；电压传感器为若干个，分别设置在空调机房内主供电线路和分支供电线路上，电流传感器为若干个，分别设置在空调机房内主供电线路和分支供电线路上，从而实现主供电线路和分支供电线路上电压和电流的监测，可判断供电是否正常。The air-conditioning room monitoring unit includes a third temperature sensor, a smoke sensor, a voltage sensor and a current sensor, wherein the third temperature sensor is arranged in the air-conditioning room and is used to monitor the temperature in the air-conditioning room; the smoke sensor is arranged in the air-conditioning room and used for Monitor the smoke in the air-conditioning room to prevent fire and its spread; several voltage sensors are installed on the main power supply line and branch power supply line in the air-conditioning room, and several current sensors are installed on the main power supply line in the air-conditioning room. And the branch power supply line, so as to realize the monitoring of the voltage and current on the main power supply line and the branch power supply line, and judge whether the power supply is normal.
数据采集单元的输入端分别与压力传感器、第一温度传感器、压差传感器、水位传感器、温湿度传感器、第二温度传感器、风压传感器、第三温度传感器、烟雾传感器、电压传感器和电流传感器的输出端连接；数据采集单元的输出端与数据处理单元的输入端连接，数据处理单元将数据进行处理后通过数据传输单元传送给PC机，PC机通过安装的智能监控平台对输入的数据进行统计和分析，从而判断循环泵、冷却塔和空调风柜运行是否有问题以及空调机房温度是否正常、空调机房是否存在火灾风险和是否存在供电问题。The input ends of the data acquisition unit are respectively connected with the pressure sensor, the first temperature sensor, the differential pressure sensor, the water level sensor, the temperature and humidity sensor, the second temperature sensor, the wind pressure sensor, the third temperature sensor, the smoke sensor, the voltage sensor and the current sensor. The output end is connected; the output end of the data acquisition unit is connected with the input end of the data processing unit, the data processing unit processes the data and transmits it to the PC through the data transmission unit, and the PC collects statistics on the input data through the installed intelligent monitoring platform and analysis to determine whether there is a problem with the operation of the circulating pump, cooling tower and air-conditioning fan cabinet, whether the temperature of the air-conditioning room is normal, whether there is a fire risk in the air-conditioning room, and whether there is a power supply problem.
PC机连接有现场报警单元，当智能监控平台分析出空调机房内存在问题时，会发出警报，从而通知维护人员。The PC is connected with an on-site alarm unit. When the intelligent monitoring platform analyzes that there is a problem in the air-conditioning room, an alarm will be issued to notify the maintenance personnel.
空调机房内还设置有图像采集单元，图像采集单元的输出端通过无线与PC机连接，从而方便维护人员的监控。An image acquisition unit is also arranged in the air-conditioning room, and the output end of the image acquisition unit is wirelessly connected to the PC, so as to facilitate the monitoring of maintenance personnel.
PC机通过云平台连接有客户端，客户端为手机、电脑等，从而方便相关人员远程监控。The PC is connected to a client through the cloud platform, and the client is a mobile phone, computer, etc., so as to facilitate remote monitoring by relevant personnel.
本实用新型在使用时，通过设置在空调机房内的传感器，可实时监测空调机房内设备的运行情况和空调机房的环境情况；通过将监测的数据传送给PC机上安装的智能监控平台，可对监测的数据进行统计和分析；通过设置的报警单元，当空调机房内存在问题时，可向维护人员发出警报；通过设置的像采集单元，可方便维护人员对空调机房内的监控；通过PC机连接的客户端，可方便相关人员远程监控。When the utility model is in use, the sensors arranged in the air-conditioning room can monitor the operation of the equipment in the air-conditioning room and the environment of the air-conditioning room in real time; by transmitting the monitored data to the intelligent monitoring platform installed on the PC, the The monitored data is counted and analyzed; through the set alarm unit, when there is a problem in the air conditioner room, an alarm can be sent to the maintenance personnel; through the set image acquisition unit, it is convenient for the maintenance personnel to monitor the air conditioner room; through the PC The connected client can facilitate the remote monitoring of relevant personnel.
