Abstract

The utility model discloses a hidden waterproof structure for deformation joints of planting roofs combined with drainage, which comprises retaining walls on both sides of the deformation joints and a drainage system on the outside of the retaining walls, and also includes a roof slab and a sloping layer on the roof. The drainage system is arranged on the sloping layer of the roof, the outer side of the retaining wall is laid with a first waterproof membrane, a mortar waterproof protective layer is poured on the top of the first waterproof membrane, and a cover plate is arranged above the deformation joint. The two sides of the retaining wall are provided with a first floor drain, the outer side of the cover plate is provided with a second waterproof membrane, and the top of the second waterproof membrane is provided with a first waterproof protection layer and a second waterproof protection layer. The drainage system is located on both sides of the cover plate; the new waterproof structure of the hidden planting roof deformation joints can effectively ensure that the roof deformation joints do not leak water through the combination of anti-drainage and can hide the roof deformation joint structure in the covering soil. At the bottom, prevent the deformation seam from being exposed and affect the appearance.

Description

A kind of hidden waterproof structure for the deformation joint of planting roof combined with anti-drainage

technical field

The utility model relates to the technical field of deformation joint waterproofing, in particular to a concealed deformation joint waterproofing structure of a planting roof combined with anti-drainage.

Background technique

When the roof area of the building is large, it is necessary to set deformation joints through the slab to ensure that the building will not crack when it expands and shrinks under the influence of temperature. However, the deformation joint is a great hidden danger in the roof waterproofing system, and it is extremely difficult to repair once the water leakage occurs. Conventional planting roof deformation joint waterproofing, generally set up retaining walls on both sides of the deformation joint, and then install a water stop on the top of the retaining wall. Since the planting roof itself needs to be covered with soil, the soil will carry moisture, and prolonged exposure to moisture will cause the waterstop to age, resulting in water leakage. The top of the deformation joint of the conventional planting roof must be higher than the covering soil layer to ensure that water will not enter the deformation joint from the top of the retaining wall, but this will affect the overall landscape effect of the roof. At the same time, the retaining walls on both sides of the deformation joint are directly in contact with the overlying soil, and under the erosion of the water source, water leakage is also likely to occur, and the effect is not good.

Utility model content

The purpose of the present utility model is to solve the above problems and provide a method of preventing water leakage through the combination of anti-drainage, which effectively ensures that the roof deformation joint does not leak water, and at the same time, the roof deformation joint structure can be hidden under the covering soil to prevent the deformation joint from being exposed and affecting the appearance. Concealed planting roof deformation joint waterproof structure combined with anti-drainage.

In order to achieve the above purpose, the technical scheme of the present invention is as follows: a waterproof structure for the deformation joints of a hidden type planting roof combined with anti-drainage, including the retaining walls on both sides of the deformation joints and the drainage system on the outside of the retaining walls, and also includes a roof, so A roof slope finding layer is arranged above the top plate, the retaining wall and the drainage system are arranged on the roof slope finding layer, a thermal insulation layer and a rubber water stop are arranged in the deformation joint, and a first waterproof layer is laid on the outer side of the retaining wall. Coiled material, a mortar waterproof protective layer is poured above the first waterproof coiled material, an inverted U-shaped cover plate is arranged above the deformation joint, the cover plate is not in contact with the surrounding of the retaining wall, and the two sides of the retaining wall are not in contact with each other. A first floor drain is arranged in the cover plate on the side, a second waterproof membrane is arranged on the outside of the cover plate, a first waterproof protective layer is arranged above the second waterproof membrane, and two parts of the second waterproof membrane are arranged. The side is provided with a second waterproof protective layer, and the drainage system is provided on both sides of the cover plate.

Preferably, the drainage system includes drainage ditch and drainage holes arranged on both sides of the cover plate, the drainage ditch is communicated with the drainage hole, and a gravel drainage layer and a fine water filter layer are arranged above the drainage ditch. A backfill is arranged above the fine water filter layer, a second floor drain is also arranged in the drainage ditch, and a drainage ditch cover plate is arranged above the second floor drain.

Preferably, a water stop plate is further provided above the retaining wall, a V-shaped groove is formed on the top of the retaining wall, both sides of the water stop plate are arranged in the V-shaped groove, and the water stop plate is provided with a V-shaped groove. A V-shaped bend is provided, and the water stop plate is a galvanized steel plate.

Preferably, the thermal insulation layer is a polystyrene board thermal insulation layer.

Preferably, the first waterproof membrane is a double-layer polyethylene polypropylene fiber root puncture-resistant waterproof membrane, and the second waterproof membrane is a single-layer polyethylene polypropylene root puncture-resistant waterproof membrane.

Preferably, the first waterproof protection layer is a concrete waterproof protection layer, and the second waterproof protection layer is a polystyrene board waterproof protection layer.

Preferably, the thickness of the mortar waterproof protective layer is not less than 5cm.

The utility model discloses a waterproof structure for a deformation joint of a planting roof combined with anti-drainage. The drainage system is arranged on the sloping layer of the roof, the outer side of the retaining wall is laid with a first waterproof membrane, a mortar waterproof protective layer is poured on the top of the first waterproof membrane, and a cover plate is arranged above the deformation joint. The two sides of the retaining wall are provided with a first floor drain, the outer side of the cover plate is provided with a second waterproof membrane, and the top of the second waterproof membrane is provided with a first waterproof protection layer and a second waterproof protection layer. The drainage system is located on both sides of the cover plate; the new waterproof structure of the hidden planting roof deformation joints can effectively ensure that the roof deformation joints do not leak water through the combination of anti-drainage and can hide the roof deformation joint structure in the covering soil. At the bottom, prevent the deformation seam from being exposed and affect the appearance.

Description of drawings

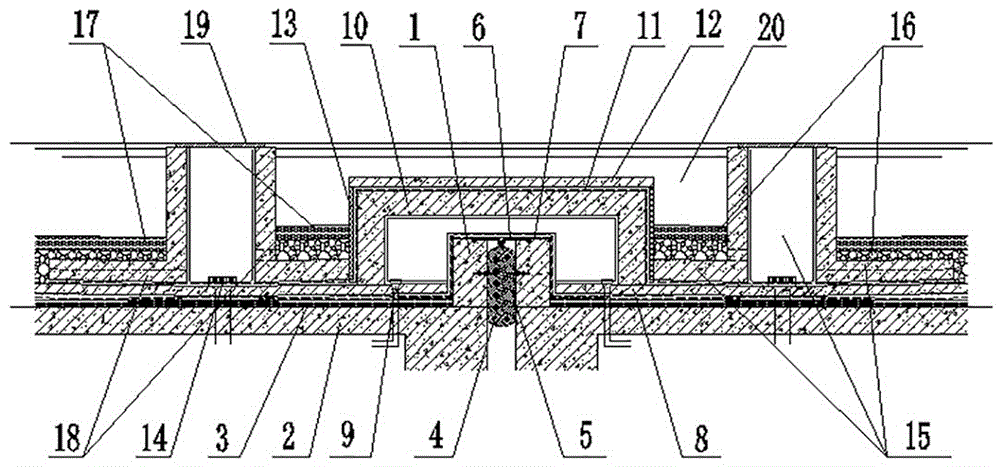

FIG. 1 is a schematic diagram of the overall structure of a concealed waterproof structure for deformation joints of a planting roof combined with anti-drainage according to the present invention.

FIG. 2 is a schematic structural diagram of a retaining wall and a cover plate in the utility model.

3 is a schematic structural diagram of a drainage ditch, a second floor drain and a drainage hole in the utility model.

FIG. 4 is a schematic structural diagram of the water stop plate of the present invention.

Among them: 1. Retaining wall; 2. Roof; 3. Slope layer of roof; 4. Insulation layer; 5. Rubber waterstop; 6. Waterstop; 61. V-shaped bending; 62. V-shaped groove; 7. The first waterproofing membrane; 8. The mortar waterproofing protective layer; 9. The first floor drain; 10. The cover plate; 11. The second waterproofing membrane; 12. The first waterproofing protective layer; 13. The second waterproofing protective layer; 14. Second floor drain; 15. Drainage ditch; 16. Gravel drainage layer; 17. Fine water filter layer; 18. Drainage hole; 19. Drain cover; 20. Backfill soil.

Detailed ways

The present utility model will now be described in further detail in conjunction with the accompanying drawings. The accompanying drawings are simplified schematic diagrams, and only illustrate the basic structure of the present invention in a schematic manner, so they only show the structures related to the present invention.

Please refer to FIGS. 1-4 , the technical scheme of the present invention is: a waterproof structure for the deformation joint of a hidden type planting roof combined with anti-drainage, including a retaining wall 1 on both sides of the deformation joint and a drainage system on the outer side of the retaining wall 1, and also includes On the top plate 2, a top plate slope-seeking layer 3 is arranged above the top plate, the retaining wall 1 and the drainage system are arranged on the roof plate slope-seeking layer 3, and a thermal insulation layer 4 and a rubber water stop 5 are arranged in the deformation joints, The thermal insulation layer 4 is a polystyrene board thermal insulation layer, a first waterproof roll material 7 is laid on the outer side of the retaining wall 1, and a mortar waterproof protective layer 8 is poured above the first waterproof roll material 7. The mortar waterproof protective layer The thickness of 8 is not less than 5cm, an inverted U-shaped cover plate 10 is arranged above the deformation joint, the cover plate 10 is not in contact with the periphery of the retaining wall 1, and both sides of the retaining wall 1 are provided in the cover plate 10. There is a first floor drain 9 , a second waterproof membrane 11 is provided on the outer side of the cover 10 , a first waterproof protective layer 12 is arranged above the second waterproof membrane 11 , and two sides of the second waterproof membrane 11 are provided. The side is provided with a second waterproof protective layer 13, and the drainage system is provided on both sides of the cover plate 10, wherein the first waterproof membrane 7 is a double-layer polyethylene polypropylene root puncture-resistant waterproof membrane, and the second waterproof membrane The coil material 11 is a single-layer polyethylene polypropylene fiber root puncture-resistant waterproof coil material; the first waterproof protective layer 12 is a concrete waterproof protective layer, and the second waterproof protective layer 13 is a polystyrene board waterproof protective layer.

In the present invention, the drainage system includes drainage ditch 15 and drainage holes 18 arranged on both sides of the cover plate 10 , the drainage ditch 15 is communicated with the drainage hole 18 , and gravel is arranged above the drainage ditch 15 The drainage layer 16 and the fine water filter layer 17 are provided with backfill 20 above the fine water filter layer 17, and the backfill 20 fills the top and both sides of the cover plate 10, and then constructs top greening according to greening requirements; A second floor drain 14 is also arranged in the ditch 15, and a drain cover 19 is arranged above the second floor drain 14. The drainage ditch 15 can effectively collect the accumulated water around the cover 10, and the accumulated water eventually passes through the second floor drain 14 discharges, increasing the overall waterproof performance.

As a preferred solution, a water stop plate 6 is further provided above the retaining wall 1 , a V-shaped groove 62 is provided on the top of the retaining wall 1 , and both sides of the water stop plate 6 are arranged in the V-shaped groove 62 , the water stop plate 6 is provided with a V-shaped bend 61, the water stop plate 6 is a galvanized steel sheet, and the establishment of the water stop plate 6 is effective for the thermal insulation layer 4 and the rubber water stop belt 5 in the deformation joint. Play a protective role and increase its service life.

When the new waterproof structure of the new type of hidden planting roof deformation joints combined with anti-drainage is used, the drainage ditches 15 on both sides of the deformation joints can effectively drain the excess water in the landscape roof covering soil to prevent the water from contacting the deformation joints; the deformation joints The cover plate 10 outside the retaining wall 1 can block the rainwater and the moisture in the covering soil from directly contacting the deformation joint, preventing the first waterproof membrane 7 and the rubber waterstop 5 from soaking in water for a long time and aging and causing water to directly enter the structure from the top of the deformation joint; The space reserved between the two sides of the cover plate 10 and the deformation joint retaining wall 1 is used as a second drainage structure, which can divert the water infiltrated into the cover plate 10 out of the deformation joint structure to prevent the water from contacting the deformation joint retaining wall 1 for a long time.

By means of the retaining wall 1, the water stop plate 6, the first waterproof membrane 7, the cover plate 10, the drainage channels 15 on both sides, etc., a composite waterproof structure is formed, which effectively blocks the water source outside the deformation joint and prevents water from entering. Compared with the traditional roof deformation joint structure, this new method effectively ensures that the roof deformation joint does not leak water through the combination of anti-drainage, and at the same time, the roof deformation joint structure can be hidden under the covering soil to prevent the deformation joint from being exposed and affecting the appearance. .

Finally, it should also be noted that in this document, relational terms such as first and second are used only to distinguish one entity or operation from another, and do not necessarily require or imply these entities or that there is any such actual relationship or sequence between operations. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass non-exclusive inclusion such that a process, method, article or device comprising a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

Obviously, the above-mentioned embodiments are only examples for clear description, and are not intended to limit the implementation manner. For those of ordinary skill in the art, changes or modifications in other different forms can also be made on the basis of the above description. There is no need and cannot be exhaustive of all implementations here. And the obvious changes or changes derived from this are still within the protection scope of the present invention.

Claims (7)

1. The utility model provides a prevent arranging hidden planting roofing movement joint waterproof construction that combines, includes barricade (1) and the drainage system in barricade (1) outside of movement joint both sides, its characterized in that: the waterproof structure is characterized by further comprising a top plate (2), a top plate slope finding layer (3) is arranged above the top plate (2), the retaining wall (1) and a drainage system are arranged on the top plate slope finding layer (3), a heat preservation layer (4) and a rubber water stop belt (5) are arranged in a deformation joint, a first waterproof coiled material (7) is laid on the outer side surface of the retaining wall (1), a mortar waterproof protective layer (8) is poured above the first waterproof coiled material (7), an inverted U-shaped cover plate (10) is arranged above the deformation joint, the cover plate (10) is not in contact with the periphery of the retaining wall (1), first floor drains (9) are arranged in the cover plate (10) on the two sides of the retaining wall (1), a second waterproof coiled material (11) is arranged on the outer side of the cover plate (10), a first waterproof protective layer (12) is arranged above the second waterproof coiled material (11), second waterproof protective layers (13) are arranged on the two sides of the second waterproof coiled material (11), the drainage system is arranged on two sides of the cover plate (10).

2. The waterproof structure for the deformation joint of the concealed planted roof, which is combined in a row prevention and drainage manner, according to claim 1, is characterized in that: the drainage system comprises drainage ditches (15) and drainage holes (18) which are arranged on two sides of the cover plate (10), the drainage ditches (15) are communicated with the drainage holes (18), a gravel drainage layer (16) and a fine water filtering layer (17) are arranged above the drainage ditches (15), backfill soil (20) is arranged above the fine water filtering layer (17), a second floor drain (14) is further arranged in the drainage ditches (15), and a drainage ditch cover plate (19) is arranged above the second floor drain (14).

3. The waterproof structure for the deformation joint of the concealed planted roof, which is combined with the drainage prevention structure, according to claim 1 or 2, is characterized in that: the top of barricade (1) still is equipped with stagnant water board (6), V word recess (62) are seted up at the top of barricade (1), the both sides of stagnant water board (6) are established in V word recess (62), be equipped with V type (61) of bending on stagnant water board (6), stagnant water board (6) are the galvanized steel sheet.

4. The waterproof structure for the deformation joint of the concealed planted roof, which is combined in a row prevention and drainage manner, according to claim 1, is characterized in that: the heat-insulating layer (4) is a polystyrene board heat-insulating layer.

5. The waterproof structure for the deformation joint of the concealed planted roof, which is combined in a row prevention and drainage manner, according to claim 1, is characterized in that: the first waterproof roll (7) is a double-layer polyethylene polypropylene root-resistant waterproof roll, and the second waterproof roll (11) is a single-layer polyethylene polypropylene root-resistant waterproof roll.

6. The waterproof structure for the deformation joint of the concealed planted roof, which is combined in a row prevention and drainage manner, according to claim 1, is characterized in that: the first waterproof protective layer (12) is a concrete waterproof protective layer, and the second waterproof protective layer (13) is a polystyrene board waterproof protective layer.

7. The waterproof structure for the deformation joint of the concealed planted roof, which is combined in a row prevention and drainage manner, according to claim 1, is characterized in that: the thickness of the mortar waterproof protective layer (8) is not less than 5 cm.
