The utility model relates to the technical field of feed drying, in particular to a granular compound feed drying device for laying ducks, which improves the drying efficiency; the drying dryer comprises a base, a drying dryer body, a first feeding hopper and a first discharging pipe, wherein the bottom end of the drying dryer body is connected with the top end of the base; still include a support, the dewatering casing, a bearing, a pivot, a supporting plate, gear motor, helical blade, No. two feeder hoppers, the outlet pipe, No. two discharging pipes and vibrating motor, the top of the bottom connection base of a support, the dewatering casing is connected to the top angle of a support, there is the cavity dewatering casing is inside, the top of dewatering casing is provided with the feed inlet No. one, feed inlet intercommunication cavity, the right-hand member of a pivot rotates the left end of connecting a bearing in the cavity, the bottom of dewatering casing is provided with vibrating motor.

Description

A kind of drying device of granular compound feed for breeding ducks

technical field

The utility model relates to the technical field of feed drying, in particular to a drying device for granular compound feed for laying ducks.

Background technique

The granular compound feed drying device for laying ducks is an auxiliary device for drying materials, which has been widely used in the field of feed drying; the existing granular compound feed drying device for laying ducks includes a drying dryer body , No. 1 feeding hopper and No. 1 discharging pipe, the top of the drying dryer body is provided with a No. 1 feeding hopper, and the right end of the drying dryer body is provided with a No. 1 discharging pipe; When the feed drying device is in use, the livestock manure that needs to be dried enters the drying dryer body through the No. 1 feeding hopper for drying, and then is discharged through the No. 1 discharge pipe; During the use of the feed drying device, it is found that in real life, the manure of livestock and poultry raised in the farm is generally high in moisture after collection, and even a lot of it is in the form of silt. Probably deep manure maintains the original moisture of manure. When using the dryer body for processing, the dried large pieces of manure may block the No. 1 feed hopper, and then the manure with higher water content is not fully dried. , does not meet the expected requirements.

Utility model content

In order to solve the above technical problems, the utility model provides a drying device for the granular compound feed for laying ducks, which improves the drying efficiency.

The utility model relates to a drying device for granulated compound feed for breeding ducks, which comprises a base, a drying dryer body, a No. 1 feeding hopper and a No. 1 discharging pipe. The bottom end of the drying dryer body is connected to the top end of the base. , the top of the drying dryer body is provided with a No. 1 feeding hopper, and the right end of the drying dryer body is provided with a No. 1 discharge pipe; it also includes a No. Geared motor, spiral blade, No. 2 feeding hopper, water outlet pipe, No. 2 discharging pipe and vibration motor, the bottom end of No. 1 bracket is connected to the top of the base, and the top angle of No. 1 bracket is connected to the dehydration casing, the dehydration casing There is a chamber inside, the top of the dewatering machine shell is provided with a No. 1 feeding port, the No. 1 feeding port is connected to the chamber, and the top of the No. 1 feeding port is provided with a No. 2 feeding hopper, and the No. 2 feeding hopper is communicated with the chamber. The bottom end of the dewatering machine shell is provided with a water outlet, the water outlet is connected to the chamber, the water outlet is provided with a water outlet pipe, and the water outlet pipe is connected to the chamber, the right end of the dewatering machine case is provided with a No. The No. 1 discharge port is provided with a No. 2 discharge pipe. The No. 2 discharge pipe is connected to the chamber. The No. 2 discharge pipe is directly above the No. 1 feed hopper. The right end of the No. 1 bearing is fixedly connected to the chamber. The right end, the right end of the support plate is connected to the left end of the dehydration casing, the bottom end of the gear motor is connected to the top of the support plate, the output end of the gear motor is connected to the No. 1 rotating shaft, the No. 1 rotating shaft is connected to the spiral blade in the chamber, and the right end of the No. 1 rotating shaft The left end of the No. 1 bearing is rotatably connected in the chamber, and the bottom end of the dewatering machine casing is provided with a vibration motor.

Preferably, it also includes a No. 2 bracket, a pulverizer casing, two No. 2 bearings, a No. 2 rotating shaft, a plurality of pulverizing rods, a No. 1 bevel gear, a rotating shaft, a No. 2 bevel gear and a drive motor. The bottom end is connected to the top of the base, the top of the No. 2 bracket is connected to the bottom end of the pulverizer shell, there is a No. 2 chamber inside the pulverizer shell, and the top of the pulverizer shell is provided with a No. Connected with the No. 2 chamber, the bottom end of the pulverizer shell is provided with the No. 2 discharge port, the No. 2 discharge port is connected with the No. 2 chamber, the No. 2 discharge port is directly above the No. 2 feed hopper, and the two The No. 2 bearings are fixedly installed on the left and right ends of the inner wall of the No. 2 chamber, and the left and right ends of the No. 2 rotating shaft are respectively rotatably connected to the ends of the two No. 2 bearings. The No. 2 rotating shaft is connected with multiple crushing rods in the chamber. A No. 1 bevel gear is arranged on the No. Rotary shaft, the top of the crusher casing is connected to the bottom end of the drive motor, the output end of the drive motor is connected to the rotating shaft, and the bottom end of the rotating shaft is connected to the No. 2 bevel gear in the chamber, and the No. 2 cone The bevel gear meshes with the number one bevel gear.

Preferably, it also includes a hot air blower, an air supply pipe and an annular pipe, the outer end of the annular pipe is connected to the inner wall of the No. 2 chamber, the bottom end of the annular pipe is provided with a plurality of air outlets, and the left end of the hot air blower is connected to the right end of the pulverizer shell , the output end of the hot air blower is connected to the air supply pipe, and the output end of the air supply pipe is connected to the annular pipe.

Preferably, it also includes a waste liquid barrel, a drain pipe, activated carbon and a hose, the bottom end of the waste liquid barrel is connected to the top of the base, the interior of the waste liquid barrel is provided with a No. 3 chamber, and the top of the waste liquid barrel is provided with a water inlet, The water inlet is communicated with the No. 3 chamber, the waste liquid bucket is directly below the water outlet pipe, the bottom of the waste liquid bucket is provided with activated carbon, the left end of the waste liquid bucket is provided with a drain pipe, and the input end of the drain pipe is connected to No. The output end of the tube is fitted with a hose.

Preferably, a plurality of swivel wheels are also included, and the tops of the plurality of swivel wheels are all connected to the bottom end of the base.

Preferably, it also includes a plurality of brake plates, and any one of the universal wheels is provided with a brake plate.

Preferably, it also includes a handle, and the handle is arranged on the right part of the top end of the base.

Preferably, the No. 3 feeding hopper is also included, the No. 3 feeding hopper is arranged at the top of the No. 2 feeding port, and the No. 3 feeding hopper is connected to the No. 2 chamber.

Compared with the prior art, the beneficial effect of the present utility model is as follows: the livestock manure that needs to be dried is fed into the chamber through the No. 2 feeding hopper, the vibration motor is turned on, and then the deceleration motor is turned on to make the No. 1 rotating shaft No. 1 bearing. With the cooperation, the spiral blade rotates. During the vibration and rotation process, the water in the feces is separated from the feces, the separated water is discharged through the water outlet pipe, the feces are discharged through the No. 2 discharge pipe, and then enter the drying through the No. 1 feeding hopper. Drying is carried out in the dryer body, and then discharged through the No. 1 discharge pipe, which improves the drying efficiency.

Description of drawings

Fig. 1 is the sectional structure schematic diagram of the present utility model;

Fig. 2 is a partial enlarged structural schematic diagram of part A in Fig. 1;

Figure 3 is an enlarged schematic view of the structure of the support plate and the deceleration motor;

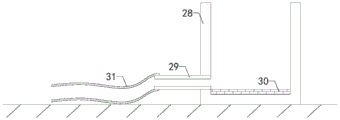

Fig. 4 is the enlarged structural schematic diagram of the structures such as waste liquid bucket and activated carbon;

Symbols in the drawings: 1. Base; 2. Dryer body; 3. No. 1 feeding hopper; 4. No. 1 discharge pipe; 5. No. 1 bracket; 6. Dehydration casing; 7. No. 1 Bearing; 8. No. 1 rotating shaft; 9. Support plate; 10. Geared motor; 11. Spiral blade; 12. No. 2 feeding hopper; 13. Water outlet pipe; 14. No. 2 discharging pipe; , No. 2 bracket; 17, crusher casing; 18, No. 2 bearing; 19, No. 2 rotating shaft; 20, crushing rod; 21, No. 1 bevel gear; 22, Rotating shaft; 23, No. 2 bevel gear; 24 , drive motor; 25, hot air blower; 26, air supply pipe; 27, annular pipe; 28, waste liquid bucket; 29, drain pipe; 30, activated carbon; 31, hose; 32, universal wheel; 33, brake plate ; 34, handle; 35, No. 3 feeding hopper.

Detailed ways

The specific embodiments of the present utility model will be described in further detail below with reference to the accompanying drawings and embodiments. The following examples are used to illustrate the present invention, but are not intended to limit the scope of the present invention.

As shown in FIGS. 1 to 4 , a drying device for granular compound feed for laying ducks of the present invention includes a base 1, a drying dryer body 2, a No. 1 feeding hopper 3, and a No. 1 discharging pipe 4, The bottom end of the drying dryer body 2 is connected to the top end of the base 1, the top end of the drying dryer body 2 is provided with a No. No. 1 bracket 5, dehydration casing 6, No. 1 bearing 7, No. 1 rotating shaft 8, support plate 9, gear motor 10, spiral blade 11, No. 2 feeding hopper 12, No. 1 water outlet pipe 13, No. 2 discharge pipe 14 and Vibrating motor 15, the bottom end of the No. 1 bracket 5 is connected to the top of the base 1, and the top end of the No. 1 bracket 5 is connected to the dehydration casing 6 at an angle. The feed port, the No. 1 feeding port is connected to the chamber, the top of the No. 1 feeding port is provided with a No. 2 feeding hopper 12, the No. 2 feeding hopper 12 is communicated with the chamber, and the bottom end of the dewatering machine shell 6 is provided with a water outlet, The water outlet is connected to the chamber, the water outlet is provided with a water outlet pipe 13, and the water outlet pipe 13 is connected to the chamber. The right end of the dewatering machine casing 6 is provided with a No. There is a No. 2 discharge pipe 14, the No. 2 discharge pipe 14 is communicated with the chamber, the No. 2 discharge pipe 14 is directly above the No. 1 feed hopper 3, and the right end of the No. 1 bearing 7 is fixedly connected to the right end of the chamber, supporting The right end of the plate 9 is connected to the left end of the dehydration casing 6, the bottom end of the deceleration motor 10 is connected to the top end of the support plate 9, the output end of the deceleration motor 10 is connected to the No. 1 rotating shaft 8, and the No. 1 rotating shaft 8 is connected in the chamber. The right end of the No. 1 rotating shaft 8 is rotatably connected to the left end of the No. 1 bearing 7 in the chamber, and the bottom end of the dehydrating machine casing 6 is provided with a vibration motor 15; the livestock manure to be dried enters the chamber through the No. 2 feeding hopper 12 During the vibration and rotation, the vibration motor 15 is turned on, and then the deceleration motor 10 is turned on, so that the No. 1 rotating shaft 8 rotates the spiral blade 11 under the cooperation of the No. 1 bearing 7. During the vibration and rotation process, the water in the feces is separated from the feces, and the separated water The feces are discharged through the water outlet pipe 13, and the excrement is discharged through the No. 2 discharge pipe 14, and then enters the drying dryer body 2 through the No. 1 feeding hopper 3 for drying, and then is discharged through the No. 1 discharge pipe 4, which improves the drying efficiency. .

Preferably, it also includes a No. 2 bracket 16 , a pulverizer casing 17 , two No. 2 bearings 18 , a No. 2 rotating shaft 19 , a plurality of pulverizing rods 20 , a No. 1 bevel gear 21 , a rotating shaft 22 and a No. 2 bevel gear 23 And the drive motor 24, the bottom end of the second bracket 16 is connected to the top of the base 1, the top of the second bracket 16 is connected to the bottom end of the pulverizer shell 17, the pulverizer shell 17 has a second chamber inside, the pulverizer shell 17 The top of the crusher is provided with the No. 2 feeding port, the No. 2 feeding port is communicated with the No. 2 chamber, the bottom end of the pulverizer shell 17 is provided with a No. 2 discharge port, the No. 2 discharge port is communicated with the No. 2 chamber, and the second The No. 2 discharge port is directly above the No. 2 feeding hopper 12, the two No. 2 bearings 18 are fixedly installed on the left and right ends of the inner wall of the No. 2 chamber, and the left and right ends of the No. 2 rotating shaft 19 are respectively connected with the two No. 2 bearings 18 The close end is connected in rotation, the second rotating shaft 19 is connected with a plurality of crushing rods 20 in the chamber, the second rotating shaft 19 is provided with a No. The output end of 24 is connected to the rotating shaft 22, and the bottom end of the rotating shaft 22 is connected to the No. 2 bevel gear 23 in the chamber, and the No. 2 bevel gear 23 meshes with the No. 1 bevel gear 21; Enter the No. 2 chamber through the No. 2 feeding port, and turn on the driving motor 24 at the same time, so that the rotating shaft 22 drives the No. 2 bevel gear 23 to rotate, so that the No. 1 bevel gear 21 drives the No. 2 rotating shaft 19 to rotate, and then the second The No. 1 rotating shaft 19 drives a plurality of crushing rods 20 to rotate, so that a plurality of No. 1 bevel gears 21 pulverize the feces, and then the crushed feces enter the chamber through the No. 2 outlet and the No. 2 feeding hopper 12, Improve drying efficiency.

Preferably, it also includes a hot air blower 25, an air supply pipe 26 and an annular pipe 27. The outer end of the annular pipe 27 is connected to the inner wall of the No. 2 chamber. The bottom end of the annular pipe 27 is provided with a plurality of air outlets. Connect the right end of the pulverizer shell 17, the output end of the hot air blower 25 is connected to the air supply pipe 26, and the output end of the air supply pipe 26 is connected to the annular pipe 27; when the feces are pulverized in the No. 2 chamber, the hot air blower 25 is turned on at the same time. , so that the generated hot air enters the annular pipe 27 through the air supply pipe 26, and then pre-dries the feces in the No. 2 chamber through a plurality of air outlets, which improves the drying efficiency.

Preferably, it also includes a waste liquid bucket 28, a drain pipe 29, activated carbon 30 and a hose 31. The bottom end of the waste liquid bucket 28 is connected to the top of the base 1, and the waste liquid bucket 28 is provided with a No. 3 chamber. The top of 28 is provided with a water inlet, the water inlet is communicated with the No. 3 chamber, the waste liquid barrel 28 is directly below the water outlet pipe 13, the bottom of the waste liquid barrel 28 is provided with activated carbon 30, and the left end of the waste liquid barrel 28 is provided with a drain pipe 29. The input end of the drain pipe 29 is connected to the No. 3 chamber, and the output end of the drain pipe 29 is sheathed with a hose 31; the separated sewage enters the No. 3 chamber through the water outlet pipe 13, and the activated carbon 30 can deodorize the sewage. The odor is adsorbed, and then the sewage is discharged through the drain pipe 29 and the hose 31, which improves the practicality.

Preferably, a plurality of universal wheels 32 are also included, and the tops of the multiple universal wheels 32 are all connected to the bottom end of the base 1 ; the device moves the position through the multiple universal wheels 32 , which improves flexibility.

Preferably, a plurality of brake plates 33 are also included, and a brake plate 33 is provided on any one of the universal wheels 32; the device is moved to a suitable position through the plurality of universal wheels 32, and then the plurality of brake plates 33 are opened to fix the device , which improves stability.

Preferably, a handle 34 is also included, and the handle 34 is arranged on the right part of the top end of the base 1 ; the device holds the handle 34 and moves conveniently through a plurality of universal wheels 32 , which improves the convenience.

Preferably, the No. 3 feeding hopper 35 is also included. The No. 3 feeding hopper 35 is arranged at the top of the No. 2 feeding port, and the No. 3 feeding hopper 35 is connected to the No. 2 chamber; It reduces the chance of falling and improves the usability.

The utility model relates to a drying device for granulated compound feed for breeding ducks. During operation, the operator holds the handle 34 to move the device to a suitable position through a plurality of universal wheels 32, and then opens a plurality of brake plates 33 to fix the device. , enter the feces into the No. 2 chamber through the No. 2 feeding port, turn on the drive motor 24, and make the rotating shaft 22 drive the No. 2 bevel gear 23 to rotate, so that the No. 1 bevel gear 21 drives the No. 2 rotating shaft 19 to rotate, Then the No. 2 rotating shaft 19 drives the plurality of pulverizing rods 20 to rotate, so that the plurality of No. 1 bevel gears 21 pulverize the feces, and at the same time, the hot air blower 25 is turned on, so that the generated hot air enters the annular pipe 27 through the air supply pipe 26, and then The feces in the No. 2 chamber are dried through multiple air outlets, and then the crushed feces enter the chamber through the No. 2 outlet and the No. 2 feeding hopper 12, turn on the vibration motor 15, and then turn on the reduction motor 10 to make The No. 1 rotating shaft 8 rotates the spiral blade 11 under the cooperation of the No. 1 bearing 7. During the vibration and rotation process, the water in the feces is separated from the feces, and the separated water is discharged into the No. 3 chamber through the water outlet pipe 13. The activated carbon 30 can absorb the odor of sewage, and then the sewage is discharged through the drain pipe 29 and the hose 31, and the feces are discharged through the No. 2 discharge pipe 14, and then enter the drying dryer body 2 through the No. 1 feeding hopper 3 for processing. Dry, and then discharge through No. 1 discharge pipe 4.

The drying device for the granular compound feed for ducks of the utility model is installed, connected or set up by common mechanical methods, and can be implemented as long as the beneficial effects can be achieved; The deceleration motor 10, the vibration motor 15 and the drive motor 24 of the granular compound feed drying device are purchased from the market, and the technicians in the industry only need to install and operate them according to the accompanying instruction manual.

The above are only the preferred embodiments of the present utility model. It should be pointed out that for those skilled in the art, without departing from the technical principles of the present utility model, several improvements and modifications can be made. These improvements and modifications should also be regarded as the protection scope of the present invention.

Claims (8)

1. A drying device for granulated compound feed for breeding ducks, comprising a base (1), a drying dryer body (2), a No. 1 feeding hopper (3), a No. 1 discharging pipe (4), drying and drying The bottom end of the dryer body (2) is connected to the top of the base (1), the top of the dryer body (2) is provided with a feed hopper (3), and the right end of the dryer body (2) is provided with a number one A discharge pipe (4); characterized in that it further comprises a No. 1 bracket (5), a dehydration casing (6), a No. 1 bearing (7), a No. 1 rotating shaft (8), a support plate (9), a deceleration motor ( 10), helical blade (11), No. 2 feeding hopper (12), water outlet pipe (13), No. 2 discharging pipe (14) and vibration motor (15), the bottom connecting base of No. 1 bracket (5) The top of the seat (1) and the top of the No. 1 bracket (5) are connected to the dewatering machine shell (6) at an angle. There is a chamber inside the dewatering machine shell (6). The top of the dewatering machine shell (6) is provided with a No. The No. 1 feeding port is connected to the chamber, the top of the No. 1 feeding port is provided with a No. 2 feeding hopper (12), the No. 2 feeding hopper (12) is communicated with the chamber, and the bottom end of the dehydrating machine shell (6) is provided with a No. 2 feeding hopper (12) The water outlet is connected to the chamber, the water outlet is provided with a water outlet pipe (13), the water outlet pipe (13) is connected to the chamber, and the right end of the dewatering machine casing (6) is provided with a No. The No. 1 discharge port is provided with a No. 2 discharge pipe (14), the No. 2 discharge pipe (14) is communicated with the chamber, and the No. 2 discharge pipe (14) is connected to the No. 1 feeding hopper (3). Right above, the right end of the No. 1 bearing (7) is fixedly connected to the right end of the chamber, the right end of the support plate (9) is connected to the left end of the dehydration casing (6), and the bottom end of the gear motor (10) is connected to the support plate (9). At the top, the output end of the geared motor (10) is connected to the No. 1 rotating shaft (8), the No. 1 rotating shaft (8) is connected to the spiral blade (11) in the chamber, and the right end of the No. 1 rotating shaft (8) is rotatably connected to a No. 1 rotating shaft in the chamber. The left end of the bearing (7) and the bottom end of the dewatering machine casing (6) are provided with a vibration motor (15). 2. The drying device for the granular compound feed for breeding ducks according to claim 1, characterized in that it further comprises a No. 2 bracket (16), a pulverizer shell (17), two No. 2 bearings (18), two No. No. 1 rotating shaft (19), a plurality of crushing rods (20), No. 1 bevel gear (21), rotating shaft (22), No. 2 bevel gear (23) and drive motor (24), No. 2 bracket (16) The bottom end is connected to the top of the base (1), the top of the second bracket (16) is connected to the bottom end of the pulverizer shell (17), and the pulverizer shell (17) has a No. ) is provided with the No. 2 feeding port, which is communicated with the No. 2 chamber, and the bottom end of the pulverizer shell (17) is provided with a No. 2 discharge port, and the No. 2 discharge port is connected with the No. 2 chamber. The No. 2 discharge port is directly above the No. 2 feeding hopper (12), the two No. 2 bearings (18) are fixedly installed on the left and right ends of the inner wall of the No. 2 chamber, and the left and right sides of the No. 2 rotating shaft (19) are respectively fixed. The ends are respectively rotatably connected to the end of the two No. 2 bearings (18), the No. 2 rotating shaft (19) is connected with a plurality of crushing rods (20) in the chamber, and the No. 2 rotating shaft (19) is provided with a No. 1 bevel gear ( 21), the top end of the pulverizer shell (17) is connected to the bottom end of the drive motor (24), the output end of the drive motor (24) is connected to the rotating shaft (22), and the bottom end of the rotating shaft (22) is connected to the two in the chamber. The No. 1 bevel gear (23), the No. 2 bevel gear (23) meshes with the No. 1 bevel gear (21). 3 . The drying device for the granular compound feed for laying ducks according to claim 2 , further comprising a hot air blower ( 25 ), an air supply pipe ( 26 ) and an annular pipe ( 27 ), and the annular pipe ( 27 ) The outer end is connected to the inner wall of the No. 2 chamber, the bottom end of the annular pipe (27) is provided with a plurality of air outlets, the left end of the hot air blower (25) is connected to the right end of the pulverizer shell (17), and the output of the hot air blower (25) The end is connected with the air delivery pipe (26), and the output end of the air delivery pipe (26) is connected with the annular pipe (27). 4 . The drying device for the granular compound feed for laying ducks according to claim 3 , further comprising a waste liquid bucket ( 28 ), a drain pipe ( 29 ), activated carbon ( 30 ) and a hose ( 31 ), 5 . The bottom end of the waste liquid bucket (28) is connected to the top of the base (1). The interior of the waste liquid bucket (28) is provided with a chamber No. 3, and the top of the waste liquid bucket (28) is provided with a water inlet. The chambers are connected, the waste liquid bucket (28) is directly below the water outlet pipe (13), the bottom of the waste liquid bucket (28) is provided with activated carbon (30), and the left end of the waste liquid bucket (28) is provided with a drain pipe (29) , the input end of the drain pipe (29) is connected to the third chamber, and the output end of the drain pipe (29) is sleeved with a hose (31). 5 . The device for drying the granular compound feed for breeding ducks according to claim 4 , further comprising a plurality of universal wheels ( 32 ), the tops of the plurality of universal wheels ( 32 ) are all connected to the base ( 5 . 1) at the bottom end. 6 . The drying device for the granular compound feed for breeding ducks according to claim 5 , further comprising a plurality of brake plates ( 33 ), and each universal wheel ( 32 ) is provided with a brake plate ( 6 . 33). 7 . The drying device for the granular compound feed for laying ducks according to claim 6 , further comprising a handle ( 34 ), and the handle ( 34 ) is arranged on the right part of the top of the base ( 1 ). 8 . 8 . The device for drying the granular compound feed for breeding ducks according to claim 7 , further comprising a No. 3 feeding hopper ( 35 ), and the No. 3 feeding hopper ( 35 ) is arranged at the No. 2 feeding port. 9 . At the top of the hopper, No. 3 feeding hopper (35) communicates with No. 2 chamber.
