The utility model discloses a cleaning device for a wire drawing machine, comprising a wire drawing machine body, a lifting plate is arranged inside the wire drawing machine body, a placement slot is opened on the top of the lifting plate, and the number of the placement slot is several , and several placement slots are equidistantly distributed, both sides of the bottom of the inner wall of the placement slot are fixedly connected with brush plates, the surface of the brush plate is in contact with the surface of the wire drawing machine body, and both sides of the inner wall of the placement slot are fixedly connected with shunts The bottom of the lifting plate is fixedly connected with a collection tank, the four corners of the bottom of the collection tank are fixedly connected to a multi-stage electric cylinder, and the bottom of the multi-stage electric cylinder is fixedly connected to the bottom of the inner wall of the wire drawing machine body. The utility model has the advantages of cleaning, and solves the problem that the traditional wire drawing machine lacks a cleaning structure and cannot clean the wire drawing roller of the wire drawing machine.

Description

Cleaning device of wire drawing machine

Technical Field

The utility model relates to the technical field of wire drawing machines, in particular to a cleaning device of a wire drawing machine.

Background

Need use the wire drawing machine in the plastic products course of working, traditional wire drawing machine lacks the washing structure, can't wash the wire drawing roller of wire drawing machine, and the dirt can appear on its surface of wire drawing roller long-time work, causes the unable problem of normal production of wire drawing machine easily.

SUMMERY OF THE UTILITY MODEL

In order to solve the problems in the background art, the utility model aims to provide a cleaning device for a wire drawing machine, which has the advantage of cleaning and solves the problems that a traditional wire drawing machine is lack of a cleaning structure, a wire drawing roller of the wire drawing machine cannot be cleaned, and the surface of the wire drawing roller can be polluted after working for a long time, so that the wire drawing machine cannot be normally produced.

In order to achieve the purpose, the utility model provides the following technical scheme: a cleaning device of a wire drawing machine comprises a wire drawing machine body, wherein a lifting plate is arranged inside the wire drawing machine body, a plurality of placing grooves are formed in the top of the lifting plate, brush plates are fixedly connected to two sides of the bottom of the inner wall of each placing groove, the surface of each brush plate is in contact with the surface of the wire drawing machine body, flow distribution plates are fixedly connected to two sides of the inner wall of each placing groove, a collecting groove is fixedly connected to the bottom of each lifting plate, multistage electric cylinders are fixedly connected to four corners of the bottom of each collecting groove, the bottoms of the multistage electric cylinders are fixedly connected to the bottom of the inner wall of the wire drawing machine body, a water tank is fixedly connected to the left side of the bottom of the inner wall of the wire drawing machine body, a water pump is fixedly connected to the bottom of the inner wall of the wire drawing machine body, and a water pipe is communicated with the input end of the water pump, the left side of water pipe runs through to the inside of water tank, the output of water pump passes through siphunculus and the input of multi-port joint intercommunication at the flow distribution plate, the top of water tank is provided with the rose box, the rose box bottom extends to the inside of water tank, the left side intercommunication of collecting vat has flexible hose, flexible hose is located the top of rose box.

Preferably, the bottom of the inner wall of the collecting tank is fixedly connected with a guide plate, and the right side of the guide plate is fixedly connected with the right side of the inner wall of the collecting tank.

Preferably, the bottom of the lifting plate is fixedly connected with a support column group, and the bottom of the support column group is fixedly connected to the top of the guide plate.

Preferably, the left side of the water pipe is communicated with a filter box, and the bottom of the filter box is fixedly connected to the bottom of the inner wall of the water tank.

Preferably, the front side and the rear side of the top of the filter box are both fixedly connected with handles, and the length of each handle is smaller than that of the filter box.

Preferably, the surface of the telescopic hose is sleeved with a fixing block, and the bottom of the fixing block is fixedly mounted at the top of the filter box through a bolt.

Compared with the prior art, the utility model has the following beneficial effects:

1. the utility model is characterized in that a wire drawing machine body, a lifting plate, a placing groove, a brush plate, a flow distribution plate, a collecting groove, a multi-stage electric cylinder, a water tank, a water pump, a water pipe, a filter box and a flexible hose are arranged and used in a matching way, when a wire drawing roller of the wire drawing machine body needs to be cleaned, the multi-stage electric cylinder is started, the output end of the multi-stage electric cylinder drives the collecting groove, the lifting plate, the brush plate and the flow distribution plate to move upwards, the collecting groove stretches the flexible hose, when the brush plate is contacted with the wire drawing roller, the multi-stage electric cylinder is closed, the water pump is started, the water pump sprays water in the water tank onto the surface of the wire drawing roller through a through pipe, the water pipe and the flow distribution plate, the wire drawing roller is started in the process, the brush plate cleans the surface of the wire drawing roller, the cleaned water falls into the collecting groove, the water flows into the filter box through the flexible hose, and the water flows into the water tank after being filtered by the filter box, the wire drawing machine has the advantages of cleaning, and solves the problems that the traditional wire drawing machine is short of a cleaning structure, a wire drawing roller of the wire drawing machine cannot be cleaned, dirt can appear on the surface of the wire drawing roller when the wire drawing roller works for a long time, and the wire drawing machine cannot be normally produced easily.

2. According to the utility model, the guide plate is arranged, so that water flow in the collecting tank can be guided, the phenomenon of water accumulation in the collecting tank is avoided, and the practicability of the collecting tank is improved.

3. According to the utility model, the supporting column group is arranged, so that the collecting tank can be reinforced, and the phenomenon of looseness of the collecting tank caused by long-term use of the collecting tank is avoided.

4. According to the utility model, the filter box is arranged, so that water output by the water pump can be filtered, and the phenomenon that impurities in the water enter the water pump is avoided.

5. By arranging the handle, the filter box can be conveniently lifted by a user, the phenomenon that the filter box is difficult to pull is avoided, and the practicability of the filter box is improved.

6. According to the utility model, the fixing block is arranged, so that the telescopic hose can be positioned, the phenomenon that the telescopic hose is separated from the filter box is avoided, and the stability of the telescopic hose is improved.

Drawings

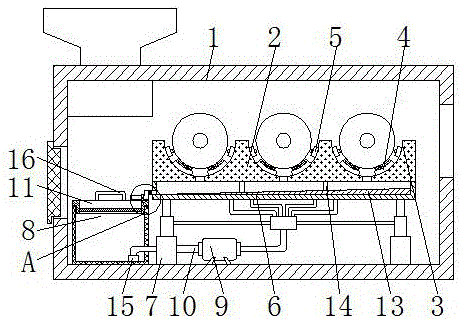

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is an enlarged view of the structure at A in FIG. 1;

fig. 3 is a perspective view of the fixing block of the present invention.

In the figure: 1. a wire drawing machine body; 2. a lifting plate; 3. a placement groove; 4. a brush plate; 5. a flow distribution plate; 6. collecting tank; 7. a multi-stage electric cylinder; 8. a water tank; 9. a water pump; 10. a water pipe; 11. a filter box; 12. a flexible hose; 13. a baffle; 14. a support column group; 15. a filter cartridge; 16. a handle; 17. and (5) fixing blocks.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

As shown in figures 1 to 3, the cleaning device for the wire drawing machine provided by the utility model comprises a wire drawing machine body 1, wherein a lifting plate 2 is arranged inside the wire drawing machine body 1, a plurality of placing grooves 3 are arranged at the top of the lifting plate 2, the placing grooves 3 are distributed equidistantly, two sides of the bottom of the inner wall of each placing groove 3 are fixedly connected with brush plates 4, the surface of each brush plate 4 is in contact with the surface of the wire drawing machine body 1, two sides of the inner wall of each placing groove 3 are fixedly connected with splitter plates 5, the bottom of each lifting plate 2 is fixedly connected with a collecting groove 6, four corners of the bottom of each collecting groove 6 are fixedly connected with a multi-stage electric cylinder 7, the bottom of each multi-stage electric cylinder 7 is fixedly connected to the bottom of the inner wall of the wire drawing machine body 1, the left side of the bottom of the inner wall of the wire drawing machine body 1 is fixedly connected with a water tank 8, and the bottom of the inner wall of the wire drawing machine body 1 is fixedly connected with a water pump 9, the input intercommunication of water pump 9 has water pipe 10, and the inside to water tank 8 is run through on the left side of water pipe 10, and the output of water pump 9 passes through siphunculus and the input of multi-port joint intercommunication at flow distribution plate 5, and the top of water tank 8 is provided with rose box 11, and rose box 11 bottom extends to the inside of water tank 8, and the left side intercommunication of collecting vat 6 has flexible hose 12, and flexible hose 12 is located the top of rose box 11.

Referring to fig. 1, a guide plate 13 is fixedly connected to the bottom of the inner wall of the collecting tank 6, and the right side of the guide plate 13 is fixedly connected to the right side of the inner wall of the collecting tank 6.

As a technical optimization scheme of the utility model, the guide plate 13 is arranged, so that water flow in the collecting tank 6 can be guided, the phenomenon of water accumulation in the collecting tank 6 is avoided, and the practicability of the collecting tank 6 is improved.

Referring to fig. 1, a support column group 14 is fixedly connected to the bottom of the lifting plate 2, and the bottom of the support column group 14 is fixedly connected to the top of the deflector 13.

As a technical optimization scheme of the utility model, the supporting column group 14 is arranged, so that the collecting tank 6 can be reinforced, and the phenomenon of looseness of the collecting tank 6 caused by long-term use is avoided.

Referring to fig. 1, the left side of the water pipe 10 is communicated with a filter box 15, and the bottom of the filter box 15 is fixedly connected to the bottom of the inner wall of the water tank 8.

As a technical optimization scheme of the utility model, the filter box 15 is arranged, so that water output by the water pump 9 can be filtered, and the phenomenon that impurities in the water enter the water pump 9 is avoided.

Referring to fig. 1, handles 16 are fixedly connected to both front and rear sides of the top of the filter tank 11, and the length of the handles 16 is smaller than that of the filter tank 11.

As a technical optimization scheme of the utility model, the handle 16 is arranged, so that a user can conveniently lift the filter box 11, the phenomenon that the filter box 11 is difficult to pull is avoided, and the practicability of the filter box 11 is improved.

Referring to fig. 2, a fixing block 17 is sleeved on the surface of the flexible hose 12, and the bottom of the fixing block 17 is fixedly mounted on the top of the filter box 11 through a bolt.

As a technical optimization scheme of the utility model, the telescopic hose 12 can be positioned by arranging the fixing block 17, the phenomenon that the telescopic hose 12 is separated from the filter box 11 is avoided, and the stability of the telescopic hose 12 is improved.

The working principle and the using process of the utility model are as follows: when using, when the wire drawing roller of wire drawing machine body 1 needs to wash, start multistage electronic jar 7, the output of multistage electronic jar 7 drives collecting vat 6, lifter plate 2, brush board 4 and flow distribution plate 5 move up, simultaneously the tensile expansion hose 12 of collecting vat 6, when brush board 4 and wire drawing roller contact, close multistage electronic jar 7, start water pump 9, water pump 9 passes through the siphunculus, water pipe 10 and flow distribution plate 5 spray the surface at the wire drawing roller with the inside water of water tank 8, start the wire drawing roller at this in-process, brush board 4 clears up the surface of wire drawing roller this moment, water after the washing falls into the inside of collecting vat 6, rivers fall into the inside of rose box 11 through expansion hose 12, rivers are filtered the inside that gets into water tank 8 by rose box 11, thereby the abluent effect has been possessed.

In summary, the following steps: this belt cleaning device of wire drawing machine, through wire drawing machine body 1, lifter plate 2, standing groove 3, brush board 4, flow distribution plate 5, collecting vat 6, multistage electronic jar 7, water tank 8, water pump 9, water pipe 10, rose box 11 and expansion hose 12's cooperation is used, the abluent advantage has been possessed, it lacks the washing structure to have solved traditional wire drawing machine, can't wash the wire drawing roller of wire drawing machine, the dirt can appear on its surface of wire drawing roller long-time work, cause the unable problem of normally producing of wire drawing machine easily.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A cleaning device for a wire drawing machine, comprising a wire drawing machine body (1), characterized in that: a lifting plate (2) is provided inside the wire drawing machine body (1), and a top of the lifting plate (2) is provided with a There are placement slots (3), the number of placement slots (3) is several, and the placement slots (3) are equidistantly distributed, and both sides of the bottom of the inner wall of the placement slot (3) are fixedly connected with hairs. A brush plate (4), the surface of the brush plate (4) is in contact with the surface of the wire drawing machine body (1), and the two sides of the inner wall of the placement groove (3) are fixedly connected with a diverter plate (5), the said The bottom of the lifting plate (2) is fixedly connected with a collection groove (6), the four corners of the bottom of the collection groove (6) are fixedly connected with a multi-stage electric cylinder (7), and the bottom of the multi-stage electric cylinder (7) is fixed Connected to the bottom of the inner wall of the wire drawing machine body (1), a water tank (8) is fixedly connected to the left side of the bottom of the inner wall of the wire drawing machine body (1), and a water pump (9) is fixedly connected to the bottom of the inner wall of the wire drawing machine body (1). ), the input end of the water pump (9) is connected with a water pipe (10), the left side of the water pipe (10) penetrates into the interior of the water tank (8), and the output end of the water pump (9) is connected to the The port joint is communicated with the input end of the dividing plate (5). The top of the water tank (8) is provided with a filter box (11), and the bottom of the filter box (11) extends to the interior of the water tank (8). A telescopic hose (12) is communicated with the left side of (6), and the telescopic hose (12) is located on the top of the filter box (11).

2 . The cleaning device for a wire drawing machine according to claim 1 , wherein a guide plate ( 13 ) is fixedly connected to the bottom of the inner wall of the collection tank ( 6 ), and the guide plate ( 13 ) has a The right side is fixedly connected to the right side of the inner wall of the collecting tank (6).

3. A cleaning device for a wire drawing machine according to claim 2, characterized in that a support column group (14) is fixedly connected to the bottom of the lifting plate (2), and the bottom of the support column group (14) is fixedly connected. Fixed connection on top of deflector (13).

4. A cleaning device for a wire drawing machine according to claim 1, characterized in that a filter box (15) is connected to the left side of the water pipe (10), and the bottom of the filter box (15) is fixedly connected to the Bottom of the inner wall of the water tank (8).

5. A cleaning device for a wire drawing machine according to claim 1, characterized in that a handle (16) is fixedly connected to the front side and the rear side of the top of the filter box (11), and the handle (16) is less than the length of the filter box (11).

6 . The cleaning device for a wire drawing machine according to claim 1 , wherein a fixing block ( 17 ) is sleeved on the surface of the telescopic hose ( 12 ), and the bottom of the fixing block ( 17 ) passes through the bottom of the fixing block ( 17 ). It is bolted to the top of the filter box (11).
