CN216223472U - Filter device for dust conveying pipeline - Google Patents

Abstract

The utility model discloses a filter device for a dust conveying pipeline. The filter device comprises a filter tube, which is horizontally connected to the conveying pipeline; The extended dust collection pipe, the dust collection pipe is connected with the filter pipe, the bottom of the dust collection pipe forms a dust collection chamber, the dust collection chamber is provided with a dust collection groove, and the dust collection groove is connected with the dust collection pipe in a drawer type; There is a sealing plate, the end of the sealing plate away from the filter screen is hinged with the inner wall of the dust collecting pipe through the rotating shaft, and the top of the dust collecting pipe is sealed when the sealing plate is turned to the level; Out of the dust collecting pipe, and the two ends of the rotating shaft are respectively fixedly connected with shaking handles. The device can clean up the debris in front of the filter tube in time to prevent the filter screen from being blocked; the debris accumulated above the sealing plate can be cleaned by turning the crank handle, and the operation is simple and convenient; the device can complete the cleaning work online to prevent the powder from leaking out.

Description

A filter device for dust conveying pipeline

technical field

The utility model belongs to the technical field of pipeline transportation, in particular to a filter device for dust transportation pipelines.

Background technique

In industrial production, the pipeline system for conveying powder materials needs to be equipped with filters to prevent debris from entering the production system. When the filter screen is blocked, the filter needs to be disassembled for cleaning. The cleaning process is laborious and easy to cause pollution on the production site.

Utility model content

The utility model provides a filter device for a dust conveying pipeline, which aims to solve the above technical problems.

For this reason, the utility model adopts the following technical solutions:

A filter device for a dust conveying pipeline, the filter device comprises a filter tube, which is horizontally connected to the conveying pipeline; , the dust collection pipe is connected with the filter pipe, the bottom of the dust collection pipe forms a dust collection chamber, and the dust collection chamber is provided with a dust collection groove, and the dust collection groove is connected with the dust collection pipe in a drawer type;

The top of the dust collecting pipe is provided with a sealing plate, and the end of the sealing plate away from the filter screen is hinged with the inner wall of the dust collecting pipe through the rotating shaft. When the sealing plate is turned to the level, the top of the dust collecting pipe is sealed; The two ends of the rotating shaft are respectively pierced out of the dust collecting pipe, and the two ends of the rotating shaft are respectively fixedly connected with shaking handles.

Further, when the crank handle is turned to horizontal, the sealing plate also goes out of the horizontal state.

Further, a hook is provided in the middle of the filter tube, and when the crank handle is turned to the horizontal, the hook is hooked on the crank handle for fixing the crank handle.

Further, the upper part of the hook is connected with a spring.

Further, both ends of the filter tube are provided with flanges, and the filter tube is connected to the conveying pipeline through the flanges.

The beneficial effects of the utility model are as follows: the device can clean up the sundries in front of the filter tube in time to prevent the filter screen from being blocked; the sundries accumulated above the sealing plate can be cleaned up by rotating the crank handle, and the operation is simple and convenient; the device can complete the cleaning work online , to prevent powder leakage.

Description of drawings

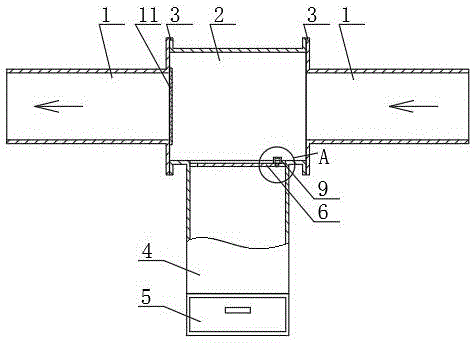

Fig. 1 is the structural representation when the sealing plate of the present utility model is closed;

Fig. 2 is the structural representation when the sealing plate of the present utility model is opened;

Fig. 3 is the structural representation when the crank handle of the present invention is closed;

Fig. 4 is the structural representation when the crank handle of the present invention is opened;

Fig. 5 is a partial enlarged view of part A in Fig. 1;

In the picture: 1-conveying pipe, 2-filter pipe, 3-flange, 4-dust collecting pipe, 5-dust collecting tank, 6-sealing plate, 7-shaking handle, 8-hook, 9-limit stop , 10-spring, 11-filter.

Detailed ways

Below in conjunction with accompanying drawing, the utility model is further described:

As shown in Figures 1 to 4, a filter device for dust conveying pipeline, the filter device comprises a filter tube 2, both ends of the filter tube 2 are provided with flanges 3, and the filter tube 2 is connected to the conveying pipeline 1 through the flange 3 . The front end of the filter tube 2 is connected with a filter screen 11, the middle of the filter tube 2 is connected with a dust collection tube 4 extending vertically downward, the top of the dust collection tube 4 is open and communicated with the filter tube 2, and the bottom of the dust collection tube 4 closed. The bottom of the dust collecting pipe 4 forms a dust collecting chamber, and the dust collecting chamber is provided with a dust collecting groove 5, and the dust collecting groove 5 is connected with the dust collecting pipe 4 in a drawer type.

The top of the dust collecting pipe 4 is provided with a sealing plate 6, the end of the sealing plate 6 away from the filter screen 11 is hinged with the inner wall of the dust collecting pipe 4 through the rotating shaft. The rotating shaft is fixedly connected with the sealing plate 6, and the two ends of the rotating shaft respectively protrude out of the dust collecting pipe 4, and the two ends of the rotating shaft are respectively fixedly connected with a crank handle 7. When the crank handle 7 is turned to horizontal, the sealing plate 6 is also in a horizontal state. The top of the sealing plate 6 is also provided with a U-shaped limit stop 9, and the sealing plate 6 is in contact with the limit stop 9 when it is turned horizontal (as shown in FIG. 5).

The middle of the filter tube 2 is provided with a hook 8. When the crank handle 7 is turned to the horizontal, the hook 8 is hooked on the crank handle 7 to fix the crank handle 7. The upper part of the hook 8 is connected with a spring 10, which is convenient to elongate the hook 8.

The working principle of the present utility model is as follows:

When using, first turn the crank handle 7 to a horizontal state (as shown in Figure 3), and hang the hook 8 on the crank handle 7 to fix the position of the crank handle 7. At this time, the shaking handle 7 drives the sealing plate 6 to a horizontal state (as shown in Figure 1); the dust in the pipeline moves from the right side to the left side through the conveying pipeline 1, and the larger particles cannot pass through the filter screen 11. The trapped accumulation is above the sealing plate 6 . After a certain amount of debris is accumulated, remove the hook 8 and turn the crank handle 7 downward (as shown in Figure 4). At this time, the sealing plate 6 turns to the state shown in Figure 2, and the debris accumulated on the sealing plate 6 falls to the position of gravity. in the dust collection tank 5. Then turn the crank handle 7 to a horizontal state again, and hang the hook 8 on the crank handle 7 to fix the position of the crank handle 7 . After the debris in the dust collecting tank 5 has accumulated to a certain amount, the dust collecting tank 5 is taken out and the debris is cleaned.

It should be noted that the above are only some embodiments of the present invention. It should be pointed out that for those skilled in the art, some improvements and replacements can be made without departing from the technical principles of the present invention. , these improvements and replacements should also be regarded as the protection scope of the present invention.

Claims (6)

1. The filtering device for the dust conveying pipeline is characterized by comprising a filtering pipe (2), wherein the filtering pipe (2) is horizontally connected to the conveying pipeline (1); the front end of the filter pipe (2) is connected with a filter screen (11), the middle part of the filter pipe (2) is connected with a dust collecting pipe (4) which vertically extends downwards, the dust collecting pipe (4) is communicated with the filter pipe (2), the bottom of the dust collecting pipe (4) forms a dust collecting chamber, a dust collecting groove (5) is arranged in the dust collecting chamber, and the dust collecting groove (5) is connected with the dust collecting pipe (4) in a drawer type;

a sealing plate (6) is arranged at the top of the dust collecting pipe (4), one end of the sealing plate (6) far away from the filter screen (11) is hinged with the inner wall of the dust collecting pipe (4) through a rotating shaft, and the sealing plate (6) seals the top of the dust collecting pipe (4) when rotating to be horizontal; the rotating shaft is fixedly connected with the sealing plate (6), two ends of the rotating shaft penetrate out of the dust collecting pipe (4) respectively, and two ends of the rotating shaft are fixedly connected with the crank (7) respectively.

2. The filter device for dust conveying pipe according to claim 1, wherein the sealing plate (6) is in a horizontal state when the crank (7) is rotated to a horizontal state.

3. The dust conveying pipeline filtering device as claimed in claim 2, wherein a hook (8) is arranged in the middle of the filtering pipe (2), and when the crank (7) is rotated to be horizontal, the hook (8) is hooked on the crank (7) and used for fixing the crank (7).

4. The filter device for dust conveying pipe according to claim 3, wherein a spring (10) is connected to the upper part of the hook (8).

5. The dust conveying pipe filter apparatus according to claim 1, wherein the top of the sealing plate (6) is further provided with a U-shaped limit stop (9), and the sealing plate (6) contacts the limit stop (9) when rotated to the horizontal position.

6. The dust conveying pipeline filtering device according to claim 1, wherein flanges (3) are arranged at two ends of the filtering pipe (2), and the filtering pipe (2) is connected to the conveying pipeline (1) through the flanges (3).
