Abstract

The utility model discloses a vehicle-mounted cabinet, comprising a cabinet. The cabinet is provided with an auxiliary equipment cabinet, a display screen placing cabinet, a drawer and a main equipment cabinet in sequence from top to bottom, and the auxiliary equipment cabinet, the display screen placing cabinet, the drawer and the main equipment cabinet. There are three side-by-side installations. The outer side walls of the cabinets are provided with cooling windows. The side panels of the main equipment cabinet and the auxiliary equipment cabinet are respectively provided with the first cooling hole and the second cooling hole. The display screen placement cabinet, the auxiliary equipment cabinet and the main equipment The back plate of the cabinet is respectively provided with a plurality of first wire holes, second wire holes and third wire holes. The vehicle-mounted cabinet proposed by the utility model adopts three cabinets to be spliced together, so that multiple sets of instruments and equipment can be installed, and the main equipment cabinet and the auxiliary equipment cabinet are provided with wire management measures, so as to avoid the clutter of wire layout, which affects heat dissipation and later maintenance.

Description

A vehicle cabinet

technical field

The utility model relates to the technical field of vehicle-mounted cabinets, in particular to a vehicle-mounted cabinet.

Background technique

A cabinet is a cabinet used to install various control instruments and power equipment to ensure that the control instruments and power equipment can operate safely in a predetermined environment.

Existing vehicle cabinets generally can only install one set of equipment, which results in the need for multiple cabinets, which are inconvenient to install, and there are no wire measures, resulting in messy wire layout, affecting heat dissipation and subsequent maintenance.

Utility model content

The technical problem to be solved by the utility model is to overcome the existing defects and provide a vehicle-mounted cabinet, which adopts three cabinets to be spliced together, so that multiple sets of instruments and equipment can be installed, and the main equipment cabinet and the auxiliary equipment cabinet are provided with wire management measures. It avoids the cluttered wiring arrangement, which affects heat dissipation and later maintenance, and can effectively solve the problems in the background art.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a vehicle-mounted cabinet, including a cabinet, the cabinet is provided with an auxiliary equipment cabinet, a display screen placement cabinet, a drawer and a main equipment cabinet in sequence from top to bottom, and the auxiliary equipment cabinet, the display screen Placement cabinets, drawers and main equipment cabinets are arranged side by side in three, the outer side walls of the cabinets are provided with heat dissipation windows, the side panels of the main equipment cabinet and the auxiliary equipment cabinet are respectively provided with first heat dissipation holes and second heat dissipation holes. The backplanes of the cabinet, the auxiliary equipment cabinet and the main equipment cabinet are respectively provided with a plurality of first wire holes, second wire holes and third wire holes.

Further, it also includes a wiring cabinet, the back of the wiring cabinet is open and sealed with the back of the cabinet, the front panel of the wiring cabinet is provided with a plurality of openings, and the openings are all provided with third cabinet doors, and the side walls of the wiring cabinet are provided with a plurality of fourth wire holes.

Further, a plurality of vertical installations are arranged inside the wiring cabinet, and the inner cavity of the wiring cabinet is divided into three partitions with equal spaces, and the surface of the partitions is provided with a slot.

Further, the back panel of the display screen placement cabinet is detachably connected with a mounting seat for mounting the display.

Further, the back plate of the display screen placement cabinet is fixedly connected to one end of the fixing column, and the other end of the fixing column is connected to the mounting seat through a detachable joint.

Further, a first cabinet door and a second cabinet door are respectively provided at the cabinet openings of the main equipment cabinet and the auxiliary equipment cabinet.

Compared with the prior art, the beneficial effect of the utility model is that: the host and the related equipment of the host are placed in the main equipment cabinet or the auxiliary equipment cabinet, the display screen is installed on the mounting seat, and the host and the related equipment of the host are connected. The wires from the third wire hole or the second wire hole penetrate into the wiring cabinet, the wires connected to the display screen pass through the wiring cabinet from the first wire hole, and then the wires are connected to each other, and the wires can pass through the fourth wire. The hole penetrates into the wiring cabinet or goes out of the wiring cabinet from the fourth wire hole. At the same time, after the wire passes through the partition, the three cabinets are connected in series, so as to complete the work of arranging the machine. The heat dissipation window is dissipated, and the heat can be circulated and dissipated from the first heat dissipation hole and the second heat dissipation hole, so the wiring is convenient and reasonable, avoiding the clutter of wires affecting heat dissipation and maintenance, and has a good heat dissipation effect, avoiding the host and host-related equipment and display. The heat generated by the screen cannot be dissipated, causing the host and host-related equipment and the display to overheat, reducing the lifespan.

Description of drawings

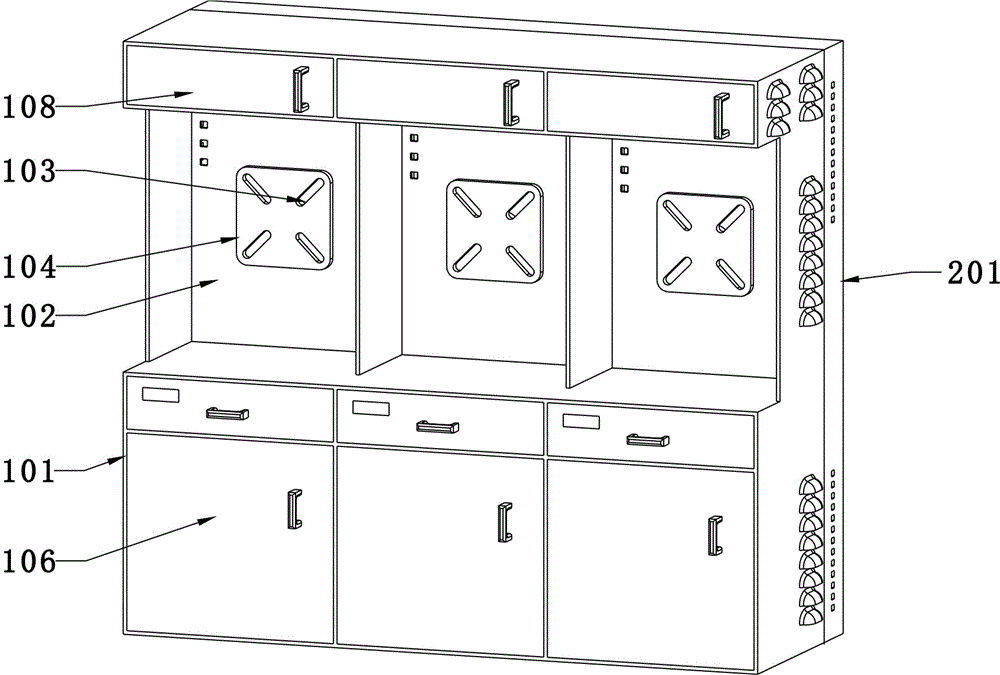

Fig. 1 is the structural representation of the utility model;

2 is a schematic structural diagram of the main equipment cabinet of the present invention;

3 is a schematic diagram of the structure of the back of the cabinet of the present invention;

FIG. 4 is a schematic structural diagram of a wiring box of the present invention.

In the figure: 101, cabinet; 102, display screen placement cabinet; 103, fixed column; 104, mounting base; 105, main equipment cabinet; 106, first cabinet door; 107, auxiliary equipment cabinet; 108, second cabinet door; 109, heat dissipation window; 110, drawer; 111, first wire hole; 112, second wire hole; 113, third wire hole; 114, first heat dissipation hole; 115, second heat dissipation hole; 201, wiring cabinet; 202 , the third cabinet door; 203, the fourth wire hole; 204, the partition; 205, the slot.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-4, the present utility model provides a technical solution: a vehicle-mounted cabinet, including a cabinet 101, the cabinet 101 is provided with an auxiliary equipment cabinet 107, a display screen placement cabinet 102, a drawer 110 and a main equipment cabinet in order from top to bottom 105, and the auxiliary equipment cabinet 107, the display screen placement cabinet 102, the drawer 110 and the main equipment cabinet 105 are all arranged side by side into three, the outer wall of the cabinet 101 is provided with heat dissipation windows 109, the main equipment cabinet 105 and the auxiliary equipment cabinet 107 side cabinets The board is respectively provided with a first heat dissipation hole 114 and a second heat dissipation hole 115 , and a plurality of first wire holes 111 and second wire holes 112 are respectively opened on the backboards of the display screen storage cabinet 102 , the auxiliary equipment cabinet 107 and the main equipment cabinet 105 . and the third wire hole 113 .

Preferably, it also includes a wiring cabinet 201, the back of the wiring cabinet 201 is open and is sealed with the rear of the cabinet 101, the front panel of the wiring cabinet 201 is provided with a plurality of openings, and the openings are all provided with a third cabinet door 202, The side wall of the wiring cabinet 201 is provided with a plurality of fourth wire holes 203 .

Preferably, the wiring cabinet 201 is provided with a plurality of vertical installations, and the inner cavity of the wiring cabinet 201 is divided into three partitions 204 with equal spaces. The wires of the 10000 can be connected to each other through the slot 205.

Preferably, a mounting seat 104 for mounting a display is detachably connected to the back panel of the display screen placement cabinet 102 .

Preferably, the back panel of the display screen placement cabinet 102 is fixedly connected to one end of the fixing column 103, and the other end of the fixing column 103 is connected to the mounting seat 104 through a detachable joint. Install.

Preferably, the main equipment cabinet 105 and the auxiliary equipment cabinet 107 are provided with a first cabinet door 106 and a second cabinet door 108 respectively. After the first cabinet door 106 and the second cabinet door 108 are closed, the main equipment cabinet 105 and the auxiliary equipment are covered. Cabinet 107.

When in use: place the host and host-related equipment in the main equipment cabinet 105 or the auxiliary equipment cabinet 107, install the display screen on the mounting base 104, and connect the wires with the host and the host-related equipment from the third wire hole 113. Or the second wire hole 112 penetrates into the wiring cabinet 201, the wire connected to the display screen penetrates into the wiring cabinet 201 from the first wire hole 111, and then the wires are connected to each other, and the wire can pass through the fourth wire hole 203. Enter the wiring cabinet 201 or pass through the wiring cabinet 201 from the fourth wire hole 203, and at the same time, after the wire passes through the partition 204, the three cabinets are connected in series, so as to complete the work of arranging the machine. The heat is dissipated from the heat dissipation window 109, and at the same time, the heat can be circulated and dissipated from the first heat dissipation hole 114 and the second heat dissipation hole 115, so the wiring is convenient and reasonable, avoiding the clutter of wires affecting heat dissipation and maintenance, and at the same time, it has a better heat dissipation effect, avoiding the host and the host. The heat generated by the related equipment and the display screen cannot be dissipated, causing the host and the host-related equipment and the display screen to overheat and reduce the lifespan.

The undisclosed parts in this utility model are all in the prior art, and the specific structure, material and working principle thereof will not be described in detail. Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides an on-vehicle rack which characterized in that: including rack (101), rack (101) are equipped with vice equipment cabinet (107) from the top to the end in proper order, cabinet (102) are placed to the display screen, drawer (110) and main equipment cabinet (105), and vice equipment cabinet (107), cabinet (102) are placed to the display screen, drawer (110) and main equipment cabinet (105) all set up side by side to three, rack (101) lateral wall all is equipped with heat dissipation window (109), main equipment cabinet (105) and vice equipment cabinet (107) side cabinet board are equipped with first louvre (114) and second louvre (115) respectively, cabinet (102) are placed to the display screen, a plurality of first wire guide (111) have been seted up respectively to the backplate of vice equipment cabinet (107) and main equipment cabinet (105), second wire guide (112) and third wire guide (113).

2. The vehicle rack of claim 1, wherein: still include wiring cabinet (201), wiring cabinet (201) back is uncovered, and with rack (101) rear portion sealing connection, wiring cabinet (201) front panel is equipped with a plurality of uncovered, and uncovered department all is equipped with third cabinet door (202), and a plurality of fourth wire guide (203) have been seted up to wiring cabinet (201) lateral wall.

3. The vehicle rack of claim 2, wherein: inside being equipped with a plurality of vertical settings of wiring cabinet (201), and separating wiring cabinet (201) inner chamber for baffle (204) that three spaces equal inner chamber, fluting (205) have been seted up to baffle (204) face.

4. The vehicle rack of claim 1, wherein: the back plate of the display screen placing cabinet (102) is detachably connected with a mounting seat (104) for mounting a display.

5. The vehicle rack of claim 4, wherein: the back plate of the display screen placing cabinet (102) is fixedly connected with one end of a fixing column (103), and the other end of the fixing column (103) is connected with a mounting seat (104) through a detachable joint.

6. The vehicle rack of claim 1, wherein: the main equipment cabinet (105) and the auxiliary equipment cabinet (107) are respectively provided with a first cabinet door (106) and a second cabinet door (108) at the cabinet openings.
