Abstract

The utility model discloses a medical image diagnosis auxiliary device, which comprises a light sheet box, an upper cover and a base; the upper cover is positioned at the upper part of the light sheet box; the base is positioned at the lower part of the light sheet box; the medical image diagnosis auxiliary device has reasonable structure, is beneficial to the overlapping comparison of a plurality of X-ray films, greatly improves the diagnosis accuracy and is beneficial to improving the treatment effect; the labor intensity of medical staff is reduced, and the working efficiency is greatly improved; x-ray films and other light films with various specifications can be carried; wide application range and good applicability.

Description

A medical imaging diagnostic aid device

technical field

The utility model relates to the technical field of medical devices, in particular to an auxiliary device for medical imaging diagnosis.

Background technique

Medical imaging refers to the technology and process of obtaining internal tissue images of the human body or a certain part of the human body in a non-invasive manner for medical treatment or medical research. It includes medical imaging and medical image processing. In medicine, medical engineering, medical physics and biomedical informatics, medical imaging usually refers to the science that studies the composition, capture and storage of images, and the research and development of instruments and equipment. The research on how to interpret, interpret and diagnose medical images is the technology mastered by medical staff belonging to the departments of radiology and other medical fields; in the actual application in hospitals, medical images judge the diagnosis and process of diseases, helping medical staff to understand Accurate diagnosis and treatment of patients, and further symptomatic treatment. In the prior art, medical imaging is most commonly used to diagnose patients through X-ray films, which requires medical staff to analyze and judge the patient's condition through observation and comparison of X-ray films. In the process of using the X-ray film for diagnosis in the prior art, the X-ray film is usually placed in front of the light box to observe the X-ray film; the light box observation method used in the prior art has a small number of readings per time. , only 1 or 2 X-ray films can be placed for observation, which is inefficient and the workload of medical staff is large; moreover, it is impossible to overlap and compare multiple X-ray films, which is not conducive to the prediction and diagnosis of the disease process.

Therefore, those skilled in the art are devoted to developing an auxiliary device for medical imaging diagnosis, aiming at solving the problem of defects existing in the process of diagnosis by medical staff using X-ray films in the prior art.

Utility model content

In view of the above-mentioned defects of the prior art, the technical problem to be solved by the present invention is that in the prior art, the medical staff in the prior art have large workload and low efficiency in the process of using X-ray films for diagnosis, and cannot perform multiple X-ray examinations. The optical films were overlapped to compare the comprehensive diagnosis of defects.

In order to achieve the above purpose, the present utility model provides an auxiliary device for medical imaging diagnosis, comprising a light film box, an upper cover and a base; the upper cover is located at the upper part of the light film box; the base is located at the lower part of the light film box;

The light film box is in the shape of a cuboid, the back side includes a back plate, the front side is a light film cavity, the upper end of the light film cavity is open, and the front wall of the light film cavity includes 2 to 6 transparent windows; the middle of the back plate is The light source includes a transverse convex groove, the light source is placed in the convex groove, the rear end of the light source is clamped in the convex groove, and the light source can slide left and right in the convex groove; the upper end of the light source is connected to a connecting rod, and the top of the connecting rod connecting a handle, the handle extending upward from the upper cover;

The upper cover is U-shaped with the opening downward, and the top end includes 3 to 8 through grooves; the through groove at the rear end corresponds to the rear plate of the optical film box, and the handle extends out of the upper cover from the corresponding through groove at the rear end; The upper cover corresponding to the upper part of the rear plate is fixedly connected with the top end of the rear plate; the upper cover includes a hinge at the upper edge of the front end of the rear plate, so that the upper cover located at the upper end of the optical film cavity can be flipped up and opened; the optical film The upper end of the cavity corresponding to the through groove of the upper cover includes a hand lever that can interact left and right, and the lower end of the hand lever is a double piece with a gap in the middle;

The rear side of the base corresponding to the rear plate is the base rear plate, the upper part of the front side of the base is a cavity, and the lower part of the front side of the base is a solid body; the solid body of the lower part of the front side of the base includes a square groove, and the square recess The depth of the groove reaches the bottom of the base; the upper part of the outer side of the base includes side ears that open upward;

Further, the length and width of the upper cover are larger than the length and width of the light film box;

Further, the length and width of the base are smaller than the length and width of the optical film box;

Further, the length and width of the upper cover are 0.5-2 cm larger than the length and width of the optical film box;

Further, the length and width of the base are 0.5-2 cm smaller than the length and width of the optical film box;

Further, the position of the square groove of the lower part of the front side of the base corresponds to the through groove of the front end of the upper cover;

In a specific embodiment of the present invention, the front wall of the light sheet cavity includes 4 transparent windows;

In a specific embodiment of the present invention, the top of the upper cover includes 5 through grooves;

In a specific embodiment of the present invention, the number of square grooves on the lower part of the front side of the base is 4;

In a specific embodiment of the present invention, the light source is a circular lamp;

By adopting the above scheme, the auxiliary device for medical imaging diagnosis disclosed by the present utility model has the following technical effects:

1. In the medical imaging diagnosis auxiliary device of the present invention, the X-ray films are placed in different square grooves of the base and arranged in the transparent windows correspondingly. By moving the light source on the rear panel, the X-ray films in different transparent windows are compared. Observation and analysis; by moving the X-ray films, the light films can be overlapped arbitrarily, which is convenient for comparative observation and analysis; it is conducive to the overlapping and comparison of multiple X-ray films, which greatly improves the accuracy of diagnosis and improves the treatment effect;

2. The medical imaging diagnosis auxiliary device of the present invention can load multiple X-ray films for observation at the same time. The multiple X-ray films move in the corresponding square grooves and cooperate with the movement of the light source, which greatly reduces the frequency of medical staff. The operation of attaching and removing X-ray films; reducing the labor intensity of medical staff and greatly improving work efficiency;

3. In the medical imaging diagnosis auxiliary device of the present invention, the optical film cavity can carry a variety of X-ray films and other optical films of different specifications; the application range is wide and the applicability is good;

To sum up, the medical imaging diagnosis auxiliary device of the present invention has a reasonable structure, is conducive to the overlapping and comparison of multiple X-ray films, greatly improves the accuracy of diagnosis, and is conducive to improving the treatment effect; and reduces the labor intensity of medical staff. , greatly improving the work efficiency; it can carry a variety of X-ray films and other light films of different specifications; it has a wide range of use and good applicability.

The concept, specific structure and technical effects of the present utility model will be further described below in conjunction with the accompanying drawings and specific embodiments, so as to fully understand the purpose, features and effects of the present utility model.

Description of drawings

1 is a schematic front view of the medical imaging diagnosis auxiliary device of the present invention;

2 is a left side schematic view of the medical imaging diagnosis auxiliary device of the present invention;

3 is a schematic top view of the top cover of the medical imaging diagnosis auxiliary device of the present invention;

4 is a schematic front view of the rear panel of the medical imaging diagnosis auxiliary device of the present invention;

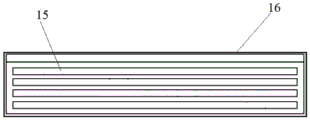

5 is a schematic top view of the base of the medical imaging diagnosis auxiliary device of the present invention;

FIG. 6 is a left inner schematic diagram of the base of the auxiliary device for medical imaging diagnosis of the present invention;

In the figure, 1, light film box; 2, upper cover; 3, base; 4, rear plate; 5, light film cavity; 6, transparent window; 7, convex groove; 8, light source; 9, connecting rod; 10, handle; 11, through slot; 12, hinge; 13, handle bar; 14, cavity; 15, square groove; 16, side ear.

Detailed ways

The preferred embodiments of the present invention are described below with reference to the accompanying drawings to make the technical content clearer and easier to understand. The present invention can be embodied in many different forms of embodiments, and the protection scope of the present invention is not limited to the embodiments mentioned in the text.

In the drawings, structurally identical components are denoted by the same numerals, and structurally or functionally similar components are denoted by like numerals throughout. The size and thickness of each component shown in the drawings are arbitrarily shown, and the present invention does not limit the size and thickness of each component. In order to make the illustration clearer, the thicknesses of components are appropriately exaggerated in some places in the drawings.

As shown in FIGS. 1 to 6 , the medical imaging diagnosis auxiliary device of this embodiment includes an optical film box 1, an upper cover 2, and a base 3; The sheet cavity 5, the upper end of the light sheet cavity 5 is open, and the front wall of the light sheet cavity 5 includes four transparent windows 6; The rear end is stuck in the convex groove 7, and the light source 8 can slide left and right in the convex groove 7;

The upper cover 2 is located at the upper part of the optical film box 1, and is U-shaped with the opening downward. The top of the upper cover 2 includes five through slots 11; The rear end through slot 11 protrudes out of the upper cover 2; the upper cover corresponding to the upper part of the rear plate 4 is fixedly connected to the top of the rear plate; The upper cover of the optical film cavity 5 can be turned up and opened; the upper end of the optical film cavity 5 corresponds to the through groove of the upper cover, and includes a hand lever 13 that can interact left and right, and the lower end of the hand lever 13 is a double piece, including a gap in the middle;

The base 3 is located at the lower part of the light box 1; the rear side of the base 3 corresponding to the rear plate is the base rear plate, the upper part of the front side of the base 3 is a cavity 14, the lower part of the front side of the base 3 is a solid body, and the lower part of the front side of the base 3 is a solid body. The body includes 4 square grooves 15, the depth of the square grooves 15 reaches the bottom of the base; the position of the square grooves 15 on the lower part of the front side of the base 3 corresponds to the through groove 11 at the front end of the upper cover 2; the upper part of the outer side of the base 3 includes side ears that open upwards 16;

In this embodiment, the light source is a circular lamp;

In this embodiment,

The length and width of the upper cover 2 are 1 cm larger than the length and width of the light box;

The length and width of the base 3 are 1 cm smaller than the length and width of the light box;

The opening width of the side ear 16 on the upper outer side of the base 3 is 1.5 cm;

When assembled and used, in the medical imaging diagnosis auxiliary device of the present invention, the upper cover is sleeved on the upper part of the light film box, the light film box is placed above the base, and the outer wall is located in the opening of the side ear;

Put the X-ray film in the square groove of the base, insert the upper end of the light film into the double-piece gap at the lower end of the handle bar in the corresponding upper cover through groove, and the front of the light film corresponds to the transparent window, and turn on the power of the light source in the rear panel to make the light source glow. , the handle connected to the mobile light source moves left and right in the upper cover through slot, and each X-ray film is individually illuminated and observed; the light source is fixed at a transparent window, and the hand lever above the X-ray film is moved to move the X-ray film left and right to The same transparent window is used to observe the overlapping images of multiple X-ray films through the rear light source; the corresponding changes on the images are observed and analyzed to guide the diagnosis of the disease.

After practical use, the medical imaging diagnosis auxiliary device of the present application is placed in the doctor's consultation room, and the patients who need to be diagnosed with light films can be checked and analyzed in time, and the diagnosis results can be issued in a timely and accurate manner. Light box, shortening the diagnosis and treatment cycle time by 30%.

The preferred embodiments of the present invention have been described in detail above. It should be understood that many modifications and changes can be made according to the concept of the present invention by those skilled in the art without creative efforts. Therefore, any technical solutions that can be obtained by those skilled in the art through logical analysis, reasoning or limited experiments on the basis of the prior art according to the concept of the present invention shall fall within the protection scope determined by the claims. .

Claims (5)

1. An auxiliary device for medical imaging diagnosis, characterized in that it comprises an optical film box (1), an upper cover (2), and a base (3); the upper cover (2) is located on the upper part of the optical film box (1); The base (3) is located at the lower part of the optical film box (1); The optical film box (1) is in the shape of a cuboid, the rear side includes a rear plate (4), the front side is an optical film cavity (5), the upper end of the optical film cavity (5) is open, and the optical film cavity (5) The front wall includes 2 to 6 transparent windows (6); the middle of the rear plate (4) includes a transverse convex groove (7), a light source (8) is placed in the convex groove (7), and the light source (8) ) The rear end is stuck in the convex groove (7), and the light source (8) can slide left and right in the convex groove (7); the upper end of the light source (8) is connected to the connecting rod (9), and the top end of the connecting rod is connected to the handle (10), the handle (10) extends upward from the upper cover (2); The upper cover (2) is U-shaped with an opening downward, and the top end includes 3 to 8 through grooves (11); The handle (10) protrudes out of the upper cover (2) from the corresponding rearmost through groove (11); the upper cover corresponding to the upper part of the rear plate (4) is fixedly connected with the top of the rear plate (4); the upper cover (2) A hinge (12) is included on the upper edge of the front end of the rear plate (4), so that the upper cover (2) located at the upper end of the optical sheet cavity (5) can be turned up and opened; the upper end of the optical sheet cavity (5) The through groove (11) corresponding to the upper cover includes a hand lever (13) that can interact left and right, and the lower end of the hand lever (13) is a double piece with a gap in the middle; The rear side of the base (3) corresponding to the rear plate is the base rear plate, the upper part of the front side of the base (3) is a cavity (14), and the lower part of the front side of the base (3) is a solid body; Part of the entity includes a square groove (15), and the square groove (15) is deep to the bottom of the base; the position of the square groove (15) on the lower part of the front side of the base (3) corresponds to the position of the front end of the upper cover (2). A through groove (11); the upper outer side of the base (3) includes a side ear (16) that opens upward. 2. The auxiliary device for medical imaging diagnosis according to claim 1, characterized in that, The length and width of the upper cover (2) are larger than the length and width of the light film box (1); The length and width of the base (3) are smaller than the length and width of the optical film box (1). 3. The auxiliary device for medical imaging diagnosis according to claim 1, wherein, The front wall of the light sheet cavity includes 4 transparent windows (6); The top of the upper cover (2) includes five through grooves (11); There are four square grooves (15) on the lower part of the front side of the base (3). 4. The auxiliary device for medical imaging diagnosis according to claim 1, wherein, The light source (8) is a circular lamp. 5. The auxiliary device for medical imaging diagnosis according to claim 2, wherein, The length and width of the upper cover (2) are 0.5-2 cm larger than the length and width of the light film box (1); The length and width of the base (3) are 0.5-2 cm smaller than the length and width of the optical film box (1).
