Abstract
本实用新型属于一种草坪喷头外罩承压试验检测装置，包括底板、左右立板、中间立板和顶板组成一个承压检测装置框架，其特征在于承压检测装置的底板上面，两侧固定两个产品的底座；在顶板的上面固定有气缸；气缸的活塞杆穿过通孔端头固定有上压块，在减压阀座上装有AR‑2000减压阀。该实用新型解决了对1E6A86‑11462草坪喷水头外罩的承压试验与检测，施加压力均衡，对产品不会造成伤痕和缺陷，无废品，实现了机械化，省工省力，效率高，成本低。
The utility model belongs to a pressure bearing test detection device for a lawn sprinkler cover, which comprises a bottom plate, left and right vertical plates, a middle vertical plate and a top plate to form a pressure bearing detection device frame. The base of each product; the cylinder is fixed on the top plate; the piston rod of the cylinder is fixed with an upper pressure block through the end of the through hole, and an AR-2000 pressure reducing valve is installed on the pressure reducing valve seat. The utility model solves the pressure-bearing test and detection of the 1E6A86‑11462 lawn sprinkler cover, applies a balanced pressure, does not cause scars and defects to the product, has no waste, realizes mechanization, saves labor and labor, high efficiency and low cost .
Description
Technical Field
The utility model belongs to a pressure-bearing detection device, and particularly relates to a detection device for a pressure-bearing test of a lawn sprayer outer cover.
Background
In the prior method for testing and detecting the pressure resistance of the lawn sprinkler outer cover product, the traditional upper and lower pressure plates are used for adding a sealant base plate, a bolt frame is used for bearing pressure, and a method of manually applying pressure is adopted for testing and detecting the pressure bearing capacity of the outer cover product; the test and detection method is labor-consuming, low in test and detection efficiency and high in labor cost; the requirement of mass production cannot be met; meanwhile, the method of manually applying pressure is adopted, the applied pressure is sometimes unbalanced, and the pressure test surface of the product has scars and defects, so that the product is scrapped, the waste is caused, and the production cost is higher.
Disclosure of Invention
The utility model aims to solve the technical problems and provides a frame of the 1E6A86-11462 lawn sprinkler head outer cover pressure-bearing detection device, which consists of a bottom plate, a left vertical plate, a right vertical plate, a middle vertical plate and a top plate, wherein two air cylinders are arranged on the top plate of the frame, an upper press block fixed at the lower end of an air cylinder piston rod is used for carrying out a pressure test on the 1E6A86-11462 lawn sprinkler head outer cover, the applied pressure is balanced, and the product cannot be scratched or defected.
The technical scheme adopted by the utility model for solving the technical problem is as follows: a lawn sprinkler outer cover pressure-bearing test detection device comprises a pressure-bearing detection device frame consisting of a bottom plate, a left vertical plate, a right vertical plate, a middle vertical plate and a top plate, and is characterized in that two bases of two products are fixed on two sides of the upper surface of the bottom plate of the pressure-bearing detection device; fixing a shield on the top plate by using a bolt; two through holes are arranged at the two sides of the top plate corresponding to the base, and a cylinder is fixed on the through holes; a piston rod of the air cylinder penetrates through the end of the through hole to be fixed with an upper pressing block, and a rubber pad II with a boss arranged below is fixed below the upper pressing block; the upper parts of two sides of the shield are fixed with pressure reducing valve seats, the pressure reducing valve seats are provided with AR-2000 pressure reducing valves, the middle of the top surface of the shield is fixed with a hanging ring, and the two sides are respectively provided with hand-operated valves.
The base comprises a groove arranged in the middle of the base, shoulders are arranged on the upper surfaces of the vertical sides at the two sides, and a first rubber pad is arranged on each shoulder; the middle of the groove is provided with a pressurizing air inlet.
The utility model has the beneficial effects that: the utility model discloses a solved and tested and detected the bearing of 1E6A86-11462 lawn sprinkler bead dustcoat, exerted pressure equilibrium, can not cause scar and defect to the product, no waste has realized mechanization, and it is laborsaving to save labour, efficient, with low costs.
Drawings
The following description is made in detail by way of example with reference to the accompanying drawings.

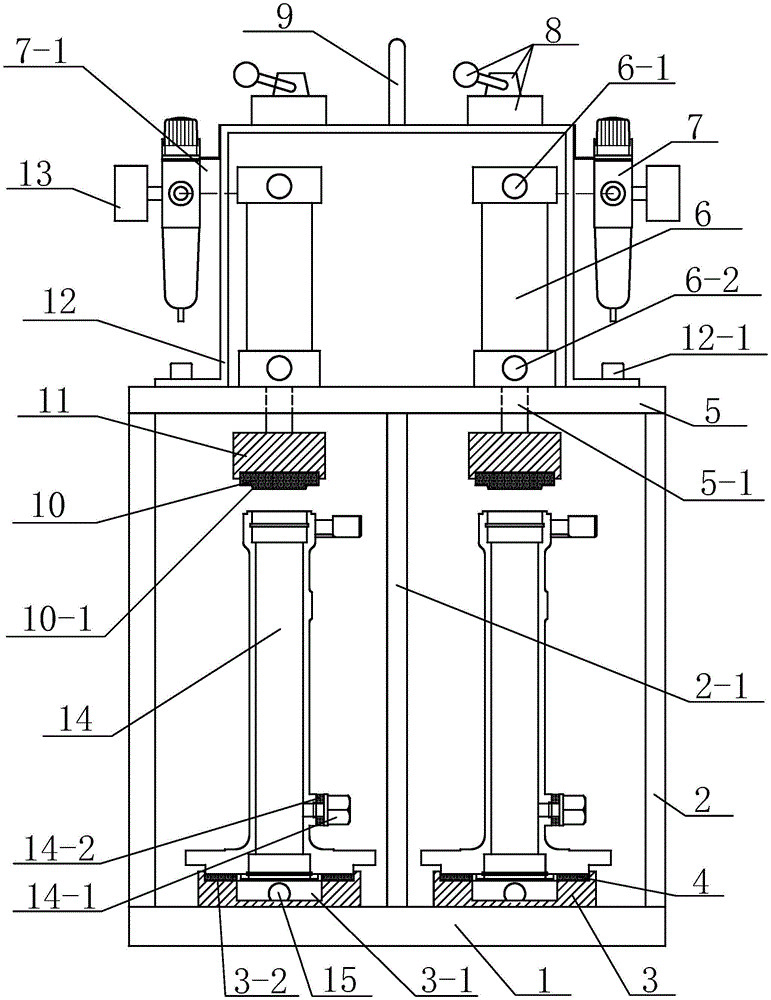

FIG. 1 is a front view of a lawn sprinkler cover pressure test detection device;
fig. 2 is a top view of the drawing.
In the figure: 1-a bottom plate; 2-left and right vertical plates; 2-1-a middle vertical plate; 3-a base; 3-1-groove; 3-2-shoulder; 4-rubber cushion one; 5-a top plate; 5-1-via; 6-cylinder; 6-1-air inlet and outlet interfaces of the upper cavity of the cylinder; 6-2-air inlet and outlet interfaces of the lower cavity of the air cylinder; 7-AR-2000 pressure relief valves; 7-1-pressure reducing valve seat; 8-a hand-operated valve; 9-a hoisting ring; 10-rubber cushion II; 10-1-boss; 11-briquetting; 12-a shield; 12-1-bolt; 13-adjusting the handle; 14-1E6A86-11462 lawn sprinkler head cover; 14-1-bolt; 14-2-gasket; 15-pressing the air inlet.
Detailed Description
The embodiment is characterized in that two bases 3 of two products are fixed on two sides of the upper surface of a bottom plate 1 of the pressure-bearing detection device; a shield 12 is fixed on the top plate 5 by bolts 12-1; two through holes 5-1 are arranged at the two sides of the top plate 5 corresponding to the base 3, and a cylinder 6 is fixed on the through holes 5-1; a piston rod of the air cylinder 6 penetrates through the end of the through hole 5-1 to be fixed with an upper pressing block 11, and a rubber mat II 10 with a boss 10-1 arranged below is fixed below the upper pressing block 11; a pressure reducing valve seat 7-1 is respectively fixed at the upper parts of the two sides of the shield 12, an AR-2000 pressure reducing valve 7 is arranged on the pressure reducing valve seat 7-1, and an adjusting handle 13 is arranged at the outer side of the AR-2000 pressure reducing valve 7; a hanging ring 9 is fixed in the middle of the top surface of the protective cover 12, and hand-operated valves 8 are respectively arranged on two sides.
The base 3 comprises a groove 3-1 arranged in the middle of the base 3, shoulders 3-2 are arranged on the upper surfaces of the standing uppers on the two sides, and a first rubber pad 4 is arranged on the shoulders 3-2; a pressurizing air inlet 15 is arranged in the middle of the groove 3-1.
A shell of the cylinder 6 is provided with a cylinder upper cavity air inlet and outlet interface 6-1 and a cylinder lower cavity air inlet and outlet interface 6-2; the two air cylinder connecting ports and the pressurizing air inlet 15 are communicated with and controlled by an electromagnetic valve in an air compressing control system through pipelines, and a hand-operated valve 8 is arranged on the protective cover 12 and used for controlling pressure. The pressure reducing valve 7 is installed on the side of the shield 12 for pressure adjustment and pressure relief.
The utility model discloses an operation method is: the test can be started by mounting the 1E6A86-11462 lawn sprinkler head cover 14 to be tested on the first rubber mat 4 on the base 3, mounting the sealing pad 14-2 between the outlet bolts 14 and tightening the bolts 14. Firstly, adjusting a pressure reducing valve on an external pipeline of a pressurizing air inlet 15, adjusting the air pressure, controlling an air pressure control system to firstly supply air to an air inlet and outlet port 6-1 of an upper cavity of an air cylinder, pushing a boss 10-1 of an upper pressing block 11 and a rubber gasket II 10 to press the upper end surface of a lawn spray head outer cover 14 of 1E6A86-11462, pressing the two ends of the lawn spray head outer cover 14, respectively opening two workpiece air source switches, respectively, supplying air from the pressurizing air inlet 15, after reaching a set pressure value, fixing the pressurizing air to a lifting ring 9 by using a lifting device, placing the whole pressure testing device into an anti-corrosion aqueous solution, and maintaining the pressure for 20 minutes; after leakage is avoided and the pressure is stable, the pressure testing device is lifted to a workbench, the hand-operated valve 8 is operated, and the two 1E6A86-11462 lawn sprinkler head outer covers 14 are disassembled; and drying the moisture on the surface of the workpiece by using an air gun.
