Abstract

The utility model discloses a convenient drying box. It includes a heating plate drying box on the inner side wall, a accommodating box is connected to the bottom of the outer wall, a accommodating groove is arranged at the bottom of the inner wall, a turntable is rotatably connected in the accommodating groove, and a drive mechanism that drives the turntable to rotate is connected inside the accommodating box. , the turntable is movably provided with a bottom plate, the bottom of the bottom plate is connected with a wheel abutting against the turntable, the top of the bottom plate is connected with a support cylinder, the side wall of the support cylinder is connected with a number of drying racks with hooks, and the support cylinder is slidably connected with A limit rod that can penetrate the bottom plate. The limit rod is a prismatic structure. The support cylinder is provided with a limit mechanism that restricts the limit rod from sliding. The top of the turntable is provided with a limit slot matched with the limit rod to accommodate the front end outside the box. The inclined plate is connected, and the top surface of the inclined plate, the bottom surface of the inner wall of the drying box and the top surface of the turntable are all arranged flush. It not only improves the drying effect, but also facilitates the staff to take the cloth after drying.

Description

A convenient drying box

technical field

The utility model relates to the technical field of drying boxes, in particular to a convenient drying box.

Background technique

After the fabric is printed, dyed or cleaned, the fabric is often dried in a drying box before the next step can be processed. However, when drying the fabric in the existing drying box, most of the fabrics are directly stacked in In the drying box, not only the drying effect is not good, but also it is not very convenient for the staff to take it after the drying is completed.

Utility model content

The purpose of the utility model is to provide a convenient drying box, which not only improves the drying effect, but also facilitates the staff to take the cloth after drying.

In order to solve the above-mentioned technical problems, the utility model adopts the following technical solutions:

A portable drying box includes a drying box, a warehouse door is hinged at the front end of the drying box, a heating plate is connected to the inner side wall of the drying box, and an outer wall of the drying box is connected A accommodating box is connected to the bottom, an accommodating groove is opened at the bottom of the inner wall of the drying box, a turntable is rotatably connected in the accommodating groove, and a driving mechanism that drives the turntable to rotate is connected to the inside of the accommodating box, and the turntable is movable on the A bottom plate is provided, the bottom of the bottom plate is connected with a wheel abutting against the turntable, the top of the bottom plate is connected with a support cylinder, and a number of drying racks with hooks are connected on the upper side wall of the support cylinder. A limit rod that can penetrate the bottom plate is slidably connected in the cylinder. The limit rod is a prismatic structure. The support cylinder is provided with a limit mechanism to limit the limit rod sliding. Corresponding and matching limit grooves, the front end outside the receiving box is connected with a sloping plate, and the surface where the top of the sloping plate is located, the surface where the bottom of the inner wall of the drying box is located, and the surface where the top of the turntable is located are flush set up.

Preferably, the limiting mechanism includes threaded holes and bolts, the threaded holes are evenly distributed on the lower side wall of the support cylinder, the bolts are threadedly connected with the threaded holes, and the bolts pass through the threaded holes and are connected to the limit rod. side walls abut against each other.

Preferably, the driving mechanism is a driving motor, the driving mechanism is vertically and fixedly arranged inside the accommodating box, and the driving shaft of the driving mechanism extends into the drying box and is fixedly connected to the bottom of the turntable.

Preferably, a handle is also connected to the side wall of the support cylinder.

Preferably, the wheel is a universal wheel.

Preferably, brakes are also installed on the wheels.

Compared with the prior art, the benefits of the present utility model are:

1) The utility model provides a convenient drying box, which not only improves the drying effect, but also facilitates the staff to take the cloth after drying;

2) A warehouse door is hinged at the front end of the drying box, a heating plate is connected to the inner side wall of the drying box, an accommodating groove is opened at the bottom of the inner wall of the drying box, and a turntable is rotatably connected in the accommodating groove , a drive mechanism that drives the turntable to rotate is connected inside the accommodating box, a base plate is movably arranged on the turntable, a wheel that abuts against the turntable is connected at the bottom of the base plate, a support cylinder is connected at the top of the base plate, and the upper part of the support cylinder is connected A number of drying racks with hooks are connected on the side walls, and a limit rod that can penetrate the bottom plate is slidably connected in the support cylinder. The top of the turntable is provided with a limit slot corresponding to the position of the limit rod and matched in size, and a sloping plate is connected to the front end outside the accommodating box. The surface and the top surface of the turntable are set flush. During operation, hang the cloth on the hook of the drying rack through the hanger, push the bottom plate to enter the drying box through the inclined plate, and push the limit rod downward. Slide the limit rod into the limit slot, then use the limit mechanism to slide the limit limit rod, close the warehouse door, control the drive mechanism to drive the turntable to rotate, and the rotation of the turntable drives the limit rod, the bottom plate, the support cylinder And the rotation of the drying rack, the rotation of the drying rack drives the rotation of the fabric, and at the same time, the heating plate is started to heat, and after drying is completed, the warehouse door is opened, the limit mechanism is operated to stay away from the limit rod, and the limit is slid upwards. The position rod is far away from the limit slot, and finally the bottom plate can be pulled out from the drying box, which not only improves the drying effect, but also facilitates the staff to take it;

3) The limit mechanism includes threaded holes and bolts. The threaded holes are evenly distributed on the lower side wall of the support cylinder. The bolts are threadedly connected with the threaded holes. When the worker moves the bottom plate to the turntable in the drying box, first rotate the bolt to keep the bolt away from the limit rod. The limit rod slides down due to gravity until it is inserted into the limit slot, and then rotates the bolt until its screw end is in contact with the limit rod. The side walls of the rods are in contact with each other. When the cloth is finished drying and the bottom plate needs to be pulled out of the drying box, first rotate the bolt to keep the bolt away from the limit rod, then slide the limit rod upward to make the limit rod away from the limit slot, and then rotate The bolt can be used until its screw end abuts the side wall of the limit rod, and finally the bottom plate is pulled out, which is not only very convenient to operate, but also improves the stability of the limit rod, bottom plate, support legs and drying rack during rotation. sex;

4) By setting the driving mechanism as a driving motor, the driving mechanism is vertically and fixedly arranged inside the accommodating box, and the driving shaft of the driving mechanism is extended into the drying box and then fixedly connected with the bottom of the turntable. During operation, start the driving The motor can drive the turntable to rotate, the rotation of the turntable can drive the rotation of the limit rod, the rotation of the limit rod can drive the rotation of the support cylinder, and the rotation of the support cylinder can drive the rotation of the drying rack, thereby completing the rotation of the cloth. Rotate to further improve the drying effect;

5) By connecting a handle on the side wall of the support cylinder, when the drying is completed, the staff can open the warehouse door and pull out the support cylinder, the bottom plate and the drying rack by holding the handle, so as to further facilitate the staff to take Pick;

6) By setting the wheel as a universal wheel, the setting of the universal wheel enables the staff to move the bottom plate at any position, thereby improving the convenience of operation;

7) By installing brakes on the wheels, the brakes are set so that when drying the cloth, the staff can fix the position of the universal wheel through the brakes, so as to improve the rotation of the bottom plate, the support cylinder and the drying rack. The stability can further improve the drying effect.

Description of drawings

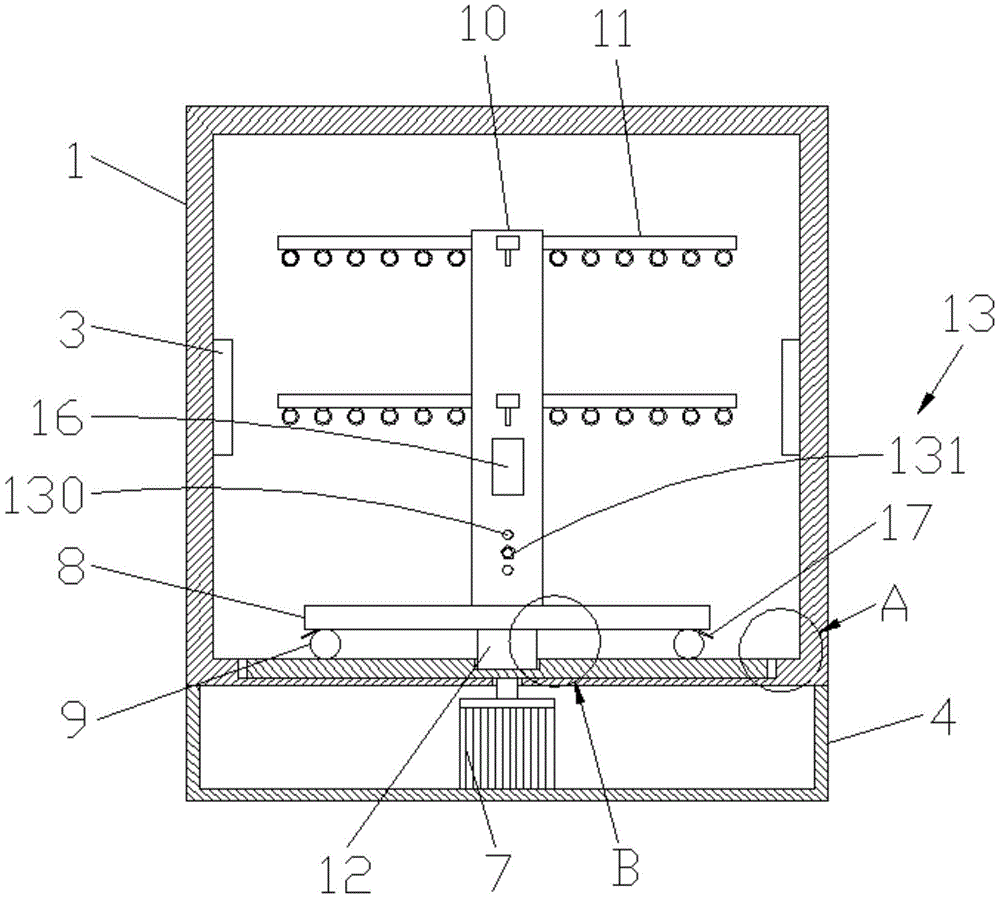

Fig. 1 is the internal structure schematic diagram of the embodiment in the present utility model;

Fig. 2 is the enlarged schematic diagram of A part structure in Fig. 1;

Fig. 3 is the enlarged schematic diagram of B part structure in Fig. 1;

FIG. 4 is a schematic diagram of the external structure of the embodiment of the present invention.

The meaning of the reference numerals: 1. Drying box; 2. Storage door; 3. Heating plate; 4. Receiving box; 5. Receiving groove; 6. Turntable; 7. Driving mechanism; 8. Bottom plate; 9. Wheel; 10, support cylinder; 11, drying rack; 12, limit rod; 13, limit mechanism; 130, threaded hole; 131, bolt; 14, limit groove; 15, inclined plate; 16, handle; 17, brake .

The present utility model will be further described below with reference to the accompanying drawings and specific embodiments.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner" and "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation to the present invention; the terms "first", "second" and "third" are only used for descriptive purposes and should not be construed as indicating or implying relative importance; in addition, Unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral connection; it may be a mechanical connection, It can also be an electrical connection; it can be a direct connection, an indirect connection through an intermediate medium, or an internal connection between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The embodiment of the present utility model: a portable drying box, the structure is shown in Figures 1 to 4, including a drying box 1, the front end of the drying box 1 is hinged with a warehouse door 2, the drying box A heating plate 3 is connected to the inner side wall of the drying box 1, a accommodating box 4 is connected to the bottom of the outer wall of the drying box 1, and an accommodating groove 5 is opened at the bottom of the inner wall of the drying box 1. The accommodating groove A turntable 6 is rotatably connected inside 5, and a drive mechanism 7 that drives the turntable 6 to rotate is connected inside the accommodating box 4. The turntable 6 is movably provided with a bottom plate 8, and the bottom of the bottom plate 8 is connected to abut against the turntable 6. The top of the bottom plate 8 is connected with a support cylinder 10, the upper side wall of the support cylinder 10 is connected with a number of drying racks 11 with hooks, and the support cylinder 10 is slidably connected to the bottom plate 8 The limit rod 12 has a prismatic structure, the support cylinder 10 is provided with a limit mechanism 13 for restricting the limit rod 12 from sliding, and the top of the turntable 6 is provided with a position corresponding to the limit rod 12 Corresponding and size-matched limit grooves 14, the front end outside the accommodating box 4 is connected with a sloping plate 15, the surface of the top of the sloping plate 15, the surface of the bottom of the inner wall of the drying box 1 and the top of the turntable 6 The surfaces are flush. During operation, hang the cloth on the hooks of the drying rack 11 through the clothes hanger, push the bottom plate 8 to enter the drying box after passing through the inclined plate 15, and slide the limit rod 12 downward to make The limit rod 12 is inserted into the limit slot 14, then the limit mechanism 13 is used to slide the limit limit rod 12, the warehouse door 2 is closed, and the drive mechanism 7 is controlled to drive the turntable 6 to rotate, and the rotation of the turntable 6 drives the limit The rotation of the rod 12, the bottom plate 8, the support cylinder 10 and the drying rack 11, the rotation of the drying rack 11 drives the rotation of the cloth, at the same time, the heating plate 3 is started to heat, and after the drying is completed, the warehouse door 2 is opened, Operate the limit mechanism 13 away from the limit rod 12, slide the limit rod 12 upwards away from the limit slot 14, and finally pull the bottom plate 8 out of the drying box 1, which not only improves the drying effect, but also It is also convenient for the staff to pick up.

The limiting mechanism 13 includes threaded holes 130 and bolts 131 . The threaded holes 130 are evenly distributed on the lower side wall of the support cylinder 10 . Then, it abuts the side wall of the limit rod 12. When the worker moves the bottom plate 8 to the turntable 6 in the drying box 1, the bolt 131 is first rotated to keep the bolt 131 away from the limit rod 12. The limit rod 12 is due to gravity Slide down until it is inserted into the limit slot 14, and then rotate the bolt 131 until the end of the screw is in contact with the side wall of the limit rod 12. When the cloth is finished drying, the bottom plate 8 needs to be pulled out of the drying box 1. First rotate the bolt 131 so that the bolt 131 is far away from the limit rod 12 , then slide the limit rod 12 upward to make the limit rod 12 away from the limit slot 14 , and then rotate the bolt 131 until its screw end abuts the side wall of the limit rod 12 . Yes, the bottom plate 8 is finally pulled out, which is not only very convenient to operate, but also improves the stability of the limit rod 12 , the bottom plate 8 , the support legs and the drying rack 11 during rotation.

The drive mechanism 7 is a drive motor, the drive mechanism 7 is vertically and fixedly arranged inside the accommodating box 4, and the drive shaft of the drive mechanism 7 extends into the drying box 1 and is fixedly connected to the bottom of the turntable 6, During operation, start the drive motor to drive the turntable 6 to rotate, the rotation of the turntable 6 can drive the rotation of the limit rod 12, the rotation of the limit rod 12 can drive the rotation of the support cylinder 10, and the rotation of the support cylinder 10 can drive the rotation of the support cylinder 10. The rotation of the drying rack 11 is driven to complete the rotation of the cloth, so as to further improve the drying effect.

A handle 16 is also connected to the side wall of the support cylinder 10. When the drying is completed, the staff can open the warehouse door 2, and hold the handle 16 to pull out the support cylinder 10, the bottom plate 8 and the drying rack 11, thereby further Easy for staff to pick up.

The wheel 9 is a universal wheel, and the setting of the universal wheel enables the staff to move the bottom plate 8 at any position, thereby improving the convenience of operation.

A brake 17 is also installed on the wheel 9, and the brake 17 is arranged so that when drying the cloth, the staff can fix the position of the universal wheel through the brake 17, thereby improving the bottom plate 8, the supporting cylinder 10 and drying. The stability of the rack 11 during rotation can further improve the drying effect.

The working principle of the present utility model:

During operation, hang the cloth on the hooks of the drying rack 11 through the clothes hanger respectively, push the bottom plate 8 to enter the drying box through the inclined plate 15, and rotate the bolt 131 first to keep the bolt 131 away from the limit rod 12, and the limit rod 12 Slide down due to gravity until it is inserted into the limit slot 14, then rotate the bolt 131 until its screw end abuts the side wall of the limit rod 12, fix the position of the universal wheel through the brake 17, and close the warehouse door 2. Activate the drive mechanism 7 to drive the turntable 6 to rotate, the rotation of the turntable 6 drives the rotation of the limit rod 12, the bottom plate 8, the support cylinder 10 and the drying rack 11, and the rotation of the drying rack 11 drives the rotation of the cloth. At the same time, start the heating plate 3 for heating, after drying, open the warehouse door 2, first rotate the bolt 131 to make the bolt 131 away from the limit rod 12, and then slide the limit rod 12 upward to make the limit rod 12 away from the limit slot 14, Rotate the bolt 131 again until the end of the screw is in contact with the side wall of the limit rod 12, and finally pull the bottom plate 8 out of the drying box 1, which not only improves the drying effect, but also facilitates the staff. Take it.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it can still modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model, All should be included within the protection scope of the present invention.

Claims (6)

1. The portable drying box is characterized by comprising a drying box body (1), wherein the front end of the drying box body (1) is hinged with a bin door (2), a heating plate (3) is connected onto the inner side wall of the drying box body (1), an accommodating box (4) is connected to the bottom of the outer wall of the drying box body (1), an accommodating groove (5) is formed in the bottom of the inner wall of the drying box body (1), a rotary table (6) is rotatably connected to the accommodating groove (5), a driving mechanism (7) for driving the rotary table (6) to rotate is connected to the inside of the accommodating box (4), a bottom plate (8) is movably arranged on the rotary table (6), wheels (9) which are abutted to the rotary table (6) are connected to the bottom of the bottom plate (8), a supporting cylinder (10) is connected to the top of the bottom plate (8), and a plurality of drying frames (11) with hooks are connected onto the side wall of the upper portion of the supporting cylinder (10), support a section of thick bamboo (10) sliding connection has gag lever post (12) that can run through bottom plate (8), gag lever post (12) are prismatic structure, be provided with gliding stop gear (13) of restriction gag lever post (12) on a support section of thick bamboo (10), spacing groove (14) corresponding and size assorted with gag lever post (12) position are seted up at the top of revolving stage (6), hold the outer front end of box (4) and be connected with swash plate (15), the top place face of swash plate (15), the inner wall bottom place face of stoving box (1) and the top place face of revolving stage (6) all flush the setting.

2. The portable drying box according to claim 1, characterized in that the limiting mechanism (13) comprises threaded holes (130) and bolts (131), the threaded holes (130) are uniformly distributed on the lower side wall of the support cylinder (10), the bolts (131) are in threaded connection with the threaded holes (130), and the bolts (131) penetrate through the threaded holes (130) and then abut against the side wall of the limiting rod (12).

3. The portable drying box according to claim 2, wherein the driving mechanism (7) is a driving motor, the driving mechanism (7) is vertically and fixedly arranged inside the accommodating box (4), and a driving shaft of the driving mechanism (7) extends into the drying box body (1) and is fixedly connected with the bottom of the rotary table (6).

4. Portable drying box according to claim 3, characterized in that a handle (16) is also connected to the side wall of the support cylinder (10).

5. Portable drying box according to claim 4, characterized in that the wheels (9) are universal wheels.

6. Portable drying box according to claim 5, characterized in that brakes (17) are also mounted on the wheels (9).
