Abstract
本实用新型公开了一种污水处理搅拌设备，包括污水池，所述污水池底部一侧连通有出水管，所述污水池的对角线位置上分别转动安装有第一传动螺杆和第二传动螺杆，所述第一传动螺杆和第二传动螺杆两端分别通过螺纹旋合连接有第一滑块和第二滑块，所述污水池外侧固定安装有与第二传动螺杆传动连接的第二驱动电机。本实用新型中，通过第二驱动电机驱动第二传动螺杆和蜗杆往复转动，蜗杆驱动蜗轮带动第一传动螺杆往复转动，两侧第一滑块和第二滑块分别带动其上的搅拌装置沿污水池的对角线往复移动，对污水池中部和边缘部分的污水进行充分搅拌，保证投入污水池内的药剂与污水充分混合，提高污水处理效率和效果。
The utility model discloses a sewage treatment stirring device, which comprises a sewage tank, a water outlet pipe is communicated with one side of the bottom of the sewage tank, and a first transmission screw and a second transmission screw are respectively rotatably installed on the diagonal positions of the sewage tank. screw, both ends of the first driving screw and the second driving screw are respectively connected with a first sliding block and a second sliding block through screw threading, and a second sliding block which is drivingly connected with the second driving screw is fixedly installed on the outside of the sewage pool. motor. In the utility model, the second drive screw and the worm are driven to reciprocate by the second drive motor, the worm drives the worm wheel to drive the first drive screw to reciprocate, and the first sliding block and the second sliding block on both sides respectively drive the stirring device on it to rotate along the The diagonal line of the sewage tank moves back and forth, and the sewage in the middle and edge of the sewage tank is fully stirred to ensure that the chemicals put into the sewage tank are fully mixed with the sewage, and the efficiency and effect of sewage treatment are improved.
Description
Technical Field
The utility model relates to the technical field of sewage treatment, in particular to sewage treatment stirring equipment.
Background
Sewage treatment, in order to make sewage reach the water quality requirement of discharging into a certain water body or reuse and carry out the process of purifying it, sewage treatment is widely used in each field such as building, agriculture, traffic, energy, petrochemical industry, environmental protection, urban landscape, medical treatment, food and beverage, also increasingly goes into common people's daily life.
Need use agitated vessel when sewage treatment, current partial agitated vessel agitating unit sets up in the middle of the effluent water sump, and agitating unit is when the stirring, and effluent water in the middle part of the effluent water sump obtains intensive mixing, with medicine intensive mixing, but is close to the sewage at effluent water sump edge, and agitating unit is less to its effect to lead to inside sewage of effluent water sump can't obtain intensive mixing.
SUMMERY OF THE UTILITY MODEL
The utility model aims to: in order to solve the technical problems mentioned in the background technology, a sewage treatment stirring device is provided.
In order to achieve the purpose, the utility model adopts the following technical scheme:
the utility model provides a sewage treatment agitated vessel, includes the effluent water sump, effluent water sump bottom one side intercommunication has the outlet pipe, rotate respectively on the diagonal position of effluent water sump and install first drive screw and second drive screw, and the screw thread at first drive screw and second drive screw both ends is to opposite soon, first drive screw and second drive screw both ends close soon through the screw thread respectively and are connected with first slider and the second slider that is rectilinear motion, and all install agitating unit bottom first slider and second slider, connect through the transmission assembly transmission between first drive screw and the second drive screw, effluent water sump outside fixed mounting has the second driving motor who is connected with the transmission of second drive screw.
As a further description of the above technical solution:
the transmission assembly comprises a worm wheel sleeved on the first transmission screw rod, and the second transmission screw rod is sleeved with a worm meshed with the worm wheel.
As a further description of the above technical solution:
the stirring device comprises a first driving motor fixedly mounted at the bottoms of the first sliding block and the second sliding block, and an output shaft of the first driving motor is in transmission connection with a stirring rod.
As a further description of the above technical solution:
and a first guide pillar and a second guide pillar are fixedly connected to diagonal positions of the sewage tank respectively, the first guide pillar penetrates through the first sliding blocks on the two sides, and the second guide pillar penetrates through the second sliding blocks on the two sides.
As a further description of the above technical solution:
the effluent water sump top is equipped with the workbin all around, and workbin top intercommunication has the inlet pipe, and bottom intercommunication discharging pipe.
As a further description of the above technical solution:
the workbin is arranged above a triangular area formed by the first transmission screw and the second transmission screw.
As a further description of the above technical solution:
the top of the sewage pool is fixedly connected with a support which is sleeved with a material box.
In summary, due to the adoption of the technical scheme, the utility model has the beneficial effects that:
1. according to the utility model, the second driving motor drives the second driving screw and the worm to rotate in a reciprocating manner, the worm drives the worm wheel to drive the first driving screw to rotate in a reciprocating manner according to the meshing transmission principle of the latch, and the first sliding blocks and the second sliding blocks on two sides respectively drive the stirring devices on the first sliding blocks to move in a reciprocating manner along the diagonal line of the sewage pool according to the thread transmission principle, so that sewage in the middle and the edge of the sewage pool is fully stirred, a medicament put into the sewage pool is guaranteed to be fully mixed with the sewage, and the sewage treatment efficiency and effect are improved.
2. According to the utility model, when sewage needs to be treated, the electromagnetic control valve is opened, the medicament automatically falls into the sewage pool, and the medicament simultaneously falls into the periphery of the sewage pool, so that the contact area of the medicament and the sewage is increased, and the sewage treatment efficiency and effect are improved.
Drawings

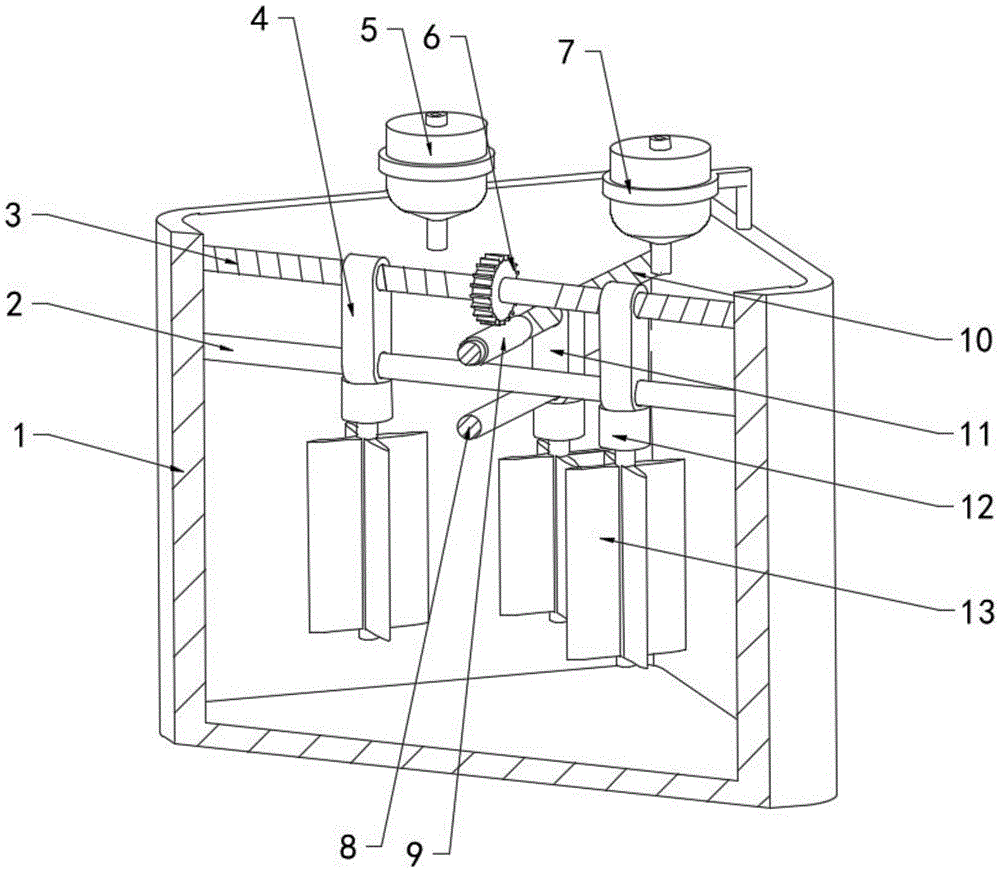

FIG. 1 is a schematic diagram illustrating an internal structure of a sewage treatment stirring apparatus according to an embodiment of the present invention;
FIG. 2 is a schematic perspective view of a sewage treatment stirring apparatus according to an embodiment of the present invention;
FIG. 3 is a schematic view showing the connection between a first driving screw and a second driving screw of a sewage treatment stirring apparatus according to an embodiment of the present invention;
FIG. 4 is a schematic top view of a sewage treatment stirring apparatus according to an embodiment of the present invention;
FIG. 5 is a schematic front view illustrating a sewage treatment stirring apparatus according to an embodiment of the present invention.
Illustration of the drawings:
1. a sewage tank; 2. a first guide post; 3. a first drive screw; 4. a first slider; 5. a material box; 6. a worm gear; 7. a support; 8. a second guide post; 9. a worm; 10. a second drive screw; 11. a second slider; 12. a first drive motor; 13. a stirring rod; 14. a second drive motor; 15. and (5) discharging a water pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a sewage treatment stirring device comprises a sewage pool 1, one side of the bottom of the sewage pool 1 is communicated with a water outlet pipe 15, a first transmission screw 3 and a second transmission screw 10 are respectively rotatably arranged on diagonal positions of the sewage pool 1, the screw thread rotating directions of two ends of the first transmission screw 3 and the second transmission screw 10 are opposite, two ends of the first transmission screw 3 and two ends of the second transmission screw 10 are respectively connected with a first slide block 4 and a second slide block 11 which do linear motion in a screwing way through screw threads, a first guide pillar 2 and a second guide pillar 8 are respectively fixedly connected on the diagonal positions of the sewage pool 1, the first guide pillar 2 penetrates through the first slide blocks 4 on two sides, the second guide pillar 8 penetrates through the second slide blocks 11 on two sides, stirring devices are respectively arranged at the bottoms of the first slide block 4 and the second slide block 11, the first transmission screw 3 and the second transmission screw 10 are in transmission connection through a transmission assembly, the transmission assembly comprises a worm wheel 6 sleeved on the first transmission screw 3, a worm 9 meshed with the worm wheel 6 is sleeved on the second transmission screw 10, and a second driving motor 14 in transmission connection with the second transmission screw 10 is fixedly installed on the outer side of the sewage pool 1;
the second driving screw 10 and the worm 9 are driven to rotate in a reciprocating mode through the second driving motor 14, the worm 9 drives the worm wheel 6 to drive the first driving screw 3 to rotate in a reciprocating mode according to the meshing transmission principle of the latch, the first sliding blocks 4 and the second sliding blocks 11 on the two sides respectively drive the stirring devices on the first sliding blocks to move in a reciprocating mode along the diagonal line of the sewage pool 1 according to the thread transmission principle, sewage in the middle and the edge of the sewage pool 1 is fully stirred, the fact that a medicament thrown into the sewage pool 1 is fully mixed with the sewage is guaranteed, and sewage treatment efficiency and effect are improved.
Specifically, as shown in fig. 3, the stirring device includes a first driving motor 12 fixedly installed at the bottom of the first slider 4 and the second slider 11, an output shaft of the first driving motor 12 is connected with a stirring rod 13 in a transmission manner, and the stirring rod 13 is driven to rotate by the first driving motor 12 to stir the sewage.
Specifically, as shown in fig. 2 and 4, 1 top of effluent water sump is equipped with workbin 5 all around, 1 top fixedly connected with of effluent water sump cup joints support 7 of workbin 5, and workbin 5 top intercommunication has the inlet pipe, bottom intercommunication discharging pipe, workbin 5 sets up in the triangle region top that first drive screw 3 and second drive screw 10 formed, the medicament that has the treatment sewage in the workbin 5, install solenoid electric valve on the discharging pipe, when needs are handled sewage, open solenoid electric valve, the medicament is automatic to fall into in effluent water sump 1, and effluent water sump 1 all has the medicament to fall into simultaneously all around, improve the area of contact of medicament and sewage, improve sewage treatment efficiency and effect.
The working principle is as follows: when the device is used, firstly, when sewage is required to be treated, the electromagnetic control valve is opened, the medicament automatically falls into the sewage pool 1, and the medicament around the sewage pool 1 simultaneously falls, so that the contact area of the medicament and the sewage is improved, secondly, the second driving screw 10 and the worm 9 are driven to rotate in a reciprocating manner by the second driving motor 14, according to the meshing transmission principle of the latch, the worm 9 drives the worm wheel 6 to drive the first driving screw 3 to rotate in a reciprocating manner, according to the thread transmission principle, the first sliding blocks 4 and the second sliding blocks 11 on two sides respectively drive the stirring devices on the two sides to move in a reciprocating manner along the diagonal line of the sewage pool 1, so that the sewage in the middle and edge parts of the sewage pool 1 is fully stirred, the medicament and the sewage which are put into the sewage pool 1 are fully mixed, and the sewage treatment efficiency and effect are improved.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
