Abstract
本实用新型公开了一种双刀塔数控车床的刀塔拆卸装置，属于刀塔拆卸技术领域。一种双刀塔数控车床的刀塔拆卸装置，包括外壳，所述外壳一侧内壁设有转速变频器，且转速变频器顶部设有两组第一线路，所述每组第一线路顶部均连接有刀塔底座，且刀塔底座顶部连接有驱动座，所述驱动座顶部连接有刀塔，且刀塔顶部设有若干组切割器，所述刀塔表面设有若干组散热条，所述外壳内部设有移动控制器；本实用新型有效解决了刀塔在拆卸过程中底部过紧不易取出的问题，避免了因刀塔无法取出而导致设备损坏的情况发生，有效减少了刀塔在使用过程中的成本，同时通过内部的通风设备，保证刀塔设备内部能够长时间进行工作，提高设备的工作效率。
The utility model discloses a turret disassembly device of a double turret numerical control lathe, which belongs to the technical field of turret disassembly. A turret dismantling device for a double turret CNC lathe, comprising a casing, a rotational speed frequency converter is arranged on an inner wall of one side of the casing, and two sets of first circuits are arranged on the top of the rotational speed frequency converter, and the tops of each set of first circuits are A turret base is connected, and the top of the turret base is connected with a drive seat, the top of the drive seat is connected with a turret, and the top of the turret is provided with several groups of cutters, and the surface of the turret is provided with several groups of cooling strips, so A mobile controller is provided inside the casing; the utility model effectively solves the problem that the bottom of the turret is too tight and difficult to take out during the disassembly process, avoids the occurrence of equipment damage due to the inability of the turret to be taken out, and effectively reduces the turret in At the same time, through the internal ventilation equipment, it can ensure that the turret equipment can work for a long time and improve the working efficiency of the equipment.
Description
Technical Field
The utility model relates to the technical field of turret dismounting, in particular to a turret dismounting device of a double-turret numerical control lathe.
Background
The lathe is a machine tool which mainly uses a lathe tool to perform turning processing on a rotating workpiece, a drill bit, a reamer, a screw tap, a screw die, a knurling tool and the like can be used for performing corresponding processing on the lathe tool, high speed and precision are the permanent targets of the development of the lathe tool, along with the rapid development of scientific technology, the updating speed of electromechanical products is accelerated, the requirements on the precision and surface quality of part processing are higher and higher, in order to meet the requirements of the complex and changeable market, the current lathe tool is developed in the directions of high-speed cutting, dry cutting and quasi-dry cutting, the processing precision is continuously improved, on the other hand, the successful application of an electric spindle and a linear motor, the appearance of functional parts of the lathe tool, such as a ceramic ball bearing, a high-precision large-lead hollow internal cooling and ball nut strong cooling low-temperature high-speed ball screw pair, a linear guide rail pair with a ball retainer and the like, and the lathe tool is also developed in the market of high-speed processing of the lathe tool, The precise development creates conditions, the numerical control lathe adopts an electric spindle, links such as a belt, a belt wheel and a gear are omitted, the rotational inertia of main transmission is greatly reduced, the dynamic response speed and the working precision of the spindle are improved, the problems of vibration and noise of the belt, the belt wheel and the like during high-speed operation of the spindle are thoroughly solved, the rotating speed of the spindle can reach more than 10000r/min by adopting an electric spindle structure, in the prior art, the lathe turret is troublesome to disassemble, and therefore, the turret disassembling device of the double-turret numerical control lathe is designed.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the problem that the bottom of a turret is too tight and is not easy to take out in the process of dismounting in the prior art, and provides a turret dismounting device of a double-turret numerical control lathe.
In order to achieve the purpose, the utility model adopts the following technical scheme:
the utility model provides a sword tower dismounting device of two sword tower numerical control lathe, includes the shell, shell one side inner wall is equipped with the rotational speed converter, and the rotational speed converter top is equipped with two sets of first circuits, every first circuit top of group all is connected with the sword tower base, and sword tower base top is connected with the drive seat, it is connected with the sword tower to drive seat top, and the sword tower top is equipped with a plurality of groups cutterbars, the sword tower surface is equipped with a plurality of groups heat dissipation strip, the inside mobility control ware that is equipped with of shell, and mobility control ware one side is equipped with the removal track, it has the removal seat to remove track surface sliding connection, and removes a side outer wall and be equipped with the fixer, the fixer surface is connected with the starter.
Preferably, the inside battery that is equipped with of shell, and the battery top is equipped with the controller, the battery is connected with the mobile controller through the second circuit that the outer wall was equipped with controller one side.
Preferably, the controller top is equipped with two sets of third circuits, and every third circuit top of group all is connected with control panel, the control panel top is equipped with the display screen, and is equipped with two sets of control button on one side of the display screen.
Preferably, battery one side is equipped with the charging line, and the one end that the battery was kept away from to the charging line is equipped with the hole of charging, the hole surface of charging is equipped with the socket.
Preferably, battery one side is connected with the fourth circuit, and the one end that the battery was kept away from to the fourth circuit is connected with the driver, the driver outside is connected with the drive bottom plate, driver one side outer wall connection has the actuating lever, and the actuating lever surface is equipped with a plurality of groups flabellum, one side that the driver was kept away from to the actuating lever is equipped with the dust guard.
Preferably, the surface of the shell is provided with an opening plate, and the surface of the opening plate is provided with a plurality of groups of screws.
Compared with the prior art, the utility model provides a turret dismounting device of a double-turret numerical control lathe, which has the following beneficial effects:
1. this two sword tower numerical control lathe's sword tower dismounting device through rotational speed converter cooperation sword tower base and drive seat, makes this device can drive the sword tower and carry out work, has effectively solved numerical control lathe's sword tower control problem, has improved staff's work efficiency.
2. This two sword tower numerical control lathe's sword tower dismounting device removes seat and starter through the cooperation of mobile controller, makes this device can start through starter tool turret bottom, prevents that the too tight condition of sword tower from taking place in the use, has effectively improved the availability factor of sword tower.
3. This two turrets numerical control lathe's turret dismounting device through control panel cooperation display screen and two sets of control button, makes this device can make things convenient for the staff to control, has effectively improved staff's work efficiency.
4. This two sword tower numerical control lathe's sword tower dismounting device through driver cooperation actuating lever and a plurality of group's flabellum, makes this device can dispel the heat under the condition of long-time work, has effectively improved the efficiency of this device at long-time work.
The device has the same or can be realized by adopting the prior art, the utility model effectively solves the problem that the bottom of the turret is too tight and is not easy to take out in the disassembly process, avoids the occurrence of equipment damage caused by the fact that the turret cannot be taken out, effectively reduces the cost of the turret in the use process, ensures that the inside of the turret equipment can work for a long time through internal ventilation equipment, improves the working efficiency of the equipment, firstly, the device can drive the turret to work by matching a rotating speed frequency converter with a turret base and a driving seat, effectively solves the turret control problem of a numerical control lathe, then, a mobile controller is matched with a mobile seat and a starter, so that the device can be started from the bottom of the turret through the starter, the occurrence of the situation that the turret is too tight in the use process is prevented, and then, a control panel is matched with a display screen and two groups of control buttons, make this device can make things convenient for the staff to control, at last through driver cooperation actuating lever and a plurality of group's flabellum, make this device can dispel the heat under the condition of long-time work.
Drawings

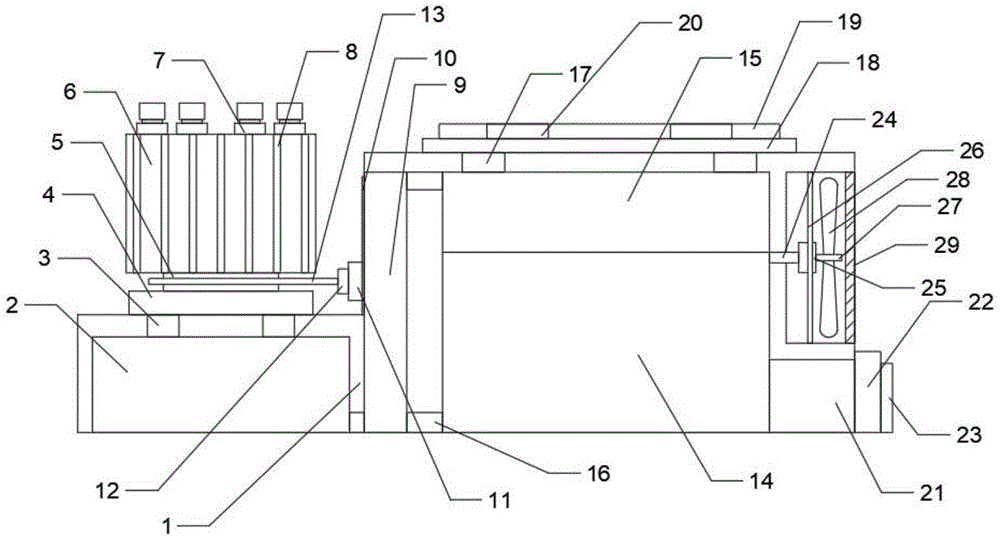

Fig. 1 is a schematic structural diagram of a turret dismounting device of a double-turret numerically-controlled lathe according to the present invention;
FIG. 2 is a front view of the present invention;
FIG. 3 is a top view of the present invention;
in the figure:
1. a housing; 2. a rotating speed frequency converter; 3. a first line; 4. a turret base; 5. a driving seat; 6. a turret; 7. a cutter; 8. a heat dissipating strip; 9. a movement controller; 10. a moving track; 11. a movable seat; 12. a holder; 13. a starter; 14. a battery; 15. a controller; 16. a second line; 17. a third line; 18. a control panel; 19. a display screen; 20. a control button; 21. a charging circuit; 22. a charging hole; 23. a socket; 24. a fourth line; 25. a driver; 26. a drive chassis; 27. a drive rod; 28. a fan blade; 29. a dust-proof plate; 30. opening and closing the board; 31. and (4) screws.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, are merely for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Referring to fig. 1-3, a turret dismounting device of a double turret numerically controlled lathe comprises a housing 1, a rotating speed transducer 2 is arranged on the inner wall of one side of the housing 1, two groups of first lines 3 are arranged on the top of the rotating speed transducer 2, a turret base 4 is connected on the top of each group of first lines 3, a driving seat 5 is connected on the top of the turret base 4, the device can drive a turret 6 to work by matching the rotating speed transducer 2 with the turret base 4 and the driving seat 5, the turret control problem of the numerically controlled lathe is effectively solved, the working efficiency of a worker is improved, the turret 6 is connected on the top of the driving seat 5, a plurality of groups of cutters 7 are arranged on the top of the turret 6, a plurality of groups of radiating strips 8 are arranged on the surface of the turret 6, a moving controller 9 is arranged inside the housing 1, a moving rail 10 is arranged on one side of the moving controller 9, and a moving seat 11 is connected on the surface of the moving rail 10 in a sliding manner, the outer wall of one side of the movable seat 11 is provided with a fixer 12, the surface of the fixer 12 is connected with a starter 13, the movable controller 9 is matched with the movable seat 11 and the starter 13, so that the device can start the bottom of the turret 6 through the starter 13, the turret is prevented from being over-tight in the use process, the use efficiency of the turret is effectively improved, the shell 1 is internally provided with a battery 14, the top of the battery 14 is provided with a controller 15, one side of the battery 14 and one side of the controller 15 are both connected with the movable controller 9 through a second circuit 16 arranged on the outer wall, the top of the controller 15 is provided with two groups of third circuits 17, the top of each group of third circuits 17 is connected with a control panel 18, the top of the control panel 18 is provided with a display screen 19, one side of the display screen 19 is provided with two groups of control buttons 20, and the control panel 18 is matched with the display screen 19 and the two groups of control buttons 20, so that the device can be conveniently controlled by workers, effectively improved staff's work efficiency, battery 14 one side is equipped with charging line 21, and charging line 21 keeps away from the one end of battery 14 and is equipped with charging hole 22, charging hole 22 surface is equipped with socket 23, battery 14 one side is connected with fourth circuit 24, and the one end that battery 14 was kept away from to fourth circuit 24 is connected with driver 25, the driver 25 outside is connected with drive bottom plate 26, driver 25 one side outer wall connection has actuating lever 27, and actuating lever 27 surface is equipped with a plurality of groups flabellum 28, cooperate actuating lever 27 and a plurality of groups flabellum 28 through driver 25, make this device can dispel the heat under the condition of long-time work, the efficiency of this device at long-time work has effectively been improved, one side that driver 25 was kept away from to actuating lever 27 is equipped with dust guard 29, shell 1 surface is equipped with opening plate 30, and opening plate 30 surface is equipped with a plurality of groups screw 31.
The working principle of the utility model is as follows: at first, cooperate sword tower base 4 and drive seat 5 through rotational speed converter 2, make this device can drive sword tower 6 and carry out work, numerical control lathe's sword tower control problem has effectively been solved, then remove seat 11 and starter 13 through the cooperation of mobile control ware 9, make this device can start the sword tower 6 bottom through starter 13, prevent that the too tight condition of sword tower in the use from taking place, later cooperate display screen 19 and two sets of control button 20 through control panel 18, make this device can make things convenient for the staff to control, cooperate actuating lever 27 and a plurality of group's flabellum 28 through driver 25 at last, make this device can dispel the heat under the condition of long-time work.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
Claims (6)
1. The utility model provides a sword tower dismounting device of two sword tower numerical control lathe, includes shell (1), its characterized in that: shell (1) one side inner wall is equipped with rotational speed converter (2), and rotational speed converter (2) top is equipped with two sets of first circuit (3), every group first circuit (3) top all is connected with sword tower base (4), and sword tower base (4) top is connected with drive seat (5), drive seat (5) top is connected with sword tower (6), and sword tower (6) top is equipped with a plurality of groups cutterbars (7), sword tower (6) surface is equipped with a plurality of groups heat dissipation strip (8), shell (1) inside is equipped with mobile control ware (9), and mobile control ware (9) one side is equipped with removal track (10), removal track (10) sliding surface is connected with and removes seat (11), and removes seat (11) one side outer wall and be equipped with fixer (12), fixer (12) surface connection has starter (13).
2. The turret dismounting device of the double-turret numerically controlled lathe according to claim 1, wherein: the battery (14) is arranged inside the shell (1), the controller (15) is arranged at the top of the battery (14), and the battery (14) and one side of the controller (15) are connected with the mobile controller (9) through a second line (16) arranged on the outer wall.
3. The turret dismounting device of the double-turret numerically controlled lathe according to claim 2, wherein: controller (15) top is equipped with two sets of third circuit (17), and every third circuit of group (17) top all is connected with control panel (18), control panel (18) top is equipped with display screen (19), and display screen (19) one side is equipped with two sets of control button (20).
4. The turret dismounting device of the double-turret numerically controlled lathe according to claim 2, wherein: battery (14) one side is equipped with charging line (21), and charging line (21) keep away from the one end of battery (14) and be equipped with hole (22) that charges, hole (22) surface that charges is equipped with socket (23).
5. The turret dismounting device of the double-turret numerically controlled lathe according to claim 2, wherein: battery (14) one side is connected with fourth circuit (24), and the one end that battery (14) were kept away from in fourth circuit (24) is connected with driver (25), the driver (25) outside is connected with drive bottom plate (26), driver (25) one side outer wall connection has actuating lever (27), and actuating lever (27) surface is equipped with a plurality of groups flabellum (28), one side that driver (25) were kept away from in actuating lever (27) is equipped with dust guard (29).
6. The turret dismounting device of the double-turret numerically controlled lathe according to claim 1, wherein: the surface of the shell (1) is provided with a split plate (30), and the surface of the split plate (30) is provided with a plurality of groups of screws (31).
