Abstract

The utility model provides a multifunctional chest-abdominal belt, comprising a first belt body and a second belt body. The first belt body and the second belt body are both made of elastic materials, and the two belts are formed along the length direction of the two belts. Memory cartilage is arranged on both sides; both ends of the first belt body in the length direction are spaced with at least two first notches, and both ends of the first belt body in the length direction are provided with first Velcro on the belt surfaces; At least two second notches are spaced apart at both ends of the second belt body in the length direction, the second notches are elongated, and the two ends of the second belt body in the length direction are provided with matching first magic The second velcro sticker is attached; the two ends of the second belt body are detachably connected to the two ends of the first belt body by the way of pasting the first velcro sticker with the second velcro sticker. The chest-abdominal belt can facilitate the passage of the drainage tube without the need for secondary cutting, is convenient for fixing, and has a good fixing effect, which is convenient for reducing the workload of medical staff.

Description

Multifunctional chest belt

technical field

The utility model relates to the technical field of medical supplies, in particular to a multifunctional chest-abdominal belt.

Background technique

At present, there are various medical thoracic and abdominal belts in clinical practice, which are generally used in the recovery of postpartum patients, the fixation of the thoracic cavity of patients after thoracotomy, and the fixation of patients after gastrointestinal and hepatobiliary surgery. , we found that when the existing thoracic and abdominal belts are used on postoperative patients with drainage tubes, the existing thoracic and abdominal belts need to be manually cut twice before the drainage tubes can be placed and fixed, which not only It only increases the clinical workload of medical personnel, and also weakens the firmness of the chest-abdominal belt to a certain extent, affecting the fixing effect of the chest-abdominal belt.

Utility model content

In view of the above, it is necessary to provide a multifunctional thoracic and abdominal belt, which can facilitate the passage of the drainage tube without secondary cutting, is convenient for fixing, and has a good fixing effect, which is convenient for reducing the workload of medical staff.

To achieve the above object, the technical scheme adopted by the present utility model is:

The multifunctional chest and abdomen belt includes a first belt body and a second belt body, the first belt body and the second belt body are both made of elastic materials, and both sides along the length direction thereof are provided with memory cartilage, the length direction of the memory cartilage is perpendicular to the length direction of the belt body where it is located; both ends of the first belt body in the length direction are spaced apart with at least two first notches, the first belt body Both ends of the belt in the length direction are provided with a first Velcro, and the first Velcro is located between the first gap at the end and the memory cartilage; the two ends of the second belt in the longitudinal direction are There are at least two second notches spaced apart, and the second notches are elongated and extend from the end of the second belt body to the memory cartilage, but there is a distance from the memory cartilage. Both ends of the belt in the length direction of the body are provided with second Velcro that matches the first Velcro, and the second Velcro extends from the end of the second belt body to the memory cartilage at its end, but is different from the above. There is a distance between the memory cartilage, and the distance between the second Velcro and the memory cartilage at the end is greater than the distance from the second gap at the end to the memory cartilage at the end; the two ends of the second belt body pass through the second magic The two ends of the first belt body are detachably connected by sticking the first Velcro, and when the second belt body is connected to the first belt body in a ring structure, the second belt body is connected with the first belt body The second notch and the first notch on the end face each other one by one and communicate with each other. At this time, the first notch and the second notch form a closed through-hole structure for the drainage tube to pass through.

Preferably, both the first belt body and the second belt body are made of breathable material.

Preferably, the memory cartilage is arranged inside the belt body where it is located.

Preferably, the length of the memory cartilage is slightly smaller than the width of the belt where it is located.

Preferably, the edge of the first notch is arc-shaped.

Preferably, the first Velcro on both ends of the first belt is located on the same side of the first belt; the second Velcro on both ends of the second belt is located on the second belt on the same side of the belt body.

Preferably, the length of the first belt body is greater than the length of the second belt body.

Compared with the prior art, the utility model has the following beneficial effects:

By dividing the chest-abdominal belt into a detachable first belt body and a second belt body, the utility model makes the device easy to wear, adjusts the position of the drainage tube and facilitates the passage of the drainage tube, thereby reducing the work of medical staff Specifically, place the first belt body under the patient, the part where the first Velcro is located from the side of the patient covers the front of the patient, and select the appropriate first gap according to the location of the drainage tube , and snap the drainage tube into the first notch and lead it out from the first notch. Make the second notch and the first notch facing each other in turn, so that the drainage tube can pass through the first band body and the second band body at the same time, so as to realize the penetration and fixation of the drainage tube. Finally, put the other end of the second band body. Then, the second Velcro on the one end is pasted with the first Velcro on the other end of the first strap to be fixed with the first strap, so as to realize the effect of tying and fixing the patient with the thoracic and abdominal straps; The abdominal belt has a simple structure, is convenient to use, can facilitate the drainage tube to be pierced, and can adjust the position of the drainage tube.

Description of drawings

Fig. 1 is the outer side structure schematic diagram of the first belt body;

Fig. 2 is the inner side structure schematic diagram of the first belt body;

Fig. 3 is the outer side structure schematic diagram of the second belt body;

Fig. 4 is the inner side structure schematic diagram of the second belt body;

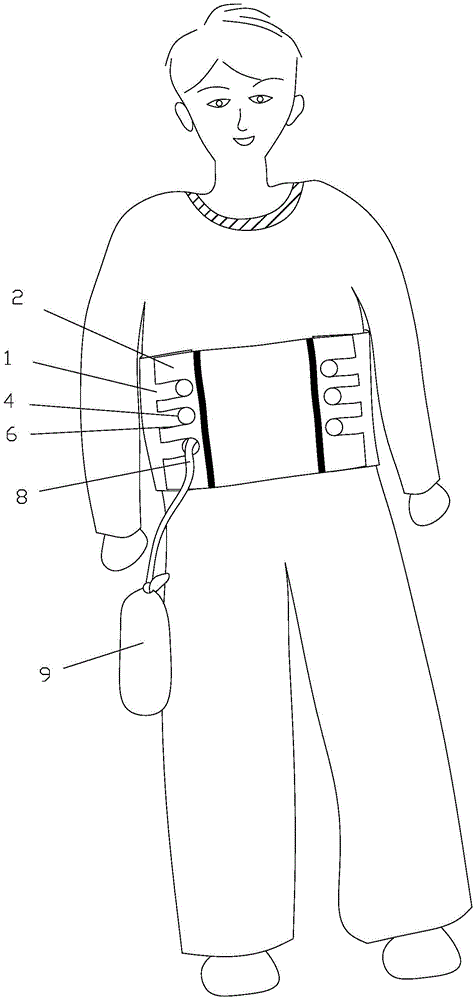

Figure 5 is a schematic structural diagram of the utility model in use.

Description of main component symbols

In the figure: the first belt body 1, the second belt body 2, the memory cartilage 3, the first gap 4, the first Velcro 5, the second gap 6, the second Velcro 7, the drainage tube 8, and the drainage bag 9.

The following specific embodiments will further illustrate the present invention with reference to the above drawings.

Detailed ways

1-5, in a preferred embodiment of the present utility model, the multifunctional chest and abdomen belt includes a first belt body 1 and a second belt body 2. The first belt body 1 and the second belt The body 2 is made of elastic material, and both sides along its length direction are provided with memory cartilage 3. The length direction of the memory cartilage 3 is perpendicular to the length direction of the belt body where it is located, so as to pass the memory cartilage. The tube is shaped so that the first belt body 1 and the second belt body 2 are not curled, which is more convenient to use and has a better effect. The fixing effect is better; preferably, the first belt body 1 and the second belt body 2 are made of breathable materials, such as high-elasticity cotton cloth, which improves the breathability and skin-friendly effect and is more comfortable to use; the memory cartilage 3 is provided with Inside the belt body where it is located; the length of the memory cartilage 3 is slightly smaller than the width of the belt body where it is located.

Both ends of the first belt body 1 in the length direction are spaced apart with at least two first notches 4 , and both ends of the first belt body 1 in the length direction are provided with first Velcro 5 . , the first Velcro 5 is located between the first gap 4 at its end and the memory cartilage 3; both ends of the second belt body 2 in the length direction are spaced apart with at least two second gaps 6, so The second gap 6 is in the shape of a long strip, which extends from the end of the second belt body 2 to the memory cartilage 3, but there is a distance from the memory cartilage 3. The end belt surfaces are provided with second Velcro 7 matching the first Velcro 5. The second Velcro 7 extends from the end of the second belt body 2 to the memory cartilage 3 at its end, but is different from the memory cartilage 3. There is a distance between the cartilage 3, and the distance between the second Velcro 7 and the memory cartilage 3 at the end is greater than the distance between the second gap 6 at the end and the memory cartilage 3 at the end; The two ends of the first belt body 1 are detachably connected to the two ends of the first belt body 1 through the second Velcro 7 and the first Velcro 5, and when the second belt body 2 is connected to the first belt body 1 in a ring structure, the The second band 2 and the second notch 6 and the first notch 4 on the connecting end of the first band 1 face each other and communicate with each other one by one. Through the closed through-hole structure, it is convenient for the drainage tube 8 to pass through the thoracic and abdominal belt and be fixed. In this way, the drainage tube 8 can be pierced and fixed without secondary cutting, which is easy to use and has multiple first gaps. 4 and the setting of the second gap 6 make the chest-abdominal belt match the drainage tubes 8 in different positions, and the use effect is better. Preferably, the edge of the first notch 4 is arc-shaped; the first Velcro 5 on both ends of the first belt body 1 is located on the same side of the first belt body 1; The second Velcro 7 on both ends of the second belt body 2 is located on the same side of the second belt body 2; the length of the first belt body 1 is greater than that of the second belt body 2, which is convenient for the Both ends of the belt body 1 are wrapped around the other side of the patient, so that the second belt body 2 and the first belt body 1 are easily adhered.

The above description is a detailed description of the preferred feasible embodiments of the present utility model, but the embodiments are not intended to limit the scope of the patent application of the present utility model. All should belong to the scope of the patent covered by this utility model.

Claims (7)

1. The multifunctional chest and abdomen belt, including a first belt body and a second belt body, is characterized in that: the first belt body and the second belt body are both made of elastic materials, and both of them are along the length direction. Both sides are provided with memory cartilage, the length direction of the memory cartilage is perpendicular to the length direction of the belt body where it is located; both ends of the first belt body in the length direction are spaced apart with at least two first gaps, Both ends of the first belt body in the length direction are provided with first Velcro, and the first Velcro is located between the first gap at the end and the memory cartilage; the second belt body length direction At least two second notches are spaced apart from both ends of the upper strap, and the second notches are elongated and extend from the end of the second belt body to the memory cartilage, but there is a distance from the memory cartilage. , both ends of the second belt body in the length direction are provided with second Velcro stickers matching the first Velcro stickers, and the second Velcro stickers extend from the end of the second belt body to the memory cartilage at its end extension, but there is a distance from the memory cartilage, the distance between the second Velcro sticker and the memory cartilage at the end is greater than the distance between the second gap at the end and the memory cartilage at the end; The two ends of the first belt are detachably connected to the two ends of the first belt by the second Velcro pasting the first Velcro, and when the second belt is connected to the first belt in an annular structure, the second belt The second notch and the first notch on the connecting end of the first belt body face each other and communicate with each other one by one. At this time, the first notch and the second notch form a closed through-hole structure for the drainage tube to pass through. 2 . The multifunctional chest-abdominal belt according to claim 1 , wherein the first belt body and the second belt body are made of breathable materials. 3 . 3 . The multifunctional chest-abdominal belt according to claim 1 , wherein the memory cartilage is arranged inside the belt body where it is located. 4 . 4 . The multifunctional chest-abdominal belt according to claim 1 , wherein the length of the memory cartilage is slightly smaller than the width of the belt body where the memory cartilage is located. 5 . 5 . The multifunctional chest-abdominal belt according to claim 1 , wherein the edge of the first notch is arc-shaped. 6 . 6. The multifunctional chest-abdominal belt according to claim 1, wherein the first Velcro on both ends of the first belt body is located on the same side belt surface of the first belt body; The second Velcro on both ends of the two belt bodies is located on the same side belt surface of the second belt body. 7 . The multifunctional chest-abdominal belt according to claim 1 , wherein the length of the first belt body is greater than the length of the second belt body. 8 .
