本实用新型公开了一种具有翻译功能的新型教学设备，包括底座、调节机构、显示屏、安装机构和安装板，所述底座顶端的中间位置设置有调节机构，所述调节机构的顶端安装有安装板，且安装板内侧的中间位置安装有显示屏，所述显示屏内侧的顶部设置有安装机构，所述安装板表面的两侧均匀设置有扬声器，且安装板表面的底部设置有翻译按键。本实用新型通过设置有把手、放置板、放置腔、侧板、放置槽和滑槽，能够在教学设备的使用过程中，便于实现在教学过程中所用到的辅助工具可以进行放置和收纳，便于使用者随时取用和随时放置，使辅助工具在不使用的时候也可以达到有效的防护，以免发生丢失损毁的现象。
The utility model discloses a new type of teaching equipment with translation function, comprising a base, an adjustment mechanism, a display screen, an installation mechanism and an installation plate. An adjustment mechanism is arranged at the middle position of the top of the base, and an adjustment mechanism is installed at the top of the adjustment mechanism. The installation board is installed with a display screen at the middle position of the inner side of the installation board, the top of the inner side of the display screen is provided with an installation mechanism, the two sides of the surface of the installation board are evenly provided with speakers, and the bottom of the surface of the installation board is provided with a translation button . The utility model is provided with a handle, a placing plate, a placing cavity, a side plate, a placing groove and a chute, so that the auxiliary tools used in the teaching process can be placed and stored during the use of the teaching equipment. The user can access and place it at any time, so that the auxiliary tool can achieve effective protection when not in use, so as to avoid loss and damage.
Description
Technical Field
The utility model relates to the technical field of teaching equipment, in particular to novel teaching equipment with a translation function.
Background
Along with the deepening gradually of education and study, more and more novel teaching equipment is inrush to the education trade, and along with the development of society, the foreign language of study has been the course that the student is daily, but in the middle of the process of learning the foreign language, some words that can't meet, sentence, grammar, pronunciation etc. can inevitably appear, consequently can need to use a teaching equipment that has translation function, teaching equipment on the market is various now, can satisfy people's user demand basically, but still has certain problem:
1. the angle of the teaching view screen of the existing teaching equipment is inconvenient to adjust and store, so that the use flexibility of the teaching equipment is reduced;
2. the existing teaching equipment is inconvenient to place and store due to the fact that a plurality of auxiliary tools are needed in the teaching process;
3. the existing teaching equipment needs to be memorized and stored when the teaching equipment is translated, so that the memory card is inconvenient to disassemble and replace quickly.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide novel teaching equipment with a translation function, and solves the problems that the teaching equipment provided in the background technology is inconvenient to adjust and store due to the fact that the angle of a teaching view screen is inconvenient, and the use flexibility of the teaching equipment is reduced.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a novel teaching equipment with translation function, includes base, adjustment mechanism, display screen, installation mechanism and mounting panel, the intermediate position on base top is provided with adjustment mechanism, the mounting panel is installed on adjustment mechanism's top, and the inboard intermediate position of mounting panel installs the display screen, the inboard top of display screen is provided with installation mechanism, the both sides on mounting panel surface evenly are provided with the speaker, and the bottom on mounting panel surface is provided with the translation button, and one side of translation button is provided with the broadcast button, and one side of broadcast button is provided with the recording button, the top on mounting panel surface is provided with receiving mechanism.
As a preferred scheme of the present invention, the two ends of the top end of the base are both fixedly installed with supporting columns, and the supporting columns are in a symmetrical structure relative to the center line of the base.
As a preferable scheme of the utility model, the adjusting mechanism comprises a storage groove, a first connecting shaft, a jack, a connecting column, a second connecting shaft, a mounting hole and a rotating shaft, the storage groove is arranged inside the base, the jack is arranged inside the storage groove, the first connecting shaft is arranged inside the jack, the connecting column is movably connected to the top end of the first connecting shaft, one side of the rotating shaft is fixedly connected with the side wall of the display screen, the mounting hole is arranged on one side inside the rotating shaft, the second connecting shaft is arranged inside the mounting hole, and the second connecting shaft is movably connected to the top end of the connecting column.
As a preferred scheme of the utility model, the mounting mechanism comprises a memory, a connecting spring, a connecting plate, a clamping groove and a clamping block, the top end of the connecting plate is fixedly connected with the top end inside the display screen, the connecting spring is fixedly mounted on one side of the inner wall of the connecting plate, the clamping groove is fixedly mounted on one side of the inner wall of the connecting plate, which is far away from the connecting spring, the memory is detachably mounted inside the connecting plate, the clamping block is fixedly connected to one side of the outer wall of the memory, and a clamping connection structure is formed between the clamping block and the clamping groove.
As a preferable scheme of the utility model, the accommodating mechanism comprises a handle, a placing plate, a placing cavity, side plates, a placing groove and a sliding groove, the placing cavity is formed in the top end of the inner part of the mounting plate, the side plates are fixedly connected to two sides of the inner part of the placing cavity, the sliding groove is formed in the inner side of each side plate, and the placing plate is movably mounted in the sliding groove.
In a preferred embodiment of the present invention, the inner side of the placing plate is uniformly provided with placing slots, and one side of the placing plate is fixedly provided with a handle.
As a preferable scheme of the present invention, a sponge plate is fixedly installed on an inner side wall of the supporting column, and one side of the sponge plate is connected with an outer side wall of the mounting plate.
Compared with the prior art, the utility model has the beneficial effects that:
(1) by arranging the accommodating groove, the first connecting shaft, the jack, the connecting column, the second connecting shaft, the mounting hole and the rotating shaft, the angle of the mounting plate can be adjusted according to the actual teaching condition in the use process of the teaching equipment, so that the teaching can be better realized, and the use flexibility of the teaching equipment in the use process can be improved;
(2) by arranging the handle, the placing plate, the placing cavity, the side plate, the placing groove and the sliding groove, the auxiliary tool used in the teaching process can be placed and stored conveniently in the use process of the teaching equipment, a user can take and place the auxiliary tool at any time conveniently, and the auxiliary tool can be effectively protected when not used so as to avoid the phenomenon of loss and damage;
(3) through being provided with memory, coupling spring, connecting plate, draw-in groove and fixture block, can be in teaching equipment's use, teaching equipment carries out effectual memory storage when recording and translation to be convenient for realize quick installation and dismantlement, effectively take out the memory in the later stage, be convenient for change, improved teaching equipment's practicality.
Drawings

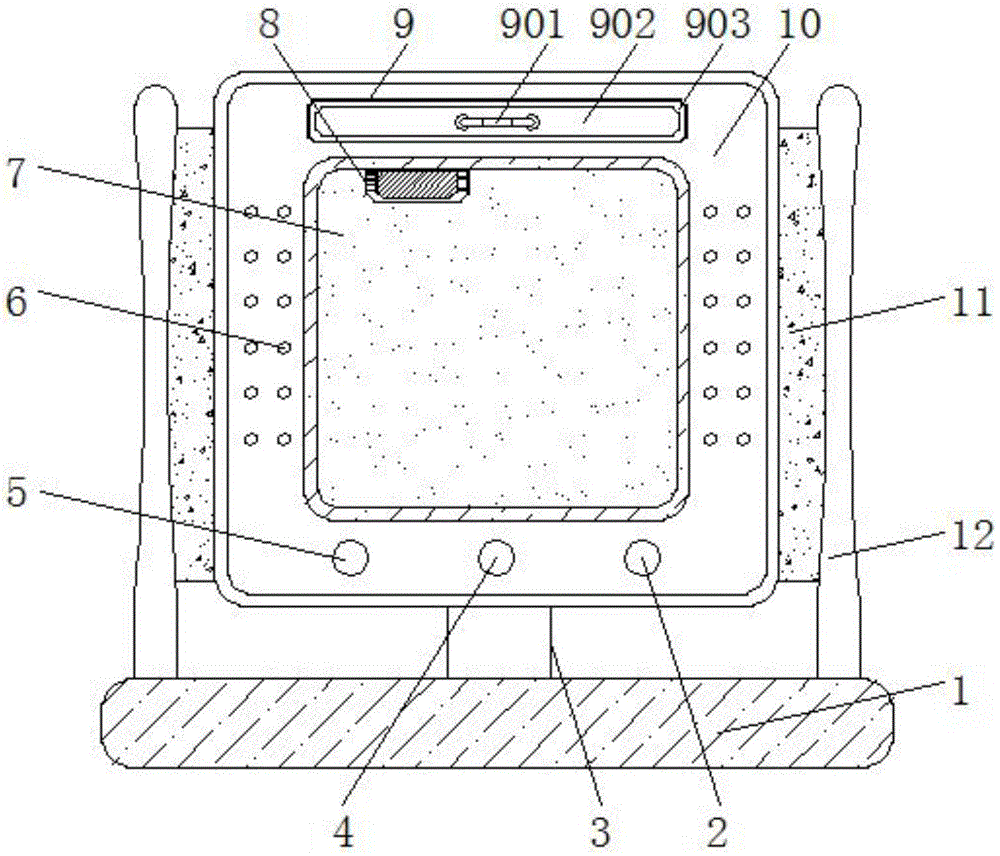

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic side sectional view of the display panel (7) according to the present invention;
FIG. 3 is a schematic view of the internal structure of the display screen (7) according to the present invention;
fig. 4 is a schematic diagram of the internal structure of the placing cavity (903) of the present invention.
In the figure: 1. a base; 2. translating the key; 3. an adjustment mechanism; 301. a receiving groove; 302. a first connecting shaft; 303. a jack; 304. connecting columns; 305. a second connecting shaft; 306. mounting holes; 307. a rotating shaft; 4. playing a key; 5. a recording key; 6. a speaker; 7. a display screen; 8. an installation mechanism; 801. a memory; 802. a connecting spring; 803. a connecting plate; 804. a card slot; 805. a clamping block; 9. a storage mechanism; 901. a handle; 902. placing the plate; 903. a placement chamber; 904. a side plate; 905. a placement groove; 906. a chute; 10. mounting a plate; 11. a sponge plate; 12. and (4) a support column.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, an embodiment of the present invention is shown: a novel teaching device with a translation function comprises a base 1, an adjusting mechanism 3, a display screen 7, a mounting mechanism 8 and a mounting plate 10, wherein the adjusting mechanism 3 is arranged at the middle position of the top end of the base 1, the adjusting mechanism 3 comprises a storage groove 301, a first connecting shaft 302, a jack 303, a connecting column 304, a second connecting shaft 305, a mounting hole 306 and a rotating shaft 307, the storage groove 301 is arranged in the base 1, the jack 303 is arranged in the storage groove 301, the first connecting shaft 302 is arranged in the jack 303, the connecting column 304 is movably connected to the top end of the first connecting shaft 302, one side of the rotating shaft 307 is fixedly connected with the side wall of the display screen 7, the mounting hole 306 is arranged on one side of the inside of the rotating shaft 307, the second connecting shaft 305 is arranged in the mounting hole 306, and the second connecting shaft 305 is movably connected to the top end of the connecting column 304, so as to conveniently realize the angle adjustment of the mounting plate 10, when the teaching equipment is not used, the mounting plate 10 can be folded and stored, so that the accommodating area of the mounting plate 10 is conveniently reduced, and the use flexibility of the teaching equipment is improved;
the top end of the adjusting mechanism 3 is provided with a mounting plate 10, a display screen 7 is mounted in the middle position of the inner side of the mounting plate 10, teaching contents can be displayed through the display screen 7, a mounting mechanism 8 is arranged at the top of the inner side of the display screen 7, the mounting mechanism 8 comprises a memory 801, a connecting spring 802, a connecting plate 803, a clamping groove 804 and a clamping block 805, the top end of the connecting plate 803 is fixedly connected with the top end of the inner part of the display screen 7, the connecting spring 802 is fixedly mounted on one side of the inner wall of the connecting plate 803, the clamping groove 804 is fixedly mounted on the side of the inner wall of the connecting plate 803 far away from the connecting spring 802, the memory 801 is detachably mounted in the connecting plate 803, the memory 801 can conveniently and effectively store user's recording and contents, the clamping block 805 is fixedly connected with one side of the outer wall of the memory 801, and a clamping connection structure is formed between the clamping block 805 and the clamping groove 804, so that the mounting and dismounting of the memory 801 can be conveniently and quickly realized, thereby replacing the memory 801;
the two sides of the surface of the mounting plate 10 are uniformly provided with speakers 6, the content of the device can be played by sound through the speakers 6, the bottom of the surface of the mounting plate 10 is provided with a translation key 2, the content to be translated can be played through the translation key 2, one side of the translation key 2 is provided with a play key 4, the teaching content can be played or paused through the adjusting mechanism 3, one side of the play key 4 is provided with a recording key 5, the words spoken by a user can be recorded through the recording key 5, the top of the surface of the mounting plate 10 is provided with an accommodating mechanism 9, the accommodating mechanism 9 comprises a handle 901, a placing plate 902, a placing cavity 903, a side plate 904, a placing groove 905 and a sliding groove 906, the placing cavity 903 is opened at the top end inside the mounting plate 10, the two sides inside the placing cavity 903 are fixedly connected with the side plate 904, and the inner side of the side plate 904 is provided with the sliding groove 906, a placing plate 902 is movably arranged in the sliding groove 906, placing grooves 905 are uniformly arranged on the inner side of the placing plate 902, and a handle 901 is fixedly arranged on one side of the placing plate 902, so that the placing and the storage of the teaching auxiliary tool are convenient to realize, the free taking and placing are convenient, and the teaching auxiliary tool is effectively protected when not used;
all fixed mounting at the both ends on base 1 top has support column 12, and the relative base 1's of support column 12 central line is symmetrical structure, and the inside wall fixed mounting of support column 12 has sponge board 11, and one side of sponge board 11 is connected with mounting panel 10's lateral wall, can carry out soft protection to the both sides of mounting panel 10 outer wall through sponge board 11, reduces the frictional property that mounting panel 10 and external world touched.
The working principle is as follows: during the use, at first according to the teaching condition of reality, through rotating the spliced pole 304, change the angle of spliced pole 304, under the fixed of second connecting axle 305, rotate pivot 307 again, can realize the change to mounting panel 10 angle, when teaching equipment does not use, the accessible rotates spliced pole 304 and accomodates the inside to accomodating groove 301, overturn pivot 307 backward again, keep after making the mounting panel 10 upset with base 1 horizontally position, be convenient for accomodate teaching equipment, thereby reduce the space of putting of teaching equipment.
Next, by installing the memory 801 inside the connecting plate 803, the latch 805 is inserted into the inside of the slot 804 by compressing the connecting spring 802, and the memory 801 is installed under the elastic force restoring action of the connecting spring 802, and when the memory 801 needs to be detached, the latch 805 is detached from the inside of the slot 804 by compressing the connecting spring 802, and the memory 801 is detached.
Finally, when the teaching aid is needed, the handle 901 can be pulled outwards, so that the placing board 902 can slide outwards in the placing cavity 903, the teaching aid placed on the placing groove 905 can be taken out, after the use is completed, the teaching aid can be placed back on the placing groove 905, the handle 901 is pushed inwards, the placing board 902 can slide inwards in the placing cavity 903, and the storage and protection of the teaching aid can be completed.
