The utility model discloses a high-efficiency fixing and clamping tool for milling circular workpieces, which comprises a clamp body, a V-shaped block, a locking bolt with a nut gasket, a spring, a pressing plate and a pair of blocks, wherein the two ends of the clamp body in the length direction are respectively provided with the pair of blocks which are symmetrical to each other, and a supporting block is arranged at the center of the clamp body.
Description
Technical Field
The utility model relates to the technical field of clamp tools, in particular to a high-efficiency fixing and clamping tool for milling a circular workpiece.
Background
Anchor clamps mainly add man-hour for the work piece provides convenience, the processing of the work of being convenient for, according to the difference of work piece shape, the design of anchor clamps is also different, wherein, circular parts uses at present generally, and most circular parts need carry out surface milling or drilling processing man-hour, however, present anchor clamps of pressing from both sides circular parts are less, because circular parts exist not fixed and easy slippage scheduling problem well, and current anchor clamps are mostly once only can the clamping a part, can not a plurality of circular parts clamping simultaneously process, often production efficiency is low like this, the processing cost of enterprise has been increased.
The utility model aims to provide a high-efficiency fixing and clamping tool for milling a circular workpiece to solve the technical problem.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the technical problems that the existing clamps for clamping circular workpieces are few, the circular workpieces are not easy to fix and slip, and the like, and most of the existing clamps can only clamp one part at a time and cannot clamp and process a plurality of circular parts at the same time, so that the production efficiency is low, and the processing cost of enterprises is increased.
In order to realize the purpose of the utility model, the utility model adopts the technical scheme that: the clamp comprises a clamp body, V-shaped blocks, a locking bolt with a nut gasket, a spring, a pressing plate and a pair of blocks, wherein the two ends of the clamp body in the length direction are respectively provided with one pair of blocks which are symmetrical to each other, the center of the clamp body is provided with the supporting block, the center of the supporting block is vertically provided with the locking bolt with the nut gasket, the upper part of the locking bolt with the nut gasket is provided with the pressing plate, the spring is sleeved on the locking bolt with the nut gasket, the clamp body is provided with four V-shaped blocks, two of the V-shaped blocks are located on the left side of the locking bolt with the nut gasket, the other two V-shaped blocks are located on the right side of the locking bolt with the nut gasket, and the four V-shaped blocks are located on the same straight line.
Further, the strength grade of the locking bolt with the nut gasket is 8.8.
Furthermore, the pressing plate is of an inverted U-shaped structure.
Compared with the prior art, the utility model has the advantages that: in the actual use process, two circular workpieces are respectively fixedly placed on V-shaped blocks on two sides of a locking bolt with a nut gasket, one end of each circular workpiece is attached to the locking bolt with the nut gasket and positioned on a supporting block, the positioning of the two circular workpieces is completed, then a pressing plate on the locking bolt with the nut gasket is rotated to the positions above the two circles and is attached to the circular workpieces, the locking bolt with the nut gasket is used for locking and fixing, and the positioning and clamping of the two circular workpieces are completed. The clamping device has the advantages that the design is simple, the operation is convenient, the efficiency is high, the V-shaped block, the pressing plate and the supporting block are used for simultaneously limiting, clamping and fixing two circular workpieces, compared with the traditional mode that one end of a shaft part is clamped and positioned by tools such as a clamp and the like, the clamping device is more stable, the surface quality of the shaft part cannot be damaged, the machining quality is better, the problems that the circular workpieces cannot easily slip after being fixed and the like are solved, two circular parts can be clamped and machined at the same time, the production efficiency is improved, and the machining cost of an enterprise is reduced.
Drawings

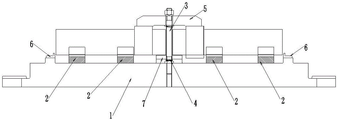

FIG. 1 is a schematic structural view of a fixing and clamping tool for milling a high-efficiency round workpiece, which is disclosed by the utility model;
in the figure: 1. a clamp body; 2. a V-shaped block; 3. a locking bolt with a nut washer; 4. a spring; 5. Pressing a plate; 6. a tool setting block; 7. and (7) a supporting block.
Detailed Description
In view of the defects in the prior art, the technical scheme of the utility model is provided through long-term research and massive practice. The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
Fig. 1 is a schematic structural view of a fixing and clamping tool for milling a high-efficiency circular workpiece, which is provided in an embodiment of the utility model. As shown in fig. 1, the high-efficiency fixing and clamping tool for milling circular workpieces provided in the embodiment of the utility model comprises: the clamp comprises a clamp body 1, V-shaped blocks 2, a locking bolt 3 with a nut gasket, a spring 4, a pressing plate 5 and a pair of blocks 6, wherein the pair of blocks 6 are respectively arranged at two ends of the clamp body 1 in the length direction and are symmetrical to each other, a supporting block 7 is arranged at the center of the clamp body 1, the locking bolt 3 with the nut gasket is vertically arranged at the center of the supporting block 7, the pressing plate 5 is arranged on the upper portion of the locking bolt 3 with the nut gasket, the spring 4 is sleeved on the locking bolt 3 with the nut gasket, four V-shaped blocks 2 are arranged on the clamp body 1, two V-shaped blocks 2 are located on the left side of the locking bolt 3 with the nut gasket, the other two V-shaped blocks 2 are located on the right side of the locking bolt 3 with the nut gasket, and the four V-shaped blocks 2 are located on the same straight line.
According to the high-efficiency fixing and clamping tool for milling the circular workpiece, which is provided by the embodiment of the utility model, the strength grade of the locking bolt 3 with the nut gasket is 8.8.
According to the efficient fixing and clamping tool for milling the circular workpiece, which is provided by the embodiment of the utility model, the pressing plate 5 is of an inverted U-shaped structure.
The beneficial effects of the utility model include: in the actual use process, two circular workpieces are respectively fixedly placed on V-shaped blocks on two sides of a locking bolt with a nut gasket, one end of each circular workpiece is attached to the locking bolt with the nut gasket and positioned on a supporting block, the positioning of the two circular workpieces is completed, then a pressing plate on the locking bolt with the nut gasket is rotated to the positions above the two circles and is attached to the circular workpieces, the locking bolt with the nut gasket is used for locking and fixing, and the positioning and clamping of the two circular workpieces are completed. The clamping device has the advantages that the design is simple, the operation is convenient, the efficiency is high, the V-shaped block, the pressing plate and the supporting block are used for simultaneously limiting, clamping and fixing two circular workpieces, compared with the traditional mode that one end of a shaft part is clamped and positioned by tools such as a clamp and the like, the clamping device is more stable, the surface quality of the shaft part cannot be damaged, the machining quality is better, the problems that the circular workpieces cannot easily slip after being fixed and the like are solved, two circular parts can be clamped and machined at the same time, the production efficiency is improved, and the machining cost of an enterprise is reduced.
It should be understood that the above embodiments are only illustrative of the technical concepts and features of the present invention, and the present invention is not limited to the embodiments, but the present invention can be implemented by those skilled in the art. All equivalent changes and modifications made according to the spirit of the present invention should be covered within the protection scope of the present invention.
Claims (3)
1. The utility model provides a high-efficient circular workpiece mills processing fixed clamping frock which characterized in that: the clamp comprises a clamp body, V-shaped blocks, a locking bolt with a nut gasket, a spring, a pressing plate and a pair of blocks, wherein the two ends of the clamp body in the length direction are respectively provided with one pair of blocks which are symmetrical to each other, the center of the clamp body is provided with the supporting block, the center of the supporting block is vertically provided with the locking bolt with the nut gasket, the upper part of the locking bolt with the nut gasket is provided with the pressing plate, the spring is sleeved on the locking bolt with the nut gasket, the clamp body is provided with four V-shaped blocks, two of the V-shaped blocks are located on the left side of the locking bolt with the nut gasket, the other two V-shaped blocks are located on the right side of the locking bolt with the nut gasket, and the four V-shaped blocks are located on the same straight line.
2. The efficient fixing and clamping tool for milling the circular workpiece according to claim 1, which is characterized in that: the strength grade of the locking bolt with the nut gasket is 8.8 grade.
3. The efficient fixing and clamping tool for milling the circular workpiece according to claim 1, which is characterized in that: the pressing plate is of an inverted U-shaped structure.
