CN216131403U

CN216131403U - Convenient to use and automatic control formula's tap

Info

Publication number: CN216131403U
Application number: CN202122837863.2U
Authority: CN
Inventors: 鲍敏芬; 江辉
Original assignee: Zhejiang Huanri Sanitation Co ltd
Current assignee: Zhejiang Huanri Sanitation Co ltd
Priority date: 2021-11-19
Filing date: 2021-11-19
Publication date: 2022-03-25
Anticipated expiration: 2031-11-19

Abstract

The utility model discloses an easy-to-use and automatically controlled water faucet, which comprises a shell, an equipment slot is opened in the inside of the shell near the center, a positioning slot is opened at the center of both sides of the shell, and two A waterproof hole is opened between the positioning groove and the equipment groove, a confluence groove is opened between the two positioning grooves, a motor groove is opened at the center of the top surface of the equipment groove, and a motor is fixed inside the motor groove. , the output end of the motor is fixed with a number one bevel gear, the center of the bottom surface of the equipment slot is fixed with a PLC controller, the front side of the casing is fixed with an infrared sensor near the center, and the two waterproof holes Inside are fixed with waterproof bearings. The utility model discloses an easy-to-use and automatically-controlled water faucet. The easy-to-use and automatically-controlled water faucet is easy to use, and the water flowing out can maintain a constant temperature state at all times.

Description

Convenient to use and automatic control formula's tap

Technical Field

The utility model relates to the technical field of faucets, in particular to an automatic control faucet convenient to use.

Background

The water tap is a popular name of a water valve, is used for controlling the size of water flow to be switched on and off, and has the effect of saving water. The updating speed of the water faucet is very fast, the water faucet is developed from an old-fashioned cast iron process to an electroplated knob type water faucet and is also developed to a stainless steel single-temperature single-control water faucet, a stainless steel double-temperature double-control water faucet and a kitchen semi-automatic water faucet, and at present, more and more consumers purchase the water faucet and all consider the water faucet comprehensively from the aspects of material, function, shape and the like.

The prior patent (CN 206361215U) provides a novel water filtering faucet, which comprises a faucet body, a filter element assembly and a water outlet pipe, wherein the faucet body is provided with a water purifying flow channel controlled by a valve core of a water purifying switch valve and a cold and hot water outlet flow channel controlled by a valve core of a cold and hot switch valve, the water outlet pipe is connected with the faucet body and is arranged on one side of the faucet body, the water outlet pipe is of a pipe-in-pipe structure, an inner pipe is a water purifying pipe, a cold and hot water outlet channel is formed between an outer pipe and an inner pipe of the water outlet pipe, the filter element assembly is arranged in the upper part of the faucet body, a filter element water inlet of the filter element assembly is communicated with the water purifying flow channel on the faucet body, a filter element water outlet of the filter element assembly is communicated with a water purifying pipe inlet, an upper cover which can be disassembled and assembled is arranged above the filter element assembly of the faucet body, an opening part for assisting in opening or locking the upper cover is arranged on the upper cover, and the novel water filtering faucet solves the problems that the conventional water filtering faucet is inconvenient in replacing the filter element, Waste time and labor and the like. Although the faucet can be filtered and easily replaced, it is difficult to control the temperature when hot and cold water flows out, and the operation is very inconvenient.

Disclosure of Invention

The utility model aims to solve the defects in the prior art and provides an automatic control type water faucet convenient to use.

In order to achieve the purpose, the utility model adopts the following technical scheme: a convenient-to-use and automatic-control type water faucet comprises a shell, wherein an equipment groove is formed in the shell close to the center, positioning grooves are formed in the centers of two sides of the shell, waterproof holes are formed between the two positioning grooves and the equipment groove, a flow combining groove is formed between the two positioning grooves, a motor groove is formed in the center of the top surface of the equipment groove, a motor is fixedly arranged in the motor groove, a first bevel gear is fixedly arranged at the output end of the motor, a PLC (programmable logic controller) is fixedly arranged at the center of the bottom surface of the equipment groove, and an infrared inductor is fixedly arranged on the front side of the shell close to the center;

two the inside in waterproof hole is all fixed and is provided with waterproof bearing, two the fixed dwang, two of all fixing of inside of waterproof bearing the fixed cover that is equipped with of dwang one end that the dwang is relative is all fixed and is provided with No. two bevel gear, two the one end that the dwang is opposite is all fixed and is provided with breach rubber buffer, two the equal fixed cover of stopper body that the breach rubber buffer is close to waterproof bearing one side is equipped with the sealing ring, two the inside of constant head tank is all fixed and is provided with the inlet tube, two the seal groove has all been seted up on the inner wall that the inlet tube is close to waterproof bearing one side, two inlet tube bottom surface center department has all seted up the through-hole.

As a further description of the above technical solution:

the PLC is respectively and electrically connected with the motor and the infrared inductor.

As a further description of the above technical solution:

the shell is made of stainless steel materials.

As a further description of the above technical solution:

the two water inlet pipes have the same structure.

As a further description of the above technical solution:

both sealing rings are made of rubber material.

As a further description of the above technical solution:

the first bevel gear is meshed with the second bevel gear respectively.

As a further description of the above technical solution:

the ring body of two sealing rings all is located the inside of seal groove.

As a further description of the above technical solution:

and a water outlet pipe is fixedly arranged at the water outlet at the front side of the shell.

The utility model has the following beneficial effects:

the utility model provides a convenient-to-use and automatic-control type water faucet, which is characterized in that when the faucet is used, because two gap rubber plugs keep synchronous rotation, the water flow of two water inlet pipes keeps 1: 1 for the water that the outlet pipe flows no matter how much temperature of flow can not change, and then makes the device when using, need not the regulation temperature, can use, and it is very convenient to use.

When the automatic control type water faucet is used, the sealing ring is arranged in the sealing groove and is fixed in the waterproof hole in cooperation with the waterproof bearing, so that the automatic control type water faucet has high waterproof capacity, and is durable and stable.

When the automatic control type faucet is used, the notch of the notch rubber plug rotates to open water flow when corresponding to the through hole, and otherwise, the water flow is closed, so that the automatic control type faucet is simple to operate and convenient to use.

The automatic control type water faucet convenient to use is convenient to use, when the automatic control type water faucet is used, the opening and closing of the water faucet are achieved by starting the motor, and compared with the existing structure, the automatic control type water faucet is simpler in structure, convenient to maintain and convenient for mass production.

Drawings

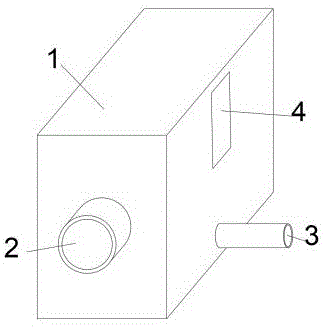

FIG. 1 is a schematic axial view of a user-friendly, automatically controlled faucet according to the present invention;

FIG. 2 is a schematic front sectional view of an automatic control type faucet with convenient use according to the present invention;

FIG. 3 is a front cross-sectional view of a housing of an automatic control type faucet with convenient use according to the present invention;

fig. 4 is a schematic side view of a front cross-sectional axis of a water inlet pipe of an automatic control type faucet with convenient use according to the present invention.

Illustration of the drawings:

1. a housing; 2. a water inlet pipe; 3. a water outlet pipe; 4. an infrared sensor; 5. a waterproof hole; 6. a motor slot; 7. an equipment groove; 8. a flow combining groove; 9. positioning a groove; 10. an electric motor; 11. a first bevel gear; 12. a second bevel gear; 13. a PLC controller; 14. a seal ring; 15. a notched rubber plug; 16. a through hole; 17. a sealing groove; 18. a waterproof bearing; 19. rotating the rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1-4, one embodiment of the present invention is provided: the utility model provides a convenient to use and automatic control's tap, which comprises a

housin

1, 1 inside department of being close to the center of casing has seted up

equipment groove

7, 1 both sides center department of casing has all seted up constant head tank 9, waterproof hole 5 has all been seted up between two constant head tanks 9 and the equipment groove 7, it merges flow groove 8 to have seted up between two constant head tanks 9, it is used for cold water and hot water to merge flow groove 8, equipment groove 7 top surface center department has seted up motor groove 6, the fixed motor 10 that is provided with in inside of motor groove 6, the fixed bevel gear 11 that is provided with of output of motor 10, the fixed PLC controller 13 that is provided with in 7 bottom surface centers of equipment groove, 1 front side of casing is close to the fixed infrared inductor 4 that is provided with of center department, infrared inductor 4 is used for detecting whether the people exists, be convenient for automatic opening tap.

Two waterproof holes 5's inside is all fixed and is provided with waterproof bearing 18, two waterproof bearing 18's inside is all fixed the cover and is equipped with dwang 19, two dwang 19 relative one end is all fixed and is provided with No. two bevel gear 12, two dwang 19 opposite one end is all fixed and is provided with breach rubber buffer 15, two breach rubber buffer 15 are close to the equal fixed cover of stopper body on one side of waterproof bearing 18 and are equipped with sealing ring 14, two constant head tank 9's inside is all fixed and is provided with

inlet tube

2, 2 one of two inlet tubes are connected hot water, one is connected cold water, two inlet tubes 2 have all been seted up the seal groove 17 on being close to the inner wall on one side of waterproof bearing 18, waterproof bearing 18 is used for fixed dwang 19, play waterproof effect simultaneously, through-hole 16 has all been seted up to 2 bottom surface center departments of two inlet tubes.

PLC controller 13 respectively with

motor

10 and 4 electric connection of infrared inductor, casing 1 is made by stainless steel material, stainless steel material texture is hard, the corrosion protection ability is strong, make the device more durable, two inlet tube 2 structures are the same, two sealing rings 14 all are made by rubber materials, rubber materials leakproofness is stronger, a bevel gear 11 is connected with two bevel gear 12 meshing respectively, the ring body of two sealing rings 14 all is located the inside of seal groove 17, the fixed outlet pipe 3 that sets up in casing 1 front side outlet department.

The working principle is as follows: when using, can inform PLC controller 13 when infrared inductor 4 senses someone, PLC controller 13 can control starter motor 10, motor 10's output rotates and drives bevel gear 11 and rotate, bevel gear 11 rotates and drives bevel gear 12 and rotate No. two, bevel gear 12 rotates and drives dwang 19 and rotate No. two, dwang 19 rotates and drives breach rubber buffer 15 and rotates, the breach when breach rubber buffer 15 rotates with through-hole 16 when same one side, 2 interior water of inlet tube can pass through-hole 16 entering and close in the chute 8, the rethread closes the chute 8 and flows by outlet pipe 3, can the water that flows.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the utility model.

Claims

1. An easy-to-use and automatically controlled faucet, comprising a casing (1), characterized in that: an equipment slot (7) is opened inside the casing (1) near the center, and the casing (1) Positioning grooves (9) are opened at the center of both sides, waterproof holes (5) are opened between the two positioning grooves (9) and the equipment groove (7), and between the two positioning grooves (9) A confluence slot (8) is opened, a motor slot (6) is opened at the center of the top surface of the equipment slot (7), and a motor (10) is fixedly arranged inside the motor slot (6), and the motor (10) A No. 1 bevel gear (11) is fixedly arranged at the output end of the casing (11), a PLC controller (13) is fixedly arranged at the center of the bottom surface of the equipment slot (7), and an infrared sensor is fixedly arranged at the front side of the casing (1) near the center. device(4);

The insides of the two waterproof holes (5) are fixedly provided with waterproof bearings (18), and the insides of the two waterproof bearings (18) are fixedly sleeved with rotating rods (19), and the two rotating rods ( 19) No. 2 bevel gears (12) are fixed on the opposite ends, and notched rubber plugs (15) are fixed on the opposite ends of the two rotating rods (19). The two notched rubber plugs (15) The plug body on the side close to the waterproof bearing (18) is fixedly sleeved with a sealing ring (14), the interior of the two positioning grooves (9) is fixedly provided with a water inlet pipe (2), and the two water inlet pipes ( 2) Sealing grooves (17) are provided on the inner wall of the side close to the waterproof bearing (18), and through holes (16) are provided at the center of the bottom surface of the two water inlet pipes (2).

2 . The easy-to-use and automatically controlled faucet according to claim 1 , wherein the PLC controller ( 13 ) is electrically connected to the motor ( 10 ) and the infrared sensor ( 4 ) respectively. 3 .

3. The easy-to-use and automatically controlled faucet according to claim 1, wherein the housing (1) is made of stainless steel.

4. The easy-to-use and automatically controlled faucet according to claim 1, characterized in that: the two water inlet pipes (2) have the same structure.

5. The easy-to-use and automatically-controlled faucet according to claim 1, wherein the two sealing rings (14) are both made of rubber material.

6 . The easy-to-use and automatically controlled faucet according to claim 1 , wherein the No. 1 bevel gear ( 11 ) is meshed with two No. 2 bevel gears ( 12 ) respectively. 7 .

7. The easy-to-use and automatically controlled faucet according to claim 1, characterized in that: both the ring bodies of the two sealing rings (14) are located inside the sealing groove (17).

8 . The easy-to-use and automatically controlled faucet according to claim 1 , wherein a water outlet pipe ( 3 ) is fixedly arranged at the water outlet on the front side of the casing ( 1 ). 9 .
