CN216126943U

CN216126943U - Heating floor polishing process structure

Info

Publication number: CN216126943U
Application number: CN202122910082.1U
Authority: CN
Inventors: 王昕�; 张仁寅
Original assignee: Zhejiang Qingenthalpy Technology Co ltd
Current assignee: Zhejiang Qingenthalpy Technology Co ltd; Zhongsheng Technology Xuzhou Co Ltd
Priority date: 2021-11-24
Filing date: 2021-11-24
Publication date: 2022-03-25
Anticipated expiration: 2031-11-24

Abstract

The utility model discloses a heating floor polishing process structure, which comprises a worktable, a plurality of support legs are fixedly connected to the bottom of the worktable, anti-skid blocks are fixedly connected to the bottom of the support legs, a connection cavity is fixedly connected to the bottom of the worktable, and the surface of the worktable is fixedly connected with a connection cavity. A support frame is fixedly connected with the support frame, a movable block is slidably arranged on the support frame, a drive motor is fixedly connected at the bottom of the movable block, and a connection cover is fixedly installed at the bottom of the drive motor. Uneven treats cause a certain angular offset, which can deform the surface of the extruding air bag, pull the fixed spring to cause displacement, cause the drive shaft to drive the compression shaft to displace, and cause the surface of the inflation air bag and the inner wall of the movable groove to squeeze each other. , which can limit the deformation of the surface of the shaft, so as to squeeze the surface of the grinding rod, and grind the surface of the wooden board from multiple angles, further improving the grinding efficiency.

Description

Heating floor polishing process structure

Technical Field

The utility model relates to the technical field of polishing equipment, in particular to a polishing processing technology structure of a heating floor.

Background

The wood board is a wood board made of complete wood, and can be used for manufacturing various furniture, wherein the wood board is a square wood board used for manufacturing a floor.

Present plank panel need polish and be unified specification size, so that follow-up processing, but all differences such as the unsmooth condition of texture on timber surface, lead to the volume of polishing at the manual in-process of polishing of being difficult to control, the size thickness that leads to panel etc. all can produce certain deviation, present mode of polishing is polished for the rigidity, be not convenient for remove, so, the shortcoming that has the power of polishing uncontrollable, and the chip removal is more difficult, need often clear up the mill of polishing and maintain, for this we propose a floor of generating heat and polish processing technology structure and be used for solving above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a polishing process structure of a heating floor, which aims to solve the problems in the background technology.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a floor that generates heat processing technology structure of polishing, includes the workstation, a plurality of supporting legs of workstation bottom fixedly connected with, supporting leg bottom fixedly connected with non slipping spur, workstation bottom fixedly connected with connects the chamber, workstation fixedly connected with support frame on the surface, it sets up the movable block to slide on the support frame, movable block bottom fixedly connected with driving motor, driving motor bottom fixed mounting has the connecting cover, the inside mill that is equipped with of connecting cover, mill and driving motor output fixed connection place the panel that will polish on the workstation, rotate the adjustable ring and can carry out the centre gripping to timber, along with driving motor's effect, can make the mill that polishes appear rotating, polish to the timber surface.

Preferably, the polishing disc is fixedly connected with an extrusion ring on the surface, a cavity is formed in the extrusion ring, the surface of the extrusion ring is abutted to the inner wall of the connecting cover, the polishing disc is fixedly connected with an elastic plate on the surface, the top end of the elastic plate is fixedly connected with a connecting shaft, the connecting shaft is fixedly connected with the output end of the driving motor, the cavity is formed in the polishing disc, the cleaning degree of the polishing disc can be adjusted through the elastic plate, and the polishing effect of multiple angles can be achieved.

Preferably, a plurality of spacing axles of the fixedly connected with of mill bottom, spacing axle is the elasticity material, a plurality of grinding pin of fixedly connected with between spacing axle, grinding pin is the arc for memory metal material and grinding pin, the activity groove has been seted up to spacing axle inside, the inside slip of activity inslot is equipped with the transmission shaft, has certain clearance between grinding pin and the piece of polishing, the chip removal of can being convenient for.

Preferably, the inside fixedly connected with extrusion gasbag of the mill, extrusion gasbag top and elastic plate fixed connection, extrusion gasbag fixedly connected with rubber ball, rubber ball fixed connection is in the mill bottom, the extrusion gasbag blocks on the surface and is equipped with the go-between, the go-between is surperficial a plurality of fixed springs of fixedly connected with of go-between, and fixed spring one end and transmission shaft fixed connection, can stimulate the drive shaft through the extrusion gasbag and appear the motion, can further strengthen subsequent effect of polishing.

Preferably, the transmission shaft is fixedly connected with compression axle on the surface, compression axle one end fixed connection is inside the movable groove, a plurality of expansion air bags of fixedly connected with on the surface of the compression axle, expansion air bag surface offsets with the movable inslot wall, and expansion air bag deformation can make the deformation appear on spacing axle surface, can make the pole of polishing support on the timber is surperficial, can promote the efficiency of polishing.

Preferably, the connecting cavity rotates inside and is equipped with the hob, and hob one end fixedly connected with adjustable ring, and the movable sleeve is equipped with the limiting plate on the hob, the limiting plate activity sets up on the workstation is on the surface, fixedly connected with rubber layer on the limiting plate inner wall, the rubber layer can play the guard action, can play the effect of self-adaptation, and unevenness's the condition appears in the timber lateral wall when avoiding the centre gripping, influences the roughness after polishing.

Compared with the prior art, the utility model has the beneficial effects that:

1. through the action of the elastic plate, the polishing piece can deviate at a certain angle when meeting uneven customers, the surface of the extrusion air bag can deform, the fixed spring can be pulled to displace, the transmission shaft can drive the compression shaft to displace, the surface of the expansion air bag and the inner wall of the movable groove can be mutually extruded, the surface of the limiting shaft can deform, the surface of the polishing rod can be extruded, the surfaces of boards with multiple angles can be polished, and the polishing efficiency is further improved;

2. the wood clamping device has the advantages that the rubber layer on the surface of the limiting plate can play a role in protection and self-adaption, and the phenomenon that the side wall of the wood is uneven during clamping to influence the flatness after polishing is avoided;

3. according to the utility model, when the grinding rod deforms, the gap between the grinding rod and the bottom of the grinding disc can be enlarged, sawdust generated during grinding can be rapidly discharged, and the influence of sawdust on the surface of the grinding rod on the subsequent grinding effect can be avoided.

Drawings

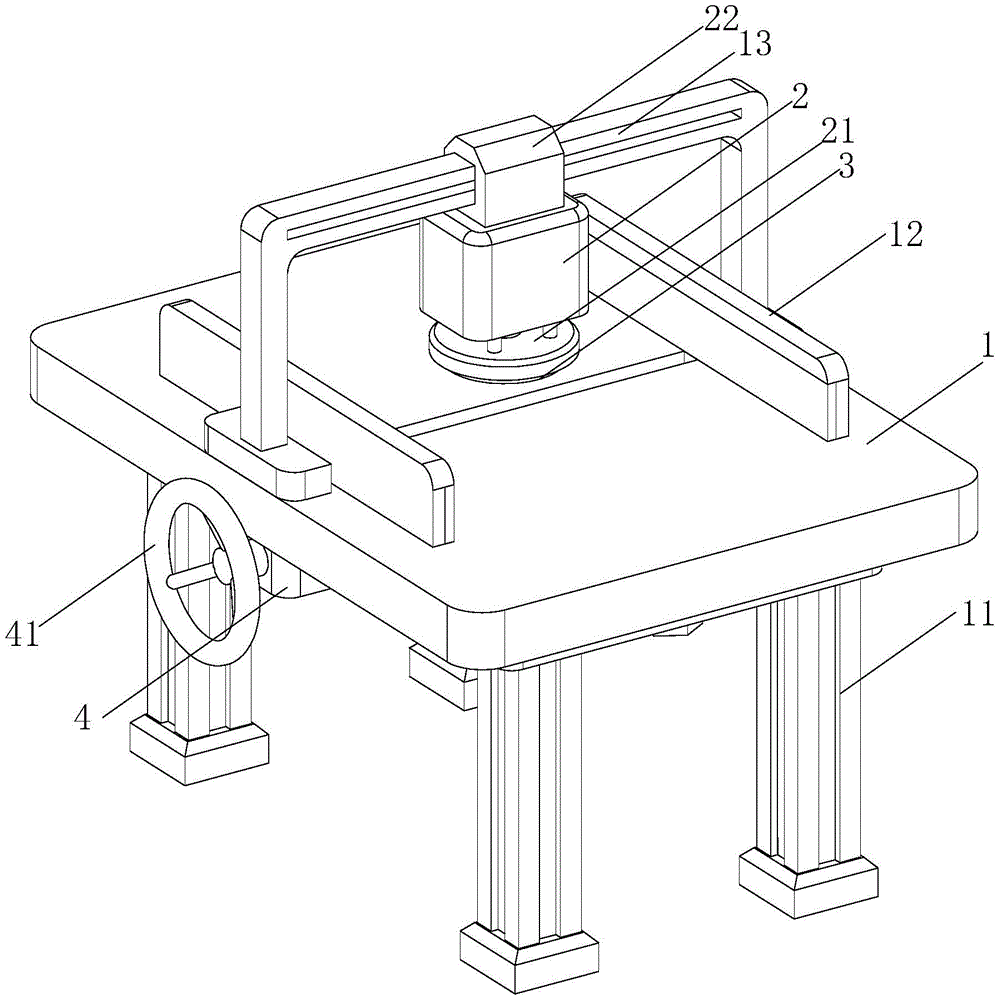

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the structure of the polishing disc of the present invention;

FIG. 3 is a bottom view of the polishing plate of the present invention;

FIG. 4 is a schematic view of the internal structure of the polishing disc of the present invention;

FIG. 5 is a partial structural view of the connecting shaft of the present invention;

in the figure: 1. a work table; 2. a drive motor; 3. grinding disc; 4. a connecting cavity; 5. a drive shaft; 11. supporting legs; 12. a limiting plate; 13. a support frame; 21. a connecting cover; 22. a movable block; 31. an extrusion ring; 32. an elastic plate; 33. a connecting shaft; 34. a rubber ball; 35. a limiting shaft; 36. grinding the rod; 37. a movable groove; 38. extruding the air bag; 381. a connecting ring; 41. an adjusting ring; 51. compressing the shaft; 52. the balloon is inflated.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides a technical solution: the utility model provides a floor that generates heat processing technology structure of polishing, comprises a workbench 1, a plurality of supporting legs of 1 bottom fixedly connected with 11 of workstation, supporting leg 11 bottom fixedly connected with non slipping spur, 1 bottom fixedly connected with of workstation connects chamber 4, 1 fixed surface of workstation is connected with support frame 13, it sets up movable block 22 to slide on the support frame 13, movable block 22 bottom fixedly connected with driving motor 2, 2 bottom fixed mounting of driving motor has connecting cover 21, connecting cover 21 is inside to be equipped with the mill 3, mill 3 and 2 output fixed connection of driving motor, place the panel that will polish on workstation 1, it can carry out the centre gripping to timber to rotate adjustable ring 41, along with driving motor's effect, can make mill 3 appear rotating, polish the surface of timber.

Make 3 fixed connection of mill 3 on the surface have extrusion ring 31, the inside cavity that is equipped with of extrusion ring 31, extrusion ring 31 surface offsets with connecting cover 21 inner wall, 3 fixed connection elastic plates 32 on the surface of mill, elastic plates 32 top fixedly connected with connecting axle 33, connecting axle 33 and 2 output fixed connection of driving motor, 3 inside cavities that are equipped with of mill, the elastic plates 32 can be according to the automatic adjustment of making of the unsmooth condition on timber surface, has good self-adaptation function.

3 bottom fixedly connected with of polishing dish a plurality of spacing axles 35, spacing axle 35 is the elasticity material, a plurality of grinding rod 36 of fixedly connected with between spacing axle 35, grinding rod 36 is the arc for memory metal material and grinding rod 36, spacing axle 35 is inside has seted up movable groove 37, the inside slip of movable groove 37 is equipped with transmission shaft 5, under the effect of elastic plate 32, can make polishing dish 3 meet unsmooth visitor's messenger and appear certain angular deviation, can make extrusion gasbag 38 deformation appear on the surface, can stimulate fixed spring and appear the displacement.

The inside fixedly connected with extrusion gasbag 38 of the 3 interior of the mill dish, 38 tops of extrusion gasbag and elastic plate 32 fixed connection, 38 fixedly connected with rubber ball 34 of extrusion gasbag, 34 fixed connection of rubber ball is in the 3 bottoms of the mill dish, 38 blocks on the surface of extrusion gasbag and is equipped with go-between 381, go-between 381 is a plurality of fixation spring of fixedly connected with on the surface, and fixation spring one end and 5 fixed connection of transmission shaft, transmission shaft 5 drives compression shaft 51 and appears the displacement, can make mutual extrusion between 52 surfaces of inflation gasbag and the 37 inner walls of movable groove, can the deformation appear on spacing axle 35 surface.

Transmission shaft 5 fixedly connected with compression axle 51 on the surface, compression axle 51 one end fixed connection is inside movable groove 37, and compression axle 51 is a plurality of inflation gasbags 52 of fixedly connected with on the surface, and inflation gasbag 52 surface offsets with the 37 inner walls of movable groove, and deformation appears in spacing axle 35, can extrude 36 surfaces of grinding rod, can polish from a plurality of angle degree plank surfaces, further promotes the efficiency of polishing.

Connect 4 inside rotations in chamber and be equipped with the hob, and hob one end fixedly connected with adjustable ring 41, and the movable sleeve is equipped with limiting plate 12 on the hob, and the activity of limiting plate 12 sets up on the workstation 1 is on the surface, fixedly connected with rubber layer on the limiting plate 12 inner wall, and the rubber layer on limiting plate 12 surface can play the guard action, can play the effect of self-adaptation, and unevenness's the condition appears in the timber lateral wall when avoiding the centre gripping, influences the roughness after polishing.

The working principle is as follows: firstly, a board to be polished is placed on the workbench 1, the wood can be clamped by rotating the adjusting ring 41, the rubber layer on the surface of the limiting plate 12 can play a role of protection and self-adaption, the phenomenon that the side wall of the wood is uneven during clamping and the flatness after polishing is influenced is avoided, the polishing disc 3 can rotate along with the action of the driving motor and polish the surface of the wood, the polishing disc 3 can make certain angular deviation when encountering uneven passengers under the action of the elastic plate 32 in the polishing process, the surface of the extrusion air bag 38 can be deformed, the fixed spring can be pulled to be displaced, the transmission shaft 5 can drive the compression shaft 51 to be displaced, the surface of the expansion air bag 52 and the inner wall of the movable groove 37 can be mutually extruded, the surface of the limiting shaft 35 can be deformed, and the surface of the polishing rod 36 can be extruded, can follow a plurality of angle degree plank surfaces and polish, further promote the efficiency of polishing, and when deformation appears along with the pole 36 of polishing, can make the pole 36 of polishing and polish 3 bottoms between the clearance grow, can discharge the saw-dust that produces when polishing fast, can avoid having the saw-dust to adhere to the pole 36 of polishing on the surface, influence subsequent effect of polishing.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A heating floor polishing process structure, comprising a workbench (1), characterized in that: the bottom of the workbench (1) is fixedly connected with a plurality of support legs (11), and the bottom of the support legs (11) is fixed The anti-skid block is connected, the bottom of the worktable (1) is fixedly connected with a connection cavity (4), the surface of the worktable (1) is fixedly connected with a support frame (13), and the support frame (13) is slidably arranged on the A movable block (22), a drive motor (2) is fixedly connected to the bottom of the movable block (22), a connection cover (21) is fixedly installed at the bottom of the drive motor (2), and the interior of the connection cover (21) is provided with A grinding disc (3), the grinding disc (3) is fixedly connected with the output end of the driving motor (2).

2. A heating floor grinding process structure according to claim 1, characterized in that: a pressing ring (31) is fixedly connected on the surface of the grinding disc (3), and the inside of the pressing ring (31) is A cavity is provided, the surface of the extrusion ring (31) is in contact with the inner wall of the connecting cover (21), an elastic plate (32) is fixedly connected to the surface of the grinding disc (3), and the top of the elastic plate (32) is fixed A connecting shaft (33) is connected, the connecting shaft (33) is fixedly connected with the output end of the driving motor (2), and a cavity is provided inside the grinding disc (3).

3. A heating floor grinding process structure according to claim 2, characterized in that: a plurality of limit shafts (35) are fixedly connected to the bottom of the grinding disc (3), and the limit shafts (35) A plurality of grinding rods (36) are fixedly connected between the limit shafts (35), the grinding rods (36) are of memory metal material and the grinding rods (36) are arc-shaped, and the limit shafts (35) A movable groove (37) is provided inside, and a transmission shaft (5) is slidably provided inside the movable groove (37).

4. A heating floor grinding process structure according to claim 2, characterized in that: a squeeze airbag (38) is fixedly connected inside the grinding disc (3), and the top of the squeeze airbag (38) is connected to the The elastic plate (32) is fixedly connected, the squeezing airbag (38) is fixedly connected with a rubber ball (34), the rubber ball (34) is fixedly connected to the bottom of the grinding disc (3), and the squeezing airbag (38) A connecting ring (381) is clamped on the surface, a plurality of fixing springs are fixedly connected on the surface of the connecting ring (381), and one end of the fixing spring is fixedly connected with the transmission shaft (5).

5. A heating floor grinding process structure according to claim 1, characterized in that: a compression shaft (51) is fixedly connected to the surface of the transmission shaft (5), and one end of the compression shaft (51) is fixedly connected to the movable Inside the groove (37), a plurality of inflation airbags (52) are fixedly connected on the surface of the compression shaft (51), and the surface of the inflation airbags (52) abuts against the inner wall of the movable groove (37).

6. A heating floor polishing process structure according to claim 1, wherein a screw rod is rotatably provided inside the connecting cavity (4), and an adjusting ring (41) is fixedly connected to one end of the screw rod, and A limit plate (12) is movably sleeved on the screw rod, the limit plate (12) is movably arranged on the surface of the worktable (1), and a rubber layer is fixedly connected to the inner wall of the limit plate (12).
