CN216109600U

CN216109600U - Liftable support for construction engineering construction

Info

Publication number: CN216109600U
Application number: CN202120566958.2U
Authority: CN
Inventors: 王海军; 马川
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-03-19
Filing date: 2021-03-19
Publication date: 2022-03-22
Anticipated expiration: 2031-03-19

Abstract

The utility model discloses a liftable support for building engineering construction, which comprises a mounting frame, a rotating motor, a fixed lifting box and a base. A mounting frame is fixedly installed on the top of the base, and a placement box is connected to the top of the buffer plate. A hydraulic lifter is fixedly installed inside the fixed lifting box, and a rotating motor is fixedly installed on the top of the fixed lifting box. By arranging a placing box on the top of the mounting frame, the utility model can be used for the transportation of construction equipment during construction, so that construction accidents caused by falling building materials are avoided during transportation, and the risk of operation and construction is reduced. , Through the cooperation of the limit sliding sleeves set on both sides of the placing box and the limit sliding rod, the stability of the overall transportation can be improved, and the establishment of the buffer plate can provide buffers for the falling of the placing box, which can ensure the service life of the device and improve the It improves the stability of building materials during transportation.

Description

Liftable support for construction engineering construction

Technical Field

The utility model relates to the technical field of constructional engineering construction supports, in particular to a liftable support for constructional engineering construction.

Background

The building construction is a production activity for building various building products in a certain space and time by using various construction materials and mechanical equipment according to a specific design blueprint, and in the construction process of a building wall, materials such as building bricks, gravels and the like are often required to be lifted to a high place for facilitating operation. At present, hoisting device though can promote the construction material to the eminence, but simple structure, stability is relatively poor, and construction material takes place to rock easily at the in-process of transportation, causes construction material phenomenon that drops to when getting the material to construction material, the whole displacement phenomenon that takes place easily of device, be not convenient for get the going on of material work, need a building engineering construction now and use and promote the support, but current building engineering construction has a lot of problems or defects with promoting the support:

traditional building engineering construction is with promoting the support efficiency when carrying out the construction operation in the in-service use lower, influences the holistic result of use of device, can appear the condition of rocking simultaneously in the transportation for stability is relatively poor, causes the condition that construction material dropped, can't ensure convenient operation when improving the construction risk, and the effect of use is lower, influences holistic efficiency of construction.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a lifting support for building engineering construction, which aims to solve the problems of low construction efficiency and high construction risk in the background technology.

In order to achieve the purpose, the utility model provides the following technical scheme: a lifting support for building engineering construction comprises a mounting frame, a rotating motor, a fixed lifting box and a base, wherein the mounting frame is fixedly installed at the top of the base, a movable universal wheel is movably installed at the bottom of the base, a buffer plate is fixedly installed at the top of the mounting frame, a placing box is installed at the top of the buffer plate in a butt joint mode, limiting sliding sleeves are fixedly installed on two sides of the placing box, limiting sliding rods are sleeved inside the limiting sliding sleeves, the bottom of each limiting sliding rod is fixedly installed with the top of the mounting frame, the tail ends of the limiting sliding rods are connected with installation limiting plates, fixed lifting boxes are fixedly installed on two sides of the mounting frame, a hydraulic lifting machine is fixedly installed inside the fixed lifting boxes, a lifting rod is sleeved at the tail end of the hydraulic lifting machine, a supporting bottom plate is installed at the tail end of the lifting rod in a butt joint mode, a rotating motor is fixedly installed at the top of the fixed lifting boxes, and the internal connection of rotating the motor installs the reel, the input intercommunication of reel has the promotion stay cord, and promotes the output of stay cord and place the case and be connected.

Preferably, the top of the position-limiting plate is fixedly provided with a pulley used by a matched lifting rope.

Preferably, the bottom of the hydraulic lifting machine is sleeved with a fixed looping, and the fixed looping is fixedly installed inside the fixed lifting box.

Preferably, the top fixed mounting of mounting bracket has the support riser, and supports the riser and be connected with the installation limiting plate.

Preferably, the top of the buffer plate is fixedly provided with a buffer spring, and the bottom of the buffer spring is connected with the mounting frame.

Preferably, the top of the fixed lifting box is provided with control components which are matched with each other for use.

Compared with the prior art, the utility model has the beneficial effects that: this kind of building engineering construction is with promoting support rational in infrastructure, has following advantage:

(1) the placing box is arranged at the top of the mounting frame, so that during building construction, the placing box can be used for loading and transporting building equipment, the placing box is in a box shape and wraps the building equipment, construction accidents caused by falling of the building materials are avoided during transportation, risks of operation construction are reduced, shaking of the building equipment during high-altitude transportation is reduced by matching the limiting sliding sleeves and the limiting sliding rods arranged at two sides of the placing box, stability during integral transportation is improved, a buffer plate which is matched with each other for use is arranged at the bottom of the placing box, the phenomenon that the device is damaged due to overlarge impact is avoided, stability during transportation of the building materials is improved while service life of the device is ensured, and waste of the building materials is built;

(2) the fixed lifting boxes are fixedly mounted on the two sides of the mounting frame, when building transportation construction is carried out, the lifting rods of the output end are pushed through the hydraulic lifting machines arranged in the fixed lifting boxes, so that the supporting bottom plate at the tail ends of the lifting rods is supported with the ground, the whole device can be lifted and fixed through the supporting bottom plate, the stability of the whole device can be guaranteed when the device runs, meanwhile, the device can be prevented from turning over, the construction safety is guaranteed, meanwhile, the movable universal wheels matched with the supporting bottom plate for use are movably mounted at the top of the base, the whole device can be moved when construction is finished, the flexibility of the device is improved, and meanwhile, the work burden of constructors can be relieved;

(3) be provided with the rotation motor through the top of lifting the case at the fixing, when placing the case and lifting, rotate the inside reel of motor operation drive and promote the removal of stay cord, the motion through the reel makes and places the case and carry out ascending spacing lifting under spacing sliding sleeve's effect, can improve the conveying efficiency of device when guaranteeing to transport steadily, make the progress of accelerating the construction, the risk that appears when steady lifting can effectual reduction construction simultaneously, also can guarantee the convenience of construction, reduce construction cost's waste, accelerate developing of construction progress.

Drawings

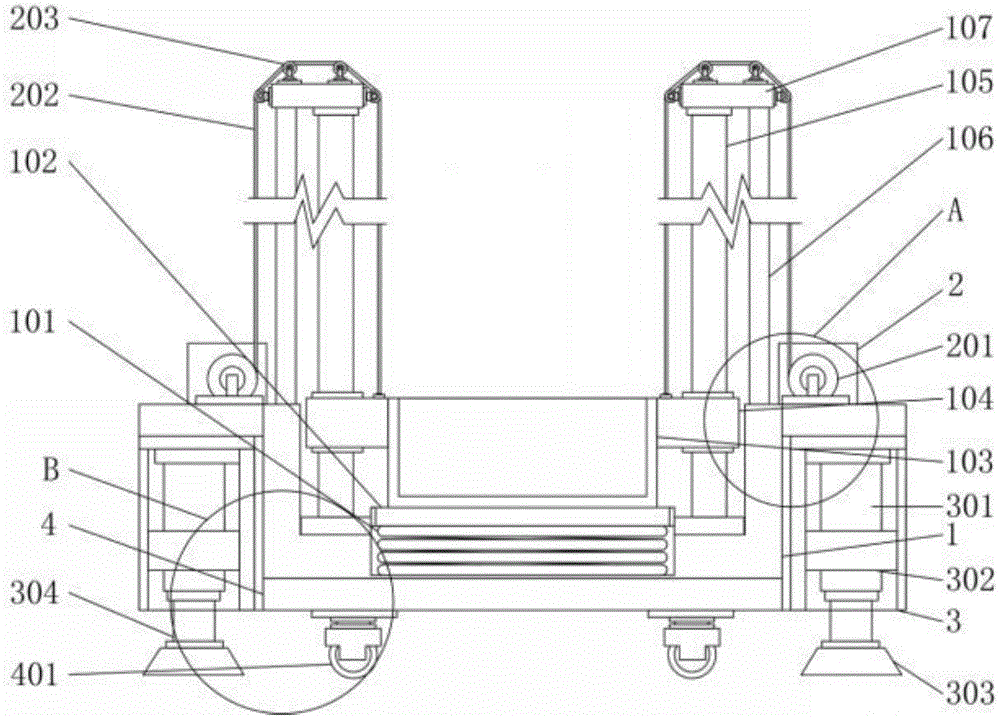

FIG. 1 is a schematic front sectional view of the present invention;

FIG. 2 is a schematic front view of the present invention;

FIG. 3 is a schematic view of the transport assembly of the present invention;

FIG. 4 is a schematic view of the lift pin assembly of the present invention.

In the figure: 1. a mounting frame; 101. a buffer spring; 102. a buffer plate; 103. placing a box; 104. a limiting sliding sleeve; 105. a limiting slide bar; 106. a support vertical plate; 107. mounting a limiting plate; 2. rotating the motor; 201. a reel; 202. a lift cord; 203. a pulley; 3. fixing the lifting box; 301. a hydraulic lifting machine; 302. fixing the looping; 303. a support base plate; 304. lifting the rod; 4. a base; 401. a movable universal wheel.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-4, an embodiment of the present invention is shown: a liftable bracket for building engineering construction comprises a mounting frame 1, a rotating motor 2, a fixed lifting box 3 and a base 4, wherein the mounting frame 1 is fixedly installed at the top of the base 4, a movable universal wheel 401 is movably installed at the bottom of the base 4, a buffer plate 102 is fixedly installed at the top of the mounting frame 1, a placing box 103 is installed at the top of the buffer plate 102 in a butt joint mode, limiting sliding sleeves 104 are fixedly installed at two sides of the placing box 103, a limiting sliding rod 105 is sleeved inside the limiting sliding sleeve 104, the bottom of the limiting sliding rod 105 is fixedly installed with the top of the mounting frame 1, the tail ends of the limiting sliding rods 105 are connected with and installed with installation limiting plates 107, the fixed lifting box 3 is fixedly installed at two sides of the mounting frame 1, a hydraulic lifting machine 301 is fixedly installed inside the fixed lifting box 3, a lifting rod 304 is sleeved at the tail end of the hydraulic lifting machine 301, and a supporting bottom plate 303 is installed at the tail end of the lifting rod 304 in a butt joint mode, the top of the fixed lifting box 3 is fixedly provided with a rotating motor 2, the interior of the rotating motor 2 is connected with a reel 201, the input end of the reel 201 is communicated with a lifting rope 202, and the output end of the lifting rope 202 is connected with the placing box 103;

specifically, the placing box 103 is arranged at the top of the mounting frame 1, when building construction is carried out, the placing box 103 can be used for loading and transporting building equipment, the placing box 103 wraps the building equipment in a box shape, so that construction accidents caused by falling of the building materials are avoided during transportation, and risks of operation and construction are reduced;

specifically, the fixed lifting boxes 3 are fixedly mounted on two sides of the mounting frame 1, when building transportation construction is carried out, the hydraulic lifting machine 301 arranged in the fixed lifting boxes 3 pushes the lifting rod 304 of the output end, so that the supporting bottom plate 303 at the tail end of the lifting rod 304 is supported with the ground, the supporting bottom plate 303 supports the lifting rod, the whole device can be lifted and fixed, the stability of the whole device can be ensured during operation of the device, meanwhile, the side turning of the device can be avoided, the construction safety is ensured, meanwhile, the movable universal wheel 401 matched with the supporting bottom plate 303 for use is movably mounted at the top of the base 4, the whole device can be moved after construction is finished, the flexibility of the device is improved, and meanwhile, the work burden of constructors can be reduced;

it is specific, top through lifting case 3 at the fixed rotation motor 2 that is provided with, when placing case 103 lifting, it drives inside reel 201 and promotes the removal of stay cord 202 to rotate motor 2 operation, the motion through reel 201 makes place case 103 and carries out ascending spacing lifting under spacing sliding sleeve 104's effect, can improve device's conveying efficiency when guaranteeing to transport steadily, make the progress of accelerating the construction, the risk that appears when steady lifting can effectual reduction construction simultaneously, also can guarantee the convenience of construction, reduce construction cost's waste, accelerate developing of construction progress.

The working principle is as follows: when in use, firstly, the fixed lifting boxes 3 are fixedly arranged on the two sides of the mounting rack 1, when in construction transportation construction, the lifting rod 304 of the output end is pushed by the hydraulic lifting machine 301 arranged in the fixed lifting box 3, so that the supporting bottom plate 303 at the tail end of the lifting rod 304 is supported with the ground, the whole device can be lifted and fixed through the support of the support bottom plate 303, the stability of the whole device can be ensured when the device runs, meanwhile, the side turning of the device can be avoided, the construction safety is ensured, meanwhile, the movable universal wheels 401 matched with the supporting bottom plate 303 for use are movably arranged at the top of the base 4, the whole device can be moved when the construction is finished, the flexibility of the device is improved, meanwhile, the workload of constructors can be reduced, and meanwhile, the fixed sleeve opening 302 is sleeved at the tail end of the hydraulic lifting machine 301, so that the connection between the hydraulic lifting machine 301 and the fixed lifting box 3 can be ensured;

secondly, the placing box 103 is arranged at the top of the mounting frame 1, when building construction is carried out, the placing box 103 can be used for loading and transporting building equipment, the placing box 103 wraps the building equipment in a box shape, so that construction accidents caused by falling of the building materials are avoided during transportation, and risks of operation and construction are reduced;

finally, be provided with rotation motor 2 through the top at fixed case 3 that lifts, when placing case 103 and lifting, rotation motor 2 moves reel 201 that drives inside and promotes the removal of stay cord 202, make through the motion of reel 201 place case 103 and carry out ascending spacing lifting under spacing sliding sleeve 104's effect, be provided with the pulley 203 that the cooperation promoted stay cord 202 used at the top of installation limiting plate 107 simultaneously, can provide the slide when promoting stay cord 202 through supporting riser 106, ensure to reduce the wearing and tearing that promote stay cord 202, guarantee the transportation steadily with the transport efficiency of device when improving promotion stay cord 202 life, make the progress of accelerating the construction, the risk that appears when steady lifting can effectual reduction construction simultaneously, also can guarantee the convenience of construction, reduce construction cost's waste, accelerate developing of construction progress.

It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides a but building engineering construction is with promoting support, includes mounting bracket (1), rotates motor (2), fixed case (3) and base (4) of lifting, its characterized in that: the lifting device is characterized in that a mounting frame (1) is fixedly mounted at the top of the base (4), movable universal wheels (401) are movably mounted at the bottom of the base (4), a buffer plate (102) is fixedly mounted at the top of the mounting frame (1), a placing box (103) is installed at the top of the buffer plate (102) in a butt joint mode, limiting sliding sleeves (104) are fixedly mounted on two sides of the placing box (103), limiting sliding rods (105) are sleeved inside the limiting sliding sleeves (104), the bottom of the limiting sliding rods (105) is fixedly mounted with the top of the mounting frame (1), the tail ends of the limiting sliding rods (105) are connected with and mounted with mounting limiting plates (107), fixed lifting boxes (3) are fixedly mounted on two sides of the mounting frame (1), a hydraulic lifting machine (301) is fixedly mounted inside the fixed lifting boxes (3), and a lifting rod (304) is sleeved at the tail end of the hydraulic lifting machine (301), and the end of the lifting rod (304) is butted with and is provided with a supporting bottom plate (303), the top of the fixed lifting box (3) is fixedly provided with a rotating motor (2), the interior of the rotating motor (2) is connected with and provided with a reel (201), the input end of the reel (201) is communicated with a lifting stay rope (202), and the output end of the lifting stay rope (202) is connected with the placing box (103).

2. The liftable support for construction of building engineering according to claim 1, wherein: and a pulley (203) used by a lifting pull rope (202) matched with the mounting limit plate (107) is fixedly mounted at the top of the mounting limit plate.

3. The liftable support for construction of building engineering according to claim 1, wherein: the bottom of the hydraulic lifting machine (301) is connected with a fixed sleeve opening (302) in a sleeved mode, and the fixed sleeve opening (302) is fixedly installed inside the fixed lifting box (3).

4. The liftable support for construction of building engineering according to claim 1, wherein: the top fixed mounting of mounting bracket (1) has support riser (106), and supports riser (106) and be connected with installation limiting plate (107).

5. The liftable support for construction of building engineering according to claim 1, wherein: the top of buffer board (102) is fixed with buffer spring (101), and buffer spring (101) bottom is connected with mounting bracket (1).

6. The liftable support for construction of building engineering according to claim 1, wherein: the top of the fixed lifting box (3) is provided with control components which are matched with each other for use.
