Abstract
本实用新型涉及声屏障的技术领域，特别是涉及一种便于安装的声屏障，包括安装底座，安装底座上焊接有滑轨，滑轨中滑动设有声屏障，滑轨上插设有多根限位杆，限位杆与声屏障配合设置，声屏障的一端开设有卡扣孔，声屏障的另一端安装有卡扣块，卡扣块与卡扣孔配合设置。本实用新型通过在声屏障的两端分别设有卡扣块与卡扣孔，通过将卡扣块插入卡扣孔中，即可对相邻两个声屏障进行拼接，进而可快速的对其安装，实用性高；同时将声屏障的底端滑动的设置在滑轨，可便于将声屏障滑动安装在滑轨中，且通过插入限位杆，可对安装后的声屏障进行限位固定，避免后期安装后的声屏障倾倒，安全性高。
The utility model relates to the technical field of sound barriers, in particular to a sound barrier that is easy to install. The positioning rod is arranged in cooperation with the sound barrier, one end of the sound barrier is provided with a snap hole, the other end of the sound barrier is provided with a snap block, and the snap block is matched with the snap hole. In the utility model, the two ends of the sound barrier are respectively provided with a snap block and a snap hole, and by inserting the snap block into the snap hole, the two adjacent sound barriers can be spliced, and then the two adjacent sound barriers can be spliced quickly. Installation, high practicability; at the same time, the bottom end of the sound barrier is slidably arranged on the sliding rail, which can facilitate the sliding installation of the sound barrier in the sliding rail, and by inserting the limit rod, the installed sound barrier can be limited and fixed. , to avoid the falling of the sound barrier after installation, and the safety is high.
Description
Technical Field
The utility model relates to the technical field of sound barriers, in particular to a sound barrier convenient to install.
Background
The sound barrier is also called a sound insulation wall and is mainly used for sound insulation and noise reduction of highways, expressways, overhead composite roads and other noise sources. The sound insulation method is divided into a reflection type sound barrier for pure sound insulation and a composite type sound barrier for combining sound absorption and sound insulation, and the latter is a more effective sound insulation method. Refers to a wall structure provided beside railways and highways to reduce the influence of driving noise on nearby residents. Sound barriers are classified into traffic sound barriers, equipment noise attenuation sound barriers, industrial plant sound barriers, highways and highways, which are the most used places for various types of sound barriers.
The existing sound barrier generally adopts bolt fixed connection, so that the assembling process is more complicated, the installation efficiency is low, certain limitation exists, the bolt time is long and can be loosened, and the sound barrier is easy to shake or topple over, so that the service life of the sound barrier is influenced.
SUMMERY OF THE UTILITY MODEL
Aiming at the defects in the prior art, the sound barrier convenient to install provided by the utility model can be quickly installed, the sound barrier can be prevented from toppling over after being installed, and the safety is high.
In order to solve the technical problems, the utility model provides the following technical scheme:
the utility model provides a sound barrier convenient to installation, includes the installation base, the welding has the slide rail on the installation base, it is equipped with the sound barrier to slide in the slide rail, it is equipped with many gag lever posts to insert on the slide rail, the gag lever post sets up with the sound barrier cooperation, the buckle hole has been seted up to the one end of sound barrier, the buckle piece is installed to the other end of sound barrier, the buckle piece with the cooperation of buckle hole sets up.
Furthermore, a plurality of positioning anchors are arranged on the mounting base in a penetrating manner.
Furthermore, a sliding plate is slidably mounted in the sliding rail, the sliding plate is fixedly connected with the sound barrier, a plurality of through holes are formed in the sliding plate, and the through holes are matched with the limiting rods.
Furthermore, a plurality of silencing modules are installed on the sound barrier in a rectangular array mode.
Furthermore, limiting plates are installed at two ends of the buckling block, the limiting plates are made of deformable flexible materials, and connecting springs are fixedly connected between the limiting plates and the buckling block.
Furthermore, the inner sides of the buckling holes are symmetrically provided with stop blocks, and the stop blocks are matched with the limiting plates.
According to the technical scheme, the utility model has the beneficial effects that:
according to the utility model, the buckling blocks and the buckling holes are respectively arranged at the two ends of the sound barrier, and the buckling blocks are inserted into the buckling holes, so that two adjacent sound barriers can be spliced, and can be rapidly installed, and the practicability is high; simultaneously with the gliding setting in the slide rail in the bottom of sound barrier, can be convenient for with sound barrier slidable mounting in the slide rail, and through inserting the gag lever post, can carry out spacing fixed to the sound barrier after the installation, avoid the sound barrier after the later stage installation to empty, the security is high.
Drawings
In order to more clearly illustrate the detailed description of the utility model or the technical solutions in the prior art, the drawings that are needed in the detailed description of the utility model or the prior art will be briefly described below. Throughout the drawings, like elements or portions are generally identified by like reference numerals. In the drawings, elements or portions are not necessarily drawn to scale.

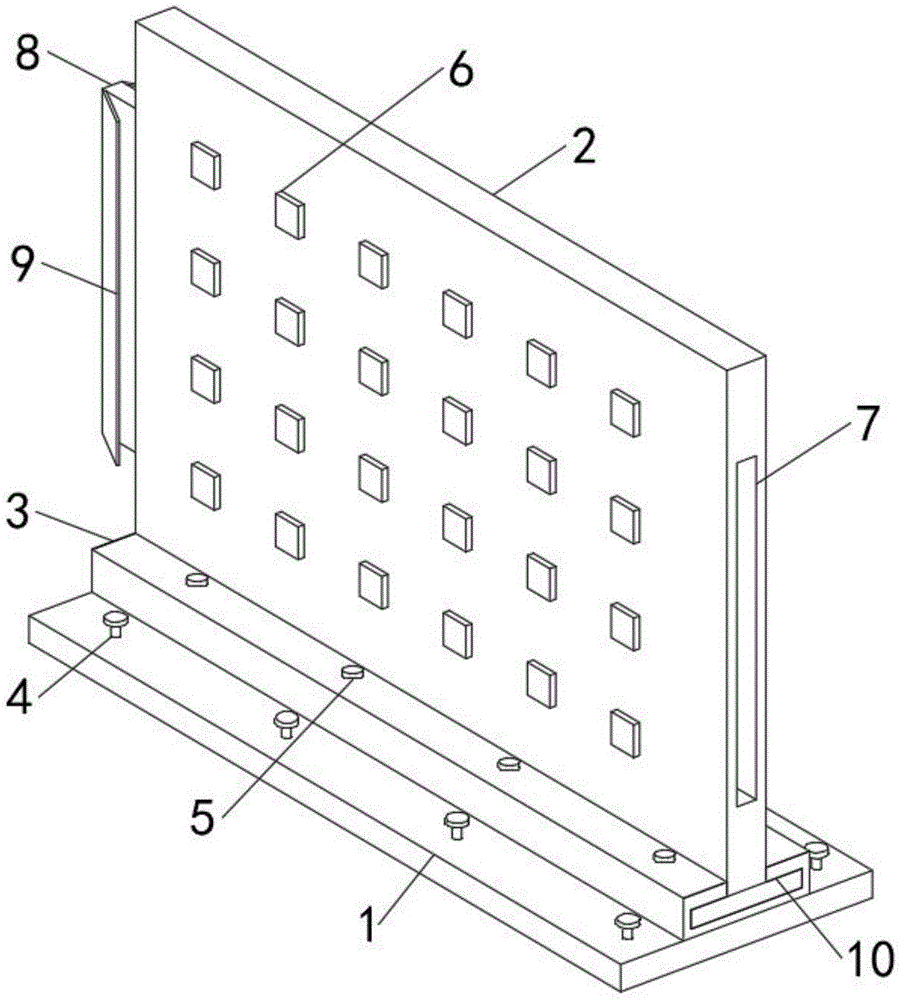

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a top sectional view of the latch block of the present invention;
FIG. 3 is a top sectional view of the snap hole of the present invention.
Reference numerals:
1-mounting base, 2-sound barrier, 3-slide rail, 4-positioning anchor, 5-limiting rod, 6-silencing module, 7-buckling hole, 8-buckling block, 9-limiting plate, 10-slide plate, 11-connecting spring and 12-stop block.
Detailed Description
Embodiments of the present invention will be described in detail below with reference to the accompanying drawings. The following examples are only for illustrating the technical solutions of the present invention more clearly, and therefore are only examples, and the protection scope of the present invention is not limited thereby.
Referring to FIGS. 1-3: the utility model provides a sound barrier convenient to installation, includes installation base 1, the welding has slide rail 3 on the installation base 1, it is equipped with sound barrier 2 to slide in the slide rail 3, it is equipped with many gag lever posts 5 to insert on the slide rail 3, gag lever post 5 sets up with the cooperation of sound barrier 2, buckle hole 7 has been seted up to sound barrier 2's one end, buckle piece 8 is installed to sound barrier 2's the other end, buckle piece 8 with buckle hole 7 cooperation sets up.
In practical use, the buckling blocks 8 and the buckling holes 7 are respectively arranged at the two ends of the sound barrier 2, and the buckling blocks 8 are inserted into the buckling holes 7, so that the two adjacent sound barriers can be spliced, and can be quickly installed, and the practicability is high; simultaneously with the gliding setting in slide rail 3 in the bottom of sound barrier 2, can be convenient for with sound barrier 2 slidable mounting in slide rail 3, and through inserting gag lever post 5, can carry out spacing fixed to sound barrier 2 after the installation, avoid the sound barrier after the later stage installation to empty, the security is high.
In this embodiment, link up on the installation base 1 and be equipped with a plurality of positioning anchor 4, accessible positioning anchor 4 will install base 1 and fix on the highway both sides, and then be convenient for carry on spacing fixedly to whole sound barrier 2, and the practicality is high.
In this embodiment, slidable mounting has slide 10 in the slide rail 3, slide 10 with 2 fixed connection of sound barrier, just a plurality of through-holes have been seted up on the slide 10, the through-hole with 5 cooperation settings of gag lever post can be convenient for install sound barrier 2 in slide rail 3, and through the setting of through-hole and gag lever post 5, be convenient for carry on spacing fixedly to whole sound barrier, avoid the later stage installation after, the sound barrier is emptyd.
In this embodiment, be rectangular array on the sound barrier 2 and install a plurality of amortization modules 6, can strengthen sound barrier 2 and to the noise cancelling effect around the highway, the practicality is high.
In this embodiment, limiting plate 9 is installed at the both ends of buckle piece 8, limiting plate 9 is the flexible material of deformability, just the rigid coupling has coupling spring 11 between limiting plate 9 and the buckle piece 8, and the limiting plate 9 of can being convenient for warp, and then is convenient for limiting plate 9 to go deep into buckle hole 7, splices two adjacent sound barriers 2, and the practicality is high.
In this embodiment, dog 12 is installed to the inboard of buckle hole 7 is the symmetry, just dog 12 with limiting plate 9 cooperation sets up, and accessible dog 12 carries on spacingly to the limiting plate 9 of deep installation, avoids limiting plate 9 roll-off, and the practicality is high.
The working principle is as follows: the staff will install base 1 and pass through the anchor 4, install at the both sides of highway, pass through slide 10 with sound barrier 2, gliding installation is on slide rail 3, insert through gag lever post 5, carry out spacing fixed to sound barrier 2, after fixed, through buckle hole 7 and buckle piece 8's cooperation, realize the concatenation of two sound barriers 2, the in-process of concatenation, insert buckle piece 8 and limiting plate 9 on one of them sound barrier 2 in the buckle hole 7 on another sound barrier 2, through the cooperation of limiting plate 9 with dog 12, realize the concatenation of two sound barriers 2, quick installing two sound barriers 2, and the practicality is high.
Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; while the utility model has been described in detail and with reference to the foregoing embodiments, it will be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention, and they should be construed as being included in the following claims and description.
