CN216097135U - Welding mechanism is used in smart door and window production

Info

Publication number: CN216097135U
Application number: CN202122232077.XU
Authority: CN
Inventors: 王文成
Original assignee: Jilin Yingxin Decoration Engineering Co ltd
Current assignee: Jilin Yingxin Decoration Engineering Co ltd
Priority date: 2021-09-15
Filing date: 2021-09-15
Publication date: 2022-03-22
Anticipated expiration: 2031-09-15

Abstract

The utility model relates to the technical field of door and window welding mechanisms and discloses a welding mechanism for intelligent door and window production. This welding mechanism is used in intelligent door and window production passes through first stopper, the second stopper, pressing plates, the lead screw and the setting of supporting the piece, when using, the staff places the door and window part on the workstation through the setting of first stopper piece and second stopper, make the concatenation can be accurate, can press the door and window part through the setting of clamp plate with supporting the piece, thereby be difficult for sliding in the time of making the welding, reached and to have can dock and fix the door and window part, guarantee the effect of the precision of butt joint, it needs to dock the door and window part to have solved, then carry out welding process, if nevertheless do not align, can make to form very obvious displacement gap after the welding, influence the accurate nature of door and window, can also influence the problem of the installation work of follow-up door and window even.

Description

Welding mechanism is used in smart door and window production

Technical Field

The utility model relates to the technical field of door and window welding mechanisms, in particular to a welding mechanism for intelligent door and window production.

Background

In home decoration, the balcony is sealed to aluminum alloy door and window commonly used, the aluminum alloy surface is bright and clean and shines through oxidation, and the casement frame is big, can inlay glass of great area, makes indoor light sufficient bright, has strengthened the interior between the room between the outer facade false-real contrast, makes the room more rich in the level, and aluminum alloy itself easily extrudees, and the cross section size of section bar is accurate, and the machining precision is high.

Among the prior art, common welding mechanism for smart door and window production needs to dock door and window part when using, then carries out welding process, if do not align, can make the very obvious displacement gap of formation after the welding, influences door and window's accurate nature, still can influence follow-up door and window's installation work even, and equipment staff need take up the electric welding several times when adjusting door and window part when using and put down, leads to work efficiency to reduce.

SUMMERY OF THE UTILITY MODEL

Aiming at the defects of the prior art, the utility model provides a welding mechanism for intelligent door and window production, which has the advantages that door and window components can be butted and fixed, the butting precision is ensured, and an electric welding machine cannot be randomly placed when a worker works.

The utility model provides the following technical scheme: the utility model provides a welding mechanism is used in smart door and window production, includes: the bottom plate, the last fixed surface of bottom plate is connected with the supporting leg, the top fixedly connected with workstation of supporting leg, the upper surface of workstation is provided with the work module, one side of work module is provided with first stopper, one side of first stopper is provided with rotatory piece, first spout has been seted up at the top of workstation, one side of first spout is provided with the second stopper.

Preferably, the side face of the working module is fixedly connected with an expansion spring, and one end of the expansion spring is fixedly connected with an electric welding machine.

Preferably, the surface of the rotating block is fixedly connected with a pressing plate, one end of the pressing plate is fixedly connected with a cushion block, and the bottom of the cushion block is movably connected with the workbench.

Preferably, the bottom fixedly connected with dead lever of second stopper, the bottom fixedly connected with nut piece of dead lever, one side of nut piece is provided with the limiting plate, the side of limiting plate is provided with the backup pad, the one end of backup pad is provided with the handle.

Preferably, the surface of the inner wall of the nut block is in threaded connection with a screw rod, one end of the screw rod is movably connected with a fixing plate, the bottom of the fixing plate is fixedly connected with a bottom plate, and the top of the fixing plate is fixedly connected with a workbench.

Preferably, a second sliding groove is formed in one side of the bottom plate, a movable table is movably connected to the upper surface of the second sliding groove, a movable rod is movably connected to the top of the movable table, a pressing block is fixedly connected to the top of the movable rod, and a supporting block is fixedly connected to the bottom of the movable rod.

Compared with the prior art, the utility model has the following beneficial effects:

1. this welding mechanism is used in intelligent door and window production, through first stopper, the second stopper, pressing plates, the lead screw and the setting of supporting the piece, when using, the staff places door and window part on the workstation through the setting of first stopper piece and second stopper, make the concatenation can be accurate, can press door and window part through the setting of clamp plate with supporting the piece, thereby be difficult for sliding in the time of making the welding, reached and to have can dock and fix door and window part, guarantee the effect of the precision of butt joint, it needs to dock door and window part to have solved, then carry out welding process, if nevertheless do not align, can make to form very obvious displacement gap after the welding, influence the accurate nature of door and window, can also influence the problem of the installation work of follow-up door and window even.

2. This welding mechanism is used in smart door and window production, through the setting of work module, expanding spring and electric welding, when using, drive the electric welding through the work module and weld, make the electric welding can receive back fixed position when not using through expanding spring's setting, reached the staff and can not be in disorder the effect of putting at the during operation electric welding, solved equipment staff when using need good take up the electric welding several times and put down, lead to the problem that work efficiency reduces.

Drawings

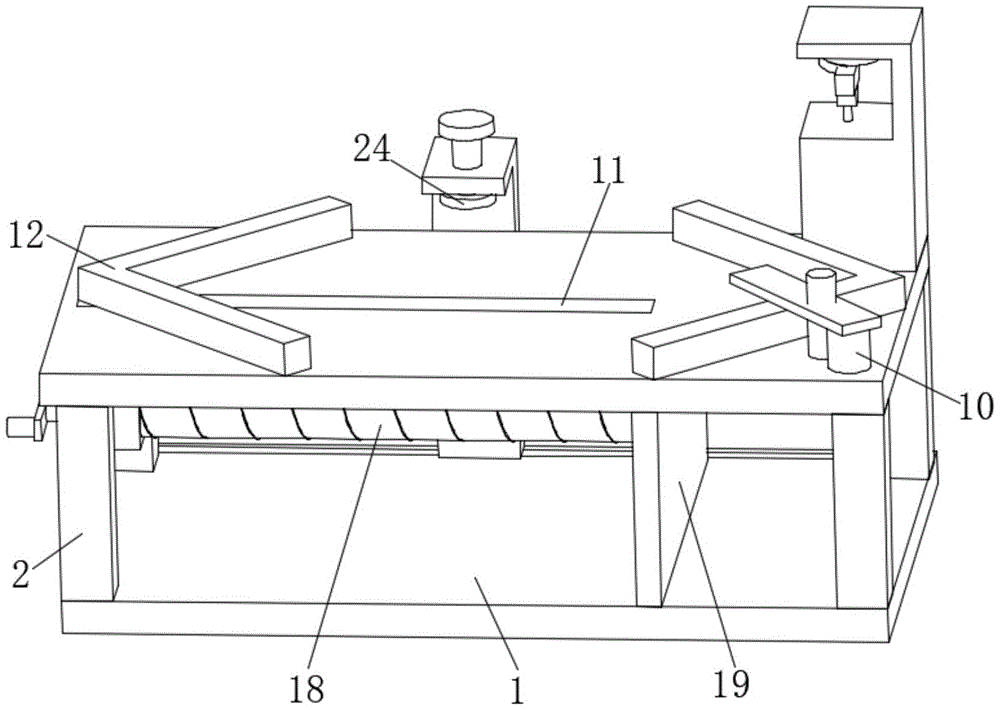

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic left side view of the structure of FIG. 1 according to the present invention;

FIG. 3 is a schematic top view of the structure of FIG. 1 according to the present invention.

In the figure: 1. a base plate; 2. supporting legs; 3. a work table; 4. a working module; 5. a tension spring; 6. an electric welding machine; 7. a first stopper; 8. rotating the block; 9. pressing a plate; 10. cushion blocks; 11. a first chute; 12. a second limiting block; 13. fixing the rod; 14. a nut block; 15. a limiting plate; 16. a support plate; 17. a handle; 18. a screw rod; 19. a fixing plate; 20. a second chute; 21. a movable table; 22. a movable rod; 23. a pressing block; 24. and (6) butting against blocks.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-3, a welding mechanism for smart door/window production includes: bottom plate 1, the last fixed surface of bottom plate 1 is connected with supporting leg 2, it can be fixed to make workstation 3 through setting up of supporting leg 2, the top fixedly connected with workstation 3 of supporting leg 2, the upper surface of workstation 3 is provided with working module 4, drive electric welding 6 through working module 4 and carry out work, one side of working module 4 is provided with first stopper 7, make door and window part can be spacing through setting up of first stopper 7, one side of first stopper 7 is provided with rotatory piece 8, it can remove to make clamp plate 9 can through setting up of rotatory piece 8, first spout 11 has been seted up at the top of workstation 3, make second stopper 12 can remove through setting up of first spout 11, one side of first spout 11 is provided with second stopper 12, make door and window part can be spacing through setting up of second stopper 12.

Wherein; the side fixedly connected with expanding spring 5 of working module 4, the one end fixedly connected with electric welding 6 of expanding spring 5 make electric welding 6 can be withdrawed fixed position when not using through expanding spring 5's setting.

Wherein; the fixed surface of the rotating block 8 is connected with a pressing plate 9, one end of the pressing plate 9 is fixedly connected with a cushion block 10, the bottom of the cushion block 10 is movably connected with the workbench 3, the door and window component can be fixed through the arrangement of the pressing plate 9, and the pressing plate 9 is not easy to loosen through the arrangement of the cushion block 10.

Wherein; the bottom fixedly connected with dead lever 13 of second stopper 12, the bottom fixedly connected with nut piece 14 of dead lever 13, one side of nut piece 14 is provided with limiting plate 15, the side of limiting plate 15 is provided with backup pad 16, the one end of backup pad 16 is provided with handle 17, setting up through dead lever 13 makes second stopper 12 can follow nut piece 14 and remove, setting up through limiting plate 15 makes nut piece 14 can be spacing by, setting up through handle 17 makes the staff can conveniently rotate lead screw 18.

Wherein; the surface threaded connection of 14 inner walls of nut blocks has

lead screw

18, and 18 one end swing joint of lead screw has fixed plate 19, the bottom and the bottom plate 1 fixed connection of fixed plate 19, and the top and the workstation 3 fixed connection of fixed plate 19 make nut blocks 14 can remove through setting up of lead screw 18, and it can rotate to make lead screw 18 rotate through setting up of fixed plate 19.

Wherein; second spout 20 has been seted up to one side of bottom plate 1, the upper surface swing joint of second spout 20 has a movable table 21, the top swing joint of movable table 21 has movable rod 22, the top fixedly connected with of movable rod 22 presses the briquetting 23, the bottom fixedly connected with of movable rod 22 supports briquetting 24, setting up through second spout 20 makes movable table 21 can remove, setting up through movable rod 22 makes to press briquetting 23 and support briquetting 24 to remove, can press the door and window part through the setting that supports briquetting 24.

The working principle is that when in use, a worker places the door and window components on the workbench 3, the door and window components can be accurately spliced through the limit of the first limit block 7, the rotating block 8 drives the pressing plate 9 to rotate, the cushion block 10 enables the pressing plate 9 not to be broken easily, the pressing plate 9 fixes part of door and window parts, the electric welding machine 6 is used for welding, the electric welding machine 6 can be reset by arranging the telescopic spring 5 when a worker does not use the electric welding machine 6, the screw rod 18 is driven to rotate by rotating the handle 17, so that the nut block 14 drives the second stopper 12 to move, the second stopper 12 can limit the door and window component, the movable table 21 is moved by the arrangement of the second sliding chute 20, and the worker presses the pressing block 23 to drive the movable rod 22 to move, so that the door and window component is pressed by the pressing block 24.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a welding mechanism is used in smart door and window production, includes: bottom plate (1), its characterized in that: the upper surface of bottom plate (1) fixed connection has supporting leg (2), top fixedly connected with workstation (3) of supporting leg (2), the upper surface of workstation (3) is provided with work module (4), one side of work module (4) is provided with first stopper (7), one side of first stopper (7) is provided with rotatory piece (8), first spout (11) have been seted up at the top of workstation (3), one side of first spout (11) is provided with second stopper (12).

2. The welding mechanism for producing the intelligent doors and windows as claimed in claim 1, wherein an expansion spring (5) is fixedly connected to the side surface of the working module (4), and an electric welding machine (6) is fixedly connected to one end of the expansion spring (5).

3. The welding mechanism is used in production of intelligent door and window according to claim 1, characterized in that the surface of rotatory piece (8) is fixedly connected with clamp plate (9), the one end fixedly connected with cushion (10) of clamp plate (9), the bottom and the workstation (3) swing joint of cushion (10).

4. The welding mechanism is used in intelligence door and window production according to claim 1, characterized in that, the bottom fixedly connected with dead lever (13) of second stopper (12), the bottom fixedly connected with nut piece (14) of dead lever (13), one side of nut piece (14) is provided with limiting plate (15), the side of limiting plate (15) is provided with backup pad (16), the one end of backup pad (16) is provided with handle (17).

5. The welding mechanism is used in intelligence door and window production according to claim 4, characterized in that, the surface screw thread of nut piece (14) inner wall is connected with lead screw (18), lead screw (18) one end swing joint has fixed plate (19), the bottom and the bottom plate (1) fixed connection of fixed plate (19), the top and the workstation (3) fixed connection of fixed plate (19).

6. The welding mechanism is used in intelligence door and window production according to claim 1, characterized in that, second spout (20) have been seted up to one side of bottom plate (1), the upper surface swing joint of second spout (20) has activity platform (21), the top swing joint of activity platform (21) has activity pole (22), the top fixedly connected with of activity pole (22) presses piece (23), the bottom fixedly connected with of activity pole (22) supports piece (24).
