CN216093161U

CN216093161U - Agitating unit for pharmaceutical chemistry is synthetic

Info

Publication number: CN216093161U
Application number: CN202122699807.7U
Authority: CN
Inventors: 周婉婷; 华晨声; 田佚
Original assignee: Shanghai Huayuan Pharmaceutical Technology Development Co ltd
Current assignee: Shanghai Huayuan Pharmaceutical Technology Development Co ltd
Priority date: 2021-11-05
Filing date: 2021-11-05
Publication date: 2022-03-22
Anticipated expiration: 2031-11-05

Abstract

The utility model belongs to the technical field of medicine stirring, and relates to a stirring device for chemical synthesis of medicines, comprising a base and an auger. A stirring box is fixedly connected to the upper surface of the support rod, and a feeding hopper is penetrated on the surface of the stirring box. The surface of the hopper is movably connected with a box cover through hinges, and the surface of the stirring box is provided with a first bearing. A first rotating shaft passes through the first bearing. The surface of the first rotating shaft is fixedly connected to the stirring shaft, and there are a plurality of the stirring shafts, all of which are fixedly connected to the surface of the first rotating shaft. The stirring device for chemical synthesis of medicines is convenient for people to stir and mix medicines.

Description

Agitating unit for pharmaceutical chemistry is synthetic

Technical Field

The utility model belongs to the technical field of medicine stirring, and particularly relates to a stirring device for chemical synthesis of medicines.

Background

The stirring device for chemical synthesis of the medicine is a tool for stirring the mixture of the medicine, is widely applied to the medicine processing industry, and needs a more rapid and practical device for processing the medicine along with the rapid development of the medicine field. The use that people can't be satisfied to current medicine mixing stirring device, in the medicine synthesis process, the stirring is indispensable link, and current medicine raw material mixing device, it is inefficient, can not treat the material that mixes to inside and carry out the intensive mixing, can't improve stirring efficiency, and there is the stirring dead angle in the agitator now, causes the stirring to be insufficient easily and the medicine deposits, the discharge of the medicine of not being convenient for.

SUMMERY OF THE UTILITY MODEL

To solve the problems set forth in the background art described above. The utility model provides a stirring device for chemical synthesis of medicines, which solves the technical problems of inconvenient medicine discharge and low mixing efficiency.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a synthetic agitating unit that uses of pharmaceutical chemistry, includes base and auger, fixed surface is connected with the bracing piece on the base, the bracing piece is total four, and is rectangle fixed connection at the base upper surface, fixed surface is connected with the agitator tank on the bracing piece, the loading hopper is worn to be equipped with on the agitator tank surface, the loading hopper is total two, and the symmetry wears to establish on the agitator tank surface, the loading hopper surface has the case lid through hinge swing joint, first bearing is worn to be equipped with on the agitator tank surface. Preferably, the number of the first bearings is four, and the first bearings penetrate through the surface of the stirring box in a pairwise symmetry manner. First pivot is worn to be equipped with in the first bearing, preferably first pivot is total two, all wears to establish in the first bearing. The surface of the first rotating shaft is fixedly connected with a plurality of stirring shafts which are fixedly connected to the surface of the first rotating shaft.

As a further scheme of the utility model: agitator tank fixed surface is connected with the second bearing, wear to be equipped with the second pivot in the second bearing, second pivot fixed surface is connected with first transfer gear, first pivot fixed surface is connected with the second transfer gear, agitator tank fixed surface is connected with first motor, first motor output shaft fixed surface is connected with the third transfer gear, connect through the conveyer belt transmission between first transfer gear, second transfer gear and the third transfer gear.

As a further scheme of the utility model: the surface of the stirring box is fixedly connected with an air pump, and an air inlet end of the air pump is provided with a gas purifying device. The air pump is characterized in that a first connecting pipe is fixedly connected with an air outlet end of the air pump, the first connecting pipe penetrates through the surface of the stirring box, an aeration pipe is fixedly connected inside the stirring box, the first connecting pipe is fixedly connected on the surface of the aeration pipe, and a one-way valve is fixedly connected on the surface of the first connecting pipe.

As a further scheme of the utility model: the stirring box lower surface fixed connection has the support frame, support frame fixed connection is on the base upper surface. The stirring case lower surface wears to be equipped with the second connecting pipe, second connecting pipe fixed surface is connected with the solenoid valve, the conveying case is worn to be equipped with on the support frame surface, the second connecting pipe is worn to establish at the conveying case upper surface.

As a further scheme of the utility model: the conveying box is internally provided with a machine bin, the machine bin is fixedly connected with a second motor, a third bearing is arranged on the surface of the machine bin in a penetrating mode, and the auger output shaft is arranged in the third bearing in a penetrating mode. The second motor output shaft is fixedly connected to the surface of the auger output shaft, and a filter screen is embedded in the lower surface of the conveying box.

As a further scheme of the utility model: the water tank is fixedly connected with the upper surface of the base, the funnel is arranged on the upper surface of the water tank in a penetrating mode, the position of the funnel corresponds to that of the filter screen, the water pump is fixedly connected with the upper surface of the base, and the water inlet end of the water pump is arranged on the surface of the water tank in a penetrating mode.

Compared with the prior art, the utility model has the beneficial effects that:

1. this agitating unit for pharmaceutical chemistry is synthetic through setting up first motor, first pivot, first transmission wheel and (mixing) shaft. When stirring the medicine, people pass through the operation of the first motor of control switch control, and then drive first transfer gear, second transfer gear and third transfer gear and rotate, drive first pivot and (mixing) shaft simultaneously and rotate to carry out intensive mixing to the medicine of agitator tank inside. Under the effect of first motor, first pivot, first transfer gear and (mixing) shaft, the people of being more convenient for stir the mixture to the medicine.

2. This agitating unit for pharmaceutical chemistry is synthetic through setting up air pump, check valve and aeration pipe, when stirring the medicine, people pass through control switch control air pump operation, and then carry the gas after will purifying to the agitator tank in through the aeration pipe, aerate the medicine in the agitator tank, make its mix more evenly, avoid the unable stirring in dead angle position. Under the effect of air pump, check valve and aeration pipe, make the inside medicine stirring of agitator tank even more fast.

3. This agitating unit for medicine chemical synthesis through setting up second motor, auger and filter screen, when carrying the medicine after mixing the stirring, people open through control switch control solenoid valve, and the operation of simultaneous control second motor, and then carry the liquid medicine after mixing to the transfer box in. And then filter the output to the dregs of a decoction under the effect of filter screen, and the liquid medicine passes through in the filter screen carries to the water tank, under the effect of second motor, auger and filter screen, is more convenient for people to separate the dregs of a decoction.

Drawings

The accompanying drawings, which are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this specification, illustrate embodiments of the utility model and together with the description serve to explain the principles of the utility model and not to limit the utility model. In the drawings:

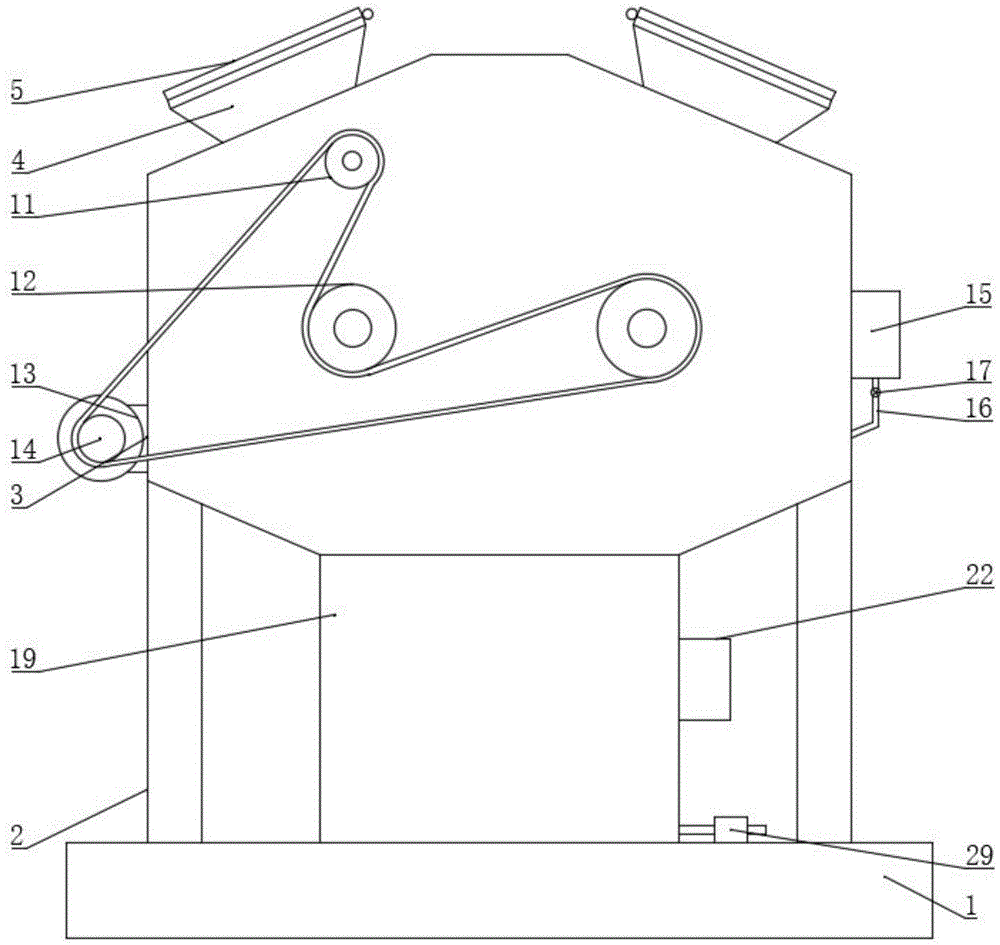

FIG. 1 is a front view of the present invention;

FIG. 2 is a schematic front view, partially in section, of the present invention;

FIG. 3 is a front cross-sectional structural schematic view of the present invention;

in the figure: 1. a base; 2. a support bar; 3. a stirring box; 4. a hopper; 5. a box cover; 6. a first bearing; 7. a first rotating shaft; 8. a stirring shaft; 9. a second bearing; 10. a second rotating shaft; 11. a first transfer wheel; 12. a second transfer wheel; 13. a first motor; 14. a third transfer wheel; 15. an air pump; 16. a first connecting pipe; 17. a one-way valve; 18. an aeration pipe; 19. a support frame; 20. a second connecting pipe; 21. an electromagnetic valve; 22. a delivery box; 23. a machine cabin; 24. a second motor; 25. a third bearing; 26. a packing auger; 27. a funnel; 28. a water tank; 29. a water pump; 30. and (5) filtering by using a filter screen.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Examples

Referring to fig. 1-3, the present invention provides the following technical solutions: the utility model provides a medicine agitating unit for chemical synthesis, includes base 1 and auger 26, and fixed surface is connected with bracing piece 2 on the base 1, and bracing piece 2 is four totally, and is rectangle fixed connection on the base 1 upper surface. Fixed surface is connected with agitator tank 3 on 2 bracing pieces, and 3 surfaces of agitator tank wear to be equipped with loading hopper 4, and loading hopper 4 is total two, and the symmetry wears to establish in 3 surfaces of agitator tank, and 4 surfaces of loading hopper have case lid 5 through hinge swing joint, and 3 surfaces of agitator tank wear to be equipped with first bearing 6. First bearing 6 is total four, and the 3 surfaces of agitator tank are worn to establish by two bisymmetry, wear to be equipped with first pivot 7 in the first bearing 6, through setting up first motor 13, first pivot 7, first transfer gear 11 and (mixing) shaft 8, when stirring the medicine, people pass through the operation of the first motor of control switch control 13, and then drive first transfer gear 11, second transfer gear 12 and third transfer gear 14 rotate, drive first pivot 7 and (mixing) shaft 8 simultaneously and rotate, thereby carry out intensive mixing to the medicine of agitator tank 3 inside, at first motor 13, first pivot 7, under the effect of first transfer gear 11 and (mixing) shaft 8, the people of being more convenient for stir the medicine and mix. First pivot 7 is total two, all wears to establish in first bearing 6, and first pivot 7 fixed surface connects (mixing) shaft 8, and (mixing) shaft 8 is total a plurality ofly, and equal fixed connection is on first pivot 7 surface.

Concretely, 3 fixed surface of agitator tank is connected with second bearing 9, wear to be equipped with second pivot 10 in the second bearing 9, 10 fixed surface of second pivot are connected with

first transfer gear

11, 7 fixed surface of first pivot are connected with

second transfer gear

12, 3 fixed surface of agitator tank are connected with

first motor

13, 13 fixed surface of first motor output shaft are connected with third transfer gear 14, connect through conveyer belt transmission between first transfer gear 11, second transfer gear 12 and the third transfer gear 14.

Specifically, the surface of the stirring tank 3 is fixedly connected with an air pump 15, and the air pump 15, a one-way valve 17 and an aeration pipe 18 are arranged. When stirring the medicine, people are through the operation of control switch control air pump 15, and then carry the gas after purifying to agitator tank 3 in through aeration pipe 18, the medicine in agitator tank 3 is aerated, make its mixture more even, avoid the unable stirring in dead angle position, at air pump 15, under the effect of check valve 17 and aeration pipe 18, make the inside medicine stirring of agitator tank 3 more even quick, air pump 15 inlet end is provided with the purge gas device, air pump 15 gas outlet end fixedly connected with first connecting pipe 16, first connecting pipe 16 wears to establish on agitator tank 3 surface, the inside fixedly connected with aeration pipe 18 of agitator tank 3, first connecting pipe 16 fixed connection is on aeration pipe 18 surface, 16 fixed surface of first connecting pipe is connected with check valve 17.

Concretely, fixed surface is connected with support frame 19 under agitator tank 3, and support frame 19 fixed connection is on the base 1 upper surface, and second connecting pipe 20 is worn to be equipped with by agitator tank 3 lower surface, and second connecting pipe 20 fixed surface is connected with solenoid valve 21, and conveying box 22 is worn to be equipped with on support frame 19 surface, and conveying box 22 upper surface is worn to establish by second connecting pipe 20.

Specifically, a machine cabin 23 is opened inside the conveying box 22. The second motor 24 is fixedly connected inside the machine bin 23, and the second motor 24, the packing auger 26 and the filter screen 30 are arranged. When the mixed and stirred medicine is conveyed, people control the electromagnetic valve 21 to be opened through the control switch, and simultaneously control the second motor 24 to operate, so that the mixed medicine liquid is conveyed into the conveying box 22, and the medicine dregs are filtered and output under the action of the filter screen 30. The liquid medicine passes through filter screen 30 and carries to the water tank 28 in, under the effect of second motor 24, auger 26 and filter screen 30, and the people of being more convenient for separate the dregs of a decoction, and third bearing 25 wears to be equipped with on the surface of machine storehouse 23, and auger 26 output shaft wears to establish in

third bearing

25, and 24 output shaft fixed connection of second motor are on auger 26 output shaft surface, and the lower surface of transfer box 22 inlays and is equipped with filter screen 30.

Specifically, the water tank 28 is fixedly connected with the upper surface of the base 1, the funnel 27 is arranged on the upper surface of the water tank 28 in a penetrating mode, the position of the funnel 27 corresponds to the position of the filter screen 30, the water pump 29 is fixedly connected with the upper surface of the base 1, and the water inlet end of the water pump 29 is arranged on the surface of the water tank 28 in a penetrating mode.

The working principle of the utility model is as follows:

s1, when using the device, the people leads to and carries required medicine through 4 casees of loading hopper to agitator tank 3 in, then people rotate simultaneously through control switch control first motor 13 and air pump 15, first motor 13 operation drives first transfer gear 11, second transfer gear 12 and third transfer gear 14 rotate simultaneously, thereby drive (mixing) shaft 8 and rotate and carry out intensive mixing to the inside medicine of agitator tank 3, air pump 15 operation is passed through aeration pipe 18 and is aerated to the medicine in agitator tank 3 simultaneously, make its mixture more even quick.

S2, after the liquid medicine is mixed and stirred, people control the electromagnetic valve 21 to be opened through the control switch, and simultaneously control the second motor 24 to operate, the second motor 24 operates to drive the packing auger 26 to rotate, and then the mixed liquid medicine is conveyed into the conveying box 22.

S3, under the action of the filter screen 30, medicine dregs and liquid medicine are separated, so that the liquid medicine is conveyed into the water tank 28, the medicine dregs are conveyed to the outside through the packing auger 26, the operation of the water pump 29 is controlled by people through the control switch, and the filtered liquid medicine is conveyed to a designated position.

In the description of the present invention, it is to be understood that the terms "first", "second" and the like are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implying any number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," "secured," and the like are to be construed broadly and can, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; can be directly connected or indirectly connected through an intermediate medium; either as communication within the two elements or as an interactive relationship of the two elements. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.

In the present invention, unless otherwise expressly stated or limited, a first feature may be "on" or "under" a second feature, and the first and second features may be in direct contact, or the first and second features may be in indirect contact via an intermediate. Also, a first feature "on," "above," and "over" a second feature may be directly or obliquely above the second feature, or simply mean that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature may be directly under or obliquely under the second feature, or may simply mean that the first feature is at a lower level than the second feature.

In the description herein, the description of the terms "one embodiment," "some embodiments," "an embodiment," "an example," "a specific example" or "some examples" or the like, means that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the utility model. In this specification, the schematic representations of the terms used above are not necessarily intended to refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples. Furthermore, various embodiments or examples and features of different embodiments or examples described in this specification can be combined and combined by one skilled in the art without contradiction.

Although embodiments of the present invention have been shown and described above, it should be understood that the above embodiments are illustrative and not restrictive, and that those skilled in the art may make changes, modifications, substitutions and alterations to the above embodiments without departing from the scope of the present invention.

Claims

1. A stirring device for medicinal chemical synthesis, comprising a base (1) and an auger (26), characterized in that: the upper surface of the base (1) is fixedly connected with a support rod (2), and the support rod (2) ) is fixedly connected to the upper surface of the base (1), the upper surface of the support rod (2) is fixedly connected with a stirring box (3), and the surface of the stirring box (3) is provided with a feeding hopper (4), and the feeding hopper (4) A box cover (5) is movably connected on the surface through hinges, a first bearing (6) is pierced through the surface of the stirring box (3), and a first rotating shaft (6) is pierced through the first bearing (6). 7) The surface of the first rotating shaft (7) is fixedly connected to the stirring shaft (8), and there are a plurality of the stirring shafts (8), all of which are fixedly connected to the surface of the first rotating shaft (7).

2 . The stirring device for chemical synthesis of medicines according to claim 1 , wherein there are two said feeding hoppers ( 4 ), which are symmetrically arranged on the surface of the stirring box ( 3 ). 3 .

3. A kind of stirring device for medicinal chemical synthesis according to claim 1, characterized in that: the first bearings (6) have a total of four, and are symmetrically arranged on the surface of the stirring box (3), and the There are two first rotating shafts (7), both of which are passed through the first bearing (6).

4. A stirring device for medicinal chemical synthesis according to claim 1, characterized in that: the surface of the stirring box (3) is fixedly connected with a second bearing (9), and the second bearing (9) penetrates inside A second rotating shaft (10) is provided, the surface of the second rotating shaft (10) is fixedly connected with a first transmission wheel (11), and the surface of the first rotating shaft (7) is fixedly connected with a second transmission wheel (12), so A first motor (13) is fixedly connected to the surface of the stirring box (3), and a third transmission wheel (14) is fixedly connected to the surface of the output shaft of the first motor (13). The first transmission wheel (11), The second transmission wheel (12) and the third transmission wheel (14) are connected by a transmission belt.

5. A kind of stirring device for medicinal chemical synthesis according to claim 1, characterized in that: an air pump (15) is fixedly connected to the surface of the stirring box (3), and the air pump (15) inlet end is provided with a purification A gas device, the air outlet end of the air pump (15) is fixedly connected with a first connecting pipe (16), the first connecting pipe (16) is penetrated on the surface of the stirring box (3), and the inside of the stirring box (3) is fixed An aeration pipe (18) is connected, the first connection pipe (16) is fixedly connected to the surface of the aeration pipe (18), and a one-way valve (17) is fixedly connected to the surface of the first connection pipe (16).

6. A stirring device for medicinal chemical synthesis according to claim 1, characterized in that: a support frame (19) is fixedly connected to the lower surface of the stirring box (3), and the support frame (19) is fixedly connected to the The upper surface of the base (1) and the lower surface of the stirring box (3) are provided with a second connecting pipe (20), the surface of the second connecting pipe (20) is fixedly connected with a solenoid valve (21), and the support frame (19) A transfer box (22) is pierced on the surface, and the second connecting pipe (20) is pierced on the upper surface of the transfer box (22).

7. A kind of stirring device for medicinal chemical synthesis according to claim 6, characterized in that: an organic warehouse (23) is provided in the inside of the transfer box (22), and a second mechanical warehouse (23) is fixedly connected inside. A motor (24), a third bearing (25) is pierced on the surface of the machine room (23), the output shaft of the auger (26) is pierced in the third bearing (25), and the second motor (24) ) output shaft is fixedly connected to the surface of the output shaft of the auger (26), and a filter screen (30) is embedded on the lower surface of the conveying box (22).

8 . The stirring device for medicinal chemical synthesis according to claim 1 , wherein a water tank ( 28 ) is fixedly connected to the upper surface of the base ( 1 ), and a funnel is provided on the upper surface of the water tank ( 28 ). 9 . (27), the position of the funnel (27) corresponds to the position of the filter screen (30).

9 . The stirring device for medicinal chemical synthesis according to claim 1 , wherein a water pump ( 29 ) is fixedly connected to the upper surface of the base ( 1 ), and the water inlet end of the water pump ( 29 ) is provided in the The surface of the water tank (28).
