CN216087355U

CN216087355U - Data center rack intelligent control uniform temperature and humidity system device

Info

Publication number: CN216087355U
Application number: CN202121629507.5U
Authority: CN
Inventors: 张金明
Original assignee: Nanjing Lianying Longtong Intelligent Technology Co ltd
Current assignee: Nanjing Lianying Longtong Intelligent Technology Co ltd
Priority date: 2022-01-11
Filing date: 2022-01-11
Publication date: 2022-03-18
Anticipated expiration: 2032-01-11

Abstract

The utility model discloses a data center cabinet intelligent control uniform temperature and humidity system device, which relates to the technical field of data center cabinets. Open space wastes energy, and the unbalanced temperature and humidity cause environmental changes, and the heating temperature in the cabinet is inconsistent, which affects the service life of the equipment. A control panel is arranged on one side of the cabinet, an opening is provided at the upper end of the cabinet, an automatic skylight is arranged in the opening, an air extraction duct and an air outlet duct are arranged in the cabinet, and the air extraction duct and the air outlet duct are arranged There is a third automatic valve inside, and temperature and humidity sensing equipment is installed at the air outlet of the exhaust pipe and the air outlet pipe. The temperature and humidity sensing equipment is electrically connected to the control panel, and the front end of the cabinet is provided with hot air Automatic valve switch, the front end of the cabinet is provided with a cold air automatic valve switch.

Description

Data center rack intelligent control uniform temperature and humidity system device

Technical Field

The utility model relates to the technical field of data center cabinets, in particular to a system device for intelligently controlling uniform temperature and humidity of a data center cabinet.

Background

The data center cabinet is used for assembling and installing a panel, a plug-in box, an electronic element, a device, a mechanical part and a component, provides adaptive environment and safety protection for normal work of electronic equipment, has good technical performance, and has the performances of vibration resistance, impact resistance, corrosion resistance, dust prevention, water prevention, radiation prevention and the like so as to ensure stable and reliable work of the equipment.

Along with the development and the wide use of data center cabinet day by day, in order to ensure the daily operation of data center cabinet, can increase refrigeration plant guarantee smooth operation and life in the data center cabinet, but current refrigeration mode is the environment of controlling whole data center, and equipment need be installed to the rack system many times, leads to a lot of spacious space energy extravagant, and the unable balance of humiture causes the environmental change, and the temperature of being heated is inconsistent in the rack, influences equipment life.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide an intelligent uniform temperature and humidity control system device for a data center cabinet, and aims to solve the problems that the refrigeration mode provided in the background technology is used for controlling the environment of the whole data center, equipment needs to be installed in the cabinet system many times, so that a lot of energy resources are wasted in an open space, the temperature and humidity cannot be balanced, the environment changes are caused, the heated temperature in the cabinet is inconsistent, and the service life of the equipment is influenced.

In order to achieve the purpose, the utility model provides the following technical scheme: an intelligent control uniform temperature and humidity system device of a data center cabinet comprises a cabinet, wherein a control panel is arranged on one side of the cabinet, an opening is formed in the upper end of the cabinet, an automatic skylight is arranged in the opening, an exhaust pipe and an air outlet pipe are arranged in the cabinet, third automatic valves are arranged in the exhaust pipe and the air outlet pipe, temperature and humidity sensing equipment is arranged at air outlet positions of the exhaust pipe and the air outlet pipe and is electrically connected with the control panel, a hot air automatic valve switch is arranged at the front end of the cabinet, a cold air automatic valve switch is arranged at the front end of the cabinet and is positioned on one side of the hot air automatic valve switch, a plurality of second cold air pipes distributed at equal intervals are arranged at the bottom in the cabinet, the plurality of second cold air pipes are mutually vertical to the first cold air pipes, and the plurality of second cold air pipes are communicated with the first cold air pipes, the rear end of the cabinet is provided with a heat dissipation fan, and a plurality of air blowing openings are formed in the air outlet pipe.

Through adopting above-mentioned technical scheme, first cold-blast main and second cold-blast main can directly carry out constant temperature in importing the rack of operation equipment with air conditioning to the automatic skylight of setting can be convenient for ventilate, and the exhaust column can discharge the heat in the rack, can play the humidity problem that reduces in the rack simultaneously, and these functions are carried out centralized control by control panel.

Furthermore, a hot air pipe is arranged at the bottom in the cabinet, the hot air pipe and the second cold air pipe are staggered, and the front end of the hot air pipe is communicated with an exhaust pipe.

Through adopting above-mentioned technical scheme, stagger hot-blast main and second cold-blast main and avoid forming the conflict when using.

Further, be provided with first fixed plate in the cooling fan, first fixed plate front end is provided with first fan blade, the first vent that a plurality of equidistance distributes is seted up to the rack rear end, a plurality of first vent communicates with each other with cooling fan, a plurality of first vent communicates with each other with the play tuber pipe, the second vent that a plurality of equidistance distributes is seted up to the cooling fan rear end.

Through adopting above-mentioned technical scheme, set up first fan blade in radiator fan and make its wind-force that forms send to the rack in through first vent to reach the effect of heat dissipation and dehumidification, and communicate with each other first vent and go out the tuber pipe and can dispel the heat to the components and parts on every layer of mounting panel in the cabinet, improve the radiating effect.

Furthermore, a plurality of first air outlets distributed at equal intervals are formed in the second air cooling pipes, a plurality of first automatic valves are arranged below the second air cooling pipes, and the first automatic valves are electrically connected with the temperature and humidity sensing equipment.

Through adopting above-mentioned technical scheme, can be convenient for control through the first automatic valve that sets up in the second cold air pipe, make the energy consumption reduce.

Further, a plurality of second air outlet that a plurality of equidistance distributes is all seted up to a plurality of first cold blast pipe upper end, a plurality of first cold blast pipe one side all is provided with the automatic valve of second, the automatic valve of second and humiture sensing equipment electric connection.

Through adopting above-mentioned technical scheme, set up the effect that the second automatic valve can play the reduction energy consumption equally in first cold blast, avoid arousing extravagant energy.

Furthermore, a plurality of air inlets are formed in the bottom of the cabinet and are distributed at equal intervals, the air inlets are communicated with a hot air pipe, a second fixing plate is arranged in the hot air pipe, third symmetrical air inlets are formed in the second fixing plate, a second fan blade is arranged at the front end of the second fixing plate, a third automatic valve is arranged in the hot air pipe, and the third automatic valve is located at the front end of the second fan blade.

By adopting the technical scheme, the air inlet can suck hot air blown out by the heat dissipation fan under the action of the second fan blade arranged in the hot air pipe, and the hot air is discharged through the exhaust pipe, so that the heat dissipation efficiency of the internal cabinet is improved.

Compared with the prior art, the utility model has the beneficial effects that:

1. this even humiture system device of data center rack intelligent control can directly input air conditioning into the rack of operation equipment through setting up first cold-blast pipe and second cold-blast pipe in, sets up first automatic valve and second automatic valve simultaneously and can play the effect that reduces the energy consumption, and the automatic skylight of setting can be opened the rack top and play fine heat dissipation ventilation effect.

2. This even humiture system device of data center rack intelligent control, through setting up in the cooling fan and set up first fan blade and make the wind-force of its formation deliver to the rack in through first vent to reach the effect of heat dissipation and dehumidification, and communicate with each other first vent and play tuber pipe and can dispel the heat to the components and parts on every layer of mounting panel in the cabinet, improve the radiating effect, the income wind gap can be inhaled the hot-blast second fan blade effect that sets up in the hot-blast main that blows off the cooling fan under, and discharge through the exhaust column from this, the radiating efficiency of inside rack has been improved.

Drawings

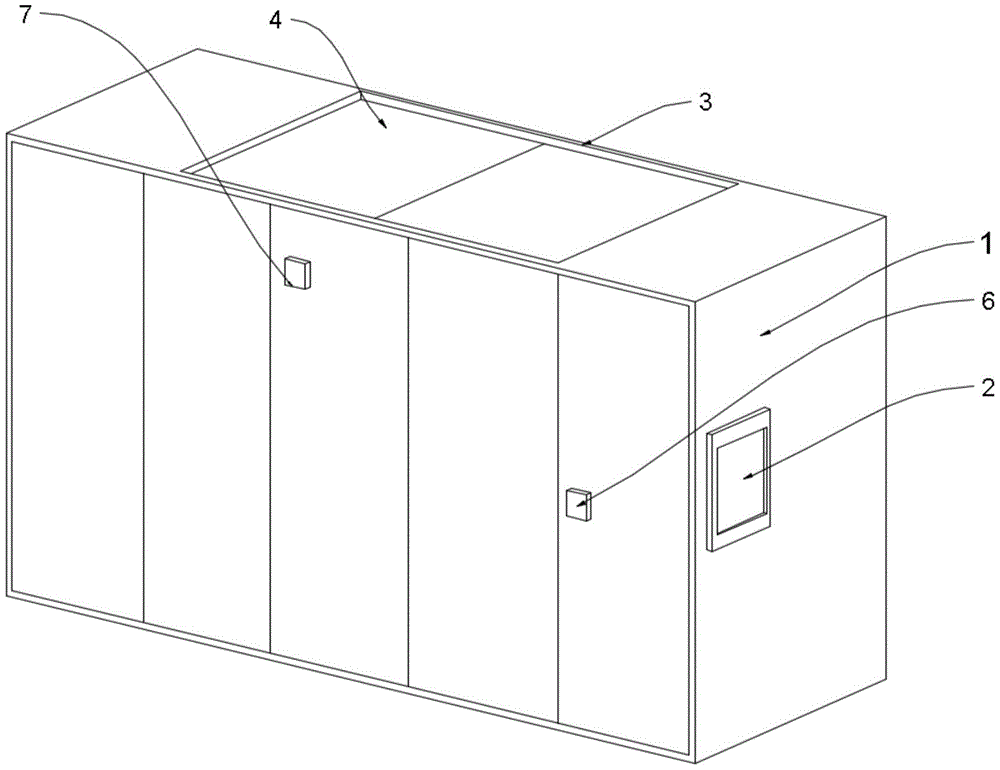

FIG. 1 is a schematic perspective view of the present invention;

FIG. 2 is a schematic cross-sectional view of the present invention;

FIG. 3 is an enlarged view of the area A of the present invention;

FIG. 4 is a control flow diagram of the present invention.

In the figure: 1. a cabinet; 2. a control panel; 3. an opening; 4. automatic skylights; 5. an exhaust pipe; 6. hot air automatic valve switch; 7. cold air automatic valve switch; 8. a first cold air duct; 9. a second cold air pipe; 10. a heat radiation fan; 11. temperature and humidity sensing equipment; 12. a hot air pipe; 13. a first fixing plate; 14. a first fan blade; 15. a first vent; 16. a second vent; 17. a first air outlet; 18. a first automatic valve; 19. a second air outlet; 20. a second automatic valve; 21. an air inlet; 22. a second fixing plate; 23. a third vent; 24. a second fan blade; 25. an air outlet pipe; 26. and a third automatic valve.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.

Referring to fig. 1-2, an embodiment of the present invention is shown: an intelligent control uniform temperature and humidity system device of a data center cabinet comprises a cabinet 1, a control panel 2 is arranged on one side of the cabinet 1, an opening 3 is arranged at the upper end of the cabinet 1, an automatic skylight 4 is arranged in the opening 3, an exhaust pipe 5 and an air outlet pipe 25 are arranged in the cabinet 1, third automatic valves 26 are arranged in the exhaust pipe 5 and the air outlet pipe 25, temperature and humidity sensing equipment 11 is arranged at the air outlet of the exhaust pipe 5 and the air outlet pipe 25, the temperature and humidity sensing equipment 11 is electrically connected with the control panel 2, a hot air automatic valve switch 6 is arranged at the front end of the cabinet 1, a cold air automatic valve switch 7 is arranged at the front end of the cabinet 1, the cold air automatic valve switch 7 is positioned on one side of the hot air automatic valve switch 6, a plurality of second cold air pipes 9 which are distributed at equal intervals are arranged at the bottom in the cabinet 1, the plurality of second cold air pipes 9 are perpendicular to a first cold air pipe 8, the plurality of second cold air pipes 9 are communicated with the first cold air pipe 8, the rear end of the machine cabinet 1 is provided with a heat radiation fan 10, a plurality of air blowing openings are arranged in the air outlet pipe 25, the bottom in the machine cabinet 1 is provided with a hot air pipe 12, the hot air pipe 12 and a second cold air pipe 9 are staggered, the front end of the hot air pipe 12 is communicated with the air exhaust pipe 5, a plurality of first ventilation openings 15 are communicated with the air outlet pipe 25, a first fixing plate 13 is arranged in the heat radiation fan 10, the front end of the first fixing plate 13 is provided with a first fan blade 14, the rear end of the machine cabinet 1 is provided with a plurality of first ventilation openings 15 which are distributed at equal intervals, a plurality of first ventilation openings 15 are communicated with the heat radiation fan 10, the rear end of the heat radiation fan 10 is provided with a plurality of second ventilation openings 16 which are distributed at equal intervals, a plurality of first air outlets 17 which are distributed at equal intervals are arranged in a plurality of second cold air pipes 9, a first automatic valve 18 is arranged below a plurality of second cold air pipes 9, and the first automatic valve 18 is electrically connected with temperature and humidity sensing equipment, the upper ends of the first cold air pipes 8 are respectively provided with a plurality of second air outlets 19 which are distributed at equal intervals, one side of each first cold air pipe 8 is provided with a second automatic valve 20 which is electrically connected with the temperature and humidity sensing equipment, cold air can be directly input into the cabinet 1 of the operating equipment for constant temperature through the first cold air pipes 8 and the second cold air pipes 9, the automatic skylight 4 is arranged for facilitating ventilation, the exhaust pipe 5 can exhaust heat in the cabinet 1 and simultaneously can play a role in reducing the humidity in the cabinet 1, the functions are intensively controlled by the control panel 2, the first fan blades 14 are arranged in the heat dissipation fan 10 to enable wind power formed by the first fan blades to be transmitted into the cabinet 1 through the first ventilation openings 15 so as to achieve the effects of heat dissipation and dehumidification, and the first ventilation openings 15 are communicated with the air outlet pipes 25 so as to dissipate heat of components on each layer of mounting plate in the cabinet, the heat dissipation effect is improved.

Referring to fig. 3, a plurality of air inlets 21 are disposed at the bottom of the cabinet 1, the air inlets 21 are equidistantly connected to the hot air duct 12, a second fixing plate 22 is disposed in the hot air duct 12, third symmetrical air inlets 23 are disposed in the second fixing plate 22, second blades 24 are disposed at the front end of the second fixing plate 22, third automatic valves 26 are disposed in the hot air duct 12, the third automatic valves 26 are disposed at the front ends of the second blades 24, the hot air blown from the heat dissipation fan 10 can be sucked by the second blades 24 disposed in the hot air duct 12 through the air inlets 21, and is discharged through the air exhaust pipe 5, so that the heat dissipation efficiency of the cabinet 1 is improved.

The working principle is as follows: firstly, the automatic hot air valve switch 6, the automatic cold air valve switch 7 or the automatic skylight 4 in the cabinet 1 are opened through the control panel 2, the temperature and humidity sensing equipment 11 in the cabinet 1 can also be opened, the temperature and humidity sensing equipment 11 can detect and control the temperature and the humidity in the cabinet 1 in real time, when the temperature is too high, the control panel 2 starts control software to open the heat dissipation fan 10, so that the first fan blade 14 inside forms wind power and conveys the wind power to the first ventilation opening 15, the wind power is conveyed to components on each layer of mounting plate in the cabinet 1 through the wind blowing opening at the front end of the air outlet pipe 25 for heat dissipation, and simultaneously redundant humidity in the cabinet 1 can be evacuated, thereby ensuring that the use humidity of the cabinet 1 is kept stable, improving the heat dissipation effect, the generated hot air enters the hot air pipe 12 through the wind inlet 21, and is sucked under the suction effect generated by the wind power of the second 24 arranged in the hot air pipe 12, and from this discharge through exhaust column 5, the first cold-blast pipe 8 and the second cold-blast pipe 9 that set up in rack 1 can directly carry out the constant temperature with air conditioning input to operation equipment's rack 1 in, cool down to rack 1, can monitor the internal conditions through humiture sensing equipment 11 when carrying air conditioning, if the pressure value of the first automatic valve 18 of control and the regulation and control air-out of second automatic valve 20 when the temperature reaches, play energy-conserving effect, hot-blast also can be regulated and control through third automatic valve 26 equally simultaneously, automatic skylight 4 that sets up in rack 1 top can be opened cabinet 1 top and play fine heat dissipation ventilation effect.

It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides a data center rack intelligent control uniform temperature and humidity system device, includes rack (1), its characterized in that: the air conditioner is characterized in that a control panel (2) is arranged on one side of the cabinet (1), an opening (3) is formed in the upper end of the cabinet (1), an automatic skylight (4) is arranged in the opening (3), an air exhaust pipe (5) and an air outlet pipe (25) are arranged in the cabinet (1), third automatic valves (26) are arranged in the air exhaust pipe (5) and the air outlet pipe (25), temperature and humidity sensing equipment (11) is arranged at air outlet positions of the air exhaust pipe (5) and the air outlet pipe (25), the temperature and humidity sensing equipment (11) is electrically connected with the control panel (2), a hot air automatic valve switch (6) is arranged at the front end of the cabinet (1), a cold air automatic valve switch (7) is arranged at the front end of the cabinet (1), the cold air automatic valve switch (7) is located on one side of the hot air automatic valve switch (6), a plurality of second cold air pipes (9) distributed at equal intervals are arranged at the bottom of the cabinet (1), a plurality of second cold air pipe (9) and first cold air pipe (8) mutually perpendicular, a plurality of second cold air pipe (9) communicate with each other with first cold air pipe (8), rack (1) rear end is provided with radiator fan (10), it has a plurality of blowing openings to open in tuber pipe (25).

2. The intelligent control uniform temperature and humidity system device for the data center cabinet according to claim 1, wherein: the hot air pipe (12) is arranged at the bottom in the cabinet (1), the hot air pipe (12) and the second cold air pipe (9) are staggered, and the front end of the hot air pipe (12) is communicated with the exhaust pipe (5).

3. The intelligent control uniform temperature and humidity system device for the data center cabinet according to claim 1, wherein: be provided with first fixed plate (13) in cooling fan (10), first fixed plate (13) front end is provided with first fan blade (14), first vent (15) that a plurality of equidistance distributes are seted up to rack (1) rear end, a plurality of first vent (15) communicate with each other with cooling fan (10), a plurality of first vent (15) communicate with each other with air-out pipe (25), second vent (16) that a plurality of equidistance distributes are seted up to cooling fan (10) rear end.

4. The intelligent control uniform temperature and humidity system device for the data center cabinet according to claim 1, wherein: a plurality of first air outlet (17) that a plurality of equidistance distributes are seted up in second cold air pipe (9), a plurality of below all is provided with first automatic valve (18) in second cold air pipe (9), first automatic valve (18) and humiture sensing equipment (11) electric connection.

5. The intelligent control uniform temperature and humidity system device for the data center cabinet according to claim 1, wherein: a plurality of second air outlet (19) that a plurality of equidistance distributes are all seted up to first cold blast pipe (8) upper end, a plurality of first cold blast pipe (8) one side all is provided with second automatic valve (20), second automatic valve (20) and humiture sensing equipment (11) electric connection.

6. The intelligent control uniform temperature and humidity system device for the data center cabinet according to claim 2, wherein: the bottom in the cabinet (1) is provided with a plurality of air inlets (21) which are distributed at equal intervals, the air inlets (21) are communicated with a hot air pipe (12), a second fixing plate (22) is arranged in the hot air pipe (12), symmetrical third air inlets (23) are formed in the second fixing plate (22), second fan blades (24) are arranged at the front end of the second fixing plate (22), a third automatic valve (26) is arranged in the hot air pipe (12), and the third automatic valve (26) is located at the front end of the second fan blades (24).
