Abstract
本实用新型公开了一种具有通风功能的防晒防水式广告机，包括：防护罩，所述防护罩的下端设置有支腿，且防护罩的上端设置有遮阳板，并且防护罩的中间安装有显示器，而且防护罩的前端设置有防护门；防护门，所述防护门的中间设置有隔热玻璃，且防护门的左端设置有门锁，并且防护门的左端的上下表面还设置有固定轴；后面板，所述后面板通过固定螺钉设置在防护罩的后侧，且后面板和防护罩之间设置有密封条，并且后面板的表面开设有散热孔。该具有通风功能的防晒防水式广告机能够在使用过程中避免广告机被阳光直射，降低在使用过程中的温度，且便于对广告机的内部进行散热，同时可避免雨水进入广告机内，造成腐蚀短路。
The utility model discloses a sunscreen and waterproof advertising machine with ventilation function, comprising: a protective cover, a lower end of the protective cover is provided with a leg, an upper end of the protective cover is provided with a sun visor, and a middle of the protective cover is installed with a supporting leg. Display, and the front end of the protective cover is provided with a protective door; the protective door is provided with insulating glass in the middle of the protective door, and the left end of the protective door is provided with a door lock, and the upper and lower surfaces of the left end of the protective door are also provided with fixed shafts a rear panel, the rear panel is arranged on the rear side of the protective cover by fixing screws, and a sealing strip is arranged between the rear panel and the protective cover, and the surface of the rear panel is provided with heat dissipation holes. The sunscreen and waterproof advertising machine with ventilation function can prevent the advertising machine from being directly exposed to sunlight during use, reduce the temperature during use, and facilitate the heat dissipation of the interior of the advertising machine, and at the same time can prevent rainwater from entering the advertising machine. Corrosion short circuit.
Description
Technical Field
The utility model relates to the technical field of advertising machines, in particular to a sun-proof waterproof advertising machine with a ventilation function.
Background
The advertisement machine mainly carries out advertising through multimedia materials such as picture, characters and video, is used for the place that the outdoor traffic of people is big in commercial center mostly, however current advertisement machine in the use, still has some weak points, for example:
the Chinese patent application numbers are: CN201520585829.2, grant open date: 2015 year 8, 6 days, a novel outdoor advertising machine is disclosed, wherein, including an outdoor advertising machine body, outdoor advertising machine body is for founding the column, the front end of outdoor advertising machine body is provided with touch-control screen and LED display screen, touch-control screen and LED display screen are connected in the host computer of outdoor advertising machine, front end, rear end, left side and the right side of outdoor advertising machine body all are provided with the thermovent, the upper end of outdoor advertising machine body is provided with the air intake. According to the utility model, the LED display screen and the touch screen are arranged at the front end of the outdoor advertising machine body, so that the advantages of the LED display screen and the touch screen are combined, the LED display screen is arranged above the outdoor advertising machine body and can be watched from a far place, the commercial effect of large-screen advertisements is met, and the touch screen is arranged below the outdoor advertising machine body, so that the function of public query is increased.
The above prior art solution also has the following drawbacks: in outdoor use, can often shine the rain and shine, cause the shell of advertisement machine ageing easily, appear damaged easily, reduce waterproof performance, immerse the rainwater and cause the short circuit damage, simultaneously long-time shining can improve the inside temperature of advertisement machine, seriously influences life.
We have proposed a sun-proof and waterproof advertising machine with a ventilation function in order to solve the problems set forth above.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a sun-proof and waterproof advertising machine with a ventilation function, and aims to solve the problems that the sun and rain can age and damage the advertising machine to reduce the waterproof performance and increase the internal temperature of the advertising machine in the background technology.
In order to achieve the purpose, the utility model provides the following technical scheme: a sun-proof and waterproof advertising machine with a ventilation function comprises:
the lower end of the protective cover is provided with a supporting leg, the upper end of the protective cover is provided with a sun shield, a servo motor is connected below the sun shield, and a display is arranged in the middle of the protective cover;
the protective door is arranged at the front end of the protective cover, heat insulation glass is arranged in the middle of the protective door, a door lock is arranged at the left end of the protective door, and a fixed shaft is further arranged on the upper surface and the lower surface of the left end of the protective door;
the rear panel, the rear panel passes through set screw and sets up the rear side at the protection casing, and is provided with the sealing strip between rear panel and the protection casing to the louvre has been seted up on the surface of rear panel.
Adopt above-mentioned technical scheme can avoid the advertisement machine to be penetrated by sunshine directly in the use, reduce the temperature in the use, and be convenient for dispel the heat to the inside of advertisement machine, can avoid the rainwater to get into the advertisement machine simultaneously, cause the corruption short circuit.
As a preferred technical scheme of the utility model, the protective door and the protective cover form a rotating structure through the fixed shaft, and a sealing strip is also arranged between the protective door and the protective cover.
By adopting the technical scheme, the display is convenient to maintain and repair through the arrangement of the protective door, and meanwhile, the sealing strip can prevent rainwater from entering the advertising machine.
As a preferred technical scheme of the utility model, the left side and the right side of the protective cover are provided with fixed sleeves, one end of each fixed sleeve is provided with an adjusting rod, and a telescopic spring is arranged between each adjusting rod and each fixed sleeve.
By adopting the technical scheme, the display is convenient to disassemble and assemble through the arrangement of the fixed sleeve and the adjusting rod.
As the preferred technical scheme of the utility model, the adjusting rod and the fixed sleeve form a telescopic structure, and one end of the adjusting rod is provided with the hanging ring.
By adopting the technical scheme, the display is convenient to be matched with the hook through the arrangement of the hanging ring, and the display is fixedly installed.
As a preferred embodiment of the present invention, a heat dissipation fan is mounted on an inner side of the rear panel, and the heat dissipation fan is bilaterally symmetric with respect to a middle of the display.
By adopting the technical scheme, the heat dissipation of the interior of the advertisement player is facilitated through the arrangement of the heat dissipation fan.
As a preferable technical scheme of the utility model, the left side and the right side of the display are provided with 4 hooks, the hooks are bilaterally symmetrical about the central line of the display, and the hooks and the hanging rings form a connecting structure.
By adopting the technical scheme, the display can be conveniently and quickly installed and fixed in the protective cover through the arrangement of the hook.
Compared with the prior art, the utility model has the beneficial effects that: the sun-proof and waterproof advertising machine with the ventilation function can prevent the advertising machine from being directly irradiated by sunlight in the use process, reduce the temperature in the use process, facilitate the heat dissipation of the interior of the advertising machine, and simultaneously prevent rainwater from entering the advertising machine to cause corrosion short circuit;
1. through the setting of protection casing, and the upper end of protection casing is provided with the sunshading board to the lower extreme of sunshading board is provided with servo motor, thereby can be in outdoor use, according to the angle of shining of sunshine, through the inclination of servo motor adjustment sunshading board, thereby shelter from sunshine, avoid the consequently temperature of advertisement machine to rise, the protection casing rear side is provided with the rear panel simultaneously, through the radiator fan of rear panel inboard installation, can effectually dispel the heat to the advertisement machine.
2. Through setting up the regulation pole, and the one end of adjusting the pole is provided with the link, through the position of adjusting the adjustable link of pole to through the cooperation between link and the couple, can carry out the dismouting to the display fast, very big having made things convenient for overhauls the maintenance to the display.
Drawings

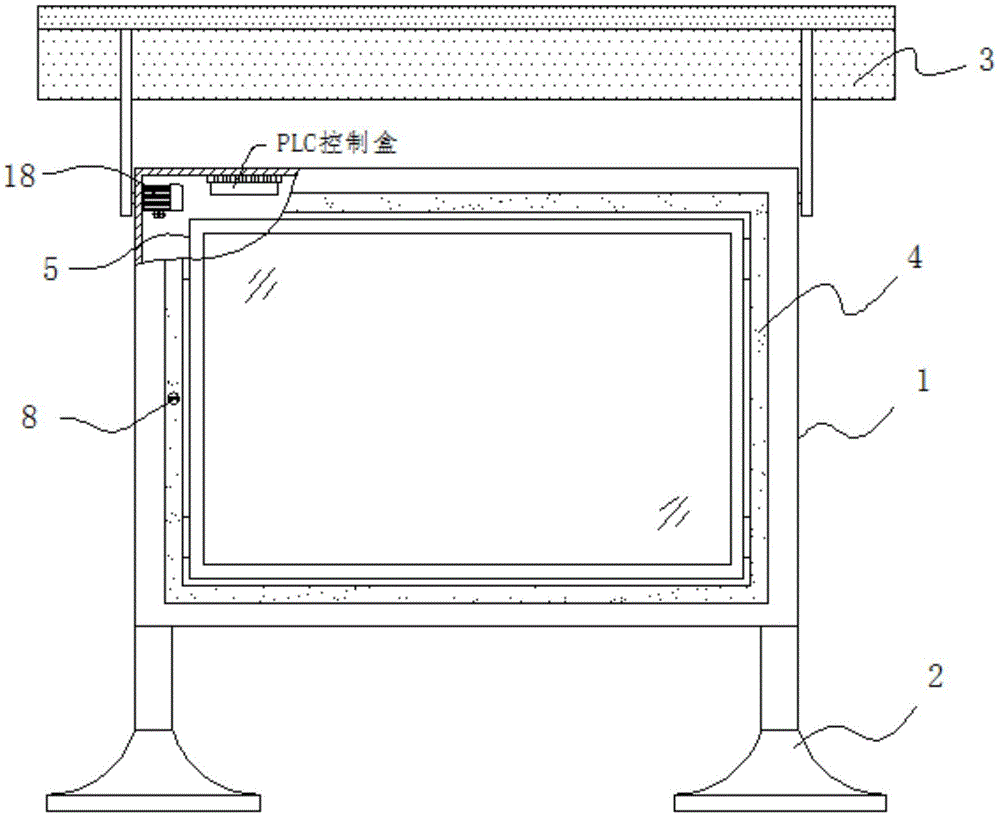

FIG. 1 is a schematic front view of the present invention;
FIG. 2 is a schematic top view of the present invention;
FIG. 3 is a left side view of the present invention;
FIG. 4 is a schematic view of a protective door according to the present invention;
FIG. 5 is a schematic view of a connection structure of a display and a shield according to the present invention.
In the figure: 1. a protective cover; 2. a support leg; 3. a sun visor; 4. a protective door; 5. a display; 6. heat insulating glass; 7. a fixed shaft; 8. a door lock; 9. a sealing strip; 10. a rear panel; 11. a heat radiation fan; 12. heat dissipation holes; 13. fixing a sleeve; 14. a tension spring; 15. adjusting a rod; 16. hanging a ring; 17. hooking; 18. a servo motor.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1-5, the present invention provides a technical solution: a sun-proof and waterproof advertising machine with a ventilation function comprises: the protection device comprises a protection cover 1, wherein the lower end of the protection cover 1 is provided with a supporting leg 2, the upper end of the protection cover 1 is provided with a sun shield 3, a servo motor 18 is connected below the sun shield 3, and a display 5 is arranged in the middle of the protection cover 1;
the protective door 4 is arranged at the front end of the protective cover 1, heat insulation glass 6 is arranged in the middle of the protective door 4, a door lock 8 is arranged at the left end of the protective door 4, and a fixed shaft 7 is further arranged on the upper surface and the lower surface of the left end of the protective door 4; the protective door 4 and the protective cover 1 form a rotating structure through a fixed shaft 7, and a sealing strip 9 is also arranged between the protective door 4 and the protective cover 1; in the use process, the sun shield 3 can prevent sunlight from directly irradiating on the advertising machine to increase the temperature of the advertising machine, and the display 5 can be overhauled and maintained through the arrangement of the protective door 4.
As shown in fig. 2-5, the rear panel 10 is disposed at the rear side of the protection cover 1 through fixing screws, a sealing strip 9 is disposed between the rear panel 10 and the protection cover 1, and a heat dissipation hole 12 is formed in the surface of the rear panel 10; a heat radiation fan 11 is installed on the inner side of the rear panel 10, and the heat radiation fan 11 is symmetrical left and right with respect to the middle of the display 5; the left side and the right side of the protective cover 1 are provided with fixed sleeves 13, one end of each fixed sleeve 13 is provided with an adjusting rod 15, and a telescopic spring 14 is arranged between each adjusting rod 15 and each fixed sleeve 13; the adjusting rod 15 and the fixed sleeve 13 form a telescopic structure, and one end of the adjusting rod 15 is provided with a hanging ring 16; the left side and the right side of the display 5 are provided with hooks 17, the number of the hooks 17 is 4, the hooks 17 are bilaterally symmetrical about the center line of the display 5, and the hooks 17 and the hanging rings 16 form a connecting structure; dispel the heat to display 5 through radiator fan 11, simultaneously through the cooperation between couple 17 and the link 16, can carry out the dismouting fast to display 5, very big convenience is overhauld.
The working principle is as follows: when the sun-proof and waterproof advertising machine with the ventilation function is used, as shown in fig. 1-5, firstly, the advertising machine is fixedly placed at a proper position, the starting and stopping of the servo motor 18 are controlled through a program in the PLC according to the change of time in the using process, so that the rotating direction and the rotating angle of the servo motor 18 are controlled, and further the inclined angle of the sun shield 3 is adjusted through the servo motor 18, so that the direct irradiation of sunlight on the advertising machine in outdoor use is effectively reduced, the temperature rise of the advertising machine is avoided, meanwhile, rainwater can be prevented from directly falling on the advertising machine in rainy days, the corrosion to the advertising machine is reduced, in the using process, the heat generated inside the advertising machine is effectively discharged through the heat dissipation holes 12 through the heat dissipation fans 11 arranged on the inner side of the rear panel 10, the temperature of the advertising machine is reduced, the service life is prolonged, when needs overhaul the advertisement machine, can dismantle rear panel 10, the convenient circuit to advertisement machine inside overhauls, damage appears when the display, when needs dismantle the change, only need open protection door plant 4, then upwards lift up display 5, make couple 17 and link 16 break away from, can pull down display 5, during installation display 5, earlier be connected couple 17 and link 16 of display one side, then, pull out link 16 of protection casing 1 opposite side in proper order again, be connected with couple 17 on the display 5 can, thereby accomplish the installation of display 5.
To thereby carry out a series of tasks, the contents of which are not described in detail in the present specification are prior art well known to those skilled in the art.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
