Wall structure for photovoltaic building

Technical Field

The utility model relates to the technical field of photovoltaic buildings, in particular to a wall structure for a photovoltaic building.

Background

According to the wall structure for photovoltaic building of current patent publication No. CN214195087U, this patent can be to solar photovoltaic board on the wall body install fast and dismantle, but the easy deposition of solar photovoltaic board on the wall structure of current photovoltaic building, if not in time clear up the use that influences solar photovoltaic board easily, consequently need the manual work to clear up it, but manual cleaning is too inconvenient, and wastes time and energy.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a wall structure for a photovoltaic building, and solves the problems that a solar photovoltaic panel on the existing wall structure of the photovoltaic building is easy to accumulate dust and is inconvenient to clean.

In order to achieve the purpose, the utility model provides the following technical scheme: the wall structure for the photovoltaic building comprises a wall body, wherein a fixed frame is fixedly connected to the wall body, a sliding groove is formed in the fixed frame, a sliding block is connected to the inner portion of the sliding groove in a sliding mode, a connecting seat is fixedly connected to one end of the sliding block, the connecting seat is in contact with the fixed frame, a sleeve is fixedly connected to the connecting seat, a sliding rod is connected to the inner portion of the sleeve in a sliding mode, a spring is arranged on the outer side of the sliding rod, a limiting frame is fixedly connected to the upper end of the sliding rod, a brush is in contact with one end of the connecting seat, a connecting block is fixedly connected to the brush, a connecting block is connected to the inner portion of the connecting seat in a sliding mode, a solar panel is arranged on the wall body and is in contact with the brush, the number of the fixed frames is two, a motor is fixedly connected to one of the fixed frames, and the output end of the motor is rotationally connected with the fixed frame, the output end of the motor is connected with a connecting sleeve through a screw, the lower end of the connecting sleeve is fixedly connected with a rotating rod, and the other end of the connecting sleeve is fixedly connected with a guide rod on the fixing frame.

Preferably, one end of the spring is fixedly connected with a sliding rod, and the other end of the spring is fixedly connected with a sleeve.

Preferably, the limiting frame is in contact with the sleeve and the connecting seat, and the limiting frame is connected to the inside of the connecting seat in a sliding mode.

Preferably, a clamping groove is formed in the connecting block, and a limiting frame is connected to the inside of the clamping groove in a sliding mode.

Preferably, the fixing frame is fixedly connected with a bearing, and the inside of the bearing is fixedly connected with a rotating rod.

Preferably, the number of the sliding blocks is two, the rotating rod is connected to the inside of one of the sliding blocks through threads, and the guide rod is connected to the inside of the other sliding block in a sliding mode.

Compared with the prior art, the utility model has the following beneficial effects:

1. according to the utility model, the fixing frame, the motor, the brush and other components are arranged, the brush can be driven by the motor to move on the fixing frame, and the dust of the solar panel is removed, so that the dust accumulation on the solar panel can be effectively prevented, and the problems that the solar photovoltaic panel on the wall structure of the existing photovoltaic building is easy to accumulate dust and inconvenient to clean are solved.

2. According to the utility model, the limiting frame is arranged, the fixing of the limiting frame to the brush can be released by pulling the limiting frame, so that the brush can be disassembled and replaced, and the replacement of the brush is more convenient and quicker.

Drawings

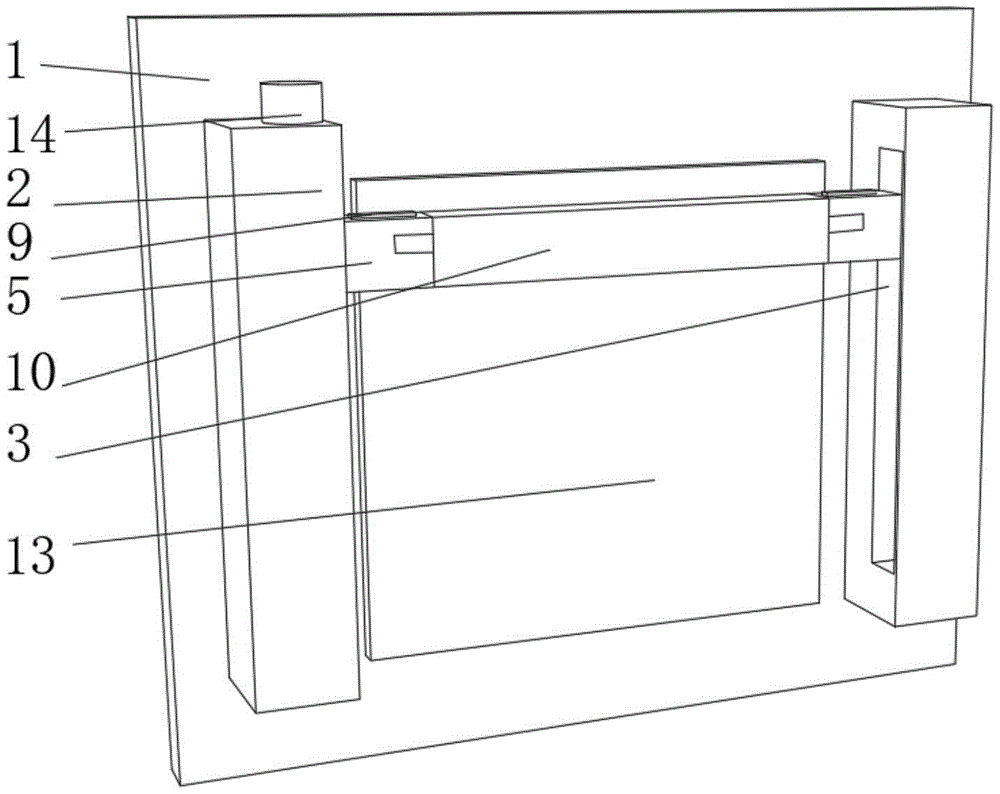

FIG. 1 is a perspective view of the overall construction of the present invention;

FIG. 2 is a front cross-sectional view of FIG. 1 of the present invention;

fig. 3 is an enlarged view of the structure of the portion a in fig. 2 according to the present invention.

In the figure: 1. a wall body; 2. a fixed mount; 3. a chute; 4. a slider; 5. a connecting seat; 6. a sleeve; 7. a slide bar; 8. a spring; 9. a limiting frame; 10. a brush; 11. connecting blocks; 12. a card slot; 13. a solar panel; 14. a motor; 15. connecting sleeves; 16. rotating the rod; 17. a bearing; 18. a guide rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-3, a wall structure for a photovoltaic building includes a wall 1, a fixing frame 2 is fixedly connected to the wall 1, a sliding slot 3 is formed in the fixing frame 2, a sliding block 4 is slidably connected to the inside of the sliding slot 3, a connecting seat 5 is fixedly connected to one end of the sliding block 4, the fixing frame 2 is in contact with the connecting seat 5, a sleeve 6 is fixedly connected to the connecting seat 5, a sliding rod 7 is slidably connected to the inside of the sleeve 6, a spring 8 is disposed on the outside of the sliding rod 7, a limiting frame 9 is fixedly connected to the upper end of the sliding rod 7, a brush 10 is in contact with one end of the connecting seat 5, a connecting block 11 is fixedly connected to the brush 10, a connecting block 11 is slidably connected to the inside of the connecting seat 5, a solar panel 13 is disposed on the wall 1, the solar panel 13 is in contact with the brush 10, the fixing frames 2 are two, a motor 14 is fixedly connected to one fixing frame 2, and the motor 14 is 68KTYZ in model, the motor 14 is a forward and reverse rotation motor, the output end of the motor 14 is rotatably connected with the fixed frame 2, the output end of the motor 14 is connected with a connecting sleeve 15 through a screw, the lower end of the connecting sleeve 15 is fixedly connected with a rotating rod 16, and the other fixed frame 2 is fixedly connected with a guide rod 18.

Referring to fig. 3, one end of the spring 8 is fixedly connected with the sliding rod 7, the other end of the spring 8 is fixedly connected with the sleeve 6, and the spring 8 drives the limiting frame 9 to fix the brush 10 through the design of the spring 8.

Referring to fig. 3, the limiting frame 9 contacts both the sleeve 6 and the connecting seat 5, the limiting frame 9 is slidably connected inside the connecting seat 5, and the brush 10 can be fixed on the connecting seat 5 by the design of the limiting frame 9.

Referring to fig. 3, a clamping groove 12 is formed on the connecting block 11, the limiting frame 9 is slidably connected inside the clamping groove 12, and the connecting block 11 can be limited by the design of the clamping groove 12 in cooperation with the limiting frame 9.

Referring to fig. 2, a bearing 17 is fixedly connected to the fixing frame 2, a rotating rod 16 is fixedly connected to the inside of the bearing 17, and the rotating rod 16 can be limited by the design of the bearing 17.

Referring to fig. 2, the number of the sliding blocks 4 is two, wherein a rotating rod 16 is connected to the inside of one sliding block 4 through a screw thread, and a guide rod 18 is connected to the inside of the other sliding block 4 in a sliding manner, so that the brush 10 can be driven to move through the design of the sliding blocks 4.

The specific implementation process of the utility model is as follows: during the use, through starter motor 14, motor 14 drives dwang 16 on the adapter sleeve 15 and rotates, make dwang 16 and slider 4 take place the screw motion, make slider 4 drive the brush 10 on the connecting seat 5 and remove, make brush 10 brush the deashing to solar panel 13 simultaneously, can effectually prevent to deposit the ash on the solar panel 13, when needs change brush 10, through to the direction pulling spacing 9 of keeping away from the connecting seat 5, make spacing 9 drive slide bar 7 and remove, make slide bar 7 extrude spring 8 simultaneously, make spacing 9 follow draw-in groove 12 on the connecting block 11 roll-off, can relieve the spacing to brush 10, through to the direction pulling brush 10 of keeping away from solar panel 13, can take off brush 10 from connecting seat 5 and change.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A wall structure for photovoltaic building, including wall body (1), its characterized in that: the wall body (1) is fixedly connected with a fixing frame (2), the fixing frame (2) is provided with a sliding groove (3), the sliding groove (3) is internally and slidably connected with a sliding block (4), one end of the sliding block (4) is fixedly connected with a connecting seat (5), the connecting seat (5) is contacted with the fixing frame (2), the connecting seat (5) is fixedly connected with a sleeve (6), the sleeve (6) is internally and slidably connected with a sliding rod (7), the outer side of the sliding rod (7) is provided with a spring (8), the upper end of the sliding rod (7) is fixedly connected with a limiting frame (9), one end of the connecting seat (5) is contacted with a brush (10), the brush (10) is fixedly connected with a connecting block (11), the connecting block (11) is slidably connected with the inner part of the connecting seat (5), and the wall body (1) is provided with a solar panel (13), solar panel (13) and brush (10) contact, the quantity of mount (2) is two, one of them fixedly connected with motor (14) on mount (2), the output and mount (2) of motor (14) rotate and are connected, there is adapter sleeve (15) at the output of motor (14) through the screw connection, the lower extreme fixedly connected with dwang (16) of adapter sleeve (15), another fixedly connected with guide bar (18) on mount (2).

2. The wall structure for photovoltaic buildings according to claim 1, characterized in that: one end of the spring (8) is fixedly connected with a sliding rod (7), and the other end of the spring (8) is fixedly connected with a sleeve (6).

3. The wall structure for photovoltaic buildings according to claim 1, characterized in that: spacing (9) and sleeve (6) and connecting seat (5) all contact, the inside sliding connection of connecting seat (5) has spacing (9).

4. The wall structure for photovoltaic buildings according to claim 1, characterized in that: the connecting block (11) is provided with a clamping groove (12), and the inside of the clamping groove (12) is connected with a limiting frame (9) in a sliding mode.

5. The wall structure for photovoltaic buildings according to claim 1, characterized in that: fixedly connected with bearing (17) on mount (2), the inside fixedly connected with dwang (16) of bearing (17).

6. The wall structure for photovoltaic buildings according to claim 1, characterized in that: the number of the sliding blocks (4) is two, one of the sliding blocks (4) is connected with a rotating rod (16) through threads, and the other sliding block (4) is connected with a guide rod (18) in a sliding mode.
