CN216075490U - Box culvert is with visual high pressure desilting device

Info

Publication number: CN216075490U
Application number: CN202122645758.9U
Authority: CN
Inventors: 方凯; 罗威; 夏浩; 邵博宏
Original assignee: Wuhan Chuyao Construction Engineering Co ltd
Current assignee: Wuhan Chuyao Construction Engineering Co ltd
Priority date: 2021-11-01
Filing date: 2021-11-01
Publication date: 2022-03-18
Anticipated expiration: 2031-11-01

Abstract

The utility model discloses a visual high-pressure dredging device for a box culvert, which comprises a box culvert. A chute is arranged at the upper end of the box culvert, a sliding frame is slidably arranged in the chute, and a rotating inside the chute is provided with a chute. The moving screw is connected with the carriage by screw threads. The box culvert is slidably provided with a dredging device body. The dredging device body and the carriage can be detachably fixed. The dredging device body includes a mobile trolley. The mobile trolley is fixed with a fixed plate. When the utility model is in use, the main body of the dredging device and the carriage are fixedly connected, the carriage is driven to slide by rotating the moving screw, the mobile trolley is driven to move by the sliding of the carriage, and the movement of the mobile trolley drives the high pressure The water pipe is moved to perform high pressure flushing on the silt at the bottom of the box culvert, and the dredging situation of the silt at the bottom of the box culvert can be observed through the setting of the camera.

Description

Box culvert is with visual high pressure desilting device

Technical Field

The utility model relates to the field of box culvert dredging, in particular to a visual high-pressure dredging device for a box culvert.

Background

The box culvert refers to a culvert built by reinforced concrete box pipe joints. The box culvert is made of one or more square or rectangular sections, typically of reinforced concrete or masonry.

The box culvert diameter that has among the prior art is smaller, and the inconvenient entering of staff in the desilting for the silt of box culvert bottom is difficult to obtain the clearance, and because inside workman personnel can't get into the box culvert, makes workman personnel be not convenient for observe the inside desilting condition of box culvert, for this reason, we provide a box culvert and use visual high pressure desilting device to be used for solving above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

The utility model aims to overcome the defects in the prior art and provides a visual high-pressure dredging device for box culvert, which aims to realize the aim.

The utility model provides the following technical scheme: the utility model provides a box culvert is with visual high-pressure desilting device, includes the box culvert, the upper end of box culvert is equipped with the spout, it is equipped with the balladeur train to slide in the spout, the spout internal rotation is equipped with the removal screw rod, removal screw rod and balladeur train threaded connection, it is equipped with the desilting device body to slide in the box culvert, desilting device body and balladeur train can be dismantled fixedly, the desilting device body includes the travelling car, the travelling car is fixed with the fixed plate, the fixed plate is fixed with high-pressure water pipe and camera, the fixed plate is fixed with the protection casing, the camera sets up in the protection casing, the surface slip of protection casing is equipped with the cleaning brush.

Preferably, the bilateral symmetry on protection casing surface is equipped with the slide rail, the slide rail rotates and is equipped with the screw rod, screw rod and cleaning brush threaded connection, the protection casing is fixed with the motor, the output shaft of motor and the one end fixed connection of screw rod.

Preferably, a storage battery is fixed on the movable trolley and is electrically connected with the motor.

Preferably, a stud is fixed on the sliding frame, a fixing hole penetrates through the fixing plate, and the stud penetrates through the fixing hole and is in threaded connection with a nut.

Compared with the prior art, the utility model has the beneficial effects that:

1. when the box culvert dredging device is used, the body of the dredging device is fixedly connected with the sliding frame, the sliding frame is driven to slide by rotating the movable screw rod, the movable trolley is driven to move by sliding the sliding frame, the movable trolley moves to drive the high-pressure water pipe to move, high-pressure washing is carried out on sludge at the bottom of the box culvert, and the dredging condition of the sludge at the bottom of the box culvert is observed by arranging the camera;

2. according to the box culvert, the camera is protected through the protective cover, the cleaning screw is driven to rotate through the motor, the cleaning screw drives the cleaning brush to slide, the cleaning brush slides and cleans sludge on the surface of the protective cover, and the dredging condition inside the box culvert is conveniently observed through the camera.

Drawings

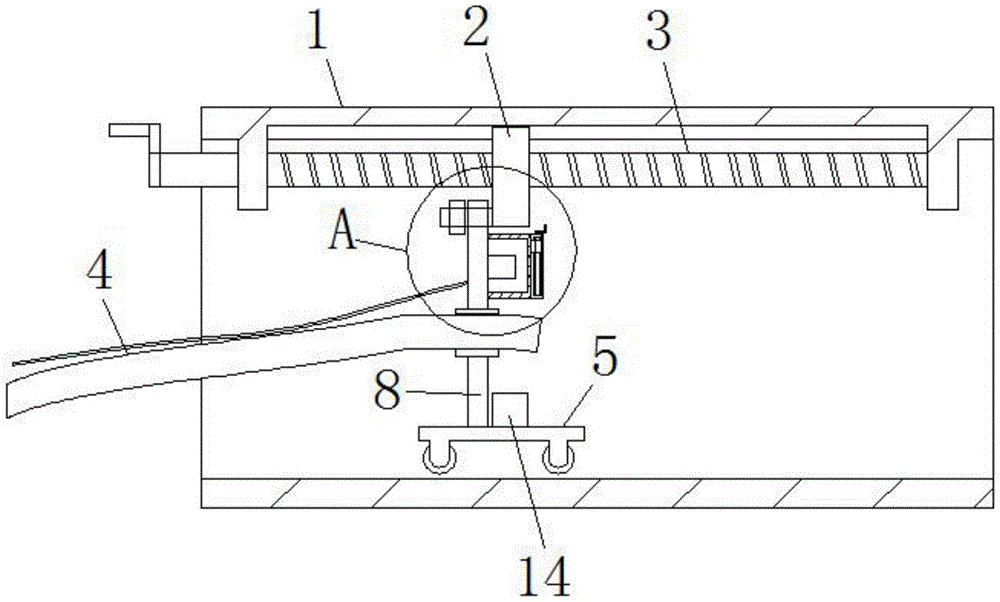

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is an enlarged view of the structure at A in FIG. 1 according to the present invention;

FIG. 3 is a schematic view of a cleaning brush mounting structure according to the present invention.

In the figure: the device comprises a box culvert 1, a sliding frame 2, a movable screw rod 3, a high-pressure water pipe 4, a movable trolley 5, a stud 6, a protective cover 7, a fixed plate 8, a camera 9, a slide rail 10, a cleaning screw rod 11, a cleaning brush 12, a motor 13 and a storage battery 14.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a visual high-pressure dredging device for a box culvert comprises a box culvert 1, a chute is arranged at the upper end of the box culvert 1, a sliding frame 2 is arranged in the chute in a sliding manner, a moving screw 3 is arranged in the chute in a rotating manner, the moving screw 3 is in threaded connection with the sliding frame 2, a dredging device body is arranged in the box culvert 1 in a sliding manner, the dredging device body and the sliding frame 2 can be fixed in a detachable manner, the dredging device body comprises a moving trolley 5, a fixed plate 8 is fixed on the moving trolley 5, a high-pressure water pipe 4 and a camera 9 are fixed on the fixed plate 8, the pipe orifice of the high-pressure water pipe 4 inclines downwards, a protective cover 7 is fixed on the fixed plate 8, the camera 9 is arranged in the protective cover 7, a cleaning brush 12 is arranged on the surface of the protective cover 7 in a sliding manner, when the visual high-pressure dredging device body is used, the sliding frame 2 is driven to slide by rotating the moving screw 3, the moving trolley 5 is driven to move by the sliding of the sliding frame 2, the travelling car 5 moves to drive the high-pressure water pipe 4 to move, carries out high-pressure washing to the silt of box culvert 1 bottom, through the setting of camera 9, observes the desilting condition of box culvert 1 bottom silt, through the setting of protection casing 7, protects camera 9.

As a technical optimization scheme of the utility model, slide rails 10 are symmetrically arranged on two sides of the surface of the protective cover 7, a cleaning screw 11 is rotatably arranged on each slide rail 10, the cleaning screw 11 is in threaded connection with a cleaning brush 12, a motor 13 is fixed on the protective cover 7, an output shaft of the motor 13 is fixedly connected with one end of the cleaning screw 11, the cleaning screw 11 is driven to rotate by the motor 13, the cleaning brush 12 is driven to slide by the cleaning screw 11, the cleaning brush 12 is used for wiping sludge on the surface of the protective cover 7 in a sliding manner, and the inside dredging condition of the box culvert 1 can be conveniently observed by the camera 9.

As a technical optimization scheme of the utility model, the mobile trolley 5 is fixedly provided with the storage battery 8, and the storage battery 8 is electrically connected with the motor 13.

As a technical optimization scheme of the utility model, a stud 6 is fixed on a sliding frame 2, a fixing hole is arranged in a penetrating way of a fixing plate 8, the stud 6 penetrates through the fixing hole and is in threaded connection with a nut, when a dredging device body is installed, a moving trolley 5 is pushed into a box culvert 1, the stud 6 penetrates through the fixing hole of the fixing plate 8, and then the nut is in threaded connection with the head of the stud 6 for fixing.

The working principle is as follows: when the box culvert dredging device is used, the dredging device body is fixedly connected with the sliding frame 2, the sliding frame 2 is driven to slide by rotating the movable screw rod 3, the movable trolley 5 is driven to move by sliding the sliding frame 2, the movable trolley 5 is driven to move to drive the high-pressure water pipe 4 to move, sludge at the bottom of the box culvert 1 is washed at high pressure, the dredging condition of the sludge at the bottom of the box culvert 1 is observed by arranging the camera 9, the camera 9 is protected by arranging the protective cover 7, the cleaning screw rod 11 is driven to rotate by the motor 13, the cleaning screw rod 11 drives the cleaning brush 12 to slide, the cleaning brush 12 slides and cleans sludge on the surface of the protective cover 7, and the dredging condition inside the box culvert 1 is conveniently observed by the camera 9.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A visual high-pressure dredging device for a box culvert, comprising a box culvert (1), characterized in that: the upper end of the box culvert (1) is provided with a chute, and a sliding frame (2) is slidably provided in the chute. ), a moving screw (3) is rotated in the chute, the moving screw (3) and the carriage (2) are threadedly connected, the box culvert (1) is slidably provided with a dredging device body, and the The dredging device body and the carriage (2) are detachable and fixed, the dredging device body includes a mobile trolley (5), the mobile trolley (5) is fixed with a fixed plate (8), and the fixed plate (8) is fixed There is a high-pressure water pipe (4) and a camera (9), a protective cover (7) is fixed on the fixing plate (8), the camera (9) is arranged in the protective cover (7), and the protective cover (7) is The surface sliding is provided with a cleaning brush (12).

2. A visual high-pressure dredging device for a box culvert according to claim 1, characterized in that: two sides of the surface of the protective cover (7) are symmetrically provided with sliding rails (10), and the sliding rails (10) ) rotation is provided with a screw (11), the screw (11) and the cleaning brush (12) are screwed together, the protective cover (7) is fixed with a motor (13), the output shaft of the motor (13) and the screw (13) One end of 11) is fixedly connected.

3. A visual high-pressure dredging device for box culverts according to claim 2, characterized in that: the mobile trolley (5) is fixed with a battery (14), and the battery (14) and the motor (13) are electrically connected to each other. connect.

4. A visual high-pressure dredging device for box culverts according to claim 1, characterized in that: a stud (6) is fixed on the sliding frame (2), and the fixing plate (8) is provided with A fixing hole, the stud (6) penetrates the fixing hole and is threadedly connected with a nut.
