Abstract
本实用新型公开了一种改进的电源线，包括收线盒，所述收线盒内底壁的中部固定连接有活动套，所述活动套的中部活动连接有转轴，所述转轴的中部设置有绕线架，所述转轴的上部设置有盒盖，所述盒盖的上表面活动连接有转盘，本实用新型的一种改进的电源线，通过收线盒、活动套、转轴、绕线架、盒盖和转盘的设置，可以把电源线本体缠绕在绕线架上，然后整体放置在收线盒内，使用时可以通过外拉插头和插尾，从而拉动转轴和绕线架转动，进而拉出所需长度的电源线本体，当不使用时，通过转动转盘带动转轴和绕线架转动，从而达到对电源线本体的缠绕，这样设置方便调节电源线位置，避免电源线落地，使电源线排线美观，提高安全性能。
The utility model discloses an improved power cord, comprising a wire take-up box, a movable sleeve is fixedly connected to the middle part of the inner bottom wall of the wire take-up box, the middle part of the movable sleeve is movably connected with a rotating shaft, and the middle of the rotating shaft is arranged There is a winding frame, the upper part of the rotating shaft is provided with a box cover, and the upper surface of the box cover is movably connected with a turntable. The setting of the rack, the box cover and the turntable, the power cord body can be wound on the winding rack, and then placed in the winding box as a whole. When in use, the shaft and the winding rack can be pulled to rotate by pulling the plug and the plug tail. Then pull out the power cord body of the required length. When not in use, turn the turntable to drive the rotating shaft and the reel to rotate, so as to achieve the winding of the power cord body. This setting is convenient for adjusting the position of the power cord, preventing the power cord from falling to the ground. The power cord is beautiful and the safety performance is improved.
Description
Technical Field
The utility model relates to the technical field of power lines, in particular to an improved power line.
Background
The power line is a wire that transmits current. The usual way of current transfer is point-to-point transfer. The power line can be divided into an AC power line and a DC power line according to the purpose, generally, the AC power line is a wire rod passing through AC with higher voltage, and the wire rod needs to be unified standard due to higher voltage so as to obtain a safety certification party and can be formally produced. The DC line passes through a direct current with a low voltage basically, so that the requirement on safety is not strict as that of an AC line, but for safety, unified safety certification is required in all countries.
The existing power line has the problem of disordered flat cables, the attractiveness is influenced, a person easily trips over the power line on the ground, potential safety hazards exist, the installation and the disassembly of parts such as a plug and a plug tail are troublesome, great inconvenience is brought to maintenance personnel, and the practicability is poor.
SUMMERY OF THE UTILITY MODEL
The main object of the present invention is to provide an improved power cord, which can effectively solve the problems of the background art.
In order to achieve the purpose, the utility model adopts the technical scheme that:
the utility model provides a modified power cord, includes the receipts line box, the middle part fixedly connected with movable sleeve of receipts line box interior diapire, the middle part swing joint of movable sleeve has the pivot, the middle part of pivot is provided with the spool, the upper portion of pivot is provided with the lid, the upper surface swing joint of lid has the carousel, the middle part winding of spool has the power cord body, the equal fixedly connected with adapter sleeve in both ends of power cord body, the inside threaded connection of adapter sleeve has the fixing base, the quantity of fixing base is two, one of them there is the plug, another one at the middle part of fixing base through the screw connection there is the tail of inserting at the middle part of fixing base through the screw connection.
In order to enable the clamping of the power line body to be more convenient, the lower part of the winding frame is provided with four wire clamping blocks as an improved power line.
In order to keep the inside of the wire winding box dry and insulated, as an improved power line of the utility model, a drying block is arranged on the inner bottom wall of the wire winding box, and an insulating sleeve is arranged on the inner wall of the wire winding box.
In order to enable the power line body to be more convenient to receive and release, through grooves are formed in the left side and the right side of the wire collecting box and the inner wall of the insulating sleeve, and anti-skidding sleeves are arranged on the left side and the right side of the wire collecting box.
In order to enable the box cover to be mounted and dismounted more conveniently, as an improved power line, the upper surface of the wire winding box is provided with a mounting groove, the inner wall of the mounting groove is provided with a clamping groove, and the lower surface of the box cover is fixedly connected with a clamping block.
In order to enable the fixation of the box cover to be more stable, as an improved power cord, the inner wall of the installation groove is fixedly connected with a metal spring, and one side of the metal spring is fixedly connected with a top block.
In order to enable the placement of equipment to be safer and more stable, the lower surface of the wire collecting box is fixedly connected with anti-skid feet, and the outer walls of the anti-skid feet are provided with buffer springs.
In order to provide convenience for users, as an improved power cord of the utility model, a handle is fixedly connected to the upper surface of the turntable, and anti-skid particles are arranged on the outer surface of the handle.
Compared with the prior art, the utility model has the following beneficial effects:
1. in the utility model, the power line body can be wound on the winding frame through the arrangement of the take-up box, the movable sleeve, the rotating shaft, the winding frame, the box cover and the rotating disc, then the power line body is integrally placed in the take-up box, when in use, the rotating shaft and the winding frame can be pulled to rotate by pulling the plug and the tail out, and further the power line body with the required length is pulled out, when not in use, the rotating disc is rotated to drive the rotating shaft and the winding frame to rotate, thereby the winding of the power line body is achieved, the arrangement is convenient for adjusting the position of the power line, the power line is prevented from falling to the ground, the wire arrangement of the power line is beautiful, the safety performance is improved, the installation and the disassembly of the plug and the tail are convenient through the arrangement of the connecting sleeve and the fixing base, the maintenance, the replacement is convenient, the practicability of the equipment is improved, and the four wire clamping blocks are distributed in an annular shape through the arrangement of the wire clamping blocks, so that the clamping of the power line body is more convenient, through the setting of dry piece and insulating boot, can keep receiving the inside dry of line box insulating, avoid equipment internals impaired.
2. According to the utility model, through the arrangement of the through groove and the anti-skidding sleeve, the power line body can be more conveniently folded and unfolded, the abrasion of the outer surface of the power line body is avoided, through the arrangement of the mounting groove, the clamping groove and the clamping block, the clamping block is mounted in the mounting groove, meanwhile, the clamping groove is clamped in the clamping groove, the mounting and dismounting of the box cover are more convenient and safe, through the arrangement of the metal spring and the jacking block, the clamping block can be tightly jacked by the aid of the matched jacking block, the fixing of the box cover is more stable, through the arrangement of the anti-skidding ground feet and the buffer spring, the elasticity of the buffer spring is utilized, certain buffering protection can be provided for equipment by the matched anti-skidding ground feet, and the placement of the equipment is safer and more stable.
Drawings

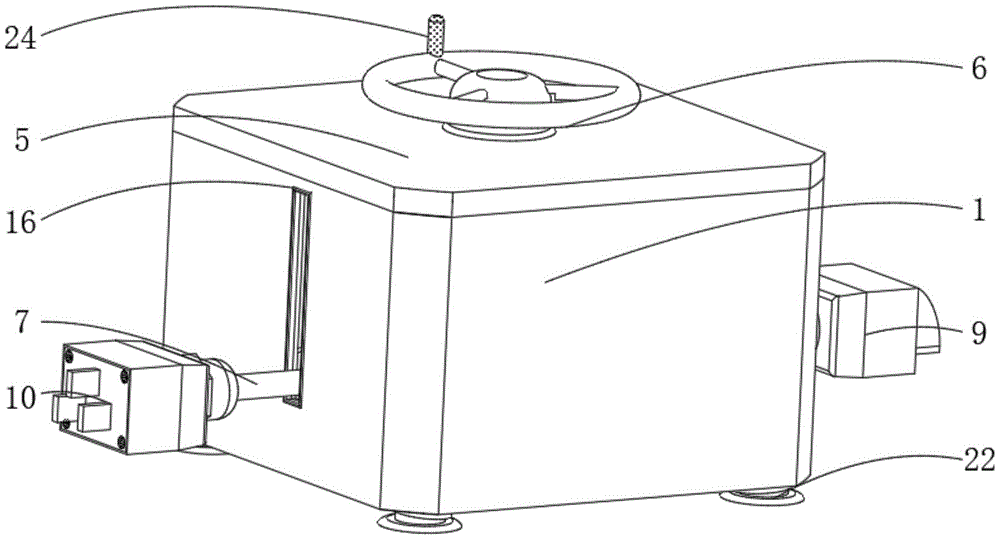

Fig. 1 is a schematic structural diagram of an improved power line according to embodiment 1 of the present invention;
fig. 2 is a schematic structural diagram of an improved wire rewinding box in a power line according to embodiment 1 of the present invention;
fig. 3 is a schematic structural diagram of a bobbin in an improved power cord according to embodiment 1 of the present invention;
fig. 4 is an enlarged schematic diagram of a power line diagram 2 according to an embodiment 1 of the present invention;
fig. 5 is a schematic structural view of a handle in embodiment 2 of the present invention.
Reference numerals: 1. a wire rewinding box; 2. a movable sleeve; 3. a rotating shaft; 4. a bobbin; 5. a box cover; 6. a turntable; 7. a power line body; 8. connecting sleeves; 9. a fixed seat; 10. a plug; 11. inserting a tail; 12. a wire clamping block; 13. drying the blocks; 14. an insulating sleeve; 15. a through groove; 16. an anti-slip sleeve; 17. mounting grooves; 18. a card slot; 19. a clamping block; 20. a metal spring; 21. a top block; 22. anti-skid ground feet; 23. a buffer spring; 24. a handle.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example 1
As shown in fig. 1-5, an improved power cord, including receiving wire box 1, receive wire box 1 internal bottom wall's middle part fixedly connected with movable sleeve 2, movable sleeve 2's middle part swing joint has pivot 3, the middle part of pivot 3 is provided with spool 4, the upper portion of pivot 3 is provided with lid 5, lid 5's upper surface swing joint has carousel 6, spool 4's middle part winding has power cord body 7, the equal fixedly connected with adapter sleeve 8 in both ends of power cord body 7, adapter sleeve 8's inside threaded connection has fixing base 9, fixing base 9's quantity is two, there is plug 10 at one of them fixing base 9's middle part through screw connection, there is tail 11 at the middle part of another one fixing base 9 through screw connection.
When specifically using, through receiving line box 1, the movable sleeve 2, pivot 3, bobbin 4, the setting of lid 5 and carousel 6, can twine power cord body 7 on bobbin 4, then wholly place in receiving line box 1, can be through outer plug 10 and tail 11 of inserting during the use, thereby pulling pivot 3 and bobbin 4 and rotating, and then pull out the power cord body 7 of required length, when not using, drive pivot 3 and bobbin 4 through rotating carousel 6 and rotate, thereby reach the winding to power cord body 7, it conveniently adjusts the power cord position to set up like this, avoid the power cord to fall to the ground, make the power cord winding displacement pleasing to the eye, the security performance is improved, through the setting of adapter sleeve 8 and fixing base 9, can make things convenient for plug 10 and tail 11's installation dismantlement, be convenient for maintain, overhaul and change, the improvement equipment practicality.
In the present embodiment, the lower portion of the bobbin 4 is provided with the wire clamping blocks 12, and the number of the wire clamping blocks 12 is four.
During the specific use, through the setting of card line piece 12, four card line pieces 12 are the annular and distribute, can make the joint of power cord body 7 more convenient.
In this embodiment, the inner bottom wall of the take-up box 1 is provided with a drying block 13, and the inner wall of the take-up box 1 is provided with an insulating sleeve 14.
During the specific use, through the setting of dry piece 13 and insulating cover 14, can keep receiving the inside dry of line box 1 insulating, avoid equipment internals impaired.
In this embodiment, logical groove 15 has all been seted up to the left and right sides of receiving wire box 1 and the inner wall of insulating cover 14, and the left and right sides of receiving wire box 1 all is provided with anti-skidding cover 16.
When the power cord is used specifically, the through groove 15 and the anti-skidding sleeve 16 are arranged, so that the power cord body 7 can be more conveniently folded and unfolded, and the abrasion of the outer surface of the power cord body is avoided.
In this embodiment, the upper surface of the wire winding box 1 is provided with a mounting groove 17, the inner wall of the mounting groove 17 is provided with a clamping groove 18, and the lower surface of the box cover 5 is fixedly connected with a clamping block 19.
During the specific use, through the setting of mounting groove 17, draw-in groove 18 and fixture block 19, fixture block 19 is installed in mounting groove 17, and the joint makes the installation of lid 5 dismantle convenient safety more in draw-in groove 18 simultaneously.
In this embodiment, a metal spring 20 is fixedly connected to an inner wall of the mounting groove 17, and a top block 21 is fixedly connected to one side of the metal spring 20.
When the box cover is used specifically, the metal spring 20 and the ejector block 21 are arranged, the elasticity of the metal spring 20 is utilized, the ejector block 21 is matched to tightly push the fixture block 19, and the box cover 5 is fixed more stably.
In this embodiment, the lower surface of the take-up box 1 is fixedly connected with anti-slip feet 22, and the outer wall of the anti-slip feet 22 is provided with a buffer spring 23.
When specifically using, through antiskid lower margin 22 and buffer spring 23's setting, application buffer spring 23's elasticity, cooperation antiskid lower margin 22 can provide certain buffer protection for equipment, makes placing of equipment safe and stable more.
The working principle is as follows: when the wire winding box is used, the power wire body 7 is wound on the winding frame 4 and then is integrally placed in the wire winding box 1, when the wire winding box is used, the rotating shaft 3 and the winding frame 4 can be pulled to rotate by pulling the plug 10 and the inserting tail 11 outwards, so that the power wire body 7 with the required length is pulled out, when the wire winding box is not used, the rotating shaft 3 and the winding frame 4 are driven to rotate by rotating the rotating disc 6, so that the winding of the power wire body 7 is achieved, the position of the power wire is convenient to adjust, the power wire is prevented from falling to the ground, the wire arrangement of the power wire is attractive, the safety performance is improved, the connecting sleeve 8 and the fixing seat 9 are matched for use, the installation and the disassembly of the plug 10 and the inserting tail 11 can be convenient, the maintenance, the replacement is convenient, the practicability of equipment is improved, the four wire clamping blocks 12 are distributed annularly, the clamping of the power wire body 7 can be more convenient, and the drying blocks 13 and the insulating sleeve 14 can keep the inside of the wire winding box 1 dry and insulated, the damage of internal parts of the equipment is avoided; the antiskid cover 16 can make the power cord body 7 more convenient when receiving and releasing, avoids causing its surface wearing and tearing, and fixture block 19 installs in mounting groove 17, and the joint is in draw-in groove 18 simultaneously, makes the installation and dismantlement of lid 5 more convenient safety, and application metal spring 20's elasticity, cooperation kicking block 21 can push up fixture block 19, makes the fixed of lid 5 more firm.
Example 2
As shown in fig. 5, the distinguishing features of this embodiment that distinguish embodiment 1 are: specifically, the upper surface of the rotating disc 6 is fixedly connected with a handle 24, and the outer surface of the handle 24 is provided with anti-skid particles.
When the novel anti-skidding rotary table is used specifically, the anti-skidding particles are arranged on the outer surface of the handle 24 through the handle 24, so that the contact friction can be increased when a user rotates the rotary table 6, the hand skidding is avoided, and convenience is brought to the user.
The foregoing shows and describes the general principles and broad features of the present invention and advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the utility model as claimed. The scope of the utility model is defined by the appended claims and equivalents thereof.
Claims (8)
1. The utility model provides an improved power cord, includes take-up box (1), its characterized in that: the middle part fixedly connected with movable sleeve (2) of diapire in the box of receiving (1), the middle part swing joint of movable sleeve (2) has pivot (3), the middle part of pivot (3) is provided with bobbin (4), the upper portion of pivot (3) is provided with lid (5), the upper surface swing joint of lid (5) has carousel (6), the middle part winding of bobbin (4) has power cord body (7), the equal fixedly connected with adapter sleeve (8) in both ends of power cord body (7), the inside threaded connection of adapter sleeve (8) has fixing base (9), the quantity of fixing base (9) is two, one of them there is plug (10) at the middle part of fixing base (9) through the screw connection, another one there is tail (11) of inserting at the middle part of fixing base (9) through the screw connection.
2. An improved power cord as claimed in claim 1, wherein: the lower part of the winding frame (4) is provided with four wire clamping blocks (12), and the number of the wire clamping blocks (12) is four.
3. An improved power cord as claimed in claim 1, wherein: the inner bottom wall of the wire winding box (1) is provided with a drying block (13), and the inner wall of the wire winding box (1) is provided with an insulating sleeve (14).
4. An improved power cord as claimed in claim 3, wherein: the wire winding box is characterized in that through grooves (15) are formed in the left side and the right side of the wire winding box (1) and the inner wall of the insulating sleeve (14), and anti-skidding sleeves (16) are arranged on the left side and the right side of the wire winding box (1).
5. An improved power cord as claimed in claim 1, wherein: the upper surface of the wire winding box (1) is provided with a mounting groove (17), the inner wall of the mounting groove (17) is provided with a clamping groove (18), and the lower surface of the box cover (5) is fixedly connected with a clamping block (19).
6. An improved power cord as claimed in claim 5, wherein: the inner wall fixedly connected with metal spring (20) of mounting groove (17), one side fixedly connected with kicking block (21) of metal spring (20).
7. An improved power cord as claimed in claim 1, wherein: the lower surface of the take-up box (1) is fixedly connected with anti-skidding ground feet (22), and the outer walls of the anti-skidding ground feet (22) are provided with buffer springs (23).
8. An improved power cord as claimed in claim 1, wherein: the upper surface of carousel (6) is fixedly connected with handle (24), the surface of handle (24) is provided with anti-skidding granule.
