Abstract

一种采用陶瓷基板封装的芯片，包括陶瓷基电路板，陶瓷基电路板由线路层和陶瓷基层组成，在陶瓷基电路板的线路层上，布设有晶圆衬底焊盘；还包括晶圆，晶圆固定于晶圆衬底焊盘上，在晶圆上布设有两个或多于两个的一组焊盘；还包括两个或多于两个的一组U形金属管脚，两个或多于两个的一组U形金属管脚将陶瓷基电路板夹于U形槽内，固定于陶瓷基电路板上；晶圆上的两个或多于两个的一组输入输出焊盘通过邦定导线与两个或多于两个的一组U形金属管脚对应导通连接。采用陶瓷基电路板作为芯片封装的基板，保证了基板的导热能力；而且陶瓷基层有很好的绝缘性；采用U形金属管脚，可以方便地增大截面积来增大芯片的载流能力。

Figure 202122511871

A chip packaged with a ceramic substrate includes a ceramic base circuit board, the ceramic base circuit board is composed of a circuit layer and a ceramic base layer, and wafer substrate pads are arranged on the circuit layer of the ceramic base circuit board; it also includes a wafer , the wafer is fixed on the pads of the wafer substrate, and two or more than two sets of pads are arranged on the wafer; it also includes two or more than two sets of U-shaped metal pins, A group of two or more U-shaped metal pins clamps the ceramic base circuit board in the U-shaped groove and is fixed on the ceramic base circuit board; a group of two or more than two inputs on the wafer The output pad is conductively connected with two or more than two groups of U-shaped metal pins through bonding wires. The ceramic base circuit board is used as the substrate of the chip package to ensure the thermal conductivity of the substrate; and the ceramic base layer has good insulation; the use of U-shaped metal pins can easily increase the cross-sectional area to increase the current-carrying capacity of the chip .

Figure 202122511871

Description

Chip packaged by ceramic substrate
Technical Field
The utility model relates to a chip packaging structure. By reconstructing the packaging structure of the chip, better chip performance is realized.
Background
A large number of chips are required to be used in electronic products. The chip is a product obtained by packaging the wafer.
Chip packaging, namely, a contact pad on a wafer is connected and led to an external joint by a lead so as to be connected with other devices; and pouring glue, sealing and forming. The wafer packaging structure not only plays the roles of mounting, fixing, sealing and protecting the wafer, but also is connected to pins of the packaging shell through the contact pads on the wafer by leads, and the pins are connected with other devices through leads on the printed circuit board, so that the connection of an internal chip and an external circuit is realized. Since the wafer must be isolated from the outside to prevent the electrical performance degradation caused by the corrosion of the chip circuit by the impurities in the air.
In chip packaging, a bonding pad on a wafer is connected with an external bonding pad or a chip pin by a wire, and the packaging industry is called bonding; bonding is a term well known to practitioners; originating from the english binding word.
The ceramic-based circuit board is a special process board in which copper foil is directly bonded to the surface of a ceramic substrate at high temperature. The prepared composite substrate has excellent electrical insulation performance and high heat conduction characteristic. Comprises a ceramic substrate and a circuit layer.
In the existing packaging structure, most of pins are in the chip, and because the volume of the chip is limited and the process requirements for the operation of the pins are caused, the thickness and the width of the pins are limited, which directly causes the output current capability of the chip to be influenced; the encapsulation of the chip limits the heat dissipation capability of the chip itself, which results in limited chip performance and power. Especially for some power chips, it is critical to improve heat dissipation and current carrying capabilities.
Disclosure of Invention
Aiming at the problems, the utility model aims to provide a chip packaged by a ceramic substrate, wherein a ceramic-based circuit board is used as the substrate to increase the current carrying capacity of the chip; and the heat dissipation capability of the chip can be increased, thereby increasing the performance and efficiency of the chip.
In order to realize the technical purpose, the scheme of the utility model is as follows: a chip packaged by a ceramic substrate comprises a ceramic-based circuit board, wherein the ceramic-based circuit board consists of a circuit layer and a ceramic base layer, and a wafer substrate bonding pad is distributed on the circuit layer of the ceramic-based circuit board; the wafer is fixed on the wafer substrate bonding pad, and two or more than two groups of bonding pads are distributed on the wafer; the ceramic-based circuit board is clamped in the U-shaped groove by the two or more than two groups of U-shaped metal pins and fixed on the ceramic-based circuit board; and two or more groups of bonding pads on the wafer are correspondingly connected with two or more groups of U-shaped metal pins in a conductive way through bonding wires.
Preferably, the ceramic-based circuit board adopts a two-layer ceramic-based circuit board, the two-layer ceramic-based circuit board is composed of a top layer circuit layer, a ceramic base layer and a bottom layer circuit layer, and a heat dissipation copper foil is arranged on the bottom layer circuit layer.
The beneficial effects of this technical scheme are: mature technology can be used, and the capability of inputting and outputting current of the chip is greatly improved; the heat dissipation capability of the chip is increased.
Drawings

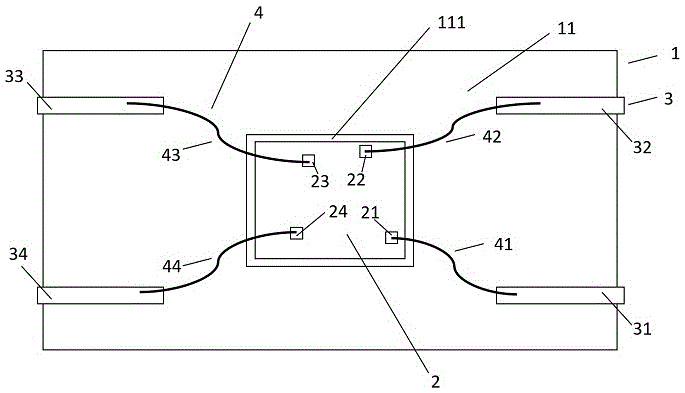

Fig. 1 is a schematic top view of a chip according to a first embodiment of the utility model.
Fig. 2 is a schematic side cross-sectional view of a chip according to a first embodiment of the utility model.
FIG. 3 is a schematic view of a U-shaped metal pin according to the present invention.
FIG. 4 is a schematic diagram of a two-layer ceramic based circuit board of the present invention.
Fig. 5 is a schematic side cross-sectional view of a chip according to a second embodiment of the utility model.
Fig. 6 is a bottom view of a chip according to a second embodiment of the utility model.
Detailed Description
The utility model is described in further detail below with reference to the figures and specific embodiments.
As shown in fig. 1, a chip packaged by a ceramic substrate includes a ceramic-based circuit board 1, where the ceramic-based circuit board 1 is composed of a circuit layer 11 and a ceramic base layer 12, and a wafer substrate pad 111 is disposed on the circuit layer 11 of the ceramic-based circuit board; the wafer 2 is fixed on a wafer substrate bonding pad 111, and two or more than two groups of bonding pads are distributed on the wafer 2, including a wafer bonding pad 21, a wafer bonding pad 22, a wafer bonding pad 23 and a wafer bonding pad 24; the ceramic base circuit board is characterized by also comprising two or more than two groups of U-shaped metal pins 3, wherein the two or more than two groups of U-shaped metal pins 3 comprise U-shaped metal pins 31, U-shaped metal pins 32, U-shaped metal pins 33 and U-shaped metal pins 34, and the ceramic base circuit board 1 is clamped in the U-shaped groove and fixed on the ceramic base circuit board 1 by the two or more than two groups of U-shaped metal pins 3; two or more than two groups of bonding pads on the wafer 2 are correspondingly connected with two or more than two groups of U-shaped metal pins 3 in a conductive manner through bonding wires 4, and the wafer bonding pad 21 is connected with one group of U-shaped metal pins 31 in a conductive manner through bonding wires 41.
And (5) performing glue pouring and sealing on the wafer 2 and the bonding wire 4 to obtain a chip finished product.
Fig. 2 is a schematic side cross-sectional view of a chip according to a first embodiment of the utility model.
The wafer 2 is fixed on a wafer substrate bonding pad 111 arranged on a circuit layer 11 of the ceramic-based circuit board 1, and is correspondingly connected with two or more than two groups of U-shaped metal pins 3 in a conducting manner through bonding wires 4.
Fig. 3 is a schematic view of a U-shaped metal pin according to the present invention. Because the U-shaped metal pins 3 are externally arranged on the side surface of the chip substrate, the sectional area of the U-shaped metal pins can be conveniently increased according to the current-carrying requirement of the chip, and the current-carrying capacity of the chip is increased. In addition, two or more than two U-shaped metal pins also have high heat-conducting property, and heat generated by the work of the wafer can be directly conducted to the two or more than two U-shaped metal pins through bonding wires, so that the heat dissipation capacity of the chip is improved.
FIG. 4 is a schematic diagram of a two-layer ceramic-based circuit board according to the present invention. The two-layer ceramic-based circuit board 1 is composed of a top layer circuit layer 11, a ceramic base layer 12 and a bottom layer circuit layer 13.
Fig. 5 is a schematic side cross-sectional view of a chip according to a second embodiment of the utility model. The chip substrate is a two-layer ceramic-based circuit board, a wafer substrate bonding pad 111 is arranged on a top layer circuit layer of the two-layer ceramic-based circuit board, and the wafer 2 is fixed on the wafer substrate bonding pad 111; the heat dissipation copper foil 131 is arranged on the bottom layer circuit layer of the two ceramic-based circuit boards, the copper foil can improve the heat dissipation capacity, when the chip is applied to an electronic product, the heat dissipation copper foil 131 can be welded on the circuit board of the electronic product, the chip conducts heat to the circuit board of the electronic product through the heat dissipation copper foil 131, the heat dissipation capacity is further enhanced, and therefore the performance and the power of the chip are improved.
Fig. 6 is a bottom view of a chip according to a second embodiment of the utility model. The whole radiating copper foil 131 is arranged on the bottom layer circuit layer of the two ceramic-based circuit boards.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention, and any minor modifications, equivalent replacements and improvements made to the above embodiment according to the technical spirit of the present invention should be included in the protection scope of the technical solution of the present invention.

Claims (2)

1.一种采用陶瓷基板封装的芯片，其特征在于：包括陶瓷基电路板，陶瓷基电路板由线路层和陶瓷基层组成，在陶瓷基电路板的线路层上，布设有晶圆衬底焊盘；还包括晶圆，晶圆固定于晶圆衬底焊盘上，在晶圆上布设有两个或多于两个的一组焊盘；还包括两个或多于两个的一组U形金属管脚，两个或多于两个的一组U形金属管脚将陶瓷基电路板夹于U形槽内，固定于陶瓷基电路板上；晶圆上的两个或多于两个的一组焊盘通过邦定导线与两个或多于两个的一组U形金属管脚对应导通连接。1. a chip that adopts ceramic substrate encapsulation is characterized in that: comprise ceramic base circuit board, ceramic base circuit board is made up of circuit layer and ceramic base layer, on the circuit layer of ceramic base circuit board, is arranged with wafer substrate welding Disc; also includes a wafer, the wafer is fixed on the wafer substrate pads, and a group of two or more than two pads are arranged on the wafer; also includes a group of two or more than two U-shaped metal pins, a group of two or more U-shaped metal pins clamp the ceramic base circuit board in the U-shaped groove and fix it on the ceramic base circuit board; two or more on the wafer A group of two pads is connected with two or more than two groups of U-shaped metal pins in a corresponding conduction manner through bonding wires. 2.根据权利要求1所述的一种采用陶瓷基板封装的芯片，其特征在于：陶瓷基电路板采用两层陶瓷基电路板，两层陶瓷基电路板由顶层线路层、陶瓷基层和底层线路层组成，在底层线路层布设有散热铜箔。2. A chip packaged by a ceramic substrate according to claim 1, characterized in that: the ceramic substrate circuit board adopts two-layer ceramic substrate circuit board, and the two-layer ceramic substrate circuit board is composed of a top circuit layer, a ceramic base layer and a bottom layer circuit. It is composed of layers, and a heat-dissipating copper foil is arranged on the bottom circuit layer.
