CN216030994U

CN216030994U - A cutting machine for processing Teflon pipes

Info

Publication number: CN216030994U
Application number: CN202122318771.3U
Authority: CN
Inventors: 周志国
Original assignee: Dongguan Yuchen Insulating Material Co ltd
Current assignee: Dongguan Yuchen Insulating Material Co ltd
Priority date: 2021-09-24
Filing date: 2021-09-24
Publication date: 2022-03-15
Anticipated expiration: 2031-09-24

Abstract

The utility model provides a cutting machine for processing Teflon pipes, which relates to the technical field of cutting machines, and comprises a body. The inner side of the body is provided with a cavity, and the number of the cavity is two groups. There is a square slot running through them, a motor is arranged on one side of the fuselage, the output end of the motor is equipped with a No. 1 roller, the outer surface of the No. 1 roller is sleeved with a crawler, and the upper surface of the cavity is A bracket is installed, and one side of the bracket is rotatably connected with a No. 2 roller, the crawler runs through the inner side of the square groove, and the second roller is sleeved on the inner side of the crawler. The utility model is provided with a body, a motor, a No. 1 roller, crawler belt and No. 2 roller can drive the crawler belt to carry out uniform conveying work through the output end of the motor, and improve the stability of the crawler belt conveying operation through the rotation of the No. 2 roller, ensuring that the cutting machine can be uninterrupted for iron The fluorine tube is used for transportation, which improves the working efficiency of the cutting machine.

Description

Cutting machine is used in processing of teflon pipe

Technical Field

The utility model relates to the technical field of cutting machines, in particular to a cutting machine for machining a Teflon pipe.

Background

The cutting machine is an indispensable device in the light industry, and the traditional concept is that the cutting machine is a machine which presses a cutting die by means of the acting force of the machine motion to cut and process materials. Although recent cutting machines have been changed to some extent, advanced technologies such as high-pressure water jet and ultrasonic have been used for leather punching, these technologies are still incorporated into cutting machine-type devices, and in actual use of cutting machines, due to structural limitations, the continuous cutting of teflon tubes is not sufficient, and the work efficiency of cutting machines is affected, and improvements are required.

Disclosure of Invention

The utility model aims to solve the defects in the prior art and provides a cutting machine for processing a teflon pipe.

In order to achieve the purpose, the utility model adopts the following technical scheme: the utility model provides a cutting machine is used in processing of teflon pipe, includes the fuselage, the cavity has been seted up to the inboard of fuselage, the quantity of cavity is two sets of, run through between the cavity and seted up the square groove, one side of fuselage is provided with the motor, the output of motor is equipped with a cylinder, the surface cover of cylinder is equipped with the track, the upper surface of cavity is equipped with the support, one side of support is rotated and is connected with No. two cylinders, the track runs through the inboard in square groove, the inboard at the track is established to No. two cylinder covers.

In order to fix the position of the motor, the utility model has the improvement that the outer surface of the motor is provided with a connecting rod, two ends of one side of the connecting rod are rotatably connected with screws, and the motor is fixedly arranged on the side surface of the machine body through the screws.

In order to fix the moving track of the Teflon tube, the improved Teflon tube fixing device has the advantages that the upper surface of the machine body is provided with the sliding grooves, the inner sides of the sliding grooves are connected with the clamping plates in a sliding mode, the number of the clamping plates is two, the anti-skid pad is arranged on one side of each clamping plate, the upper surface of each clamping plate is provided with the protruding block, and the edge of the protruding block is in a round angle shape.

In order to realize the cutting function of the cutting machine on the Teflon tube, the improvement of the utility model is that support plates are arranged on two sides of the machine body, a first limiting rod is arranged on the upper surface of each support plate, a top plate is arranged on the outer surface of the first limiting rod, an oil cylinder is arranged on the upper surface of the top plate, a cutter holder is arranged at the output end of the oil cylinder, a blade is arranged on the lower surface of the cutter holder, and the cutter holder is in sliding connection with the first limiting rod.

In order to prevent the machine body from being damaged, the improved structure of the utility model is characterized in that the upper surface of the machine body is provided with four sets of second limiting rods, and the outer surfaces of the second limiting rods are connected with protective pads in a sliding manner.

In order to ensure the stability of the cutting machine when the cutting machine is placed at a fixed point, the improvement of the utility model is that four corners of the lower surface of the machine body are respectively provided with a support column, the lower surface of each support column is provided with a bottom plate, and the upper surface of each bottom plate is provided with a fixing hole.

Compared with the prior art, the utility model has the advantages and positive effects that,

1. according to the Teflon tube cutting machine, the machine body, the motor, the first roller, the track and the second roller are arranged, so that the motor is started when the Teflon tube is cut, the track is driven to carry out uniform conveying work through the output end of the motor, the stability of the conveying work of the track is improved through the rotation of the second roller, the Teflon tube can be continuously conveyed by the Teflon tube cutting machine, and the working efficiency of the Teflon tube cutting machine is improved.

2. According to the cutting machine, the second limiting rod and the protective pad are arranged, so that the machine body can be protected by the protective pad when cutting is carried out, the possibility that the machine body is damaged due to long-term operation of the cutting machine is prevented, and meanwhile, the position of the protective pad is limited by the second limiting rod, so that the protective pad is prevented from changing positions and is convenient and fast to replace.

Drawings

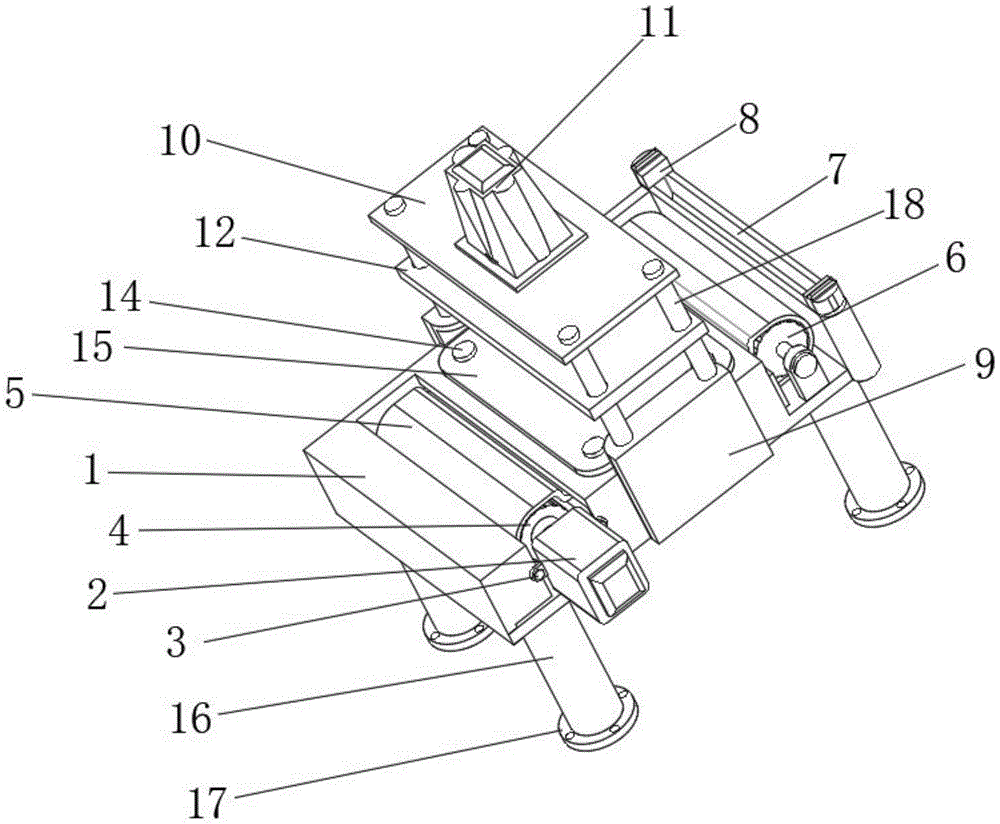

FIG. 1 is a schematic diagram of the overall components of a cutting machine for processing Teflon tubes;

FIG. 2 is a schematic side view of a cutting machine for machining Teflon tubes according to the present invention;

FIG. 3 is a schematic view of a part of the structure of the first roller of the cutting machine for machining Teflon tubes.

Illustration of the drawings:

1. a body; 2. a motor; 3. a screw; 4. a first roller; 5. a crawler belt; 6. a second roller; 7. a chute; 8. a splint; 9. a support plate; 10. a top plate; 11. an oil cylinder; 12. a tool apron; 13. a blade; 14. a second limiting rod; 15. a protective pad; 16. a pillar; 17. a base plate; 18. first gag lever post.

Detailed Description

In order that the above objects, features and advantages of the present invention can be more clearly understood, the present invention will be further described with reference to the accompanying drawings and examples. It should be noted that the embodiments and features of the embodiments of the present application may be combined with each other without conflict.

In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, however, the present invention may be practiced in other ways than those specifically described herein, and thus the present invention is not limited to the specific embodiments of the present disclosure.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a cutting machine is used in processing of teflon pipe, including fuselage 1, the cavity has been seted up to the inboard of fuselage 1, the quantity of cavity is two sets of, the purpose of this kind of design is in order to provide the space for the arrangement of a cylinder 4 and No. two cylinders 6, run through between the cavity and seted up the square groove, one side of fuselage 1 is provided with motor 2, the connecting rod is equipped with to motor 2's surface, one side both ends of connecting rod are rotated and are connected with screw 3, motor 2 passes through screw 3 and adorns the side surface at fuselage 1 admittedly, the purpose of this kind of design is in order to fix the position to motor 2, ensure that fuselage 1 can possess stable support when carrying out the function, cylinder 4 is equipped with to motor 2's output, the surface cover of cylinder 4 is equipped with track 5, the upper surface of cavity is equipped with the support, one side of support is rotated and is connected with No. two cylinders 6, No. 6 covers the purpose of this kind of design of inboard of establishing track 5 is in order to provide more for the function of track 5 through No. two cylinders 6 Good support and as far as reduce resistance, ensure the function that track 5 can be more stable, track 5 runs through the inboard of square groove, when carrying out the cutting work of teflon pipe, starter motor 2, the output through motor 2 drives track 5 and carries out the transport work at the uniform velocity, and the rotation through No. two cylinders 6 improves track 5 and carries the stability of function, ensured that this cutting machine can be incessant carry to teflon pipe, the work efficiency of this cutting machine has been improved.

Spout 7 has been seted up to the upper surface of fuselage 1, spout 7's inboard sliding connection has splint 8, splint 8's quantity is two sets of, the purpose of this kind of design is in order to remove through the position of two sets of splint 8, realize the fixed to the indisputable fluorine dragon pipe removal orbit, prevent that the indisputable fluorine dragon pipe the condition of off tracking from appearing at the in-process that removes, the slipmat is equipped with to one side of splint 8, splint 8 clamping ability can be perfected through the slipmat, and then the better removal orbit to indisputable fluorine dragon pipe is fixed, splint 8's upper surface is equipped with the lug, the purpose of this kind of design is for the convenient user to splint 8 drag work, the edge shape of lug is the fillet, the experience of this kind of shape design when dragging the lug is in order to improve the user.

The supporting plates 9 are arranged on two sides of the machine body 1, the first limiting rod 18 is arranged on the upper surface of each supporting plate 9, the top plate 10 is arranged on the outer surface of each limiting rod 18, the oil cylinder 11 is arranged on the upper surface of the top plate 10, the design aims to provide stable support for the top plate 10 through the supporting plates 9 and the first limiting rods 18 and accordingly provide supporting force for operation of the oil cylinder 11, the cutter holder 12 is arranged at the output end of the oil cylinder 11, the blade 13 is arranged on the lower surface of the cutter holder 12, the cutter holder 12 can be driven through operation of the oil cylinder 11 and further drives the blade 13 to move up and down, the cutting function of the cutting machine is realized, the cutter holder 12 is in sliding connection with the first limiting rods 18, the design aims to restrain the angle of the cutter holder 12 and prevent the cutter holder 12 from deviating the angle in the up and down moving process to cause the condition of sliding cutter or deviating from an original fixed track, and guarantee is provided for the quality of finished product processed by the Teflon tubes, the upper surface of fuselage 1 is equipped with gag lever post 14 No. two, No. two gag lever posts 14 quantity is four groups, No. two gag lever posts 14's surface sliding connection has the protection to fill up 15, fill up 15 can be when cutting work goes on through the protection, protect fuselage 1 body, prevent that the long-term operation of this cutting machine from leading to the fact the possibility of damage to fuselage 1, the restriction has been carried out to the position of protection pad 15 through gag lever post 14 No. two simultaneously, it also provides convenient for protection pad 15's change work when having prevented that protection pad 15 from taking place the position change.

Pillar 16 all is equipped with in the lower surface four corners position of fuselage 1, and bottom plate 17 is equipped with to the lower surface of pillar 16, and the purpose of this kind of design is in order to increase the area of contacting to the ground of pillar 16, and then provides more stable support for fuselage 1, and the fixed orifices has been seted up to the upper surface of bottom plate 17, through squeezing into the fixed orifices with the bolt, can ensure this cutting machine and carry out the stability of fixing a point and placing.

The working principle is as follows: before cutting, the moving track of the Teflon tube is fixed by moving the position of the clamping plate 8, when the Teflon pipe is cut, the motor 2 is started, the output end of the motor 2 drives the crawler belt 5 to carry out uniform conveying work, the stability of the conveying operation of the crawler 5 is improved through the rotation of the second roller 6, the continuous conveying of the Teflon tube by the cutting machine is ensured, the working efficiency of the cutting machine is improved, the oil cylinder 11 is started, the operation of the oil cylinder 11 can drive the cutter holder 12 and further drive the blade 13 to move up and down, so as to realize the cutting function of the cutting machine, the body of the machine body 1 is protected, the possibility of damage to the machine body 1 caused by long-term operation of the cutting machine is prevented, meanwhile, the position of the protective pad 15 is limited by the second limiting rod 14, so that the protective pad 15 is prevented from changing positions and is convenient and fast to replace while the protective pad 15 is prevented from changing positions.

The above description is only a preferred embodiment of the present invention, and not intended to limit the present invention in other forms, and any person skilled in the art may apply the above modifications or changes to the equivalent embodiments with equivalent changes, without departing from the technical spirit of the present invention, and any simple modification, equivalent change and change made to the above embodiments according to the technical spirit of the present invention still belong to the protection scope of the technical spirit of the present invention.

Claims

1. A cutting machine for processing a Teflon tube, comprising a body (1), characterized in that: the inner side of the body (1) is provided with a cavity, and the number of the cavity is two groups, and the A square groove is formed through the cavities, a motor (2) is arranged on one side of the body (1), and a No. 1 roller (4) is installed at the output end of the motor (2), and the No. 1 roller ( 4) The outer surface is sleeved with a crawler (5), the upper surface of the cavity is equipped with a bracket, one side of the bracket is rotatably connected with a No. 2 roller (6), and the crawler (5) runs through the square groove. On the inner side, the No. 2 roller (6) is sleeved on the inner side of the crawler belt (5).

2. The cutting machine for processing Teflon pipes according to claim 1, wherein the outer surface of the motor (2) is provided with a connecting rod, and one end of one side of the connecting rod is rotatably connected with a connecting rod. A screw (3), the motor (2) is fixedly mounted on the side surface of the fuselage (1) through the screw (3).

3. The cutting machine for processing Teflon pipes according to claim 1, wherein a chute (7) is provided on the upper surface of the fuselage (1), and the The inner side is slidably connected with a splint (8), the number of the splint (8) is two groups, one side of the splint (8) is provided with a non-slip pad, and the upper surface of the splint (8) is provided with a bump, so The edge shape of the bump is rounded.

4. The cutting machine for processing Teflon pipes according to claim 3, characterized in that: both sides of the fuselage (1) are equipped with support plates (9), and the support plates (9) The upper surface of the No. 1 limit rod (18) is equipped with a No. 1 limit rod (18), the outer surface of the No. 1 limit rod (18) is equipped with a top plate (10), the upper surface of the top plate (10) is equipped with an oil cylinder (11), so The output end of the oil cylinder (11) is equipped with a knife seat (12), the lower surface of the knife seat (12) is equipped with a blade (13), and the knife seat (12) slides with the No. 1 limit rod (18). connect.

5. The cutting machine for processing Teflon pipes according to claim 1, wherein the upper surface of the fuselage (1) is equipped with a No. 2 limit rod (14), and the No. 2 limit There are four sets of position rods (14), and a protective pad (15) is slidably connected to the outer surface of the second limit rod (14).

6. The cutting machine for processing Teflon pipes according to claim 5, wherein the four corners of the lower surface of the fuselage (1) are equipped with pillars (16), and the pillars (16) The lower surface of the base plate (17) is provided with a bottom plate (17), and the upper surface of the bottom plate (17) is provided with fixing holes.
