The utility model discloses a water circulation filtration and recycling system of a heat preservation boiler, which comprises a boiler body and a water pump, wherein the water pump is detachably connected at the side end of the boiler body, a water separator for water filtration is arranged at the bottom end of the boiler body, a water inlet for leading water is formed in the top of the water separator, a thread block is arranged at the bottom end of the water separator, a drain valve is connected at one side of the water separator, a water outlet is arranged at the other side of the water separator, a water separating groove is formed at the joint of the water separator and the thread block, a filter element can adsorb small particle impurities in water, the efficiency of adsorbing and removing impurities of the filter element on the water is improved, a limiting groove is formed in the inner side of the water storage groove, a filter cartridge arranged in the inner cavity of the water storage groove and the side end of the filter cartridge are provided with limiting blocks, the filter cartridge can carry out secondary adsorption and impurity removal treatment on the water, the limiting groove is matched with the limiting blocks to facilitate the installation and the disassembly of the filter cartridge, and the removal and maintenance of the impurities in the filter cartridge are conveniently carried out, promote the boiler body to the cyclic utilization of water, reduce the waste of water resource.
Description
Technical Field
The utility model relates to the technical field of boiler water circulation equipment, in particular to a heat-preservation boiler water circulation filtering and recycling system.
Background
Boiler water circulation refers to the circulation flow of a water and steam-water mixture in an evaporation heating surface of a boiler and is divided into natural circulation and forced circulation. Natural circulation refers to circulation maintained by the difference in density of water and steam-water mixture; forced circulation refers to circulation maintained by means of a head of a water pump in the circuit. Normal water circulation can ensure timely and reliable cooling of an evaporation heating surface of a boiler, and is one of basic conditions for safe operation of the boiler.
The problems described above are addressed. Therefore, a water circulation filtering and recycling system of the heat preservation boiler is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a heat preservation water circulation filtering and recycling system, wherein a water inlet for leading water is arranged at the top of a water separator, a thread block is arranged at the bottom end of the water inlet, a drain valve is connected at one side of the water separator, a drain outlet is arranged at the other side of the water separator, a water separating tank is arranged at the joint of the water separator and the thread block, when the water in a water storage tank needs to be subjected to impurity removal filtering, the water separator is firstly connected to the bottom end of a heating hopper, then a water pump is fixed at one side of a boiler body through a connecting plate and a connecting arm, meanwhile, two groups of water pipes connect a water inlet, the water pump and the water separator into a whole in a penetrating way, the water pump is started to operate, the water in the heating hopper is collected into the water separator and flows into the water storage tank again through the water pipes, when the water in the water storage tank enters a filter element of the water separator, impurities such as water alkali and the like in the water are filtered by the filter element, and the edulcoration subassembly of filter core is the component of compriseing a powerful magnet material, can adsorb other tiny particle impurity of water, promotes the efficiency of the absorption edulcoration of filter core to water, and screw block cooperation screw thread mouth is convenient for install and dismantle the filter core, conveniently carries out impurity removal and maintenance to the filter core and changes to the problem in the above-mentioned background art has been solved.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a heat preservation water circulation filters system of recycling, includes boiler body and water pump, and boiler body side dismantles and is connected with the water pump, and the boiler body bottom is provided with the water knockout drum that is used for water filtration, the water knockout drum includes that its top is offered the water inlet that is used for drawing water and is provided with the screw thread piece rather than the bottom, and water knockout drum one side is connected with drainage valve, and the outlet is installed to the opposite side of water knockout drum, and the distributive groove has been seted up to water knockout drum and screw thread piece junction.
Preferably, the boiler body comprises a water storage tank arranged at the top end of the boiler body and a sealing cover arranged at the top of the water storage tank, the outer side of a heating hopper arranged at the bottom of the boiler body is connected with a supporting frame, and a connecting arm is fixedly connected to the side end of the boiler body.
Preferably, the sealing cover comprises a handle arranged at the top of the sealing cover and a water inlet connected with the middle of the sealing cover in a penetrating manner.
Preferably, the water storage tank comprises a limiting groove formed in the inner side of the water storage tank, and a limiting block is arranged on the filter cartridge arranged in the inner cavity of the water storage tank and the side end of the filter cartridge.
Preferably, the water pump comprises a connecting plate which is arranged at the side end of the water pump and is used for being detachably connected with the connecting arm, and two ends of the water pump are respectively connected with a water delivery pipe in a penetrating manner.
Preferably, the water diversion groove comprises a threaded opening which is formed in the inner side of the water diversion groove and is in threaded connection with the threaded block, and a filter element is arranged in the inner cavity of the water diversion groove.
Preferably, the filter core includes and the inner chamber is provided with the edulcoration subassembly that is used for adsorbing water impurity, and the filter screen is installed around the outside along the filter core.
Compared with the prior art, the utility model has the following beneficial effects:
1. the utility model provides a water circulation filtering and recycling system of a heat preservation boiler, wherein a water inlet for leading water is arranged at the top of a water separator, a thread block is arranged at the bottom end of the water inlet, a drain valve is connected at one side of the water separator, a drain outlet is arranged at the other side of the water separator, a water separating tank is arranged at the joint of the water separator and the thread block, when the water in a water storage tank needs to be subjected to impurity removal filtering, the water separator is firstly connected to the bottom end of a heating hopper, then a water pump is fixed at one side of a boiler body through a connecting plate and a connecting arm, meanwhile, two groups of water pipes are used for penetrating and connecting the water inlet, the water pump and the water separator into a whole, the water pump is started to run to collect the water in the heating hopper into the water separator and flow into the water storage tank again through the water pipes, when the water in the water storage tank enters a filter element of the water separator, impurities such as water alkali and the like in the water are filtered by a filter element, and the edulcoration subassembly of filter core is the component of compriseing a powerful magnet material, can adsorb other tiny particle impurity of water, promotes the efficiency of the absorption edulcoration of filter core to water, and screw thread piece cooperation screw thread mouth is convenient for install and dismantle the filter core, conveniently carries out impurity removal and maintenance to the filter core and changes.
2. The utility model provides a water circulation filtering and recycling system of a heat preservation boiler, wherein a limiting groove is formed in the inner side of a water storage tank, a filter cylinder arranged in the inner cavity of the water storage tank and a limiting block arranged at the side end of the filter cylinder are arranged, when water subjected to filtering treatment is conveyed into the water storage tank again, the water can pass through the filter cylinder arranged in the inner cavity of the water storage tank, the filter cylinder is a member formed by an active carbon material, secondary adsorption impurity removal treatment can be performed on a small amount of impurities contained in the water, the limiting groove is matched with the limiting block of the filter cylinder, the filter cylinder is convenient to install and disassemble by the water storage tank, internal impurity removal and maintenance can be performed on the filter cylinder conveniently, the water circulation utilization of the boiler body is improved, and the waste of water resources is reduced.
Drawings

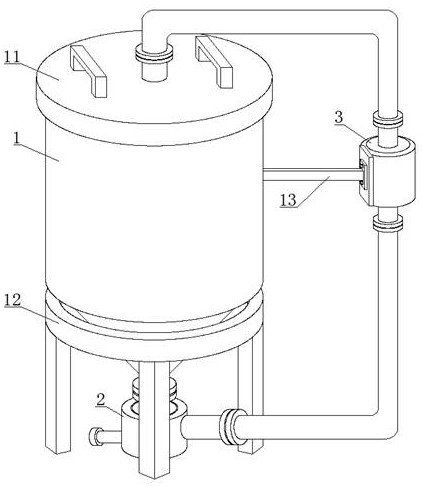

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic structural view of a boiler body according to the present invention;
FIG. 3 is a schematic view of a reservoir of the present invention;
fig. 4 is a schematic view of the water separator of the present invention.
In the figure: 1. a boiler body; 11. a sealing cover; 111. a handle; 112. a water inlet; 12. a support frame; 13. a connecting arm; 14. a heating hopper; 15. a water storage tank; 151. a limiting groove; 152. a filter cartridge; 153. a limiting block; 2. a water separator; 21. a water inlet; 211. a thread block; 22. a drain valve; 23. a water outlet; 24. a water diversion tank; 241. a threaded opening; 242. a filter element; 2421. an impurity removal component; 2422. a filter screen; 3. a water pump; 31. a connecting plate; 32. a water delivery pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, a water circulation filtering and recycling system for a heat preservation boiler comprises a boiler body 1 and a water pump 3, the water pump 3 is detachably connected to the side end of the boiler body 1, a water separator 2 for water filtration is arranged at the bottom end of the boiler body 1, the water separator 2 comprises a water inlet 21 for leading water arranged at the top thereof and a thread block 211 arranged at the bottom thereof, a drain valve 22 is connected to one side of the water separator 2, a drain outlet 23 is arranged at the other side of the water separator 2, a water separation groove 24 is arranged at the joint of the water separator 2 and the thread block 211, when the boiler body 1 discharges water outwards, impurity removal treatment can be carried out on the water, the water inlet 21 for leading water arranged at the top of the water separator 2 and the thread block 211 arranged at the bottom thereof, a drain valve 22 is connected to one side of the water separator 2, a drain outlet 23 is arranged at the other side of the water separator 2, and the joint of the thread block 211 is provided with the water separation groove 24, when the water in the water storage tank 15 needs to be purified and filtered, the water separator 2 is connected to the bottom end of the heating bucket 14, then the water pump 3 is fixed on one side of the boiler body 1 through the connecting plate 31 and the connecting arm 13, meanwhile, the water inlet 112, the water pump 3 and the water separator 2 are connected into a whole by the two groups of water pipes 32, the water pump 3 is started to operate, the water in the heating bucket 14 is taken into the water separator 2 and flows into the water storage tank 15 again through the water pipes 32, when the water in the water storage tank 15 enters the filter element 242 of the water separator 2, impurities such as water, alkali and the like in the water are filtered by the filter element 242 filter screen 2422, the purifying component 2421 of the filter element 242 is a member made of a strong magnet material, and can adsorb other small particle impurities in the water, so as to improve the efficiency of the filter element 242 for adsorbing and purifying the water, the screw block 211 is matched with the screw opening 241 to facilitate the installation and the disassembly of the filter element 242, the filter element 242 is convenient to clean impurities and maintain and replace.
Referring to fig. 2-3, a water circulation filtering and recycling system for a heat preservation boiler, a boiler body 1 includes a water storage tank 15 opened at the top end thereof and a sealing cover 11 provided at the top thereof, a supporting frame 12 is connected to the outer side of a heating bucket 14 installed at the bottom of the boiler body 1, a connecting arm 13 is fixedly connected to the side end of the boiler body 1, so as to conveniently fix a water pump 3 at one side of the boiler body 1, the sealing cover 11 includes a handle 111 provided at the top thereof and a water inlet 112 penetratingly connected to the middle thereof, so as to conveniently limit and fix a filter cartridge 152 inside the water storage tank 15, the water storage tank 15 includes a limiting groove 151 provided at the inner side thereof, the filter cartridge 152 provided in the inner cavity of the water storage tank 15 and the side end thereof are provided with a limiting block 153, the water pump 3 includes a connecting plate 31 provided at the side end thereof for being detachably connected to the connecting arm 13, two ends of the water pump 3 are respectively penetratingly connected to water pipes 32, a water diversion trench 24 includes a screw port 241 provided at the inner side thereof for being threadedly connected to a screw block 211, the inner cavity of the water diversion groove 24 is provided with a filter element 242 which can absorb and filter impurities in water, the filter element 242 comprises an impurity removing component 2421 which is arranged in the inner cavity and used for absorbing water impurities, a filter screen 2422 is arranged on the periphery of the outer side of the filter element 242, a limiting groove 151 is arranged on the inner side of the water storage groove 15, a limiting block 153 is arranged on the filter cylinder 152 arranged in the inner cavity of the water storage groove 15 and the side end of the filter cylinder 152, when the filtered water is conveyed into the water storage groove 15 again, the water passes through the filter cylinder 152 arranged in the inner cavity of the water storage groove 15, the filter cylinder 152 is a component made of an activated carbon material and can carry out secondary absorption impurity removing treatment on a small amount of impurities in the water, and the limiting groove 151 is matched with the limiting block 153 of the filter cylinder 152, so that the filter cylinder 152 can be conveniently installed and detached by the water storage groove 15, the internal impurities in the filter cylinder 152 can be conveniently cleared and maintained, and the cyclic utilization of the water by the boiler body 1 can be improved, the waste of water resources is reduced.
The working principle is as follows: when the water in the water storage tank 15 needs to be purified and filtered, the water separator 2 is connected to the bottom end of the heating bucket 14, then the water pump 3 is fixed on one side of the boiler body 1 through the connecting plate 31 and the connecting arm 13, meanwhile, the water inlet 112, the water pump 3 and the water separator 2 are connected into a whole by two groups of water pipes 32, the water pump 3 is started to operate, the water in the heating bucket 14 is collected into the water separator 2 and flows into the water storage tank 15 again through the water pipes 32, when the water in the water storage tank 15 enters the filter element 242 of the water separator 2, impurities such as water, alkali and the like in the water are filtered by the filter screen 2422 of the filter element 242, the purifying component 2421 of the filter element 242 is a member made of a strong magnet material, and can adsorb other small particle impurities in the water, when the filtered water is conveyed into the water storage tank 15 again, the water passes through the filter cartridge 152 arranged in the inner cavity of the water storage tank 15, the filter cartridge 152 is the component of constituteing by an active carbon material, can carry out the secondary to a small amount of impurity that the aquatic contains and adsorb the edulcoration and handle, and the stopper 153 of stopper groove 151 cooperation filter cartridge 152 makes things convenient for catch basin 15 to install and dismantle filter cartridge 152.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a heat preservation boiler water circulating filtration system of recycling, includes boiler body (1) and water pump (3), and boiler body (1) side is dismantled and is connected with water pump (3), and boiler body (1) bottom is provided with water knockout drum (2) that are used for water filtration, its characterized in that: the water distributor (2) comprises a water inlet (21) which is arranged at the top of the water distributor and used for guiding water and a thread block (211) which is arranged at the bottom of the water distributor, one side of the water distributor (2) is connected with a drainage valve (22), a water outlet (23) is arranged at the other side of the water distributor (2), and a water distribution groove (24) is formed in the joint of the water distributor (2) and the thread block (211).
2. The heat preservation boiler water circulation filtering and recycling system according to claim 1, characterized in that: the boiler body (1) comprises a water storage tank (15) arranged at the top end of the boiler body and a sealing cover (11) arranged at the top of the boiler body, a supporting frame (12) is connected to the outer side of a heating bucket (14) arranged at the bottom of the boiler body (1), and a connecting arm (13) is fixedly connected to the side end of the boiler body (1).
3. The heat preservation boiler water circulation filtering and recycling system according to claim 2, characterized in that: the sealing cover (11) comprises a handle (111) arranged at the top of the sealing cover and a water inlet (112) which is connected with the middle of the sealing cover in a penetrating way.
4. The heat preservation boiler water circulation filtering and recycling system according to claim 2, characterized in that: the water storage tank (15) comprises a limiting groove (151) formed in the inner side of the water storage tank, and a limiting block (153) is arranged on the side end of a filter cylinder (152) arranged in the inner cavity of the water storage tank (15).
5. The heat preservation boiler water circulation filtering and recycling system according to claim 1, characterized in that: the water pump (3) comprises a connecting plate (31) which is arranged at the side end of the water pump and is detachably connected with the connecting arm (13), and water conveying pipes (32) are respectively connected to the two ends of the water pump (3) in a penetrating manner.
6. The heat preservation boiler water circulation filtering and recycling system according to claim 1, characterized in that: the water diversion groove (24) comprises a thread opening (241) which is arranged on the inner side of the water diversion groove and is in threaded connection with the thread block (211), and a filter element (242) is arranged in the inner cavity of the water diversion groove (24).
7. The heat preservation boiler water circulation filtering and recycling system according to claim 6, characterized in that: the filter element (242) comprises an impurity removing assembly (2421) with an inner cavity for adsorbing water impurities, and filter screens (2422) are arranged on the periphery of the outer side of the filter element (242).
