Abstract
本实用新型提供一种块瓦屋面老虎窗节点防水结构，包括有墙体、老虎窗顶、保温板、找平层、顺水条、块瓦；所述墙体修筑在块瓦屋面中部，且两边墙体顶部修筑有老虎窗顶；所述墙体两侧铺设有保温板，且墙体两侧的块瓦屋面顶面、老虎窗顶铺设有保温层；所述保温层顶面修筑有找平层，该找平层顶面铺设有防水卷材层；所述防水卷材层顶面通过镀锌钢钉固定安装有顺水条，该顺水条从块瓦屋面高处向低处、从老虎窗顶窗脊向两边延伸，且顺水条顶面通过镀锌钢钉安装有挂瓦条，挂瓦条与顺水条相互垂直；所述挂瓦条上挂设有块瓦，该块瓦从块瓦屋面高处向低处、从老虎窗顶窗脊向两边逐层铺设；所述老虎窗顶的防水卷材层边缘处通过水泥钉固定有泛水板。
The utility model provides a waterproof structure for a dormer window node on a tile roof, which comprises a wall body, a dormer window top, a thermal insulation board, a leveling layer, a water strip, and a tile; the wall body is built in the middle of the tile roof, and the walls on both sides are A dormer window roof is built on the top of the body; thermal insulation boards are laid on both sides of the wall, and a thermal insulation layer is laid on the top surface of the tile roof and the roof of the dormer window on both sides of the wall; a leveling layer is built on the top surface of the thermal insulation layer, The top surface of the leveling layer is covered with a waterproofing membrane layer; the top surface of the waterproofing membrane layer is fixedly installed with a downstream strip through galvanized steel nails. It extends to both sides, and the top surface of the downstream strip is installed with a tile hanging strip through galvanized steel nails, and the hanging tile strip and the downstream strip are perpendicular to each other; a block tile is hung on the said tile hanging strip, and the block tile is suspended from the height of the block tile roof. It is laid layer by layer from the top window ridge of the dormer window to the two sides; the edge of the waterproof membrane layer on the dormer window roof is fixed with a flashing board through cement nails.
Description
Technical Field
The utility model relates to the field of buildings, in particular to a waterproof structure for a tiger window node of a tile roof.
Background
One of the sloping roofs is called a tile roof, and the tiles are a general name and comprise sintered tiles, concrete tiles and the like, and are suitable for sloping roofs with first-level and second-level waterproof grades. The general roof slope should not be less than 30%. In the actual use process of the tile roof, various small problems often occur, for example, the joint point of the tiger window of the tile roof and the joint point of the tile roof of the intersection point of the tiger window and the sloping roof are easy to cause leakage, and once the joint point occurs, the waterproof and heat insulation performance of the tile roof is reduced, so that the use is influenced.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a tiger window node waterproof structure for a tile roof, aiming at overcoming the defects and shortcomings of the prior art, the structure forms multiple waterproof measures by arranging a waterproof layer and a flashing plate on the top of the tiger window and the tile roofs on two sides of the tiger window, does not influence the use of the tiger window and the drainage and heat insulation of the tile roofs, and has a good waterproof effect.
In order to achieve the purpose, the utility model adopts the technical scheme that: a waterproof structure of a tiger window node of a tile roof comprises a wall body, a tiger window roof, a heat-insulating plate, a leveling layer, a water-guiding strip and tiles; the wall body is of a reinforced concrete tiger window side wall structure, the wall body is built in the middle of a tile roof, tiger window tops are built on the tops of the wall bodies on two sides, and a ring of convex edges are arranged on the periphery of each tiger window top; heat insulation plates are laid on two sides of the wall body, and heat insulation layers are laid on the top surfaces of the tile roofs and the top of the tiger window on the two sides of the wall body; a leveling layer is built on the top surface of the heat-insulating layer, and a waterproof coil layer is laid on the top surface of the leveling layer; the top surface of the waterproof coiled material layer is fixedly provided with a water-guiding strip through a galvanized steel nail, the water-guiding strip extends from the high position to the low position of the tile roof and from the top window ridge of the tiger window to two sides, the top surface of the water-guiding strip is provided with a tile hanging strip through the galvanized steel nail, and the tile hanging strip is vertical to the water-guiding strip; the tile hanging strip is provided with tiles which are paved layer by layer from the high position to the low position of the tile roof and from the top window ridge of the tiger window to the two sides; waterproof roll material layer edge on tiger window top is fixed with the flashing board through the cement nail, and this flashing board covers waterproof roll material layer edge of here and the outer perk of bottom forms the structure of dripping water.
Preferably, the waterproof roll layers on the tile roofs on the two sides of the wall body are further paved with a reinforcing waterproof layer at the internal corner position of the wall body connection, the reinforcing waterproof layer extends along the side face of the wall body and the top face of the leveling layer for no less than 250mm, and the edges of the waterproof roll layers and the edges of the tile roofs are sealed.
Preferably, an additional waterproof layer is further paved on the bottom surface of the waterproof roll layer at the top of the tiger window, and the additional waterproof layer extends to the window ridge from two sides for not less than 900 mm.
The utility model has the beneficial effects that: the structure forms multiple waterproof measures by arranging the waterproof layer and the flashing plate on the top of the tiger window and the tile roofs on the two sides of the tiger window, does not influence the use of the tiger window and the drainage and heat insulation of the tile roofs, and has good waterproof effect.
Drawings
The accompanying drawings, which are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this application, illustrate embodiment(s) of the utility model and together with the description serve to explain the principles of the utility model.

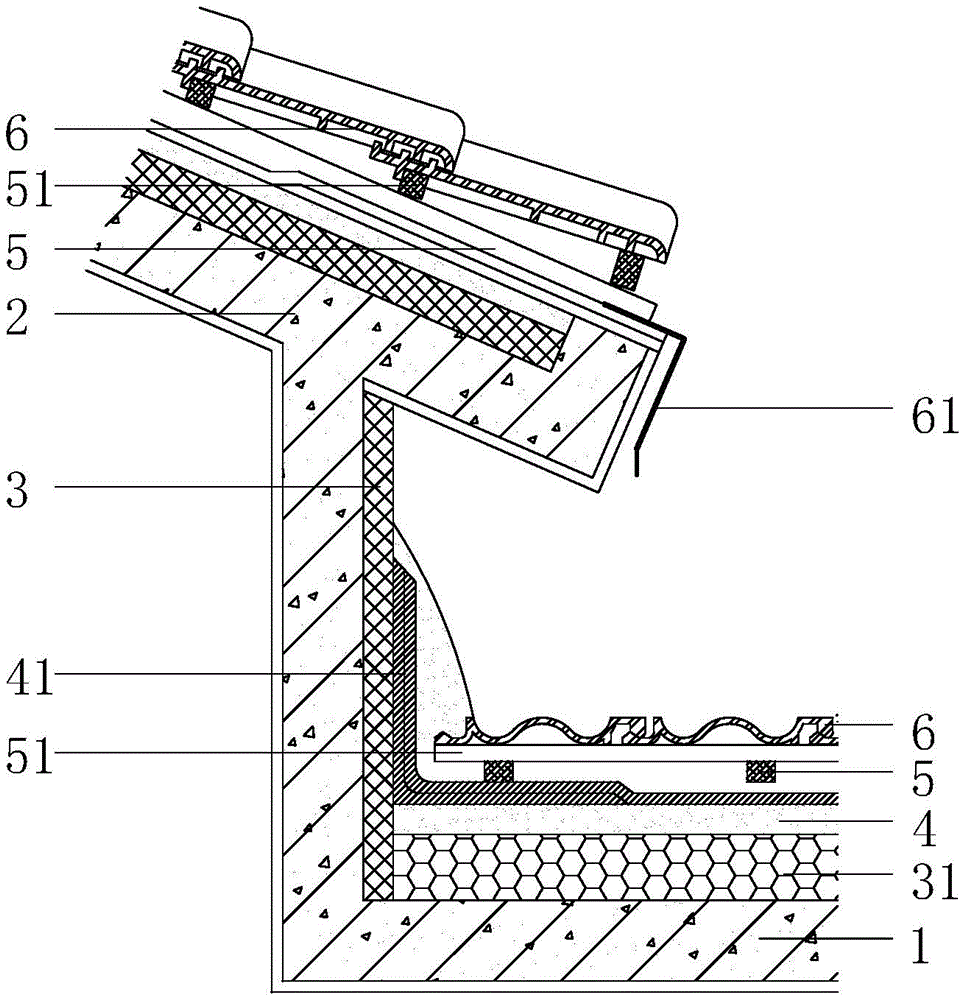

FIG. 1 is a schematic view of a waterproof structure of a tiger window node of a tile roof.
Wherein: 1 is a wall body, 2 is a tiger window top, 3 is a heat preservation board, 31 is a heat preservation layer, 4 is a leveling layer, 41 is a waterproof coil material layer, 5 is a water-guiding strip, 51 is a tile hanging strip, 6 is a tile and 61 is a flashing board.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings.
As shown in the figure, the tiger window joint waterproof structure for the tile roof comprises a wall body 1, a tiger window roof 2, a heat-insulating plate 3, a leveling layer 4, a water-guiding strip 5 and tiles 6; the wall body 1 is a reinforced concrete tiger window side wall structure, the wall body 1 is built in the middle of a tile roof, tiger window tops 2 are built on the tops of the wall bodies 1 on two sides, and a ring of convex edges are arranged on the periphery of each tiger window top 2; heat insulation plates 3 are laid on two sides of the wall body 1, and heat insulation layers 31 are laid on the top surfaces of the tile roofs and the tiger window tops 2 on the two sides of the wall body 1; a leveling layer 4 is built on the top surface of the heat-insulating layer 31, and a waterproof coil layer 41 is laid on the top surface of the leveling layer 4; the top surface of the waterproof coil material layer 41 is fixedly provided with a water-guiding strip 5 through a galvanized steel nail, the water-guiding strip 5 extends from the high position to the low position of the tile roof and from the ridge of the tiger window roof 2 to two sides, the top surface of the water-guiding strip 5 is provided with a tile hanging strip 51 through the galvanized steel nail, and the tile hanging strip 51 is vertical to the water-guiding strip 5; the tile hanging strip 51 is provided with tiles 6, and the tiles 6 are paved layer by layer from the high position to the low position of the tile roof and from the 2 window ridges of the tiger window top to the two sides; the edge of the waterproof roll material layer 41 of the tiger window top 2 is fixed with a flashing board 6 through a cement nail, and the flashing board 6 covers the edge of the waterproof roll material layer 41 and the bottom of the waterproof roll material layer is warped outwards to form a dripping structure.
During the concrete implementation, the waterproof roll material layer 41 on the tile roofing of wall body 1 both sides lies in the reentrant corner position of wall body 1 handing-over and has still laid the reinforcing and waterproof layer, and this reinforcing and waterproof layer is no less than 250mm along the extension of wall body 1 side and 4 top surfaces of screed-coat respectively, and seals between the 6 edges of tile of waterproof roll material layer 41 edge and tile roofing part.
In specific implementation, an additional waterproof layer is further laid on the bottom surface of the waterproof coil material layer 41 at the top 2 of the tiger window, and the additional waterproof layer extends to the window ridge from two sides by no less than 900 mm.
Claims (3)
1. The utility model provides a block tile roofing tiger window node waterproof construction which characterized in that: comprises a wall body, a tiger window top, a heat-insulating plate, a leveling layer, a water-guiding strip and tiles; the wall body is of a reinforced concrete tiger window side wall structure, the wall body is built in the middle of a tile roof, tiger window tops are built on the tops of the wall bodies on two sides, and a ring of convex edges are arranged on the periphery of each tiger window top; heat insulation plates are laid on two sides of the wall body, and heat insulation layers are laid on the top surfaces of the tile roofs and the top of the tiger window on the two sides of the wall body; a leveling layer is built on the top surface of the heat-insulating layer, and a waterproof coil layer is laid on the top surface of the leveling layer; the top surface of the waterproof coiled material layer is fixedly provided with a water-guiding strip through a galvanized steel nail, the water-guiding strip extends from the high position to the low position of the tile roof and from the top window ridge of the tiger window to two sides, the top surface of the water-guiding strip is provided with a tile hanging strip through the galvanized steel nail, and the tile hanging strip is vertical to the water-guiding strip; the tile hanging strip is provided with tiles which are paved layer by layer from the high position to the low position of the tile roof and from the top window ridge of the tiger window to the two sides; waterproof roll material layer edge on tiger window top is fixed with the flashing board through the cement nail, and this flashing board covers waterproof roll material layer edge of here and the outer perk of bottom forms the structure of dripping water.
2. The tile roof tiger window joint waterproof structure of claim 1, wherein: the waterproof roll material layer on the tile roof on the two sides of the wall body is further paved with a reinforcing waterproof layer at the internal corner position of the wall body connection, the reinforcing waterproof layer extends along the side surface of the wall body and the top surface of the leveling layer respectively to be not less than 250mm, and the edge of the waterproof roll material layer is sealed with the edge of the tile roof.
3. The tile roof tiger window joint waterproof structure of claim 1, wherein: and an additional waterproof layer is laid on the bottom surface of the waterproof roll material layer at the top of the tiger window, and the additional waterproof layer extends to the window ridge from two sides for no less than 900 mm.
