CN215977055U - Airport runway foreign matter quick clearing device - Google Patents
Airport runway foreign matter quick clearing device Download PDFInfo
- Publication number
- CN215977055U CN215977055U CN202122140212.8U CN202122140212U CN215977055U CN 215977055 U CN215977055 U CN 215977055U CN 202122140212 U CN202122140212 U CN 202122140212U CN 215977055 U CN215977055 U CN 215977055U
- Authority
- CN
- China
- Prior art keywords
- installation
- foreign matter
- plate
- cleaning
- airport runway
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cleaning In General (AREA)
Abstract
本实用新型涉及跑道清理的技术领域，特别是涉及一种机场跑道异物快速清除装置，包括安装台、清扫机构、两组扒拢机构和收集机构，所述清扫机构、两组所述扒拢机构和所述收集机构均固定所述安装台底部，两组扒拢机构的位置相对；所述扒拢机构包括安装在所述安装台底部的立轴，所述立轴的外侧滑动套装有椭圆形滑槽板，所述椭圆形滑槽板倾斜，并且所述椭圆形滑槽板的一端安装有第一安装杆，所述第一安装杆的外端安装有第一转轴；该设备可实现对跑道异物的自动清除工作，有效简化跑道清理方式，节省人工清理时的体力和时间，提高工作效率，同时异物清理的效果提高，有效避免异物残留并影响跑道使用，提高实用性。
The utility model relates to the technical field of runway cleaning, in particular to a rapid foreign matter removal device for an airport runway, comprising an installation platform, a cleaning mechanism, two groups of scraping mechanisms and a collecting mechanism, the cleaning mechanism and two groups of the scraping mechanisms The bottom of the installation platform is fixed to the collecting mechanism, and the positions of the two groups of pick-up mechanisms are opposite; the pick-up mechanism includes a vertical shaft installed at the bottom of the installation table, and the outer side of the vertical shaft is slidably sleeved with an elliptical chute. The elliptical chute plate is inclined, and one end of the oval chute plate is installed with a first installation rod, and the outer end of the first installation rod is installed with a first rotating shaft; The automatic removal work can effectively simplify the runway cleaning method, save physical strength and time during manual cleaning, improve work efficiency, and at the same time improve the effect of foreign body cleaning, effectively avoid foreign body residues and affect the use of the runway, and improve practicability.
Description
Technical Field
The utility model relates to the technical field of runway cleaning, in particular to a device for quickly removing foreign matters on an airport runway.
Background
As is well known, airport runways are the main sites where airplanes land and land, and foreign matters on the runways directly affect the normal landing and landing work of airplanes, in order to ensure the normal operation of airports, the foreign matters on the runways need to be cleaned regularly, the conventional cleaning mode is usually to clean the foreign matters on the runways by cleaners, and because the runway sites are large, the manpower and time consumed by the mode are more, the working efficiency is lower, and meanwhile, the foreign matters on the runways are easy to remain, resulting in poor cleaning effect.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model provides a device for quickly removing foreign matters on an airport runway.
In order to achieve the purpose, the utility model adopts the technical scheme that:
the device for rapidly removing foreign matters on the airfield runway comprises an installation platform, a cleaning mechanism, two groups of gathering mechanisms and a collecting mechanism, wherein the cleaning mechanism, the two groups of gathering mechanisms and the collecting mechanism are all fixed at the bottom of the installation platform, and the two groups of gathering mechanisms are opposite in position;
the gathering mechanism comprises a vertical shaft installed at the bottom of the mounting table, an oval sliding groove plate is slidably sleeved on the outer side of the vertical shaft, the oval sliding groove plate is inclined, a first mounting rod is installed at one end of the oval sliding groove plate, a first rotating shaft is installed at the outer end of the first mounting rod, a rotating disc is installed on the first rotating shaft in a rotating mode, the first rotating shaft is eccentrically located on the rotating disc, a second mounting rod is installed at the other end of the first mounting rod, and an arc-shaped rubber push plate is installed at the bottom of the second mounting rod.
Further, clean the mechanism and include that two are the live-rollers that the contained angle was put, the live-rollers slope, the mounting panel is all installed in the rotation in the both ends of live-rollers, the top of mounting panel is fixed the mount table bottom, evenly install a plurality of brush cleaners on the outer wall of live-rollers, a plurality of brush cleaners are the heliciform and distribute.
Furthermore, limiting plates are arranged on the upper side and the lower side of the oval chute plate and fixed on the vertical shaft.
Further, collect the mechanism including collecting the frid, both sides are fixed respectively on the limiting plate of two vertical scroll bottoms around collecting the frid, collect the frid slope, and it keeps away from to collect the frid the conveyer belt is installed to the one end of arc rubber push pedal, the conveyer belt slope, and the output of conveyer belt is provided with collects the storehouse, the opening in collection storehouse is up, collect the storehouse around both sides and all install the fixed plate, the top of fixed plate is fixed the bottom of mount table.
The first power mechanism comprises two first belt pulleys positioned on the upper side of the mounting table, and the two first belt pulleys are in transmission connection with the two turntables respectively;
the mounting table is characterized in that a first motor is arranged at the top of the mounting table, a support mounting frame is arranged on the side wall of the first motor and fixed on the mounting table through the support mounting frame, a second belt pulley is installed at the output end of the first motor, and a transmission belt is laid on the second belt pulley and the two first belt pulleys and is in synchronous transmission through the transmission belt.
The worm is installed at the output end of the second motor, two worm wheels are arranged on the worm in a meshed mode and are located on two sides of the axis of the worm respectively, a second rotating shaft is installed at the bottom of each worm wheel, the bottom of the second rotating shaft penetrates through the installation platform and extends to the bottom of the installation platform, a first bevel gear is installed at the bottom of the second rotating shaft, a second bevel gear is arranged on the first bevel gear in a meshed mode, and the second bevel gear is in transmission connection with the rotating rollers.
Furthermore, a first shield is buckled at the outer side of the first power mechanism, a second shield is buckled at the outer side of the second power mechanism, and the first shield and the second shield are both fixed at the top of the mounting table.
Further, the dust collector and the dust collection hopper are further included, the dust collector is installed at the top of the installation platform, the dust collection hopper is installed at the bottom of the installation platform, the dust collector is communicated with the dust collection hopper, and the dust collection hopper is located between the two rotating rollers.
Compared with the prior art, the utility model has the beneficial effects that: the mounting table is mounted on an external moving vehicle, the cleaning mechanism is used for cleaning and gathering foreign matters on a runway, the rotating disc is rotated, the rotating disc drives the first rotating shaft to eccentrically rotate, the first rotating shaft pushes the elliptical sliding chute plate to slide and swing on the vertical shaft through the first mounting rod, the elliptical sliding chute plate drives the arc-shaped rubber push plate to swing through the second mounting rod, when the first rotating shaft is close to the vertical shaft, the elliptical sliding chute plate pushes the arc-shaped rubber push plate to move outwards through the second mounting rod, when the first rotating shaft is far away from the vertical shaft, the elliptical sliding chute plate pushes the arc-shaped rubber push plate to move in a fan shape through the second mounting rod, and the arc-shaped rubber push plate pushes the foreign matters gathered by the cleaning mechanism to enter the collecting mechanism, so that the foreign matters are picked up, and collected by the two groups of gathering mechanisms alternately operate, so that the two groups of gathering mechanisms continuously pick up and process the foreign matters, and the device can automatically remove the foreign matters on the runway, effectively simplify runway clearance mode, physical power and time when saving artifical clearance improve work efficiency, and the effect of foreign matter clearance improves simultaneously, effectively avoids the foreign matter to remain and influences the runway and uses, improves the practicality.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments described in the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.

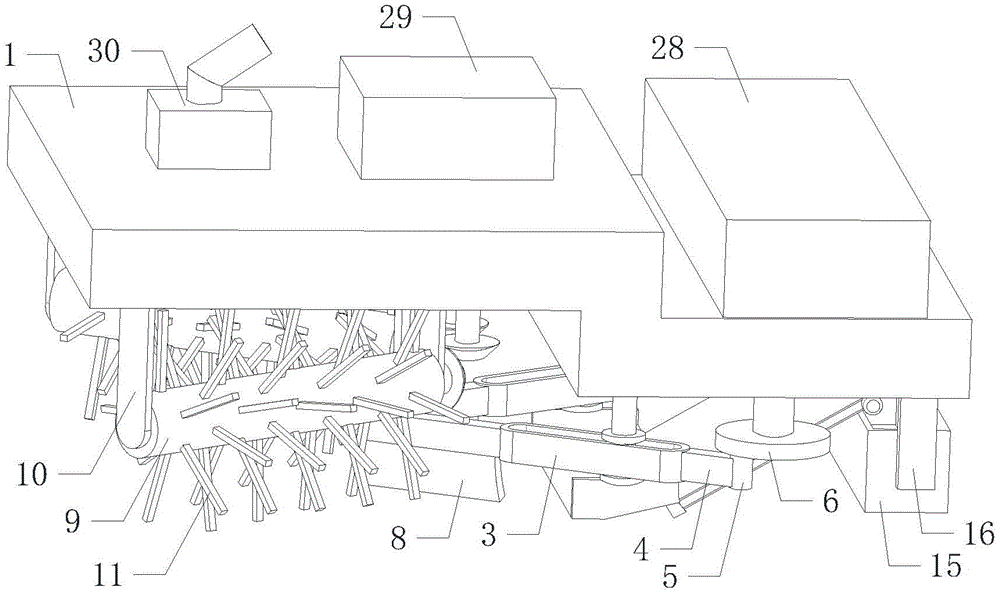

FIG. 1 is a front view of the present invention;
FIG. 2 is a schematic bottom view of the present invention;
FIG. 3 is a schematic top view of the present invention;
FIG. 4 is an enlarged view of a portion A of FIG. 2;
in the drawings, the reference numbers: 1. an installation table; 2. a vertical shaft; 3. an elliptical chute plate; 4. a first mounting bar; 5. a first rotating shaft; 6. a turntable; 7. a second mounting bar; 8. an arc-shaped rubber push plate; 9. a rotating roller; 10. mounting a plate; 11. cleaning with a brush; 12. a limiting plate; 13. collecting the trough plate; 14. a conveyor belt; 15. a collection bin; 16. a fixing plate; 17. a first pulley; 18. a first motor; 19. a bracket mounting bracket; 20. a second pulley; 21. a transmission belt; 22. a second motor; 23. a worm; 24. a worm gear; 25. a second rotating shaft; 26. a first bevel gear; 27. a second bevel gear; 28. a first shield; 29. a second shield; 30. a vacuum cleaner; 31. a dust suction hopper.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
In the description of the present invention, it should be noted that the orientations or positional relationships indicated by the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like are based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; either directly or indirectly through intervening media, or may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art. This embodiment is written in a progressive manner.
As shown in fig. 1 to 4, the device for rapidly removing foreign matters on an airport runway comprises an installation table 1, a cleaning mechanism, two groups of gathering mechanisms and a collecting mechanism, wherein the cleaning mechanism, the two groups of gathering mechanisms and the collecting mechanism are all fixed at the bottom of the installation table 1, and the two groups of gathering mechanisms are opposite in position;
the gathering mechanism comprises a vertical shaft 2 installed at the bottom of an installation table 1, an oval sliding groove plate 3 is sleeved on the outer side of the vertical shaft 2 in a sliding mode, the oval sliding groove plate 3 is inclined, a first installation rod 4 is installed at one end of the oval sliding groove plate 3, a first rotating shaft 5 is installed at the outer end of the first installation rod 4, a rotating disc 6 is installed on the first rotating shaft 5 in a rotating mode, the first rotating shaft 5 is eccentrically located on the rotating disc 6, a second installation rod 7 is installed at the other end of the first installation rod 4, and an arc-shaped rubber push plate 8 is installed at the bottom of the second installation rod 7.
In the embodiment, the mounting table 1 is mounted on an external moving vehicle, the cleaning mechanism is used for cleaning and gathering foreign matters on a runway, the rotating disc 6 is rotated, the rotating disc 6 drives the first rotating shaft 5 to eccentrically rotate, the first rotating shaft 5 pushes the elliptical sliding chute plate 3 to slide and swing on the vertical shaft 2 through the first mounting rod 4, the elliptical sliding chute plate 3 drives the arc-shaped rubber push plate 8 to swing through the second mounting rod 7, when the first rotating shaft 5 is close to the vertical shaft 2, the elliptical sliding chute plate 3 pushes the arc-shaped rubber push plate 8 to move outwards through the second mounting rod 7, when the first rotating shaft 5 is far away from the vertical shaft 2, the elliptical sliding chute plate 3 pushes the arc-shaped rubber push plate 8 to move in a fan shape through the second mounting rod 7 and enables the arc-shaped rubber push plate 8 to push the foreign matters gathered by the cleaning mechanism to enter the collecting mechanism, so as to realize the picking work of the foreign matters, and two groups of picking mechanisms alternately operate, thereby make two sets of mechanisms of holding together of taking off pick up the processing to the foreign matter in succession, this equipment can realize effectively simplifying runway clearance mode to the automatic clear work of runway foreign matter, physical power and time when saving artifical clearance improve work efficiency, and the effect of foreign matter clearance improves simultaneously, effectively avoids the foreign matter to remain and influence the runway and use, improves the practicality.
As the preferred of above-mentioned embodiment, clean the mechanism and include two live-rollers 9 that are the contained angle and put, live-rollers 9 slope, the mounting panel 10 is all installed in the both ends of live-rollers 9 rotation, the top of mounting panel 10 is fixed 1 bottom of mount table, evenly install a plurality of cleaning brush 11 on the outer wall of live-rollers 9, a plurality of cleaning brush 11 are the heliciform and distribute.
In this embodiment, rotate two live-rollers 9, make the bottom rotation direction of two live-rollers 9 all towards between two live-rollers 9, live-rollers 9 drives a plurality of cleaning brushes 11 synchronous rotations on it, a plurality of cleaning brushes 11 of pivoted state promote the foreign matter on the runway to between two live-rollers 9, thereby realize cleaning and gathering together work of foreign matter, simultaneously because a plurality of cleaning brushes 11 are the heliciform and distribute, can conveniently make a plurality of cleaning brushes 11 promote the foreign matter to gathering together near the mechanism when cleaning the foreign matter, conveniently gather together the pick-up work of mechanism to the foreign matter.
Preferably, the upper side and the lower side of the oval chute plate 3 are provided with limiting plates 12, and the limiting plates 12 are fixed on the vertical shaft 2.
In this embodiment, through setting up limiting plate 12, can conveniently carry out spacing and support the processing to oval spout board 3, conveniently make oval spout board 3 slide on vertical scroll 2, avoid oval spout board 3 slope and break away from with vertical scroll 2, stability when improving the removal of arc rubber push pedal 8 simultaneously.
As the optimization of the above embodiment, the collection mechanism includes the collection frid 13, both sides are fixed respectively on the limiting plate 12 of two vertical scroll 2 bottoms around the collection frid 13, the slope of collection frid 13, and the collection frid 13 is kept away from conveyer belt 14 is installed to the one end of arc rubber push pedal 8, conveyer belt 14 inclines, and the output of conveyer belt 14 is provided with collects the storehouse 15, collect the opening of storehouse 15 up, fixed plate 16 is all installed to both sides around collecting the storehouse 15, the top of fixed plate 16 is fixed the bottom of mount table 1.
In this embodiment, take off and push the foreign matter in gathering frid 13 and make the foreign matter remove to conveyer belt 14 along gathering frid 13 inner wall in the mechanism, conveyer belt 14 conveys the foreign matter and handles, the foreign matter on the conveyer belt 14 passes through conveyer belt 14's output whereabouts to in collecting bin 15, thereby realize the collection work of foreign matter, because it inclines to gather frid 13, can conveniently provide enough space for conveyer belt 14's mounted position, it can filter the foreign matter to collect frid 13 simultaneously, thereby conveniently make the foreign matter remove to conveyer belt 14 on, when clearing up the foreign matter on the runway, the bottom and the runway contact of collecting frid 13, thereby conveniently make and collect frid 13 and collect the foreign matter.
As a preferable preference of the above embodiment, the device further comprises a first power mechanism, the first power mechanism comprises two first belt pulleys 17 positioned on the upper side of the mounting table 1, and the two first belt pulleys 17 are respectively in transmission connection with the two rotating discs 6;
the top of the mounting table 1 is provided with a first motor 18, the side wall of the first motor 18 is provided with a support mounting rack 19 and fixed on the mounting table 1 through the support mounting rack 19, the output end of the first motor 18 is provided with a second belt pulley 20, and the second belt pulley 20 and the two first belt pulleys 17 are laid with a transmission belt 21 and synchronously transmitted through the transmission belt 21.
In this embodiment, the first motor 18 drives the two first belt pulleys 17 to synchronously rotate through the second belt pulley 20 and the transmission belt 21, and the two first belt pulleys 17 respectively drive the two rotating discs 6 to rotate, so as to drive the two groups of gathering mechanisms to be uniform.
Preferably, the mounting platform further comprises a second power mechanism, the second power mechanism comprises a second motor 22 installed at the top of the mounting platform 1, an output end of the second motor 22 is provided with a worm 23, the worm 23 is provided with two worm gears 24 in a meshed manner, the two worm gears 24 are respectively located on two sides of an axis of the worm 23, a second rotating shaft 25 is installed at the bottom of the worm gear 24, the bottom of the second rotating shaft 25 penetrates through the mounting platform 1 and extends to the bottom of the mounting platform 1, a first bevel gear 26 is installed at the bottom of the second rotating shaft 25, a second bevel gear 27 is installed on the first bevel gear 26 in a meshed manner, and the second bevel gear 27 is in transmission connection with the rotating roller 9.
In this embodiment, the second motor 22 drives the two worm gears 24 to rotate synchronously through the worm 23, the two worm gears 24 drive the two second bevel gears 27 to rotate through the two second rotating shafts 25 and the two first bevel gears 26, respectively, the second bevel gears 27 drive the rotating rollers 9 to rotate, so as to drive the cleaning mechanism to operate, because the worm 23 drives the two worm gears 24 to rotate synchronously, and the two worm gears 24 are located on two sides of the axis of the worm 23, so that the rotating directions of the two worm gears 24 are opposite, and the two rotating rollers 9 can conveniently rotate synchronously and relatively.
Preferably, in the above embodiment, a first shield 28 is fastened to an outer side of the first power mechanism, a second shield 29 is fastened to an outer side of the second power mechanism, and both the first shield 28 and the second shield 29 are fixed to the top of the mounting table 1.
In this embodiment, the first shield 28 and the second shield 29 are provided to facilitate shielding protection of the first power mechanism and the second power mechanism.
Preferably, the roller cleaner further comprises a dust collector 30 and a dust collection bucket 31, wherein the dust collector 30 is mounted at the top of the mounting table 1, the dust collection bucket 31 is mounted at the bottom of the mounting table 1, the dust collector 30 and the dust collection bucket 31 are communicated with each other, and the dust collection bucket 31 is positioned between the two rotating rollers 9.
In this embodiment, when the cleaning brush 11 on the rotating roller 9 cleans the runway, the dust on the runway easily flies, and the dust collector 30 adsorbs the flying dust through the dust collecting hopper 31, so as to achieve the purpose of dust fall, avoid the dust from damaging the environment, and improve the runway cleaning effect.
The installation mode, the connection mode or the arrangement mode of the rapid clearing device for foreign matters on the airfield runway are common mechanical modes, and the rapid clearing device can be implemented as long as the beneficial effects of the rapid clearing device are achieved.
The above description is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, several modifications and variations can be made without departing from the technical principle of the present invention, and these modifications and variations should also be regarded as the protection scope of the present invention.
