本实用新型公开了一种窄边门窗副框中挺及压线的连接结构，包括门窗型材、中挺和连接条，所述连接条的两相对侧端分别卡装有所述门窗型材和所述中挺，所述中挺外部的两相邻侧面分别设有所述压线和所述副框，其中：中挺的一侧对应连接条的侧壁成型有内凹的装配槽，所述连接条则成型有供装配槽嵌合的凸臂，所述中挺设有拼接槽，所述压线的一侧设有拼接块，且压线的外壁呈斜面状向上延伸，工作时，压线的一侧端面与中挺的一侧端面几乎水平，从而可以增强中挺的美观性，并且副框可以减少窗扇框与中挺之间的间距，避免窗扇框与中挺直接发生碰撞，从而提高中挺的使用寿命和美观性，本实用新型还具有结构简单、操作方便、容易实施的优点。
The utility model discloses a connection structure of a vertical and a pressing line of a narrow-sided door and window sub-frame, which comprises a door and window profile, a middle vertical and a connecting strip. The two opposite side ends of the connecting strip are respectively clamped with the door and window profiles and all the In the middle stand, two adjacent sides outside the middle stand are respectively provided with the pressing line and the sub-frame, wherein: one side of the middle stand is formed with a concave assembly groove corresponding to the side wall of the connecting bar, and the The connecting bar is formed with a convex arm for fitting into the assembly groove, the middle stand is provided with a splicing groove, one side of the pressing line is provided with a splicing block, and the outer wall of the pressing line extends upward in an inclined plane. The end face of one side of the line and the end face of one side of the middle frame are almost horizontal, so that the aesthetics of the middle frame can be enhanced, and the sub-frame can reduce the distance between the sash frame and the middle frame, so as to avoid the direct collision between the sash frame and the middle frame. The service life and aesthetics of the middle stiffener are improved, and the utility model also has the advantages of simple structure, convenient operation and easy implementation.
Description
Technical Field
The utility model relates to the field of door and window installation, in particular to a connecting structure of a mullion and a pressing line of a narrow-side door and window auxiliary frame.
Background
The door and window is divided into an enclosure member or a partition member according to different positions, and has different design requirements for respectively having the functions of heat preservation, heat insulation, sound insulation, water resistance, fire resistance and the like, the door and the window are important components of building modeling (virtual-real contrast, rhythm artistic effect and play an important role), so the shapes, the sizes, the proportions, the arrangement, the colors, the modeling and the like of the door and the window have great influence on the whole modeling of the building, the general door and window are composed of a frame, a middle support, a pressing line and a door body or a window body, the frame is a material connected with the wall body, the main characteristic is that the surface of the joint part of the door and the window body is mostly a plane and is fixed on the wall body and can not move, and the middle support is a material for dividing the rectangle composed of frame materials into a plurality of small rectangles. The pressing line is a section bar which is arranged at one indoor side and used for fixing glass.
The current line ball cross section generally all is right angle form and very laminating together, and this has just resulted in the outward appearance of line ball and very unaesthetic after the assembly, and the interval of casement frame and very big in the outer protruding side of very in addition to can with the medial surface direct contact of very in, can extrude the medial surface of very in when leading to the casement frame to open or close, influence very in the life.
SUMMERY OF THE UTILITY MODEL
The utility model aims to overcome the defects of the prior art and provides a connecting structure for a mullion and pressing lines of a narrow-side door and window subframe.
The purpose of the utility model is realized by the following technical scheme: the utility model provides a connection structure of stile and line ball in narrow limit door and window subframe, includes door and window section bar, stile and connecting strip, the double-phase offside end of connecting strip clamps respectively the door and window section bar with the stile, the outside double-phase adjacent side of stile is equipped with respectively the line ball with subframe, wherein:
the lateral wall shaping that one side of muntin corresponds the connecting strip has the assembly groove of indent, the connecting strip then shaping has the convex arm that supplies the assembly groove gomphosis, the muntin is equipped with the splice groove, one side of line ball is equipped with the splice block, and the outer wall of line ball is the inclined plane form and upwards extends, the splice block inserts in the splice groove, the subframe with one side be assembled joint that the line ball was kept away from to the muntin.
Specifically, the cross section of the mullion is a centrosymmetric structural pattern.
Specifically, a fixed assembly structure is arranged between the inner side wall of the splicing groove and the tail end of the splicing block.
Further, the fixing and assembling structure specifically includes: the bottom end of each splicing block is provided with an arc claw in a molding mode, the other side of each splicing block is provided with a barb claw in a molding mode, and teeth for embedding the barb claws are formed in the inner wall of each splicing groove in a molding mode.
Specifically, a detachable assembly structure is arranged between the auxiliary frame and the side wall of the mullion.
Further, the detachable mounting structure specifically includes: the door and window profile is characterized in that the auxiliary frame is provided with a threaded hole, the door and window profile is provided with a through hole, the threaded hole is superposed with the through hole, and a screw is arranged in the threaded hole.
As the preferable scheme of the utility model, the door and window section bar is provided with a glass plate, the pressing line is provided with a sealing strip, and the section shape of the sealing strip is matched with the cross section of the tail end of the pressing line.
Compared with the prior art, the utility model has the following advantages:
when the glass plate fixing device is used, the pressing line can assist in fixing the glass plate, the contact side of the pressing line and the glass plate can be sealed through matching with the sealing strip, so that the waterproof effect is achieved, the end face of one side of the pressing line is almost horizontal to the end face of one side of the mullion, the attractiveness of the mullion can be enhanced, the distance between the sash frame and the mullion can be reduced through the auxiliary frame, the sash frame and the mullion are prevented from directly colliding, the service life and the attractiveness of the mullion are prolonged, the glass plate fixing device further has the advantages of being simple in structure, convenient to operate, easy to implement and simple in structure, convenient to operate and easy to implement.
Drawings

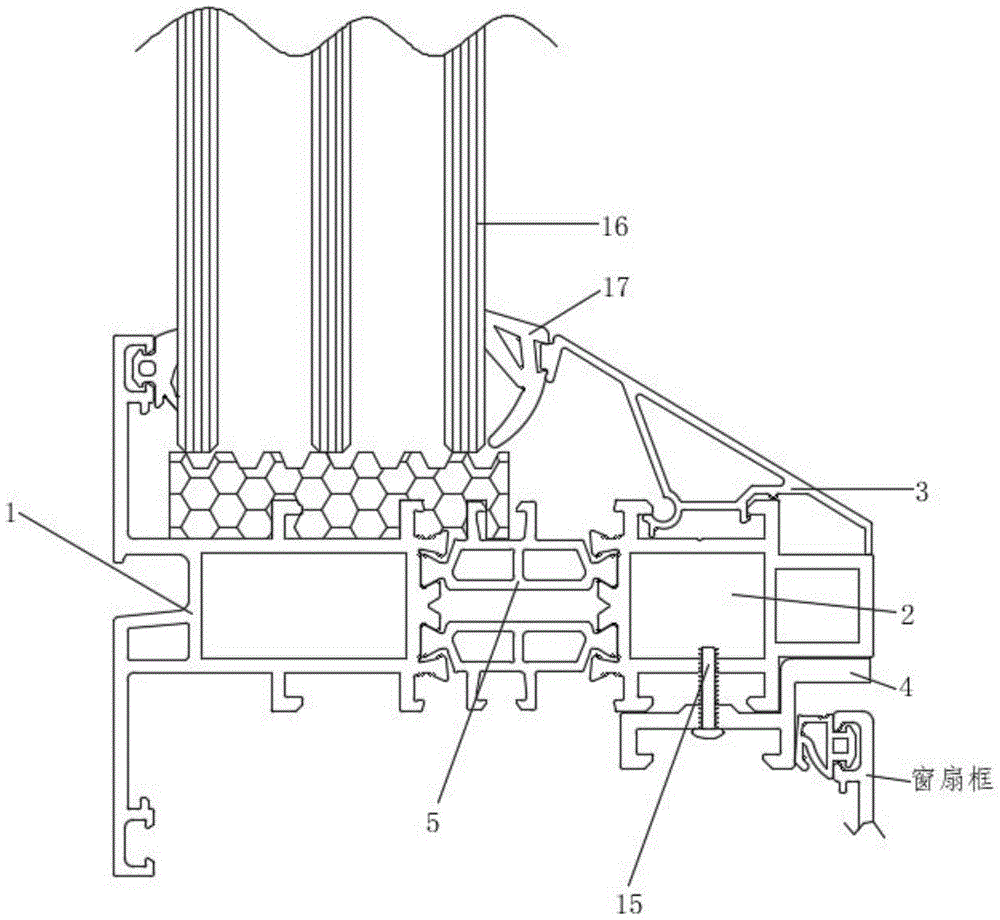

Fig. 1 is a schematic sectional structure of the present invention.
Fig. 2 is a schematic cross-sectional structure diagram of the mullion of the present invention.
FIG. 3 is a cross-sectional view of the pressing line of the present invention.
Fig. 4 is a schematic cross-sectional structure diagram of the subframe of the present invention.
Fig. 5 is a schematic cross-sectional structure of the connecting strip of the present invention.
The reference numerals in the above figures illustrate:
1-door and window section bar, 2-mullion, 3-pressing line, 4-subframe, 5-connecting strip, 6-assembling groove, 7-convex arm, 8-splicing groove, 9-splicing block, 10-arc claw, 11-barb claw, 12-tooth, 13-threaded hole, 14-through hole, 15-screw, 16-glass plate and 17-sealing strip.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention clearer and clearer, the present invention is further described below with reference to the accompanying drawings and examples.
As shown in fig. 1 to 5, this embodiment discloses a connection structure of stile and line ball in narrow limit door and window subframe, including door and window section bar 1, stile 2 and connecting strip 5, the double-phase offside end of connecting strip 5 clamps door and window section bar 1 and stile 2 respectively, and the double-phase offside of stile 2 outside is equipped with line ball 3 and subframe 4 respectively, wherein:
the lateral wall shaping that one side of muntin 2 corresponds connecting strip 5 has the assembly groove 6 of indent, and connecting strip 5 then the shaping has the convex arm 7 that supplies the 6 gomphosis of assembly groove, and muntin 2 is equipped with splice groove 8, and one side of line ball 3 is equipped with splice block 9, and the outer wall of line ball 3 is the inclined plane form and upwards extends, and splice block 9 inserts in splice groove 8, and one side be assembled between/be connected between line ball 3 is kept away from with muntin 2 to auxiliary frame 4.
The cross section of the mullion 2 is a centrosymmetric structure pattern, so that the requirement for distinguishing the assembly angle of the mullion 2 can be eliminated, the reverse assembly of the mullion 2 is avoided, and the assembly process is simplified.
And a fixed assembly structure is arranged between the inner side wall of the splicing groove 8 and the tail end of the splicing block 9.
The fixed assembly structure specifically includes: an arc claw 10 is formed on one side of the bottom end of the splicing block 9, a barb claw 11 is formed on the other side of the bottom end of the splicing block, and teeth 12 for embedding the barb claw 11 are formed on the inner wall of the splicing groove 8; the arc claw 10 contacts with the side wall of one side of the splicing groove 8 and generates thrust reversely, so that the barb claw 11 is firmly embedded with the tooth 12, and the pressing line 3 is prevented from being sent on the middle support 2.
A detachable assembly structure is arranged between the auxiliary frame 4 and the side wall of the mullion 2; the auxiliary frame 4 can reduce the space between the door and window frame and the middle support 2, and avoid the direct collision between the door and window frame and the middle support 2, thereby prolonging the service life of the middle support 2.
The detachable assembly structure specifically includes: a threaded hole 13 is formed in the auxiliary frame 4, a through hole 14 is formed in the door and window section bar 1, the threaded hole 13 is overlapped with the through hole 14, and a screw 15 is arranged inside the threaded hole 13; the screw 15 can connect the subframe 4 and the mullion 2 through the screw hole 13 on the subframe 4 and the through hole 14 on the mullion 2, thereby assembling the subframe 4 on the mullion 2.
The door and window section bar 1 is provided with a glass plate 16, the pressing line 3 is provided with a sealing strip 17, and the section shape of the sealing strip 17 is matched with the cross section of the tail end of the pressing line 3; a sealing strip 17 is mounted at one end of the pressing line 3 to seal the contact end of the pressing line 3 with the glass plate 16.
The working process and principle of the utility model are as follows: firstly, two connecting strips 5 are arranged on one side of a door and window profile 1, the mullion 2 is arranged on convex arms 7 of the two connecting strips 5 through an assembly groove 6 on the mullion 2, the connection design of the two connecting strips 5 can enable the mullion 2 and the door and window profile 1 to be more stable, then screws 15 sequentially penetrate through threaded holes 13 arranged on an auxiliary frame 4 and through holes 14 arranged on the mullion 2, so that the auxiliary frame 4 is arranged on the mullion 2, a glass plate 16 is arranged on one side of the door and window profile 1 through glass cement, the auxiliary frame 4 can reduce the direct distance between a sash frame and the mullion 2, and buffer exists between the sash frame and the mullion 2, so that the service life and the attractiveness of the mullion 2 are improved, then a splicing block 9 of a pressing line 3 is inserted into a splicing groove 8 of the pressing line 3, an arc claw 10 on one side of the bottom end of the splicing block 9 can be contacted with the side wall of the splicing groove 8, so as to generate reverse acting force, and then make barb claw 11 and the gomphosis of tooth 12 on the 8 lateral walls of splice groove, and then with firm the installing on mullion 2 of line ball 3, the sealed welt 17 of the terminal installation in line ball 3 one side can be sealed with line ball 3 and 16 contact terminals of glass sheet, and finally, the outside limit face of mullion 2, line ball 3 and vice frame 4 can form a plane of relative level to make mullion 2, line ball 3 and vice frame 4 more pleasing to the eye reliable when connecting the installation. The utility model also has the advantages of simple structure, convenient operation and easy implementation.
The above embodiments are preferred embodiments of the present invention, but the present invention is not limited to the above embodiments, and any other changes, modifications, substitutions, combinations, and simplifications which do not depart from the spirit and principle of the present invention should be construed as equivalents thereof, and all such changes, modifications, substitutions, combinations, and simplifications are intended to be included in the scope of the present invention.
