Abstract
本实用新型涉及污水处理技术领域，特别涉及一种新型污水沉淀池；包括池体，所述池体内部设置有第一隔板和第二隔板，所述第一隔板和第二隔板将池体内部分隔成过滤腔、处理腔和清水腔，所述处理腔内依次设置有导流组件和沉淀区。本实用新型通过设置过滤腔、处理腔和清水腔，能够对污水进行多次连续处理，提高了对污水的处理效果和处理效率；通过设置导流组件，能够引导污水流动方向，使得污水沿着波浪形方向流动，可使污水中悬浮颗粒相互碰撞和摩擦，进而使污水中悬浮颗粒逐渐变大而不破碎，再通过沉淀区，污水中的悬浮颗粒经过重力作用不断下沉，进而提高了污水净化效果。
The utility model relates to the technical field of sewage treatment, in particular to a novel sewage sedimentation tank; comprising a tank body, a first partition plate and a second partition plate are arranged inside the tank body, the first partition plate and the second partition plate The interior of the tank body is divided into a filter cavity, a treatment cavity and a clean water cavity, and the treatment cavity is provided with a flow guide assembly and a sedimentation area in sequence. By arranging a filter cavity, a treatment cavity and a clean water cavity, the utility model can continuously treat sewage for many times, thereby improving the treatment effect and treatment efficiency of sewage; The wave-shaped flow can make the suspended particles in the sewage collide and rub against each other, so that the suspended particles in the sewage will gradually become larger and not broken, and then pass through the sedimentation zone, the suspended particles in the sewage will continue to sink under the action of gravity, thereby improving the sewage. Purifying effect.
Description
Technical Field
The utility model relates to the technical field of sewage treatment, in particular to a novel sewage sedimentation tank.
Background
The sedimentation tank is a structure for removing suspended matters in water by applying sedimentation, and is widely used in wastewater treatment. The device has a plurality of forms, and can be divided into a horizontal flow type, a vertical flow type and a radial flow type according to the water flow direction in the pool. However, many types of sedimentation tanks have a common disadvantage, namely, poor sedimentation effect and poor sewage treatment efficiency.
Therefore, a novel sewage sedimentation tank is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a novel sewage sedimentation tank to solve the problems in the prior art.
In order to achieve the purpose, the technical scheme of the utility model is as follows:
a novel sewage sedimentation tank comprises a tank body, wherein a first clapboard and a second clapboard are arranged inside the tank body, the first clapboard and the second clapboard divide the interior of the tank body into a filtering cavity, a treatment cavity and a clear water cavity, a first through water hole is arranged above the first clapboard, a flow guide component and a sedimentation area are sequentially arranged in the treatment cavity, the flow guide assembly is arranged close to the first clapboard, a second through water hole is arranged above the second clapboard, a filter screen is arranged at the position of the second through water hole, the filter cavity and the treatment cavity are both provided with sludge discharge pipes, the output end of the sludge discharge pipe is connected with a sludge pump, the outer side of the tank body is provided with a sludge tank, the output end of the sludge pump is connected with the input end of the sludge tank through a pipeline, the lateral wall top in filter chamber is provided with the inlet tube, the lateral wall top in clear water chamber is provided with the drain pipe.
Specifically, sliding connection has filter equipment in the filter chamber, filter equipment includes vertical filtration netted casing, supports the ear and sets up in the inside a plurality of active carbon of vertical filtration netted casing, the both sides top symmetry of vertical filtration netted casing sets up supports the ear, it is equipped with the handle at the upper end edge of cell body to support the ear.
Specifically, the inner wall symmetry of filter chamber is provided with two spouts, be provided with on the vertical netted casing of filtering with spout assorted slider.
Specifically, the flow guide assembly comprises a plurality of flow guide plates which are arranged on two sides of the inner wall of the treatment cavity in a staggered manner.
Specifically, the bottom surfaces of the filter cavity and the treatment cavity are both U-shaped structures.
The utility model has the beneficial effects that: by arranging the filter cavity, the treatment cavity and the clear water cavity, the sewage can be continuously treated for many times, so that the treatment effect and the treatment efficiency of the sewage are improved; the flow guide assembly is arranged, so that the flow direction of sewage can be guided, the sewage flows along the wave-shaped direction, suspended particles in the sewage can collide and rub with each other, the suspended particles in the sewage are gradually enlarged without being crushed, and the suspended particles in the sewage continuously sink under the action of gravity through the settling zone, so that the sewage purification effect is improved; through setting up mud pipe, dredge pump and sludge box, can extract the operation to the inside mud of filter chamber and treatment chamber, the sludge treatment of being convenient for, the practicality is strong.
Drawings

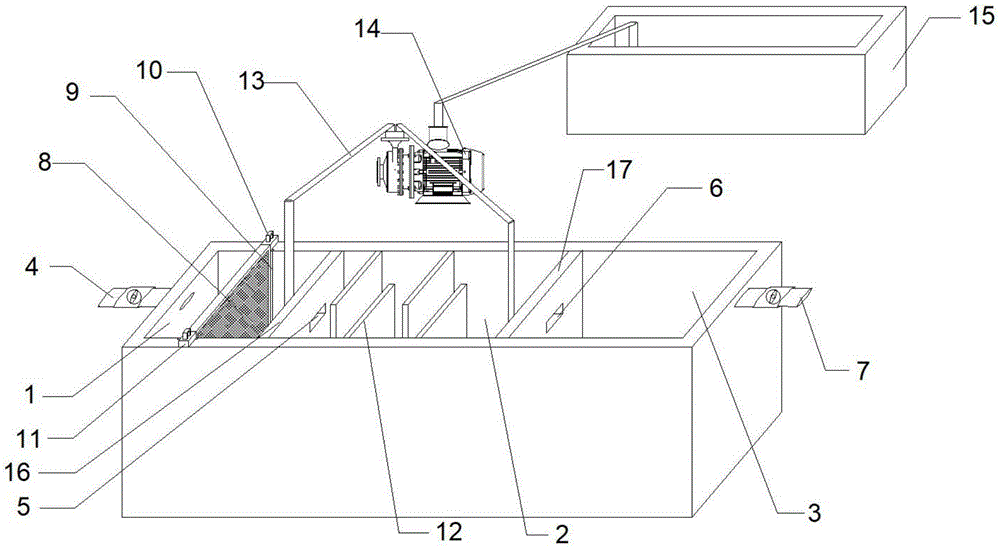

Fig. 1 is a schematic structural diagram of an embodiment of the present invention.
Reference numerals: the device comprises a filter chamber 1, a settling zone 2, a clear water chamber 3, a water inlet pipe 4, a first through water hole 5, a second through water hole 6, a drain pipe 7, a vertical filtering netted shell 8, a chute 9, a handle 10, a supporting lug 11, a guide plate 12, a sludge discharge pipe 13, a sludge pump 14, a sludge tank 15, a first partition plate 16 and a second partition plate 17.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to the attached figure 1, a novel sewage sedimentation tank comprises a tank body, wherein a first partition plate 16 and a second partition plate 17 are arranged inside the tank body, the first partition plate 16 and the second partition plate 17 divide the inside of the tank body into a filter chamber 1, a treatment chamber and a clear water chamber 3, a first through water hole 5 is formed above the first partition plate 16, a flow guide assembly and a sedimentation zone 2 are sequentially arranged in the treatment chamber, the flow guide assembly is arranged close to the first partition plate 16, a second through water hole 6 is formed above the second partition plate 17, a filter screen is arranged at the position of the second through water hole 6, a sludge discharge pipe 13 is arranged in each of the filter chamber 1 and the treatment chamber, the output end of the sludge discharge pipe 13 is connected with a sludge pump 14, a sludge tank 15 is arranged outside the tank, the output end of the sludge pump 14 is connected with the input end of the sludge tank 15 through a pipeline, a water inlet pipe 4 is arranged above the side wall of the filter chamber 1, a drain pipe 7 is arranged above the side wall of the clear water cavity 3; according to the utility model, by arranging the filter chamber 1, the treatment chamber and the clear water chamber 3, sewage can be continuously treated for many times, so that the treatment effect and treatment efficiency of sewage are improved; by arranging the flow guide assembly, the flow direction of the sewage can be guided, so that the sewage flows along the wave-shaped direction, suspended particles in the sewage can collide and rub with each other, the suspended particles in the sewage are gradually enlarged without being crushed, and the suspended particles in the sewage continuously sink under the action of gravity through the settling zone 2, so that the sewage purification effect is improved; through setting up mud pipe 13, dredge pump 14 and sludge box 15, can extract the operation to the inside mud of filter chamber 1 and treatment chamber, the sludge treatment of being convenient for, the practicality is strong.
Furthermore, the sludge discharge pipe 13, the water inlet pipe 4 and the water discharge pipe 7 are provided with valves, so that the use is convenient.
Specifically, a filtering device is connected in the filtering cavity 1 in a sliding manner, the filtering device comprises a vertical filtering mesh-shaped shell 8, supporting lugs 11 and a plurality of activated carbons arranged in the vertical filtering mesh-shaped shell 8, the supporting lugs 11 are symmetrically arranged above two sides of the vertical filtering mesh-shaped shell 8, and the supporting lugs 11 are provided with handles 10 at the upper end edges of the tank body; the vertical filtering net-shaped shell 8 and the active carbon are arranged, so that the sewage can be conveniently subjected to primary filtering treatment, and the practical effect is good; through setting up support ear 11 and handle, be convenient for take out and the vertical netted casing 8 of filtering of installation, the later maintenance of being convenient for.
Specifically, two sliding chutes 9 are symmetrically arranged on the inner wall of the filter cavity 1, and sliding blocks matched with the sliding chutes 9 are arranged on the vertical filter net-shaped shell 8; through setting up spout 9 and slider, can carry on spacingly to the service position of vertical netted casing 8 of filtering, prevent that it from removing along with rivers.
Specifically, the flow guide assembly comprises a plurality of flow guide plates 12 which are arranged on two sides of the inner wall of the treatment cavity in a staggered manner; through setting up guide plate 12, can guide sewage flow direction for sewage flows along the wave direction, can make in the sewage suspension granule bump each other and rub, and then makes in the sewage suspension granule grow gradually and not broken, thereby makes the suspension granule bump each other and forms the flocculating constituent of large granule and then deposit at sedimentation zone 2.
Specifically, the inside bottom surfaces of the filter chamber 1 and the treatment chamber are both in a U-shaped structure, and the sludge discharge pipe 13 is inserted into the lowest bottom end of the bottom surface of the filter chamber 1 or the treatment chamber in the U-shaped structure, so that sludge can be discharged conveniently.
The working process of the utility model is as follows: when in use, firstly, a flocculating agent and sewage are mixed and then enter the filter cavity 1 through the water inlet pipe 4, and the vertical filtering reticular shell 8 and the active carbon are arranged, so that the sewage can be conveniently subjected to preliminary filtering treatment, and the practical effect is good; the vertical filtering reticular shell 8 is convenient to take out and mount by arranging the supporting lugs 11 and the lifting handle 10, and the later maintenance is convenient; subsequently through prefilter's sewage via first through water hole 5 entering treatment intracavity, owing to set up guide plate 12, can guide sewage flow direction, make sewage flow along the wave direction, can make in the sewage suspension granule collision each other and friction, and then make in the sewage suspension granule grow gradually and not broken, thereby make suspension granule collision each other form the flocculating constituent of large granule and then deposit at sedimentation zone 2, water after the process of depositing later gets into clear water chamber 3 and collects.
Finally, the above embodiments are only for illustrating the technical solutions of the present invention and not for limiting, although the present invention has been described in detail with reference to the preferred embodiments, it should be understood by those skilled in the art that modifications or equivalent substitutions may be made to the technical solutions of the present invention without departing from the spirit and scope of the technical solutions of the present invention, and all of them should be covered in the claims of the present invention.
Claims (5)
1. A novel sewage sedimentation tank comprises a tank body and is characterized in that a first clapboard and a second clapboard are arranged inside the tank body, the first clapboard and the second clapboard divide the interior of the tank body into a filtering cavity, a treatment cavity and a clear water cavity, a first through water hole is arranged above the first clapboard, a flow guide component and a sedimentation area are sequentially arranged in the treatment cavity, the flow guide assembly is arranged close to the first clapboard, a second through water hole is arranged above the second clapboard, a filter screen is arranged at the position of the second through water hole, the filter cavity and the treatment cavity are both provided with sludge discharge pipes, the output end of the sludge discharge pipe is connected with a sludge pump, the outer side of the tank body is provided with a sludge tank, the output end of the sludge pump is connected with the input end of the sludge tank through a pipeline, the lateral wall top in filter chamber is provided with the inlet tube, the lateral wall top in clear water chamber is provided with the drain pipe.
2. The novel sewage sedimentation tank as claimed in claim 1, wherein a filtering device is slidably connected in the filtering cavity, the filtering device comprises a vertical filtering mesh-shaped shell, supporting lugs and a plurality of activated carbons arranged in the vertical filtering mesh-shaped shell, the supporting lugs are symmetrically arranged above two sides of the vertical filtering mesh-shaped shell, and the supporting lugs are provided with handles at the upper end edges of the tank body.
3. The novel sewage sedimentation tank of claim 2, wherein the inner wall of the filtration chamber is symmetrically provided with two sliding grooves, and the vertical filtration mesh-shaped shell is provided with sliding blocks matched with the sliding grooves.
4. The novel sewage sedimentation tank of claim 1, wherein the flow guide assembly comprises a plurality of flow guide plates arranged on two sides of the inner wall of the treatment chamber in a staggered manner.
5. The novel sewage sedimentation tank of claim 1, wherein the inner bottom surfaces of the filtration chamber and the treatment chamber are both in a U-shaped structure.
