CN215937244U

CN215937244U - Linkage type cleaning assembly and cleaning base using same

Info

Publication number: CN215937244U
Application number: CN202121695985.6U
Authority: CN
Inventors: 龚筱芳
Original assignee: Suzhou Womow Intelligent Technology Co Ltd
Current assignee: Suzhou Douqi Cat Intelligent Electrical Appliances Co ltd
Priority date: 2021-07-23
Filing date: 2021-07-23
Publication date: 2022-03-04
Anticipated expiration: 2031-07-23

Abstract

The utility model discloses a linkage type cleaning component and a cleaning base using the same. A linkage type cleaning assembly, comprising a cleaning roller, a cleaning brush roller and a water squeezing roller correspondingly matched with the cleaning roller in turn along the rotation direction of the cleaning roller, the cleaning roller and the cleaning brush roller rotate in the same direction, and the cleaning roller and the water squeezing roller rotate in opposite directions , the cleaning roller, the cleaning brush roller and the water squeezing roller are linked by the driving device through the first transmission mechanism, and at the same time provide a cleaning base applying the above linked cleaning assembly. The cleaning roller, the cleaning brush roller and the water squeezing roller of the utility model are linked by the driving device through the first transmission mechanism, which simplifies the structure and occupies a small space, and the water squeezing roller can better squeeze the water on the cleaning roller by rotating. Sewage, reduce damage to the cleaning roller, etc., can also further brush off the dirt stuck on the cleaning roller, etc., the effect is better, thereby improving the reliability of the product.

Description

Linkage type cleaning assembly and cleaning base using same

Technical Field

The utility model relates to a cleaning device, in particular to a linkage type cleaning assembly and a cleaning base using the same.

Background

Early ground cleaning tools used by people were brooms, mops, etc., which relied primarily on manual operation by people to accomplish the cleaning. With the rapid development of science and technology and the continuous progress of society, the living conditions of people are continuously improved, the requirements on living environment are higher and higher, the cleaning concept is more and more emphasized, and therefore, the requirements of people on the floor cleaning tool are also gradually improved. Traditional dust catcher relies on electric power energy supply, absorbs subaerial rubbish, dust etc. through producing the negative pressure, but can't clear up firmly attached some rubbish and spot etc. subaerial, consequently, drive the roller brush formula cleaning device who cleans ground through the motor and use more and more.

At present, the existing rolling brush type cleaning equipment is generally provided with a water supply system for cleaning a cleaning roller so as to better clean the ground, and is also provided with a water squeezing strip and a cleaning brush roller for cleaning the cleaning roller. However, the existing cleaning roller and the cleaning brush roller are driven by driving mechanisms such as different motors and the like respectively, the structure is complex, the occupied space is large, the size is large, the energy consumption is large, the water squeezing strips are fixedly squeezed on the surface of the cleaning roller, the water squeezing strips are in hard contact with the cleaning roller, the cleaning roller is greatly damaged, the water squeezing effect is poor, the reliability is low, and the like, so that the application and the development of products are influenced.

SUMMERY OF THE UTILITY MODEL

The present invention is directed to a solution to at least one of the above problems, and the technical solution of the present invention is as follows:

the utility model provides a clean subassembly of coordinated type, including the cleaning roller and along the rotation direction of cleaning roller in proper order rather than corresponding complex clearance brush roll and wringing roller, the cleaning roller rotates the direction the same with the clearance brush roll, the cleaning roller rotates opposite direction with the wringing roller, the cleaning roller, clearance brush roll and wringing roller are linked through the drive of a drive mechanism by drive arrangement, the cleaning roller is used for the clean ground of round brush, the clearance brush roll is used for clearing up the rubbish on the cleaning roller, the wringing roller is used for extruding the sewage on the cleaning roller.

In some embodiments, the first transmission mechanism comprises a first gear connected with the cleaning roller, a second gear connected with the cleaning roller and a third gear connected with the wringing roller, the first gear is meshed with the third gear, and the first gear is in transmission connection with the second gear through a transition gear.

In some embodiments, the speed of the second gear and the speed of the third gear are both greater than the speed of the first gear.

In some embodiments, the cleaning brush roll includes a first shaft having a cleaning member disposed thereon for cleaning debris from the cleaning roll.

In some embodiments, the cleaning member is a leather strip.

The cleaning base comprises a base shell, wherein a cleaning roller is arranged on the base shell, the cleaning roller sequentially matches with a garbage box, a cleaning brush roller, a water squeezing roller and a nozzle assembly along the rotation direction of the cleaning roller, the nozzle assembly is used for wetting and cleaning the cleaning roller, the garbage box is used for containing garbage brushed off, and the cleaning brush roller is located above an inlet of the garbage box.

In some embodiments, the wringing roller is disposed within a groove structure of the sump housing that sealingly cooperates with a surface of the scrub roller to form a sump.

In some embodiments, the trash can is located at the bottom of the base housing and the sink housing is proximate the top of the scrub roller.

In some embodiments, the bottom of the base housing is provided with a first barrier strip which is an arc shape corresponding to the surface of the cleaning roller and can extend from the ground to the inlet of the garbage box.

The utility model has the beneficial effects that: the cleaning roller, clearance brush roll and wringing roller are driven by drive arrangement through a drive mechanism and are linked, the structure is simplified, the structure is compact, stable, the occupied space is small, the size is small, the energy consumption is reduced, moreover, the wringing roller can better extrude sewage on the cleaning roller through rotation, the damage to the cleaning roller is reduced, the dirt stuck on the cleaning roller can be further brushed, the effect is better, thereby the reliability of the product is improved, and the application and the development of the product are enlarged.

In addition, in the technical scheme of the utility model, the technical scheme can be realized by adopting the conventional means in the field unless being particularly described.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and other drawings can be obtained by those skilled in the art without creative efforts.

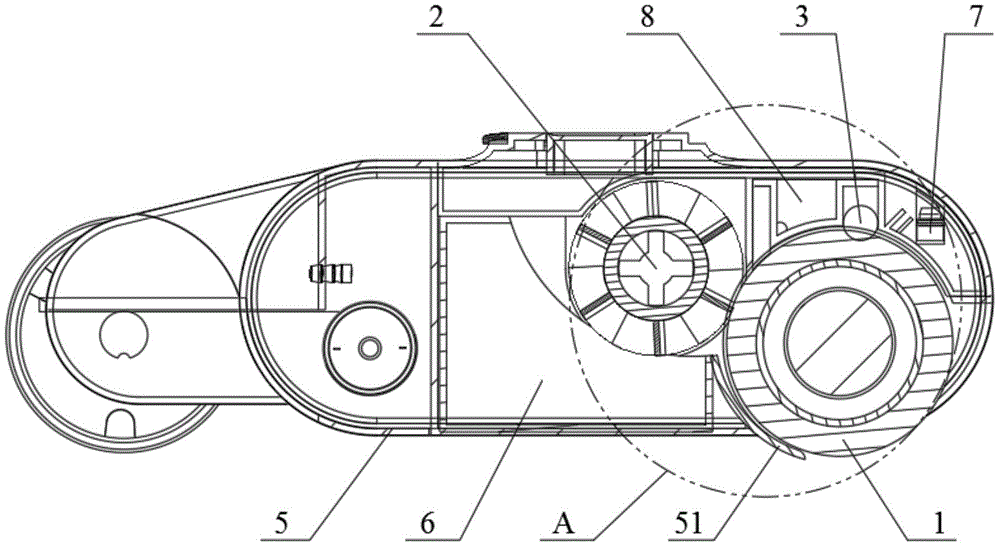

Fig. 1 is a schematic structural diagram of a cleaning base according to an embodiment of the present invention.

Fig. 2 is a partial enlarged view of a portion a of fig. 1 according to an embodiment of the present invention.

Fig. 3 is a schematic structural diagram of a cleaning base according to an embodiment of the present invention.

Fig. 4 is a schematic structural diagram of a cleaning roller, a cleaning brush roller and a wringing roller according to an embodiment of the utility model.

The reference numbers in the drawings indicate that the cleaning roller 1, the cleaning brush roller 2, the first rotating shaft 21, the cleaning piece 22, the wringing roller 3, the first transmission mechanism 4, the first gear 41, the second gear 42, the third gear 43, the transition gear 44, the base shell 5, the first barrier strip 51, the garbage box 6, the spray head assembly 7, the water tank shell 8, the groove structure 81 and the sewage tank 82.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention is described in further detail below with reference to the accompanying drawings and embodiments. It should be understood that the detailed description and specific examples, while indicating some embodiments of the utility model, are intended for purposes of illustration only and are not intended to limit the scope of the utility model. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "front", "rear", "vertical", "horizontal", "inner", "outer", "both ends", "both sides", "bottom", "top", etc., indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the elements referred to must have a particular orientation or be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention. Furthermore, the terms "first," "second," "upper," "lower," "primary," "secondary," and the like are used for descriptive purposes only and may be used for purposes of simplicity in more clearly distinguishing between various components and not to indicate or imply relative importance.

In the description of the present invention, it should be noted that unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are used broadly and can be, for example, fixedly connected, detachably connected, integrally connected, mechanically connected, electrically connected, directly connected, indirectly connected through an intermediate medium, or connected through the inside of two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1-4, a linkage type cleaning assembly and a cleaning base using the same according to the present invention are schematically shown. The linkage type cleaning assembly comprises a cleaning roller 1, a cleaning brush roller 2 and a wringing roller 3, the cleaning brush roller 2 and the wringing roller 3 are sequentially matched with the cleaning roller 1 correspondingly along the rotating direction of the cleaning roller 1, the cleaning brush roller 2 and the wringing roller 3 are parallel to the cleaning roller 1, and the lengths of the cleaning brush roller 2 and the wringing roller 3 are basically consistent with that of the cleaning roller 1.

As shown in fig. 4, the rotation directions of the cleaning roller 1 and the cleaning brush roller 2 are the same, the rotation directions of the cleaning roller 1 and the wringing roller 3 are opposite, for example, the cleaning roller 1 and the cleaning brush roller 2 rotate clockwise, the wringing roller 3 rotates counterclockwise, the cleaning roller 1, the cleaning brush roller 2 and the wringing roller 3 are driven by a driving device through a first transmission mechanism 4 to be linked, the first transmission mechanism 4 can be a gear mechanism, a synchronous belt mechanism or other suitable mechanisms in the prior art, the driving device can be a motor, a motor and the like, and the driving device is not shown in the figure. The cleaning roller is driven by the driving device through the first transmission mechanism 4, the cleaning brush roller 2 and the wringing roller 3 are synchronously linked, the structure is simplified, the structure is more compact and stable, the volume is smaller, the control is more convenient, the rotating cleaning roller 1 is used for rolling and brushing the cleaning ground, the rotating cleaning brush roller 2 is used for cleaning garbage on the cleaning roller 1, the rotating wringing roller 3 is used for extruding sewage on the cleaning roller 1, the damage to the cleaning roller 1 is reduced, the dirt adhered to the cleaning roller 1 can be further brushed, and the cleaning roller 1 is ensured to be cleaner, and the effect is better.

The first transmission mechanism 4 adopts a gear mechanism, so that the structure strength is high, and the stability and the reliability are good. The first transmission mechanism 4 comprises a first gear 41 connected with the cleaning roller 1, a second gear 42 connected with the cleaning brush roller 2 and a third gear 43 connected with the wringing roller 3, the first gear 41 is meshed with the third gear 43, the first gear 41 is in transmission connection with the second gear 42 through a transition gear 44, and the transition gear 44 can be one or a plurality of gears.

The speed of the second gear 42 and the speed of the third gear 43 may be greater than the speed of the first gear 41, may be less than the speed of the first gear 41, and may be equal to or greater than the speed of the first gear 41, that is, the speed of the cleaning brush roller 2 and the speed of the wringing roller 3 are both greater than the speed of the cleaning roller 1, may be less than the speed of the cleaning roller 1, and may be equal to the speed of the cleaning roller 1. Generally, the speed of the second gear 42 and the speed of the third gear 43 are both greater than the speed of the first gear 41, i.e., the speed of the cleaning brush roller 2 and the wringing roller 3 are both greater than the speed of the cleaning roller 1, so that sewage, garbage, etc. on the cleaning roller 1 can be better cleaned.

The surface of the cleaning roller 1 is provided with a sleeve made of flexible materials, the sleeve can be made of sponge, foam or other suitable flexible materials in the prior art, and the sleeve is convenient for better rolling and brushing the ground, matching with the cleaning brush roller 2 and the water squeezing roller 3 and the like. The sleeve is sleeved on the cleaning roller 1, and is convenient to mount, dismount and replace.

The cleaning brush roll 2 comprises a first rotating shaft 21, a cleaning piece 22 used for cleaning garbage on the cleaning roll 1 is arranged on the first rotating shaft 21, the first rotating shaft 21 is basically parallel to the cleaning roll 1, the first rotating shaft 21, the cleaning roll 1 and the water squeezing roll 3 are driven by a driving device through a first transmission mechanism 4 to be synchronously linked, and the rotating direction of the first rotating shaft 21 is the same as that of the cleaning roll 1.

The cleaning elements 22 may be in the form of strips, such as brushes, teeth, scrapers, strips, or combinations thereof, and the number, amount, and arrangement of the cleaning elements 22 may be determined according to the specific situation. The cleaning piece 22 is made of leather strips, is simple in structure, convenient to machine and manufacture and the like, and can be used for flexibly cleaning the cleaning roller 1 without damaging the cleaning roller 1 easily.

The cleaning base applying the linkage type cleaning assembly comprises a base shell 5, wherein a cleaning roller 1, a garbage box 6, a cleaning brush roller 2, a water squeezing roller 3 and a nozzle assembly 7 which are correspondingly matched with the cleaning roller 1 in sequence along the rotation direction of the cleaning roller 1 are arranged on the base shell 5, the nozzle assembly 7 is used for wetting and cleaning the cleaning roller 1, the garbage box 6 is used for containing the washed garbage, the cleaning brush roller 2 is positioned above an inlet of the garbage box 6, the cleaning brush roller 2 and the water squeezing roller 3 are parallel to the cleaning roller 1, the lengths of the garbage box 6, the cleaning brush roller 2 and the water squeezing roller 3 are basically consistent with the length of the cleaning roller 1, the rotation directions of the cleaning roller 1 and the cleaning brush roller 2 are the same, the rotation directions of the cleaning roller 1 and the water squeezing roller 3 are opposite, the cleaning roller 1, the cleaning brush roller 2 and the water squeezing roller 3 are driven by a driving device through a first transmission mechanism 4 to be linked, and the rotating cleaning roller 1 is used for rolling and brushing the ground, the rotating cleaning brush roller 2 is used for cleaning garbage on the cleaning roller 1, and the rotating wringing roller 3 is used for squeezing out sewage on the cleaning roller 1.

In the use, cleaning roller 1 and ground contact, drive arrangement passes through the clean roller of 4 drives of first drive mechanism, clearance brush roll 2 and wringing roller 3 carry out the synchronization linkage, shower nozzle subassembly 7 sprays the clear water to cleaning roller 1, cleaning solution or high temperature high pressure steam, can carry out even moist to cleaning roller 1, wash, pivoted cleaning roller 1 is used for the clean ground of round brush, pivoted clearance brush roll 2 is used for the rubbish on the clearance cleaning roller 1, pivoted wringing roller 3 is used for extruding the sewage on the cleaning roller 1, rubbish box 6 is used for accomodating the rubbish that the brush was washed, the greasy dirt on ground can be washd more thoroughly to high temperature high pressure steam, the viscidity etc., can also effectively kill the bacterium and the virus etc. on object surface.

Wringing roller 3 sets up in basin casing 8, basin casing 8 has groove structure 81, wringing roller 3 is located groove structure 81, groove structure 81 back-off of basin casing 8 is on cleaning roller 1, groove structure 81 of basin casing 8 forms bilge pit 82 with cleaning roller 1's surface seal cooperation, make shower nozzle subassembly 7 and bilge pit 82 be separately, mutually independent, so carry out moist to cleaning roller 1, the processing of washing and sewage can go on simultaneously, mutual noninterference, rubbish on cleaning roller 1 can not lead to shower nozzle subassembly 7 and feeding device's jam etc., sewage after cleaning roller 1 scrubs ground is collected through bilge pit 82 and corresponding sewage treatment plant and is handled, and the structure is compacter, and firm.

Rubbish box 6 can be located the bottom of base shell 5 and be located the rear side lower extreme of cleaning roller 1, basin casing 8 is close to the top of cleaning roller 1, shower nozzle subassembly 7 is located the front side upper end of cleaning roller 1, clearance brush roll 2 is located between rubbish box 6 and basin casing 8, basin casing 8 is located between clearance brush roll 2 and shower nozzle subassembly 7, under the prerequisite that does not influence cleaning roller 1 pivoted, rubbish box 6 is close to with cleaning roller 1 as far as possible, avoid rubbish to spill etc. from the gap between cleaning roller 1 and rubbish box 6.

The wringing roller 3 is located on one side of the groove structure 81, a sealing element is further arranged on the other side of the groove structure 81, the wringing roller 3 and the sealing element are arranged in the groove structure 81 side by side and form sealing fit through the surface of the extrusion cleaning roller 1 respectively, the sealing element only plays a sealing fit, the sealing element can be locked on the water tank shell 8 through a screw, and the sealing element can also be connected on the water tank shell 8 in a welding mode. In order to reduce the resistance of the sealing member to the cleaning roller 1, the part of the sealing member, which is in contact with the surface of the cleaning roller 1, is made into a convex shape by an elastic material, so that the sealing member is in soft contact with the surface of the cleaning roller 1, the resistance of the sealing member to the cleaning roller 1 can be reduced, the sealing effect of the sealing member can also be improved, and the elasticity of the sealing member can also avoid extruding the sewage on the cleaning roller 1 out of the sewage groove 82.

In order to facilitate the sewage outflow in the sewage tank 82, be provided with the guide plate in the groove structure 81, the guide plate is towards the downward sloping of sewage export, sewage export in the sewage tank 82 can be located both ends or other suitable positions, the one end that sewage export was kept away from to the guide plate is close to wringing roller 3, and the surface contact of guide plate and cleaning roller 1, the automatic flow direction sewage export of guide plate can be followed to the crowded sewage of wringing roller 3, prevent that sewage from flowing back again on the cleaning roller 1, the collection of the sewage of being convenient for is handled etc..

In order to avoid that garbage on the cleaning roller 1 blocks a corresponding pipeline in the sewage tank 82, a filtering piece is further arranged in the groove structure 81, the filtering piece can be a filtering net and the like, the filtering piece can be arranged in a gap between the wringing roller 3 and the sealing piece, for example, the filtering piece is laid in the sewage tank 82 along the surface of the cleaning roller 1 or attached to the surface of the cleaning roller 1, two ends of the filtering piece can be respectively pressed on the water tank shell 8 by the wringing roller 3 and the sealing piece, and the filtering piece can also be arranged at a sewage outlet in the sewage tank 82.

The bottom of base shell 5 is provided with the first blend stop 51 with rubbish box 6 matched with, first blend stop 51 is the corresponding complex arc in surface with cleaning roller 1 and can extend to the entry of rubbish box 6 from ground, not only be convenient for rubbish better get into rubbish box 6, can also avoid rubbish to spill etc. from corresponding gap, elastic material such as first blend stop 51 can adopt rubber to make, also can be with cleaning roller 1 matched with arc, the effect is better.

Shower nozzle subassembly 7 is installed on the inner wall of base shell 5, and shower nozzle subassembly 7 includes a plurality of first shower nozzles that set gradually along the axial of cleaning roller 1, and corresponding feeding device passes through the pipeline and is connected with first shower nozzle, and feeding device supplies with corresponding clear water, cleaning solution or high temperature high pressure steam and evenly sprays to cleaning roller 1 through first shower nozzle to carry out moist, washing to cleaning roller 1. The base shell 5 is internally provided with a water baffle matched with the spray head component 7, and the water baffle can prevent liquid from splashing, dripping on the bottom surface and the like.

The base shell 5 can also be connected with a holding rod which is movably connected with the base shell 5 through a rotating joint, so that a user can better control the cleaning base to complete cleaning at more angles.

Compared with the prior art, the utility model has the advantages that: the cleaning roller 1, the cleaning brush roller 2 and the wringing roller 3 are driven by a driving device through a gear transmission mechanism to be synchronously linked, the rotation directions of the cleaning roller 1 and the cleaning brush roller 2 are the same, the rotation directions of the cleaning roller 1 and the wringing roller 3 are opposite, the rotating cleaning roller 1 is used for rolling and brushing the ground, the rotating cleaning brush roller 2 is used for cleaning the garbage on the cleaning roller 1, the wringing roller 3 can better extrude the sewage on the cleaning roller 1 through rotation, the damage to the cleaning roller 1 is reduced, the dirt stuck on the cleaning roller 1 can be further brushed off, the cleaning roller 1 is ensured to be cleaner, the effect is better, the structure is simplified, the structure is more compact and stable, the occupied space is small, the size is small, the control is more convenient, the energy consumption is reduced, and the wringing roller 3 is arranged in the water tank shell 8, so that the spray head assembly 7 and the sewage tank 82 are separated and mutually independent, the cleaning roller 1 can be wetted, cleaned and treated by sewage at the same time without mutual interference, and the garbage on the cleaning roller 1 can not cause the blockage of the spray head assembly 7 and the supply device, thereby improving the reliability of the product and the like and expanding the application and development of the product.

The above embodiments of the present invention are only for illustrating the technical solutions of the present invention, and not for limiting the same, it should be understood that modifications or substitutions for those skilled in the art can be made on the basis of the above description without departing from the inventive concept, and all such modifications and substitutions should fall within the protection scope of the appended claims. In this case all the details may be replaced with equivalent elements, and the materials, shapes and dimensions may be any.

Claims

1. A linkage type cleaning assembly, characterized in that it comprises a cleaning roller (1) and a cleaning brush roller (2) and a water squeezing roller (3) which are matched with the cleaning roller (1) in turn along the rotation direction of the cleaning roller (1). The cleaning roller (1) and the cleaning brush roller (2) rotate in the same direction, and the cleaning roller (1) and the water squeezing roller (3) rotate in opposite directions. The brush roller (2) and the water squeezing roller (3) are linked by a driving device through a first transmission mechanism (4). The cleaning roller (1) is used for rolling brush to clean the ground, and the cleaning brush roller (2) ) is used to clean the garbage on the cleaning roller (1), and the water squeezing roller (3) is used to squeeze out the sewage on the cleaning roller (1).

2. The linked cleaning assembly according to claim 1, wherein the first transmission mechanism (4) comprises a first gear (41) connected with the cleaning roller (1), and a first gear (41) connected with the cleaning brush The second gear (42) connected with the roller (2) and the third gear (43) connected with the water squeezing roller (3), the first gear (41) meshes with the third gear (43), The first gear (41) is drivingly connected with the second gear (42) through a transition gear (44).

3. The linked cleaning assembly according to claim 2, wherein the speed of the second gear (42) and the speed of the third gear (43) are both greater than the speed of the first gear (41) speed.

4. The linked cleaning assembly according to any one of claims 1 to 3, wherein the cleaning brush roller (2) comprises a first rotating shaft (21), and the first rotating shaft (21) is mounted on the first rotating shaft (21). A cleaning member (22) for cleaning the garbage on the cleaning roller (1) is provided.

5. The linked cleaning assembly according to claim 4, wherein the cleaning member (22) is a leather strip.

6. The cleaning base to which the linked cleaning assembly according to any one of the preceding claims 1 to 5 is applied, characterized in that it comprises a base shell (5), and the cleaning roller is arranged on the base shell (5). (1) and the garbage box (6), the cleaning brush roller (2), the water squeezing roller (3) and the spray head assembly (7) which are matched in sequence along the rotation direction of the cleaning roller (1) , the nozzle assembly (7) is used for wetting and cleaning the cleaning roller (1), the garbage box (6) is used for receiving the garbage that has been brushed off, and the cleaning brush roller (2) is located in the garbage box (6) above the entrance.

7 . The cleaning base according to claim 6 , wherein the squeezing roller ( 3 ) is arranged in the groove structure ( 81 ) of the water tank housing ( 8 ), and the groove structure ( 81 ) and The surfaces of the cleaning roller (1) are sealingly fitted to form a sewage trough (82).

8. The cleaning base according to claim 7, characterized in that, the trash box (6) is located at the bottom of the base shell (5), and the water tank shell (8) is close to the cleaning roller (1) the top of.

9 . The cleaning base according to claim 8 , characterized in that, the bottom of the base shell ( 5 ) is provided with a first blocking bar ( 51 ) that cooperates with the garbage box ( 6 ). The blocking bar (51) is an arc shape corresponding to the surface of the cleaning roller (1) and can extend from the ground to the entrance of the garbage box (6).
