本实用新型公开了一种工程造价水准仪支架，属于水准仪测量技术领域。包括炸药本体，包括安装平台，所述安装平台的一侧设置有连接轴套，所述连接轴套的一侧设置有固定螺扣，所述连接轴套的下端设置有固定架，所述固定架的一侧设置有三轴固定装置，所述固定架的一侧设置有升降调节装置，所述升降调节装置的一侧外表面设置有下压槽，所述下压槽的下端设置有固定支撑针，三轴固定装置可以在检测时便于三轴固定，保证稳定工程检测的稳定性，不会在复杂地形出现抖动不平的现象，升降调节装置可以有效在检测时进行上下调节，保证检测时的高度调节，便于根据地形的复杂性进行高度的调节，具有实用性，使用方便安全。
The utility model discloses an engineering cost level instrument bracket, which belongs to the technical field of level instrument measurement. It includes an explosive body and an installation platform, one side of the installation platform is provided with a connecting shaft sleeve, one side of the connecting shaft sleeve is provided with a fixing screw, the lower end of the connecting shaft sleeve is provided with a fixing frame, the fixing One side of the frame is provided with a three-axis fixing device, one side of the fixing frame is provided with a lifting adjustment device, an outer surface of one side of the lifting adjustment device is provided with a lower pressure groove, and the lower end of the lower pressure groove is provided with a fixed support Needle, the three-axis fixing device can facilitate the three-axis fixing during inspection, to ensure the stability of stable engineering inspection, and will not appear jitter and unevenness in complex terrain. Height adjustment, easy to adjust the height according to the complexity of the terrain, practical, convenient and safe to use.
Description
Technical Field
The utility model relates to the technical field of leveling instrument measurement, in particular to a leveling instrument support for engineering cost.
Background
The level is an instrument which is often used in engineering cost field measurement, and is used for establishing a horizontal sight line to measure the height difference between two ground points, a level is arranged between the two ground points, a leveling staff erected on the two ground points is observed, the height difference between the two ground points is calculated according to the reading on the staff, the level is generally fixed on a support to be measured, the stability of the support determines the measurement precision of the level, the level is an instrument for establishing the horizontal sight line to measure the height difference between the two ground points, the principle is that the height difference between the ground points is measured according to the leveling principle, main components are expected to be a telescope, a pipe level, a vertical shaft, a base, a foot screw and the like, the level is divided into a precision level and a common level according to the precision, and the common level is used for obtaining the horizontal sight line by means of a slightly inclined screw.
The existing level is generally placed on a support when in use, the existing support cannot stretch out and draw back when in use, the existing level cannot move in the horizontal direction, the support is not easy to stabilize and is easy to incline in an uneven place, the height is difficult to measure, the existing level is heavy and inconvenient to carry, the occupied space in carrying engineering is very large, the existing level is usually supported by the aid of the support, the traditional support cannot enable the level to rotate, the height adjusting method is single, the rotating angle is difficult to observe, the measuring error is increased, the angle and the length of supporting legs cannot be adjusted according to different terrains, the existing level is inconvenient to use and does not have a practical effect.
SUMMERY OF THE UTILITY MODEL
The utility model provides a support of a level gauge for engineering construction cost, which can not adjust the angle and the length of a supporting leg according to different terrains, is inconvenient to use, can not fix the stable fixation of three supporting frames, can not ensure the stable effect when in use, and does not have certain economic benefit.
In order to achieve the purpose, the utility model adopts the technical scheme that: including mounting platform, one side of mounting platform is provided with the connecting axle sleeve, one side of connecting axle sleeve is provided with fixed spiral shell and detains, the lower extreme of connecting axle sleeve is provided with the mount, one side of mount is provided with triaxial fixing device, one side of mount is provided with lift adjustment device, one side surface of lift adjustment device is provided with the indent down, the lower extreme in indent is provided with fixed support needle down, triaxial fixing device includes that connecting rod, slip knot, fixed pipe support and flexible pipe, one side of connecting rod is provided with the slip knot, one side that the slip was detained is provided with fixed pipe support, the lower extreme of fixed pipe support is provided with flexible pipe.
Preferably, the lifting adjusting device comprises a support frame, a fixing sleeve, an adjusting buckle and an extension pipe, the lower end of the support frame is provided with the fixing sleeve, the outer surface of one side of the fixing sleeve is provided with the adjusting buckle, and the outer surface of the lower end of the support frame is provided with the extension pipe.
Preferably, the connecting rod is buckled with the slip and is equipped with the draw-in groove between, and connecting rod one side surface can dismantle through draw-in groove and slip knot one side surface and be connected, be equipped with the spout between fixed pipe support and the flexible pipe, and fixed pipe support lower extreme surface can dismantle through spout and flexible pipe upper end surface and be connected.
Preferably, be equipped with the spout between support frame and the extension pipe, and support frame lower extreme surface can dismantle through spout and extension pipe upper end surface and be connected, fixed cover is detained with the regulation and is equipped with the joint groove between, and fixed cover one side surface can dismantle through joint groove and regulation and detain one side surface and be connected.
Preferably, a clamping groove is formed between the mounting platform and the connecting shaft sleeve, the outer surface of one side of the mounting platform is detachably connected with the outer surface of one side of the connecting shaft sleeve through the clamping groove, the clamping groove is formed between the fixing frame and the fixed supporting needle, and the outer surface of the lower end of the fixing frame is detachably connected with the outer surface of the upper end of the fixed supporting needle through the clamping groove.
Compared with the prior art, the utility model provides a support of an engineering cost level, which has the following beneficial effects:
1. when the engineering cost level gauge support is used, the three-shaft fixing device can be conveniently fixed in a three-shaft mode during detection, stability of engineering detection is guaranteed, the phenomenon of uneven shaking cannot occur in complex terrain, the connecting rod can be connected to the fixing frame, the sliding buckle on one side can be connected in a sliding mode, moving and stabilizing operation is conducted, the fixing pipe frame on one side can move up and down, the telescopic pipe on the inner wall can move, stable fixing performance during detection is guaranteed, and the engineering cost level gauge support has practicability;
2. this engineering cost surveyor's level support, when using, lift adjustment device can effectively carry out the upper and lower regulation when examining, guarantees to examine time measuring altitude mixture control, is convenient for carry out the regulation of height according to the complexity of topography, and the support frame can support the connection, and the fixed cover of one side is connected fixed the regulation, and the regulation of one side is detained and can be adjusted the yardstick and adjust from top to bottom, and the extension pipe can reciprocate the connection, effectively adjusts from top to bottom, has realized required practicality function.
Drawings

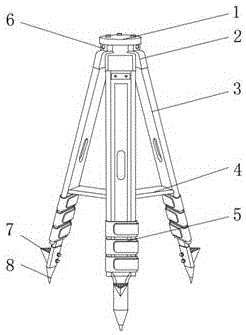

FIG. 1 is a schematic view of the overall construction of a support for an engineering cost level according to the present invention;
FIG. 2 is a schematic view of the overall structure of a triaxial fixing device of a support of the engineering cost level according to the present invention;
FIG. 3 is a schematic view of the overall structure of a lifting adjustment device in a support of the engineering cost level according to the present invention;
fig. 4 is a schematic top view of a three-axis fixing device in a support of the engineering cost level according to the present invention.
In the figure: 1. mounting a platform; 2. connecting the shaft sleeve; 3. a fixed mount; 4. a triaxial fixture; 401. a connecting rod; 402. a sliding buckle; 403. fixing the pipe frame; 404. a telescopic pipe; 5. a lift adjustment device; 501. A support frame; 502. fixing a sleeve; 503. adjusting buckles; 504. an extension pipe; 6. fixing the screw buckle; 7. pressing the groove downwards; 8. and fixing the supporting needle.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1 to 4, the present invention provides a technical solution:
a support of an engineering cost level comprises a mounting platform 1, a connecting shaft sleeve 2 is arranged on one side of the mounting platform 1, a fixed screw buckle 6 is arranged on one side of the connecting shaft sleeve 2, a fixed frame 3 is arranged at the lower end of the connecting shaft sleeve 2, a three-shaft fixing device 4 is arranged on one side of the fixed frame 3, a lifting adjusting device 5 is arranged on one side of the fixed frame 3, a pressing groove 7 is arranged on the outer surface of one side of the lifting adjusting device 5, a fixed support needle 8 is arranged at the lower end of the pressing groove 7, the three-shaft fixing device 4 comprises a connecting rod 401, a sliding buckle 402, a fixed pipe frame 403 and a telescopic pipe 404, the sliding buckle 402 is arranged on one side of the connecting rod 401, a fixed pipe frame 403 is arranged on one side of the sliding buckle 402, the telescopic pipe 404 is arranged at the lower end of the fixed pipe frame 403, can be convenient for the triaxial when detecting and fix, guarantee the stability that stable engineering detected, can not appear shaking uneven phenomenon in complicated topography.
Further, lift adjustment device 5 includes support frame 501, fixed cover 502, adjusts and detains 503 and extension pipe 504, and the lower extreme of support frame 501 is provided with fixed cover 502, and one side surface of fixed cover 502 is provided with adjusts and detains 503, and the lower extreme surface of support frame 501 is provided with extension pipe 504, can effectively adjust from top to bottom when examining, guarantees to examine the altitude mixture control of time measuring, is convenient for carry out the regulation of height according to the complexity of topography.
Further, a clamping groove is arranged between the connecting rod 401 and the sliding buckle 402, the outer surface of one side of the connecting rod 401 is detachably connected with the outer surface of one side of the sliding buckle 402 through the clamping groove, a sliding groove is arranged between the fixed pipe frame 403 and the telescopic pipe 404, and the outer surface of the lower end of the fixed pipe frame 403 is detachably connected with the outer surface of the upper end of the extension pipe 404 through a chute, in the actual operation, this engineering cost surveyor's level support, when using, triaxial fixing device 4 can be convenient for the triaxial when detecting and fix, guarantee to stabilize the stability that engineering detected, the phenomenon that the shake is uneven can not appear in complicated topography, on mount 3 can be connected to connecting rod 401, the slip of one side is detained 402 and can be sliding connection, remove stable operation, the fixed pipe support 403 of one side can reciprocate, the flexible pipe 404 of inner wall can remove, the stable fixity of examining time measuring has been guaranteed, and the practicality has.
Furthermore, a sliding groove is arranged between the supporting frame 501 and the extension pipe 504, the outer surface of the lower end of the supporting frame 501 is detachably connected with the outer surface of the upper end of the extension pipe 504 through the sliding groove, a clamping groove is arranged between the fixing sleeve 502 and the adjusting buckle 503, and the outer surface of one side of the fixing sleeve 502 is detachably connected with the outer surface of one side of the adjusting buckle 503 through the clamping groove, in the actual operation, this engineering cost surveyor's level support, when using, lift adjustment device 5 can effectively adjust from top to bottom when examining, guarantees to examine the altitude mixture control of time measuring, is convenient for carry out the regulation of height according to the complexity of topography, and support frame 501 can support the connection, and the fixed cover 502 of one side is connected fixed the regulation, and the regulation of one side is detained 503 and can be adjusted the yardstick and adjust from top to bottom, and extension pipe 504 can reciprocate the connection, effectively carries out regulation from top to bottom, has realized required practicality function.
Further, be equipped with the draw-in groove between mounting platform 1 and the connecting axle sleeve 2, and the surface of mounting platform 1 one side can be dismantled with the surface of connecting axle sleeve 2 one side through the draw-in groove and be connected, is equipped with the draw-in groove between mount 3 and the fixed stay needle 8, and the surface of the 3 lower extremes of mount can be dismantled through draw-in groove and the surface of the 8 upper ends of fixed stay needle and be connected, has brought very big practicality.
The working principle is as follows: when the level gauge is used, the mounting platform 1 at the upper end of the level gauge can be connected with the gauge, the connecting shaft sleeve 2 at the lower end of the level gauge is connected with the fixing frame 3, the three-shaft fixing device 4 can be conveniently fixed in a three-shaft mode during detection, stability of engineering detection is guaranteed, the phenomenon of uneven shaking in a complex terrain is avoided, the lifting adjusting device 5 can be effectively adjusted up and down during detection, height adjustment during detection is guaranteed, height adjustment according to complexity of the terrain is facilitated, the fixing supporting needle 8 at the lower end of the level gauge can be fixed to guarantee stability, detection horizontality is facilitated, and the level gauge has practicability and convenience and safety in use.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (5)
1. The utility model provides an engineering cost surveyor's level support, includes mounting platform (1), its characterized in that: a connecting shaft sleeve (2) is arranged at one side of the mounting platform (1), a fixed screw buckle (6) is arranged at one side of the connecting shaft sleeve (2), a fixing frame (3) is arranged at the lower end of the connecting shaft sleeve (2), a three-shaft fixing device (4) is arranged at one side of the fixing frame (3), a lifting adjusting device (5) is arranged at one side of the fixed frame (3), a pressing groove (7) is arranged on the outer surface of one side of the lifting adjusting device (5), the lower end of the lower pressure groove (7) is provided with a fixed supporting needle (8), the three-shaft fixing device (4) comprises a connecting rod (401), a sliding buckle (402), a fixed pipe frame (403) and a telescopic pipe (404), one side of connecting rod (401) is provided with slip knot (402), one side of slip knot (402) is provided with fixed pipe support (403), the lower extreme of fixed pipe support (403) is provided with flexible pipe (404).
2. A construction cost level bracket according to claim 1, wherein: lifting adjusting device (5) are detained (503) and are extended pipe (504) including support frame (501), fixed cover (502), regulation, the lower extreme of support frame (501) is provided with fixed cover (502), one side surface of fixed cover (502) is provided with adjusts and detains (503), the lower extreme surface of support frame (501) is provided with extended pipe (504).
3. A construction cost level bracket according to claim 2, wherein: connecting rod (401) and slip to detain and be equipped with the draw-in groove between (402), and connecting rod (401) one side surface can dismantle through draw-in groove and slip knot (402) one side surface and be connected, be equipped with the spout between fixed pipe support (403) and flexible pipe (404), and fixed pipe support (403) lower extreme surface can dismantle through spout and flexible pipe (404) upper end surface and be connected.
4. A construction cost level bracket according to claim 3, wherein: be equipped with the spout between support frame (501) and extension pipe (504), and support frame (501) lower extreme surface can dismantle through spout and extension pipe (504) upper end surface and be connected, fixed cover (502) and regulation are detained and are equipped with the joint groove between (503), and fixed cover (502) one side surface can dismantle through the joint groove and adjust and detain (503) one side surface and be connected.
5. A construction cost level bracket according to claim 1, wherein: be equipped with the draw-in groove between mounting platform (1) and connecting axle sleeve (2), and mounting platform (1) one side surface can be dismantled with connecting axle sleeve (2) one side surface through the draw-in groove and be connected, be equipped with the draw-in groove between mount (3) and fixed stay needle (8), and mount (3) lower extreme surface can be dismantled with fixed stay needle (8) upper end surface through the draw-in groove and be connected.
