Abstract
本实用新型公开了一种钢丝骨架用固定机构，包括中架，所述中架的一端设置有支撑柱，所述支撑柱的两端固定连接有侧安装板，所述侧安装板与中架之间设置有钢丝架，所述中架的另一端设置有连接头，所述连接头的下侧设置有弹性座，所述弹性座包括橡胶垫和支撑垫，所述橡胶垫固定在连接头的下侧，所述支撑垫固定在橡胶垫的下端，所述侧安装板的一侧设置有连接侧板，所述连接侧板的下侧设置有弹性垫；通过设计的弹性座、弹性垫，在使用时通过弹性座的橡胶垫和弹性垫支撑在固定位置，在螺栓固定时通过橡胶垫和弹性垫的弹力使连接侧板和连接头与螺栓连接处稳定，从而避免出现螺栓松动使骨架晃动不稳。
The utility model discloses a fixing mechanism for a steel wire frame, comprising a middle frame, one end of the middle frame is provided with a support column, two ends of the support column are fixedly connected with a side mounting plate, the side mounting plate and the middle frame A steel wire frame is arranged between them, the other end of the middle frame is provided with a connecting head, and an elastic seat is arranged on the lower side of the connecting head. The elastic seat includes a rubber pad and a support pad, and the rubber pad is fixed on the connecting head. The support pad is fixed on the lower end of the rubber pad, one side of the side mounting plate is provided with a connecting side plate, and the lower side of the connecting side plate is provided with an elastic pad; through the designed elastic seat, elastic pad , In use, it is supported in a fixed position by the rubber pad and elastic pad of the elastic seat, and the elastic force of the rubber pad and the elastic pad is used to stabilize the connection between the side plate and the connection head and the bolt when the bolt is fixed, so as to avoid the bolt loosening and causing the skeleton Shaky.
Description
Technical Field
The utility model belongs to the technical field of steel wire frameworks, and particularly relates to a fixing mechanism for a steel wire framework.
Background
The automobile seat can be divided into a split seat and a bench seat according to the shape; the functions can be divided into fixed type, detachable type and adjustable type; can be divided into single-person, double-person and multi-person chairs according to the number of people. From the earliest fixed seats, to multifunctional power-adjustable seats, there are air cushion seats, power seats, stereo seats, mental recovery seats, to electronic adjustable seats, depending on the performance of the seat. The chair is divided into a leather chair, a flannelette chair and the like according to the material. There are also seats for special objects of use, such as children's seats and racing seats.
The steel wire framework of the existing automobile seat is arranged on an automobile through a fixing mechanism when in use, the steel wire framework is usually fixed through bolts, and the problem that the framework is unstable due to looseness of the bolts can occur after the steel wire framework is fixed.
SUMMERY OF THE UTILITY MODEL
The present invention is directed to a fixing mechanism for a steel wire framework, which solves the above problems of the prior art.
In order to achieve the purpose, the utility model provides the following technical scheme:
the utility model provides a fixed establishment for steel wire framework, includes well frame, the one end of well frame is provided with the support column, the both ends fixedly connected with side mounting panel of support column, be provided with the steel wire frame between side mounting panel and the well frame, the other end of well frame is provided with the connector, the downside of connector is provided with the elastic seat, the elastic seat includes rubber pad and supporting pad, the downside at the connector is fixed to the rubber pad, the lower extreme at the rubber pad is fixed to the supporting pad, one side of side mounting panel is provided with the connection curb plate, the downside of connecting the curb plate is provided with the cushion.
Preferably, the supporting seat is arranged on the lower side of the supporting column, the supporting seat comprises a fixed plate fixed on the supporting column and a sliding plate slidably mounted at one end of the fixed plate, the inner side of the fixed plate is fixedly connected with a spring, one end of the sliding plate is fixedly connected with one end of the spring, and the other end of the sliding plate is fixedly connected with a supporting plate.
Preferably, the support column is cylindrical, the upper surface of the fixing plate is arc-shaped, and the fixing plate and the support column are welded and fixed.
Preferably, one end of the connector is provided with a screw hole, and the inner sides of the rubber pad and the supporting pad are provided with through holes.
Preferably, the connecting side plate is Z-shaped, and the connecting side plate is fixedly connected with the elastic pad.
Preferably, the inner side of the side mounting plate is provided with an auxiliary connecting plate, and the position of the auxiliary connecting plate corresponds to the position of the supporting column.
Compared with the prior art, the utility model has the beneficial effects that:
1. through the elastic seat, the cushion of design, the rubber pad and the cushion through the elastic seat support at fixed position when using, make connection curb plate and connector and bolted connection department stable through the elasticity of rubber pad and cushion when the bolt fastening to it shakes the shakiness to avoid appearing the bolt not hard up messenger skeleton.
2. Through the supporting seat of design, pass through supporting seat auxiliary stay on the car when using to can cushion through the sliding plate compression spring of supporting seat when using, thereby make the skeleton reduce the impact that receives when using, thereby make skeleton life longer.
Drawings

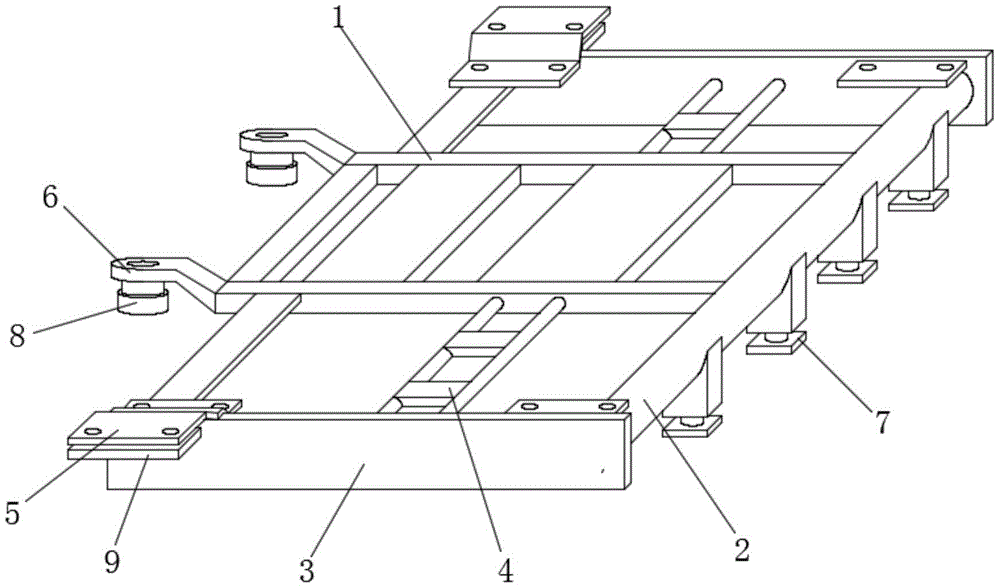

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the elastic seat of the present invention;
FIG. 3 is a schematic view of a supporting seat structure according to the present invention;
in the figure: 1. a middle frame; 2. a support pillar; 3. a side mounting plate; 4. a steel wire frame; 5. connecting the side plates; 6. a connector; 7. a supporting seat; 8. an elastic seat; 9. an elastic pad; 10. a rubber pad; 11. a support pad; 12. a fixing plate; 13. a sliding plate; 14. a support plate; 15. a spring.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
The first embodiment is as follows:
referring to fig. 1 to 3, the present invention provides a technical solution: a fixing mechanism for a steel wire framework comprises a middle frame 1, wherein one end of the middle frame 1 is provided with a support column 2, two ends of the support column 2 are fixedly connected with side mounting plates 3, a steel wire frame 4 is arranged between the side mounting plates 3 and the middle frame 1, the other end of the middle frame 1 is provided with a connector 6, the lower side of the connector 6 is provided with an elastic seat 8, the elastic seat 8 comprises a rubber pad 10 and a support pad 11, the rubber pad 10 is fixed at the lower side of the connector 6, the support pad 11 is fixed at the lower end of the rubber pad 10, one side of the side mounting plates 3 is provided with a connecting side plate 5, the lower side of the connecting side plate 5 is provided with an elastic pad 9, and the fixing mechanism is supported by the elastic seat 8 and the elastic pad 9 in an auxiliary manner during installation, when the bolt is installed, the rubber pad 10 is compressed by force, the connecting head 6 is attached to the bolt by the elasticity of the rubber pad 10 and the support of the support pad 11, thereby the phenomenon that the bolt is not hard up and rocks is avoided appearing, and simultaneously the cushion 9 makes the connection curb plate 5 fixed more stable.
As apparent from the above description, the present invention has the following advantageous effects: when the bolt fixing device is used, the rubber pad 10 and the elastic pad 9 of the elastic seat 8 are supported at fixed positions, and the connecting side plate 5, the connecting head 6 and the bolt connecting part are stable through the elasticity of the rubber pad 10 and the elastic pad 9 when the bolt is fixed, so that the phenomenon that the bolt is loosened to enable the framework to shake unstably is avoided.
Further, referring to fig. 2, one end of the connector 6 is provided with a screw hole, and the inner sides of the rubber pad 10 and the supporting pad 11 are provided with through holes, so that the rubber pad 10 and the supporting pad 11 are conveniently connected with a bolt when in use.
Further, referring to fig. 1, the connecting side plate 5 is formed in a Z shape, and the connecting side plate 5 is fixedly connected with the elastic pad 9, so that the connecting side plate 5 is more stably installed in use.
Further, as shown in fig. 1, the inner side of the side mounting plate 3 is provided with an auxiliary connecting plate, and the position of the auxiliary connecting plate corresponds to the position of the supporting column 2, so that the side mounting plate 3 is more stably connected through the auxiliary connecting plate during installation.
Example two:
referring to fig. 1 to fig. 3, on the basis of the first embodiment, the present invention provides a technical solution: the downside of support column 2 is provided with supporting seat 7, supporting seat 7 is including fixing fixed plate 12 and the sliding plate 13 of slidable mounting in fixed plate 12 one end on support column 2, the inboard fixedly connected with spring 15 of fixed plate 12, the one end of sliding plate 13 and the one end fixed connection of spring 15, the other end fixedly connected with backup pad 14 of sliding plate 13, the shape of support column 2 sets up to the cylindricality, the upper surface of fixed plate 12 is provided with the arc, and fixed plate 12 and support column 2 welded fastening, cooperation supporting seat 7 auxiliary stay, the atress can slide and compress spring 15 auxiliary cushion in fixed plate 12 through sliding plate 13 when using.
Adopt foretell supporting seat 7, pass through supporting seat 7 auxiliary stay on the car when using to can cushion through sliding plate 13 compression spring 15 of supporting seat 7 when using, thereby make the skeleton reduce the impact that receives when using, thereby make skeleton life longer.
The working principle and the using process of the utility model are as follows: put up 1 through the bolt when using, steel wire frame 4, side-mounting panel 3 and support column 2 are installed on the car, pass through elastic seat 8 and cushion 9 auxiliary stay during the installation, the compression of rubber pad 10 atress when the installation, elasticity and supporting pad 11 through rubber pad 10 support make the laminating of connector 6 on the bolt, thereby avoid appearing the phenomenon that the bolt is not hard up to rock, cushion 9 makes and connects 5 fixed more stable of curb plate simultaneously, and cooperation supporting seat 7 auxiliary stay, the atress can slide and the supplementary buffering of compression spring 15 in fixed plate 12 through sliding plate 13 when using.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
The above description is only for the purpose of illustrating the technical solutions of the present invention and not for the purpose of limiting the same, and other modifications or equivalent substitutions made by those skilled in the art to the technical solutions of the present invention should be covered within the scope of the claims of the present invention without departing from the spirit and scope of the technical solutions of the present invention.
Claims (6)
1. The utility model provides a fixed establishment for steel wire framework, includes well frame (1), its characterized in that: the one end of well frame (1) is provided with support column (2), both ends fixedly connected with side-mounting board (3) of support column (2), be provided with steel wire frame (4) between side-mounting board (3) and well frame (1), the other end of well frame (1) is provided with connector (6), the downside of connector (6) is provided with elastic seat (8), elastic seat (8) are including rubber pad (10) and supporting pad (11), the downside at connector (6) is fixed in rubber pad (10), the lower extreme at rubber pad (10) is fixed in supporting pad (11), one side of side-mounting board (3) is provided with connects curb plate (5), the downside of connecting curb plate (5) is provided with cushion (9).
2. The fixing mechanism for a wire framework according to claim 1, characterized in that: the supporting structure is characterized in that a supporting seat (7) is arranged on the lower side of the supporting column (2), the supporting seat (7) comprises a fixed plate (12) fixed on the supporting column (2) and a sliding plate (13) slidably mounted at one end of the fixed plate (12), a spring (15) is fixedly connected to the inner side of the fixed plate (12), one end of the sliding plate (13) is fixedly connected with one end of the spring (15), and a supporting plate (14) is fixedly connected to the other end of the sliding plate (13).
3. The fixing mechanism for a wire framework according to claim 2, characterized in that: the shape of support column (2) sets up to the cylindricality, the upper surface of fixed plate (12) is provided with the arc, and fixed plate (12) and support column (2) welded fastening.
4. The fixing mechanism for a wire framework according to claim 1, characterized in that: one end of the connector (6) is provided with a screw hole, and the inner sides of the rubber pad (10) and the supporting pad (11) are provided with through holes.
5. The fixing mechanism for a wire framework according to claim 1, characterized in that: the connecting side plate (5) is Z-shaped and fixedly connected with the elastic pad (9) through the connecting side plate (5).
6. The fixing mechanism for a wire framework according to claim 1, characterized in that: the inboard of side-mounting board (3) is provided with auxiliary connecting plate, and the position of auxiliary connecting plate corresponds with the position of support column (2).
