Abstract

The utility model belongs to the technical field of processing devices for halogen products, in particular to a cutting device for processing halogen products. A mounting bracket is installed on the top of the drive mechanism. In the utility model, the bean hulls are blocked by setting a baffle plate to prevent the bean hulls from falling during the pushing process, and the main cutter is driven to move downward by an electric push rod, so that the bean hulls can be cut off. At the same time, three slices are used for cutting to increase the cutting efficiency, and the number of slices can be selected according to the actual situation, and the distance between the slices can be adjusted at the same time, which is convenient for cutting the bean skin into different lengths and enhances flexibility. By setting the driving mechanism, you can The movement of the main cutter is realized. After the bean husk is cut off, the bean hull can be pushed into the collection box by the main cutter. The degree of automation is high and the labor intensity is reduced.

Description

Cutting device for processing marinated products

Technical Field

The utility model relates to the technical field of marinated product processing devices, in particular to a cutting device for marinated product processing.

Background

The marinated product is a traditional Chinese food and is mainly characterized in that the finished product is cooked, can be directly eaten, and has rich taste and unique flavor. The marinated food is not a single cooking method, but integrates cooking (heating) and seasoning, has obvious characteristics, and has the advantages of convenient material acquisition, and economical property; the texture is palatable, and the taste is rich; pleasant fragrance, moistening but not greasy; the carrying is convenient and the storage is easy; the bean curd sheet cutting device has the advantages that appetite is increased, nutrition is benefited, marinated products comprise meat products, vegetables and bean products, bean curd sheets belong to the bean products, the whole bean curd sheets are produced, long bean curd sheets need to be cut according to a certain size, however, when the existing bean curd sheet cutting device is used, only one cutter is used for cutting off, cutting-off efficiency is low, and after the bean curd sheets are cut off, the bean curd sheets need to be manually moved into a collection box, manual labor intensity is increased, and therefore the problem is solved by the aid of the cutting device for marinated product processing.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

In view of the defects of the prior art, the utility model provides a cutting device for processing marinated products, which solves the problems mentioned in the background technology.

The second technical proposal.

The utility model specifically adopts the following technical scheme for realizing the purpose:

the utility model provides a cutting device of steamed product processing usefulness, includes the workstation, the top of workstation is fixed with the baffle, the top of workstation is provided with actuating mechanism, the mounting bracket is installed at actuating mechanism's top, the bottom of mounting bracket is fixed with electric putter, the bottom mounting of electric putter extension rod has splint, the bottom of splint is fixed with main cutter, the inside of splint is fixed with the diaphragm, the top of diaphragm is provided with adjustment mechanism.

Further, actuating mechanism is including fixing the straight board at the workstation top, one side of straight board is fixed with the motor, the output shaft end of motor is fixed with the lead screw, the outside screw thread of lead screw rotates there is the thread block, two be fixed with the dead lever between the straight board, the outside slip of dead lever has the slider, the top at dead lever and slider is fixed to the mounting bracket.

Further, adjustment mechanism is including fixing the fixed plate at diaphragm top, two be fixed with the rectangular plate between the fixed plate, the outside slip of rectangular plate has the slide, the inside of rectangular plate and slide all sets up threaded hole, the internal thread of screw hole rotates there is the bolt, two the top of slide is fixed with the concave plate, the internal thread of concave plate rotates threaded rod, the bottom bearing of threaded rod rotates there is the connecting plate, the bottom of connecting plate is fixed with gag lever post and concave plate slidable mounting, the bottom of connecting plate is fixed with vice cutter, the spout that is used for vice cutter removal is seted up to the inside of diaphragm.

Furthermore, a support frame is fixed at the bottom of the workbench.

Furthermore, a crank is fixed at the top end of the threaded rod.

(III) advantageous effects

Compared with the prior art, the utility model provides a cutting device for processing marinated products, which has the following beneficial effects:

according to the bean curd sheet pushing device, the baffle is arranged to block bean curd sheets, the bean curd sheets are prevented from falling off in the pushing process, the main cutter is driven by the electric push rod to move downwards, the bean curd sheets can be cut off, the three slices can be used for cutting off simultaneously by the aid of the adjusting mechanism, cutting-off efficiency is improved, the number of the slices can be selected according to actual conditions, the distance between the slices can be adjusted simultaneously, the bean curd sheets can be cut into different lengths conveniently, flexibility is improved, the main cutter can be moved by the aid of the driving mechanism, the bean curd sheets can be pushed into the collecting box by the main cutter after being cut off, the automation degree is high, and the manual labor intensity is reduced.

Drawings

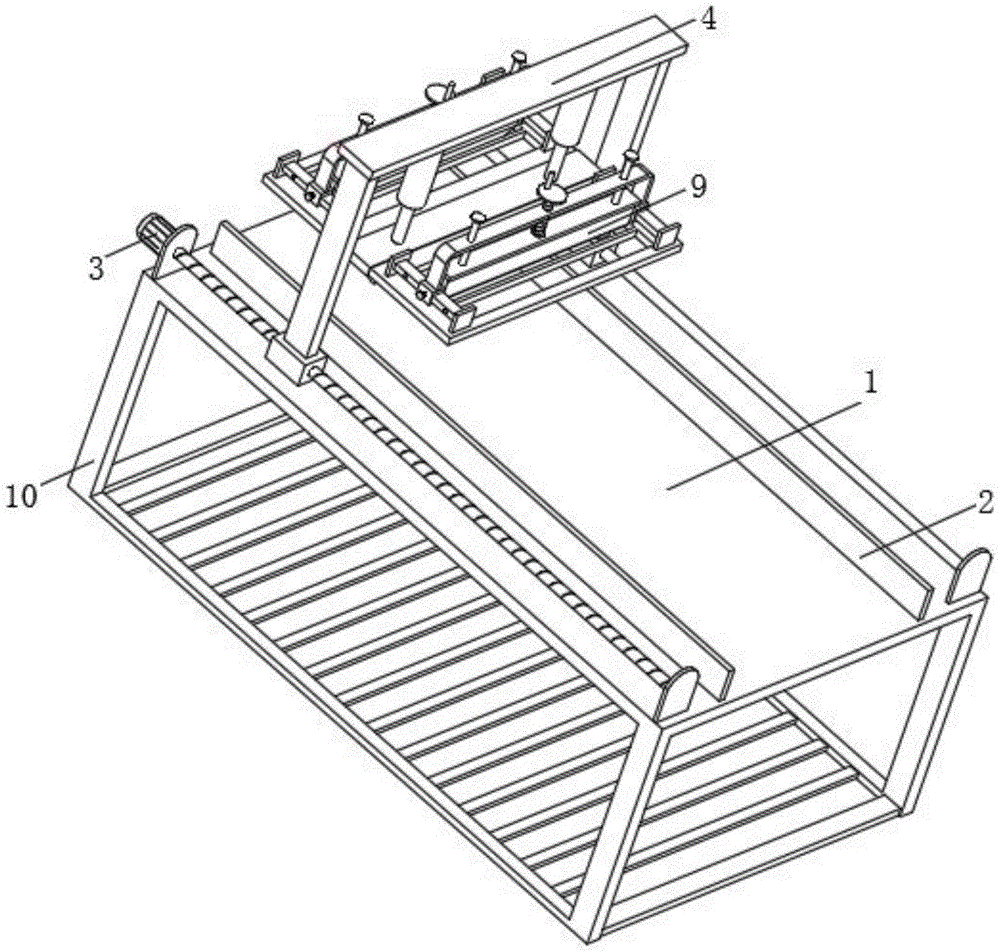

FIG. 1 is a front view of the present invention;

FIG. 2 is a schematic view of the drive mechanism of the present invention;

FIG. 3 is a schematic view of a mount of the present invention;

fig. 4 is a schematic view of an adjustment mechanism of the present invention.

In the figure: 1. a work table; 2. a baffle plate; 3. a drive mechanism; 301. a straight plate; 302. a motor; 303. a screw rod; 304. a thread block; 305. fixing the rod; 306. a slider; 4. a mounting frame; 5. an electric push rod; 6. a splint; 7. a main cutter; 8. a transverse plate; 9. an adjustment mechanism; 901. a fixing plate; 902. a rectangular plate; 903. a slide plate; 904. a threaded hole; 905. a bolt; 906. a concave plate; 907. a threaded rod; 908. a connecting plate; 909. a limiting rod; 9010. a secondary cutter; 9011. a chute; 10. a support frame; 11. a crank handle.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Examples

As shown in fig. 1, 2, 3 and 4, a cutting device for processing marinated products, according to an embodiment of the present invention, includes a table 1, a baffle 2 is fixed on the top of the table 1, a driving mechanism 3 is arranged on the top of the table 1, a mounting frame 4 is installed on the top of the driving mechanism 3, an electric push rod 5 is fixed on the bottom of the mounting frame 4, a clamp plate 6 is fixed on the bottom of an extension rod of the electric push rod 5, a main cutter 7 is fixed on the bottom of the clamp plate 6, a transverse plate 8 is fixed inside the clamp plate 6, an adjusting mechanism 9 is arranged on the top of the transverse plate 8, it should be noted that a collecting box is placed on one side of the table 1, a whole piece of skin of beans is placed between the two baffles 2, the position of the main cutter 7 is adjusted by the driving mechanism 3 according to the length to be cut, the number of slices is selected by the adjusting mechanism 9 according to actual conditions, and the distance between the slices is adjusted by the adjusting mechanism 9, the clamping plate 6 and the main cutter 7 are driven to move downwards by the electric push rod 5, the main cutter 7 is used for cutting the tofu skin, and after the tofu skin is cut, the main cutter 7 is driven to move by the driving mechanism 3, so that the cut tofu skin is pushed into the collecting box.

As shown in fig. 2, in some embodiments, the driving mechanism 3 includes a straight plate 301 fixed on the top of the working table 1, a motor 302 is fixed on one side of the straight plate 301, a lead screw 303 is fixed on an output shaft end of the motor 302, a thread block 304 is screwed on an outer side of the lead screw 303, a fixing rod 305 is fixed between the two straight plates 301, a slider 306 is slid on an outer side of the fixing rod 305, and the mounting frame 4 is fixed on the top of the fixing rod 305 and the slider 306, it should be noted that the lead screw 303 is driven by the motor 302 to rotate, the lead screw 303 is screwed with the thread block 304 and the fixing rod 305 is slidably connected with the slider 306, so that the mounting frame 4 can be driven to move left and right, the main cutter 7 can move along with the main cutter 7, not only can adjust the position of the main cutter 7, but also can push the cut bean skins into the collecting box, thereby enhancing the practicability.

As shown in fig. 4, in some embodiments, the adjusting mechanism 9 includes a fixing plate 901 fixed on the top of the transverse plate 8, a rectangular plate 902 is fixed between the two fixing plates 901, a sliding plate 903 is slid on the outer side of the rectangular plate 902, threaded holes 904 are formed in the rectangular plate 902 and the sliding plate 903, a bolt 905 is screwed into the threaded hole 904, a concave plate 906 is fixed on the top of the two sliding plates 903, a threaded rod 907 is screwed into the internal thread of the concave plate 906, a connecting plate 908 is rotatably supported at the bottom end of the threaded rod 907, a limiting rod 909 is fixed at the bottom of the connecting plate 908 and is slidably mounted with the concave plate 906, a secondary cutter 9010 is fixed at the bottom of the connecting plate 908, a sliding slot 9011 for moving the secondary cutter 9010 is formed in the transverse plate 8, it should be noted that the sliding plate 903 is slid on the outer side of the rectangular plate 902, so as to adjust the distance between the secondary cutter 9010 and the primary cutter 7, the bean curd sheets are conveniently cut into different lengths, after adjustment is completed, the bolt 905 is screwed into the threaded hole 904, the sliding plate 903 and the rectangular plate 902 are fixed, according to actual conditions, when a plurality of sheets are needed, the threaded rod 907 is rotated, the threaded rod 907 is in threaded connection with the concave plate 906 and the limiting rod 909 is in sliding connection with the concave plate 906, so that the connecting plate 908 and the auxiliary cutter 9010 are driven to move downwards, the auxiliary cutter 9010 penetrates through the sliding groove 9011 and moves to the same position as the main cutter 7, and when a plurality of sheets are not needed, the threaded rod 907 is rotated reversely.

As shown in fig. 1, in some embodiments, a support frame 10 is fixed at the bottom of the working platform 1, and it should be noted that the working platform 1 is supported by the support frame 10 to increase stability.

In some embodiments, as shown in fig. 4, a crank 11 is fixed to the top end of the threaded rod 907, and it should be noted that the handle 11 facilitates the rotation of the threaded rod 907, thereby increasing convenience.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the utility model. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. A cutting device for processing halogen products, comprising a workbench (1), characterized in that: a baffle plate (2) is fixed on the top of the workbench (1), and a top of the workbench (1) is provided with a baffle plate (2). There is a driving mechanism (3), a mounting frame (4) is mounted on the top of the driving mechanism (3), an electric push rod (5) is fixed at the bottom of the mounting frame (4), and the electric push rod (5) The bottom end of the extension rod is fixed with a splint (6), the bottom of the splint (6) is fixed with a main cutter (7), the interior of the splint (6) is fixed with a transverse plate (8), and the transverse plate ( The top of 8) is provided with an adjustment mechanism (9).

2 . The cutting device for processing halogen products according to claim 1 , wherein the driving mechanism ( 3 ) comprises a straight plate ( 301 ) fixed on the top of the workbench ( 1 ), and the straight plate ( 301 ) A motor (302) is fixed on one side of the motor (302), a screw rod (303) is fixed at the output shaft end of the motor (302), and a screw block (304) is threaded on the outer side of the screw rod (303). A fixing rod (305) is fixed between the straight plates (301), a sliding block (306) is slid on the outer side of the fixing rod (305), and the mounting bracket (4) is fixed on the fixing rod (305) and the sliding block ( 306) at the top.

3. The cutting device for processing halogen products according to claim 1, characterized in that: the adjusting mechanism (9) comprises a fixing plate (901) fixed on the top of the horizontal plate (8), two of the A rectangular plate (902) is fixed between the fixing plates (901), a sliding plate (903) is slid on the outer side of the rectangular plate (902), and threaded holes are opened in the interior of the rectangular plate (902) and the sliding plate (903). (904), the inner thread of the threaded hole (904) is screwed with a bolt (905), the top of the two sliding plates (903) is fixed with a concave plate (906), the inner part of the concave plate (906) The thread rotates with a threaded rod (907), the bottom end bearing of the threaded rod (907) is rotated with a connecting plate (908), the bottom of the connecting plate (908) is fixed with a limit rod (909) and the limit rod (909) ) is slidably installed with the concave plate (906), the bottom of the connecting plate (908) is fixed with a secondary cutter (9010), and the interior of the transverse plate (8) is provided with a sliding slide for the secondary cutter (9010) to move. Slot (9011).

4 . The cutting device for processing halogen products according to claim 1 , wherein a support frame ( 10 ) is fixed on the bottom of the worktable ( 1 ). 5 .

5 . The cutting device for processing halogen products according to claim 3 , wherein a crank handle ( 11 ) is fixed on the top end of the threaded rod ( 907 ). 6 .
