Abstract
本实用新型公开了一种工业生产用夹具，包括支撑立板，所述支撑立板的一侧安装有支撑脚和支撑副脚，所述支撑立板的另一侧设置有一体结构的限位板，所述限位板上安装有螺杆，所述支撑立板的底端安装在稳定底座上，所述限位板上设置有螺纹孔，且螺杆与螺纹孔丝杆传动连接，所述支撑脚的一端设置有螺头。本实用新型的支撑立板的一端通过铰接耳与耳架铰接连接，通过此种设计方便控制支撑立板的角度，且支撑立板的一侧安装有限位板和放置台，且限位板上设置有螺纹孔，且螺纹孔上安装有螺杆，且螺杆与螺纹孔丝杆传动连接，此种设计可以进行角度夹紧固定，增大了通用性，且装置结构小巧，方便携带。
The utility model discloses a clamp for industrial production, which comprises a supporting vertical plate, one side of the supporting vertical plate is provided with a supporting foot and a supporting auxiliary foot, and the other side of the supporting vertical plate is provided with an integral structure limiter A screw rod is installed on the limit plate, the bottom end of the support vertical plate is installed on a stable base, a threaded hole is provided on the limit plate, and the screw rod is connected with the screw rod in the threaded hole. One end of the foot is provided with a screw head. One end of the supporting vertical plate of the present invention is hingedly connected to the ear frame through the hinge ear, and the angle of the supporting vertical plate is conveniently controlled through this design, and a limit plate and a placing table are installed on one side of the supporting vertical plate, and the limit plate A screw hole is provided, and a screw rod is installed on the screw hole, and the screw rod is connected with the screw rod of the screw hole. This design can be clamped and fixed at an angle, which increases the versatility, and the device has a compact structure and is convenient to carry.
Description
Technical Field
The utility model relates to the field of clamps, in particular to a clamp for industrial production.
Background
The industrial production index is an index of physical quantity of industrial products compiled by weighted arithmetic mean, is an index commonly used in western countries for calculating and reflecting industrial development speed, and is also a preferred index for landscape analysis.
Industrial production index is a relative index that measures the substantial output of manufacturing, mining and public industries, the basis of which is quantity, not amount, and reflects the landscape and development trend of industrial economy at a certain time, and a fixture, a device for fixing a processing object to make it occupy the correct position to receive construction or detection in the mechanical manufacturing process.
The clamp for industrial production at the present stage has various defects, for example, the clamping and fixing direction is single, the clamp cannot be matched with industrial processing equipment in different forms for clamping and fixing, the universality is poor, and the installation and the disassembly are inconvenient.
Disclosure of Invention
The utility model aims to provide a clamp for industrial production, which solves the problems that the clamping and fixing direction in the prior art is single, the clamping and fixing cannot be carried out by matching with industrial processing equipment in different forms, the universality is poor, and the installation and the disassembly are inconvenient.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides an anchor clamps for industrial production, includes and supports the riser, support one side of riser and install the supporting legs and support vice foot, the opposite side that supports the riser is provided with the limiting plate of a body structure, install the screw rod on the limiting plate, the bottom of supporting the riser is installed on stabilizing base, be provided with the screw hole on the limiting plate, and the screw rod is connected with screw hole lead screw transmission.
Preferably, one end of the supporting leg is provided with a screw head, and the supporting leg is fixedly connected with the supporting vertical plate through a screw head and a bolt.
Preferably, a placing table is installed on one side of the supporting vertical plate, a fixing lug of an integrated structure is arranged at one end of the placing table, and the fixing lug is fixedly connected with the supporting vertical plate through a bolt.
Preferably, the adjusting head is installed to the one end of screw rod, and the splint are installed to the other end of screw rod.
Preferably, the one end of supporting the riser is provided with the hinge lug of an organic whole structure, the ear rack is installed to top one side of stabilizing base, and the ear rack is connected with the hinge lug is articulated.
Preferably, the two ends of the lug frame are provided with bolt lugs of an integrated structure, and the lug frame is fixedly connected with the bolts on the two sides of the top of the stabilizing base through the bolt lugs.
Preferably, the ear rack is hinged with the hinge lug through a pin rod, and a lock head is installed at one end of the ear rack.
Compared with the prior art, the utility model has the beneficial effects that: one end of the supporting vertical plate is hinged with the lug frame through the hinge lug, the angle of the supporting vertical plate is convenient to control through the design, the limiting plate and the placing table are installed on one side of the supporting vertical plate, the threaded hole is formed in the limiting plate, the threaded hole is provided with the screw rod, the screw rod is in transmission connection with the threaded hole lead screw, the angle clamping and fixing can be conducted through the design, the universality is improved, the device is small in structure and convenient to carry, and one end of the placing table is fixed on the supporting vertical plate through the fixing lug bolt and is convenient to install and fix.
Drawings

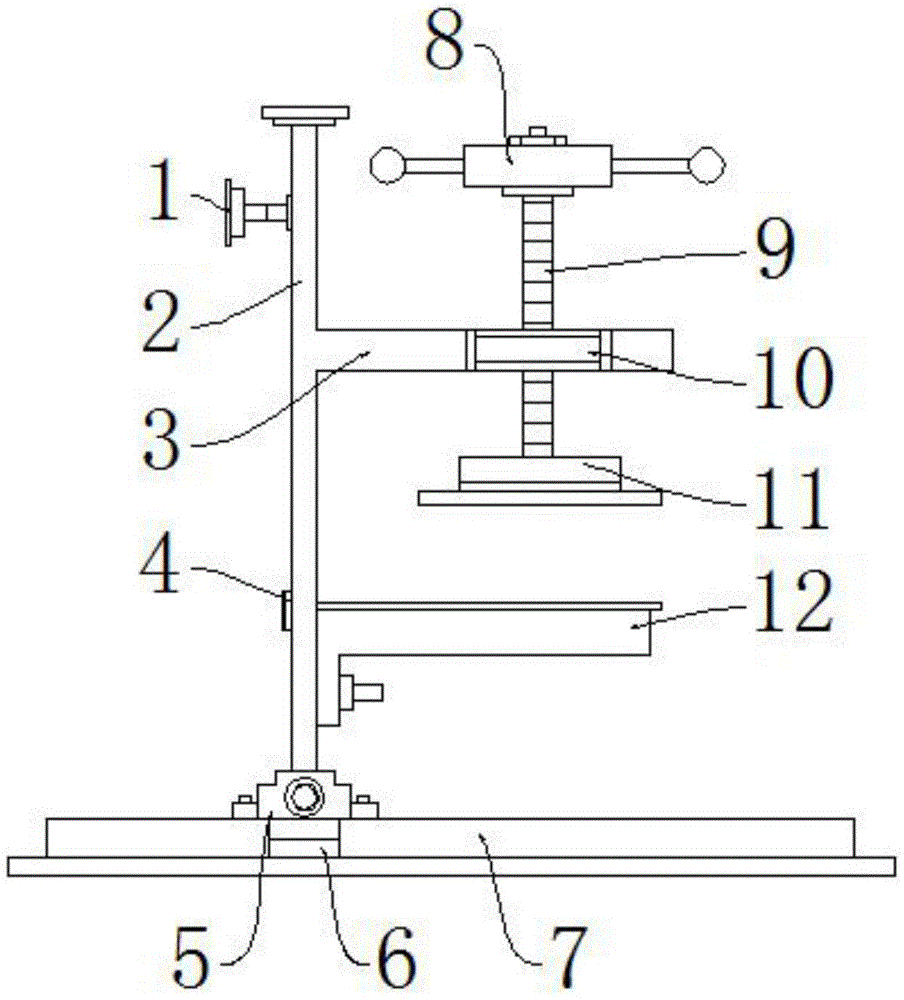

Fig. 1 is a schematic view of the vertical structure of the present invention.
FIG. 2 is a schematic view of the horizontal structure of the present invention.
Fig. 3 is a schematic structural view of the supporting vertical plate of the present invention.
Fig. 4 is a schematic view of the construction of the pin of the present invention.
In the figure: 1. supporting legs; 2. supporting a vertical plate; 3. a limiting plate; 4. supporting the auxiliary leg; 5. An ear rack; 6. a jack; 7. a stabilizing base; 8. an adjustment head; 9. a screw; 10. a threaded hole; 11. a splint; 12. a placing table; 13. a lock head; 14. a pin rod.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention more apparent, the technical solutions of the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings of the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all embodiments of the present invention. All other embodiments, which can be obtained by a person skilled in the art without any inventive step based on the embodiments of the present invention, are within the scope of the present invention. Thus, the following detailed description of the embodiments of the present invention, presented in the figures, is not intended to limit the scope of the utility model, as claimed, but is merely representative of selected embodiments of the utility model. All other embodiments, which can be obtained by a person skilled in the art without any inventive step based on the embodiments of the present invention, are within the scope of the present invention.
Example one
Referring to fig. 1 to 4, in the embodiment of the utility model, a fixture for industrial production comprises a supporting vertical plate 2, a supporting leg 1 and a supporting auxiliary leg 4 are installed on one side of the supporting vertical plate 2, the supporting leg 1 and the supporting auxiliary leg 4 are designed to enable the supporting vertical plate 2 to be placed in a flat position, a screw head is arranged at one end of the supporting leg 1, the supporting leg 1 is fixedly connected with the supporting vertical plate 2 through a screw bolt, a hinge lug with an integrated structure is arranged at one end of the supporting vertical plate 2, an ear frame 5 is installed on one side of the top of a stabilizing base 7, the ear frame 5 is hinged with the hinge lug, bolt lugs with an integrated structure are arranged at two ends of the ear frame 5, the ear frame 5 is fixedly connected with bolts at two sides of the top of the stabilizing base 7 through bolt lugs, the ear frame 5 is hinged with the hinge lug through a pin 14, a lock head 13 is installed at one end of the ear frame 5, a placing table 12 is installed on one side of the supporting vertical plate 2, the placing table 12 facilitates placing of a workpiece, one end of the placing table 12 is provided with a fixing lug of an integrated structure, the fixing lug is fixedly connected with a supporting vertical plate 2 through a bolt, the other side of the supporting vertical plate 2 is provided with a limiting plate 3 of the integrated structure, the limiting plate 3 is used for limiting a screw rod 9, a threaded hole 10 is formed in the limiting plate 3, the screw rod 9 is in transmission connection with the threaded hole 10 through a lead screw, the screw rod 9 is convenient for the screw rod 9 to control a clamping plate 11 to clamp and fix the workpiece, the limiting plate 3 is provided with the screw rod 9, one end of the screw rod 9 is provided with an adjusting head 8, the other end of the screw rod 9 is provided with the clamping plate 11, the adjusting head 8 is used for controlling the screw rod 9 to rotate, and the bottom end of the supporting vertical plate 2 is installed on a stabilizing base 7; when the device is used, the placing table 12 is installed on one side of the supporting vertical plate 2 through bolts, workpieces for industrial production are placed on the placing table 12, the screw 9 is controlled to rotate through the adjusting head 8, the screw 9 and the threaded hole 10 are in screw transmission, the screw 9 is used for controlling the clamping plate 11 to clamp and fix the workpieces, the supporting vertical plate 2 is rotated to be horizontal under the hinged relation of the lug frame 5 and the supporting vertical plate 2, the supporting leg 1 supports the supporting vertical plate 2, and the workpieces are clamped and fixed through the clamping plate 11 and the placing table 12.
The working principle of the utility model is as follows: when the equipment is used, a placing table 12 is installed on one side of a supporting vertical plate 2 through a bolt, a workpiece for industrial production is placed on the placing table 12, the screw 9 is controlled to rotate through an adjusting head 8, the screw 9 and a threaded hole 10 are in screw transmission, the screw 9 is used for controlling a clamping plate 11 to clamp and fix the workpiece, the supporting vertical plate 2 is rotated to be horizontal when the lug frame 5 is hinged to the supporting vertical plate 2, the supporting leg 1 supports the supporting vertical plate 2, and the workpiece is clamped and fixed through the clamping plate 11 and the placing table 12.
Example two
Referring to fig. 1 to 3, in the embodiment of the utility model, a fixture for industrial production comprises a supporting vertical plate 2, a supporting leg 1 and a supporting auxiliary leg 4 are installed on one side of the supporting vertical plate 2, the supporting leg 1 and the supporting auxiliary leg 4 are designed to enable the supporting vertical plate 2 to be placed in a flat position, a screw head is installed at one end of the supporting leg 1, the supporting leg 1 is fixedly connected with the supporting vertical plate 2 through a screw bolt, a hinge lug with an integrated structure is installed at one end of the supporting vertical plate 2, an ear frame 5 is installed on one side of the top of a stabilizing base 7, the ear frame 5 is hinged with the hinge lug, bolt lugs with an integrated structure are installed at two ends of the ear frame 5, the ear frame 5 is fixedly connected with bolts at two sides of the top of the stabilizing base 7 through bolt lugs, a placing table 12 is installed on one side of the supporting vertical plate 2, the placing table 12 facilitates placing of a workpiece, a fixing lug with an integrated structure is installed at one end of the placing table 12, the fixing lug is fixedly connected with the supporting vertical plate 2 through a bolt, the other side of the supporting vertical plate 2 is provided with a limiting plate 3 of an integrated structure, the limiting plate 3 is used for limiting a screw rod 9, the limiting plate 3 is provided with a threaded hole 10, and the screw rod 9 is in transmission connection with the threaded hole 10 through a screw rod, the screw rod 9 is convenient for controlling a clamping plate 11 to clamp and fix a workpiece through the screw rod 9, the limiting plate 3 is provided with the screw rod 9, one end of the screw rod 9 is provided with an adjusting head 8, the other end of the screw rod 9 is provided with the clamping plate 11, the adjusting head 8 is used for controlling the screw rod 9 to rotate, and the bottom end of the supporting vertical plate 2 is arranged on a stabilizing base 7; when the device is used, the placing table 12 is installed on one side of the supporting vertical plate 2 through bolts, workpieces for industrial production are placed on the placing table 12, the screw 9 is controlled to rotate through the adjusting head 8, the screw 9 and the threaded hole 10 are in screw transmission, the screw 9 is used for controlling the clamping plate 11 to clamp and fix the workpieces, the supporting vertical plate 2 is rotated to be horizontal under the hinged relation of the lug frame 5 and the supporting vertical plate 2, the supporting leg 1 supports the supporting vertical plate 2, and the workpieces are clamped and fixed through the clamping plate 11 and the placing table 12.
The working principle of the utility model is as follows: when the equipment is used, a placing table 12 is installed on one side of a supporting vertical plate 2 through a bolt, a workpiece for industrial production is placed on the placing table 12, the screw 9 is controlled to rotate through an adjusting head 8, the screw 9 and a threaded hole 10 are in screw transmission, the screw 9 is used for controlling a clamping plate 11 to clamp and fix the workpiece, the supporting vertical plate 2 is rotated to be horizontal when the lug frame 5 is hinged to the supporting vertical plate 2, the supporting leg 1 supports the supporting vertical plate 2, and the workpiece is clamped and fixed through the clamping plate 11 and the placing table 12.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (7)
1. The utility model provides a anchor clamps for industrial production, includes and supports riser (2), its characterized in that: supporting legs (1) and supporting auxiliary feet (4) are installed to one side of supporting vertical plate (2), the opposite side of supporting vertical plate (2) is provided with limiting plate (3) of a body structure, install screw rod (9) on limiting plate (3), install on stabilizing base (7) the bottom of supporting vertical plate (2), be provided with screw hole (10) on limiting plate (3), and screw rod (9) are connected with screw hole (10) screw rod transmission.
2. The industrial production jig according to claim 1, characterized in that: one end of the supporting leg (1) is provided with a screw head, and the supporting leg (1) is fixedly connected with the supporting vertical plate (2) through a bolt of the screw head.
3. The industrial production jig according to claim 1, characterized in that: a placing table (12) is installed on one side of the supporting vertical plate (2), a fixing lug of an integrated structure is arranged at one end of the placing table (12), and the fixing lug is fixedly connected with the supporting vertical plate (2) through a bolt.
4. The industrial production jig according to claim 1, characterized in that: adjusting heads (8) are installed at one ends of the screw rods (9), and clamping plates (11) are installed at the other ends of the screw rods (9).
5. The industrial production jig according to claim 1, characterized in that: the one end of supporting upright board (2) is provided with the hinge lug of a body structure, the top one side of stabilizing base (7) is installed ear frame (5), and ear frame (5) are connected with the hinge lug is articulated.
6. The industrial production jig according to claim 5, characterized in that: the two ends of the lug frame (5) are provided with bolt lugs of an integrated structure, and the lug frame (5) is fixedly connected with bolts on two sides of the top of the stabilizing base (7) through the bolt lugs.
7. The industrial production jig according to claim 5, characterized in that: the ear rack (5) is hinged with the hinged ear through a pin rod (14), and a lock head (13) is installed at one end of the ear rack (5).
