The utility model provides a radio frequency instrument for fitting around the eye. The upper end of the handle is provided with a radio frequency head for radio frequency, and the radio frequency head is also provided with a red light lamp for irradiating the skin, because the red light can improve cell activity and promote collagen For protein generation, a radio frequency generator and a microcontroller are arranged inside the handle, the radio frequency generator is electrically connected with the microcontroller, the radio frequency head is electrically connected with the radio frequency generator, a battery is arranged inside the handle, and both the radio frequency generator and the microcontroller are electrically connected. Electrically connected to the battery, this technical solution uses the combination of radio frequency technology and red light irradiation to work together on the skin around the eye to increase the efficiency of collagen production, and then to fill the fibrous tissue around the eye with collagen to dilute the eye. The role of fine lines, skin rejuvenation and wrinkle removal.

Description

Periocular fitting radio frequency instrument

Technical Field

The utility model relates to the technical field of beauty instruments, in particular to a periocular fitting radio frequency instrument.

Background

The radio frequency beauty instrument is a non-invasive treatment mode, only generates slight warm sensation during treatment, and no treatment trace is seen on the appearance except slight reddening of a treatment part after operation. The principle of action is that the probe can emit radio waves which vibrate for six million times per second, the high-frequency vibration can enable molecules in the skin to generate heat energy due to friction, the temperature is approximately between 55 and 70 ℃, collagen contracts by virtue of the heat energy, and the collagen is continuously regenerated and recombined along with the time, so that the effects of tightening the skin and improving wrinkles are achieved. However, the existing beauty instruments perform physical therapy on the periphery of eyes by using a radio frequency technology only, and the physical therapy effect is not obvious.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a periocular fitting radio frequency instrument, which improves the generation efficiency of periocular collagen by combining radio frequency with a red light irradiation mode, so that the physical therapy effect is obvious;

the utility model provides a periocular laminating radio frequency appearance, includes the inside handle that is equipped with the cavity, the radio frequency head is installed on the top of handle, the up end of radio frequency head evenly is equipped with a plurality of red light lamp, the inside of handle is equipped with radio frequency generator and microcontroller, radio frequency generator with the microcontroller electricity is connected, the radio frequency head with the radio frequency generator electricity is connected, the inside power supply subassembly that is equipped with of handle, radio frequency generator with microcontroller all with the power supply subassembly electricity is connected.

Further, the bottom of handle is equipped with the interface that charges, charge the interface with the power supply unit electricity is connected.

Further, the portable radio frequency cleaning device comprises a cleaning base, a power socket is arranged on the side face of the cleaning base, a first groove and a second groove are sequentially arranged on the cleaning base from outside to inside, the outline of the first groove is completely the same as the outline of the side face of the radio frequency head, the outline of the second groove is smaller than the outline of the side face of the radio frequency head, and a plurality of ultraviolet lamps are arranged at the bottom end of the second groove.

Further, the outside of handle is equipped with shift knob and mode adjustment button, shift knob with mode adjustment button all with microcontroller electric connection.

Furthermore, the outside of handle still is equipped with electric quantity pilot lamp and mode pilot lamp.

Further, the radio frequency head includes the casing, casing internally mounted has first circuit board, be connected with four radio frequency electrodes on the first circuit board, the top of casing be equipped with four with the through-hole that the radio frequency electrode corresponds respectively, the front end of radio frequency electrode stretches out the through-hole is outside, the radio frequency electrode is located the inside one end cover of casing is equipped with the spring, the casing is inside to be close to one side of through-hole still is equipped with the second circuit board, the red light lamp is connected on the second circuit board, first circuit board with the second circuit board all with power supply unit electric connection.

Furthermore, the bottom of casing is equipped with the bottom plate, the bottom plate with the casing plug-in connection, first circuit board with the bottom plate plug-in connection, the bottom plate is located the inside one side of casing installs eccentric motor, eccentric motor with the power supply unit connects, the opposite side of bottom plate is equipped with the connecting seat, the connecting seat with the top of handle closes soon and is connected.

Further, the radio frequency electrode comprises a first electrode positioned at the central position and three second electrodes uniformly arranged around the first electrode, wherein the polarity of the first electrode is opposite to that of the second electrodes.

Furthermore, one end of the inside of the shell, which is close to the through hole, is provided with a limiting cylinder which corresponds to the four radio-frequency electrodes respectively, the inner diameter of the limiting cylinder is the same as the maximum outer diameter of the radio-frequency electrodes, and the inner diameter of the limiting cylinder is larger than the diameter of the through hole.

Furthermore, one end of the radio frequency electrode extending out of the through hole is of a hemispherical structure.

The utility model provides a periocular fitting radio frequency instrument, wherein a radio frequency head for radio frequency is arranged on a handle, and a red light lamp for irradiating skin is also arranged on the radio frequency head, because the red light can improve the cell activity and promote the generation of collagen, the radio frequency technology and the red light irradiation are combined to have a common effect on periocular skin, so that the generation efficiency of the collagen is improved, and the effects of fading fine wrinkles around the eyes, tendering the skin and removing wrinkles are further achieved.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and other drawings can be obtained by those skilled in the art without creative efforts.

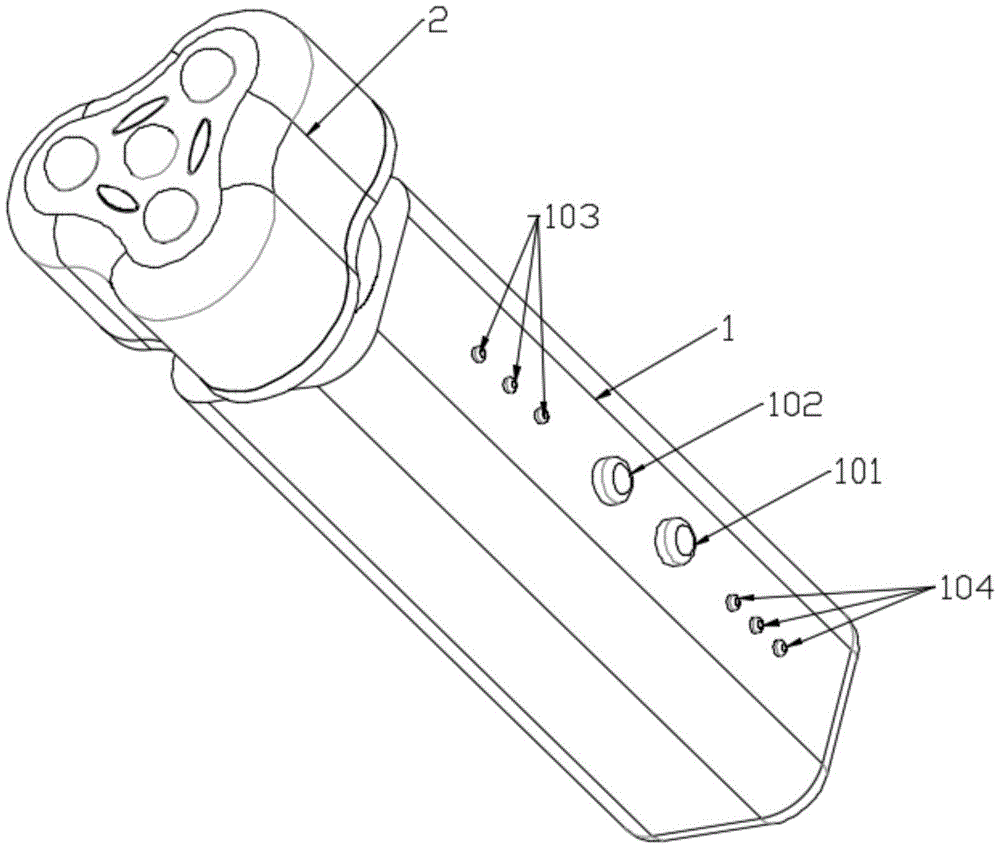

FIG. 1 is a schematic view of the overall structure of the present invention without a cleaning base;

FIG. 2 is a cross-sectional view of the present invention without a cleaning base;

FIG. 3 is a disassembled structural view of the overall structure of the present invention;

FIG. 4 is a disassembled structural view of another overall structure of the present invention;

FIG. 5 is a schematic view of the overall structure of the cleaning base of the present invention;

FIG. 6 is a cross-sectional view of a cleaning base of the present invention;

FIG. 7 is a schematic view of a split structure of the housing and the second circuit board according to the present invention;

FIG. 8 is a schematic structural view of the housing of the present invention;

description of reference numerals: 1-handle, 101-switch button, 102-mode adjusting button, 103-mode indicator light, 104-electric quantity indicator light, 105-charging interface, 2-radio frequency head, 201-shell, 2011-through hole, 2012-limit barrel, 3-clean base, 301-ultraviolet lamp, 302-first groove, 303-second groove, 304-power socket, 4-battery, 5-radio frequency generator, 6-microcontroller, 7-eccentric motor, 8-second circuit board, 801-red light lamp, 9-second electrode, 10-spring, 11-first circuit board, 12-bottom plate, 1201-connecting seat and 13-first electrode;

Detailed Description

The technical solutions of the present invention will be described clearly and completely with reference to the following embodiments, and it should be understood that the described embodiments are some, but not all, embodiments of the present invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations and positional relationships based on those shown in the drawings, and are used only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be considered as limiting the present invention.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, features defined as "first", "second", may explicitly or implicitly include one or more of the described features. In the description of the present invention, "a plurality" means two or more unless specifically defined otherwise. Furthermore, the terms "mounted," "connected," and "connected" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

As shown in figures 1-8 of the drawings,

a periocular bonding radio frequency instrument comprises a handle 1 with a cavity inside, a radio frequency head 2 is installed at the top end of the handle 1, a radio frequency generator 5 and a microcontroller 6 are arranged inside the handle 1, the radio frequency generator 5 is electrically connected with the microcontroller 6, the microcontroller 6 controls the radio frequency generator 5 to be opened and closed, the radio frequency head 2 comprises a shell 201, a first circuit board 11 is installed inside the shell 201, the first circuit board 11 is electrically connected with the radio frequency generator 5, four radio frequency electrodes are connected onto the first circuit board 11, four through holes 2011 respectively corresponding to the radio frequency electrodes are formed in the top end of the shell 201, the diameter of the through holes 2011 is the same as that of a hemisphere at the top end of the radio frequency electrodes, the front ends of the radio frequency electrodes extend out of the through holes 2011, limiting barrels 2012 respectively corresponding to the four radio frequency electrodes are arranged inside the shell 201, and the inner diameter of the limiting barrels 2012 is the same as the maximum outer diameter of the radio frequency electrodes, the internal diameter of spacing section of thick bamboo 2012 is greater than the diameter of through-hole 2011, make the stroke orbit that spacing section of thick bamboo 2012 is used for restricting radio frequency electrode, guarantee that radio frequency electrode follows rectilinear motion forever, four radio frequency electrode are located that the inside one end of casing 201 all overlaps and are equipped with spring 10, spring 10 installs in spacing section of thick bamboo 2012, it forms cushioning effect when making radio frequency electrode and facial contact to add spring 10, make face massage more comfortable, the one end that stretches out through-hole 2011 of radio frequency electrode is the hemispheroid structure, it all is smooth cambered surface when guaranteeing radio frequency electrode and human contact to design into the hemispheroid structure, it is more comfortable to face massage, experience effect is more. The second circuit board 8 is installed on one side of the inside of the casing 201 close to the through hole 2011, the second circuit board 8 is connected with four red light lamps 801, and the four red light lamps 801 are uniformly arranged around the radio frequency electrode located in the middle. The four radio-frequency electrodes are arranged in the following mode: the center position at the top of the shell 201 is provided with a first electrode 1, three second electrodes 9 which are uniformly distributed are arranged around the radio frequency electrode, and the polarities of the first electrode 1 and the second electrodes 9 are opposite, so that when the device is used, two electrodes with opposite polarities contact with a human body to form a loop.

The inside power supply subassembly that is equipped with of handle 1, power supply subassembly is battery 4 in this embodiment, also can be other subassemblies that can connect external power source, RF generator 5 and microcontroller 6 all are connected with battery 4 electricity, make battery 4 provide the required electric quantity of RF generator 5 and microcontroller 6 work, the bottom of handle 1 is equipped with the interface 105 that charges, the interface 105 that charges is connected with battery 4 electricity, when the electric quantity is not enough, charge for battery 4 through the interface 105 that charges.

Bottom of casing 201 of radio frequency head 2 is equipped with bottom plate 12, bottom plate 12 and casing 201 plug-in connection, eccentric motor 7 is installed to one side that bottom plate 12 is located casing 201 inside, eccentric motor 7 is connected with battery 4, eccentric motor 7 during operation can drive radio frequency head 2 and handle 1 vibrations simultaneously, mainly drive the radio frequency electrode and produce vibrations in the work, promote periocular blood circulation, promote the physiotherapy effect, the opposite side of bottom plate 12 is equipped with connecting seat 1201, be equipped with the external screw thread on the connecting seat 1201, the top of handle 1 is equipped with the internal thread with screw-thread fit, make radio frequency head 2 and handle 1 form through connecting seat 1201 and to dismantle the connection, be convenient for later stage to the maintenance of radio frequency head 2.

The outside of handle 1 is equipped with shift knob 101 and mode adjustment button 102, and shift knob 101, shift knob 101 and mode adjustment button 102 all are connected with microcontroller 6 electrical property. An electric quantity indicator lamp 104 and a mode indicator lamp 103 are further arranged on the outer side of the handle 1, the electric quantity indicator lamp 104 is used for prompting the electric quantity of the battery 4 in the handle 1, and the indicator lamp flickers when the electric quantity is insufficient to prompt timely charging; the mode indicator light 103 is used for indicating the working mode of the radio frequency instrument, wherein the working mode can be divided into four conditions: firstly, radio frequency; secondly, radio frequency + vibration; thirdly, irradiating by radio frequency and red light; and fourthly, radio frequency + vibration + red light irradiation. The above four different modes are realized by sending different control instructions to the microcontroller 6 by pressing the mode adjusting button 102 for times, setting of the control instructions of the microcontroller 6 is not described herein again in the prior art, the mode adjusting button 102 is pressed once to start only the radio frequency function, the mode adjusting button 102 is continuously pressed twice to start the radio frequency plus vibration function, the mode adjusting button is continuously pressed three times to start the radio frequency and red light irradiation function, and the mode adjusting button is continuously pressed four times to start the radio frequency plus vibration plus red light irradiation function.

The anti-slip lines are arranged outside the handle 1, and the anti-slip lines are arranged to increase the friction force between the handle 1 and the hand and prevent the hand from falling off.

As shown in fig. 5 and 6, the present invention further includes a cleaning base 3, a power socket 304 is disposed on a side surface of the cleaning base 3, the cleaning base 3 is sequentially provided with a first groove 302 and a second groove 303 from outside to inside, a contour of the first groove 302 is identical to a contour of a side surface of the rf head 2, so that the rf head 2 can be inserted into the first groove 302, a contour of the second groove 303 is smaller than a contour of a side surface of the rf head 2, the shapes of the ultraviolet lamps are the same, so that the top end of the second groove 303 blocks the radio frequency head 2, the bottom end of the second groove 303 is provided with a plurality of ultraviolet lamps 301 which are uniformly distributed, a lot of bacteria can be remained after the radio frequency head 2 is used, the bacteria cannot be thoroughly cleaned, the ultraviolet lamps 301 are used for sterilizing the radio frequency head 2, the bacteria residue is reduced, the upper end of the radio frequency instrument is downwards clamped in the first groove 302 after the radio frequency instrument is used, and the radio frequency head 2 starts to be sterilized; the inner walls of the first groove 302 and the second groove 303 can be designed to be transparent materials, so that the ultraviolet light scattering range is wider.

The utility model provides a periocular bonding laser radio frequency instrument, which is characterized in that when in use, a switch button 101 is firstly pressed, a radio frequency generator 5 is started to work, a mode required by the user is adjusted through a mode adjusting button 102, the upper end face of a radio frequency head 2 is bonded with the face or the periocular for physical therapy, after the use is finished, redundant grease on the radio frequency head 2 is wiped by using toilet paper or wet tissues, then the head of the radio frequency head 2 is downwards inserted into a first groove 302 of a cleaning base 3, the cleaning base 3 is electrified, an ultraviolet lamp 301 irradiates the front end face of the radio frequency head 2 for disinfection and sterilization, and the cleaning base 3 can be always sleeved on the outer side of the radio frequency head 2 under the condition of not electrifying to protect the radio frequency head 2.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; while the utility model has been described in detail and with reference to the foregoing embodiments, it will be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; and the modifications or the substitutions do not make the essence of the corresponding technical solutions depart from the scope of the technical solutions of the embodiments of the present invention.

Claims

1. The utility model provides a periocular laminating radio frequency appearance, a serial communication port, including the inside handle that is equipped with the cavity, the radio frequency head is installed on the top of handle, the up end of radio frequency head evenly is equipped with a plurality of red light lamp, the inside of handle is equipped with radio frequency generator and microcontroller, radio frequency generator with the microcontroller electricity is connected, the radio frequency head with the radio frequency generator electricity is connected, the inside power supply unit that is equipped with of handle, radio frequency generator with microcontroller all with the power supply unit electricity is connected.

2. The periocular bonding radiofrequency instrument of claim 1, wherein a charging interface is provided at a bottom end of the handle, and the charging interface is electrically connected to the power supply assembly.

3. The periocular fit radiofrequency instrument of claim 1, further comprising a cleaning base, wherein a power socket is disposed on a side surface of the cleaning base, a first groove and a second groove are sequentially disposed on the cleaning base from outside to inside, a contour of the first groove is identical to a contour of a side surface of the radiofrequency head, a contour of the second groove is smaller than a contour of a side surface of the radiofrequency head, and a plurality of ultraviolet lamps are disposed at a bottom end of the second groove.

4. The periocular fit radiofrequency meter of claim 1, wherein a switch button and a mode adjustment button are disposed on an outer side of the handle, and both the switch button and the mode adjustment button are electrically connected to the microcontroller.

5. The periocular fit radiofrequency meter of claim 4, wherein an electric quantity indicator light and a mode indicator light are further disposed on the outside of the handle.

6. The periocular fit radiofrequency instrument of claim 1, wherein the radiofrequency head comprises a housing, a first circuit board is mounted inside the housing, the first circuit board is connected with four radiofrequency electrodes, four through holes corresponding to the radiofrequency electrodes are formed in the top end of the housing, the front ends of the radiofrequency electrodes extend out of the through holes, springs are sleeved at one ends of the radiofrequency electrodes, which are located inside the housing, a second circuit board is further arranged on one side, which is close to the through holes, of the housing, the red light lamp is connected to the second circuit board, and the first circuit board and the second circuit board are both electrically connected with the power supply assembly.

7. The periocular bonding radio frequency instrument according to claim 6, wherein a bottom plate is arranged at the bottom end of the casing, the bottom plate is connected with the casing in an inserting manner, the first circuit board is connected with the bottom plate in an inserting manner, an eccentric motor is arranged on one side of the bottom plate positioned in the casing, the eccentric motor is connected with the power supply assembly, a connecting seat is arranged on the other side of the bottom plate, and the connecting seat is connected with the top end of the handle in a screwing manner.

8. The periocular fit radiofrequency meter of claim 6, wherein the radiofrequency electrodes comprise a centrally located first electrode and three second electrodes evenly arrayed around the first electrode, the first electrode having a polarity opposite to the polarity of the second electrodes.

9. The periocular fit radiofrequency instrument of claim 6 or 8, wherein a limiting cylinder corresponding to the four radiofrequency electrodes is arranged at one end of the inside of the shell, which is close to the through hole, the inner diameter of the limiting cylinder is the same as the maximum outer diameter of the radiofrequency electrodes, and the inner diameter of the limiting cylinder is larger than the diameter of the through hole.

10. The periocular fit radiofrequency apparatus of claim 6 or 8, wherein the end of the radiofrequency electrode extending out of the through hole is of a hemispherical structure.
