Abstract
The utility model discloses a novel internet of things data collection terminal device, which relates to the technical field of internet of things terminals and comprises a base, wherein jacks are arranged on the upper side of the base, a sliding groove is formed in the top end of the base, an internet of things terminal body is arranged above the base, the bottom end of the internet of things terminal body extends to the inside of the sliding groove and is connected with an installation seat, a shielding curtain is installed on the rear side face of the internet of things terminal body, the lower end of the shielding curtain is connected with a hanging ring, a hook is installed on the rear side face of the internet of things terminal body and is arranged below the hanging ring, an installation plate is arranged on the upper side of the base, and an insertion block is connected to the bottom end of the installation plate, which extends to the inside of the jack. According to the utility model, the sliding groove, the mounting seat and the first connecting screw are arranged, so that the mounting seat can slide into the sliding groove in the mounting process, and the mounting seat can be fixed by the first connecting screw, so that the terminal body of the Internet of things can be conveniently mounted, fixed and detached.
Description
Technical Field
The utility model relates to the technical field of Internet of things terminals, in particular to a novel Internet of things data collection terminal device.
Background
The terminal of the internet of things is a device which is connected with a sensing network layer and a transmission network layer in the internet of things and used for acquiring data and sending the data to the network layer, and has multiple functions of data acquisition, preliminary processing, encryption, transmission and the like.
However, the existing internet of things data collection terminal is complex in structure during installation, and is inconvenient to install and fix, and secondly, the internet of things data collection terminal is poor in heat dissipation, and a connection port on the internet of things data collection terminal lacks protective measures.
SUMMERY OF THE UTILITY MODEL
Based on the above, the utility model aims to provide a novel data collection terminal device of the internet of things, so as to solve the technical problems that the data collection terminal of the internet of things is inconvenient to install, the heat dissipation of the data collection terminal of the internet of things is poor, and a connection port lacks protective measures in the prior art.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a novel thing networking data collects terminal device, the on-line screen storage device comprises a base, the side is provided with the jack on the base, and the base top is provided with the spout, the base top is provided with thing networking terminal body, and thing networking terminal body bottom extends to spout internal connection has the mount pad, thing networking terminal body trailing flank installs the shielding curtain, and the shielding curtain lower extreme is connected with the link, thing networking terminal body trailing flank installs the couple, and the couple setting is in the link below, the base upside is provided with the mounting panel, and the mounting panel bottom extends to jack internal connection has the inserted block, the heat abstractor is installed to one side that the mounting panel is close to thing networking terminal body.
Through adopting above-mentioned technical scheme, let inside the mount pad slides and enters into the spout, make the convenient fixed mounting of thing networking terminal body, and dispel the heat simultaneously to the thing networking terminal body left and right sides respectively through two sets of heat abstractor and louvre, make the use of thing networking terminal body not influenced to pulling the shielding curtain downwards, let shielding curtain downside link be connected with the couple, thereby let the shielding curtain can play to thing networking terminal body rear side connection port comprehensively and shelter from the safeguard effect.
The utility model is further provided that the outer wall of the base is provided with two groups of screws.
Through adopting above-mentioned technical scheme, two sets of screws carry out fixed mounting to the base, let thing networking terminal body when being installed the base, the base can obtain stable installation.
The utility model is further arranged that the sliding groove is arranged between the jacks, the jacks are just seen as T-shaped, and the length of the sliding groove is equal to that of the base.
Through adopting above-mentioned technical scheme, make thing networking terminal body when the installation is fixed, inside thing networking terminal body bottom mount pad can more convenient slip entered into the spout to it is more convenient to let thing networking terminal body installation fixed.
The utility model is further configured that the mounting seat is T-shaped and is connected with the base through a first connecting screw.
Through adopting above-mentioned technical scheme, inside thing networking terminal body bottom mount pad slided and enters into the spout, and the spout was the T shape, what make the spout can be more stable played the limiting displacement to the mount pad, let thing networking terminal body's installation stability better.
The utility model is further arranged in such a way that a torsion spring is arranged in the shielding curtain, and the shielding curtain is rotatably connected with the Internet of things terminal body.
Through adopting above-mentioned technical scheme, when making downwards the shielding curtain, the inside wind-up roll of shielding curtain can rotate at thing networking terminal body rear side, lets the convenient downward pulling of shielding curtain, causes the shielding curtain to play the protection effect that shelters from to thing networking terminal body rear side connection port.
The utility model is further provided with heat dissipation holes on the mounting plate.
Through adopting above-mentioned technical scheme, heat abstractor in time gives off the steam on the heat abstractor through the louvre when radiating to thing networking terminal body, lets heat abstractor's radiating effect better.
In summary, the utility model mainly has the following beneficial effects:
1. according to the utility model, the sliding chute, the mounting seat and the first connecting screw are arranged, so that the mounting seat can slide into the sliding chute in the mounting process, and the mounting seat can be fixed by the first connecting screw, so that the terminal body of the Internet of things can be conveniently mounted, fixed and detached;
2. according to the terminal body of the Internet of things, the jacks, the mounting plate, the inserting blocks, the second connecting screws, the heat dissipation holes and the heat dissipation device are arranged, so that heat generated by the terminal body of the Internet of things in the use process can be dissipated in time, the terminal body of the Internet of things is not easily affected in the use process, and the mounting plate and the heat dissipation device are convenient to mount, dismount and maintain;
3. according to the utility model, the shielding curtain, the hanging ring and the hook are arranged, so that the hanging ring is connected with the hook when the Internet of things terminal body is not used, the shielding curtain can fully play a shielding protection role on the rear side connecting port of the Internet of things terminal body, and the Internet of things terminal body is not influenced in the later use.
Drawings

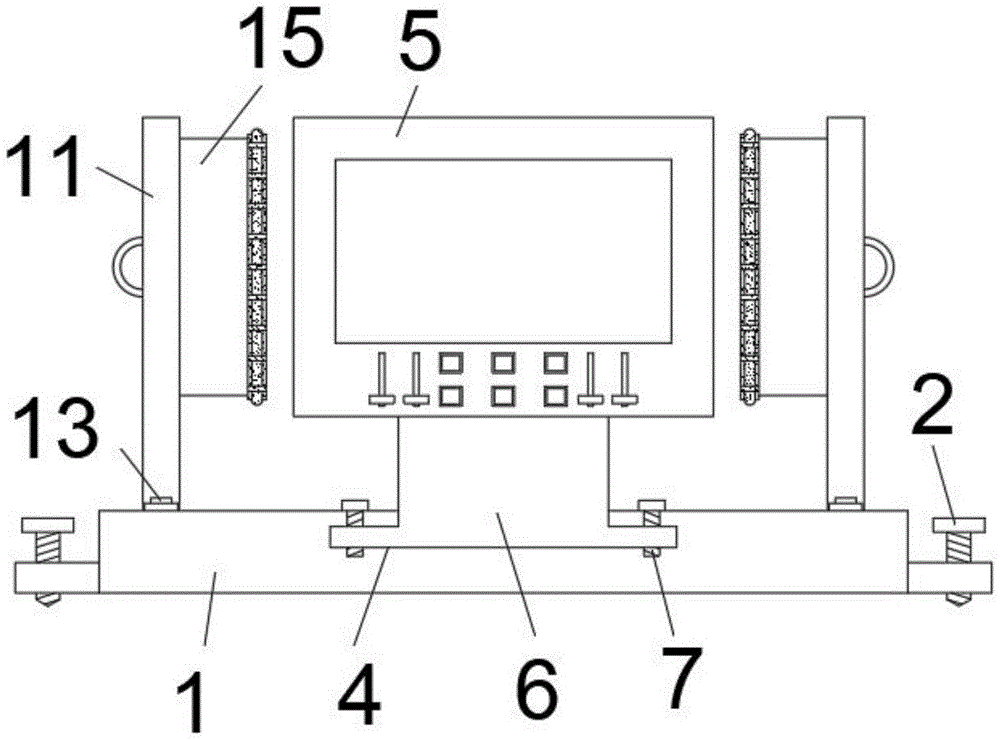

FIG. 1 is a front view of the present invention;
FIG. 2 is a rear view of the present invention;
FIG. 3 is a right side view of the present invention;
FIG. 4 is a perspective view of the base of the present invention;
fig. 5 is a right side view of the terminal body of the internet of things of the present invention;
fig. 6 is a right side view of the mounting plate of the present invention.
In the figure: 1. a base; 2. a screw; 3. a jack; 4. a chute; 5. the terminal body of the Internet of things; 6. a mounting seat; 7. a first connecting screw; 8. a curtain; 9. hanging a ring; 10. hooking; 11. mounting a plate; 12. inserting a block; 13. a second connecting screw; 14. heat dissipation holes; 15. a heat sink is provided.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. The embodiments described below with reference to the accompanying drawings are illustrative only for the purpose of explaining the present invention, and are not to be construed as limiting the present invention.
The following describes an embodiment of the present invention based on its overall structure.
A novel Internet of things data collection terminal device is disclosed, as shown in figures 1-6, a jack 3 is arranged on the upper side surface of a base 1, a chute 4 is arranged at the top end of the base 1, an Internet of things terminal body 5 is arranged above the base 1, the bottom end of the Internet of things terminal body 5 extends into the chute 4 and is connected with an installation seat 6, the installation seat 6 is enabled to slide into the chute 4, the Internet of things terminal body 5 is conveniently and fixedly installed, a shielding curtain 8 is installed on the rear side surface of the Internet of things terminal body 5, a hanging ring 9 is connected to the lower end of the shielding curtain 8, the hanging ring 9 on the lower side of the shielding curtain 8 is connected with a hook 10, so that the shielding curtain 8 can comprehensively play a shielding protection effect on a rear side connection port of the Internet of things terminal body 5, the hook 10 is installed on the rear side surface of the Internet of things terminal body 5, the hook 10 is arranged below the hanging ring 9, an installation plate 11 is arranged on the upper side of the base 1, and the bottom of mounting panel 11 extends to 3 internal connections in jack and has inserted block 12, and heat abstractor 15 is installed to one side that mounting panel 11 is close to thing networking terminal body 5, dispels the heat simultaneously to the thing networking terminal body 5 left and right sides respectively through two sets of heat abstractor 15 and louvre 14, makes the use of thing networking terminal body 5 not influenced.
Referring to fig. 1, 2, 3 and 4, the outer wall of the base 1 is provided with two sets of screws 2, the two sets of screws 2 are used for fixedly mounting the base 1, and the base 1 can be stably mounted.
Referring to fig. 1, 2, 4 and 5, the sliding groove 4 is disposed between the insertion holes 3, the insertion holes 3 are in a T shape, and the length of the sliding groove 4 is equal to that of the base 1, so that when the terminal body 5 of the internet of things is fixedly installed, the mounting seat 6 at the bottom end of the terminal body 5 of the internet of things can slide more conveniently into the sliding groove 4, and the terminal body 5 of the internet of things is more conveniently installed and fixed.
Please refer to fig. 1, fig. 2 and fig. 5, the mounting seat 6 is T-shaped, and the mounting seat 6 is connected with the base 1 through the first connecting screw 7, the mounting seat 6 at the bottom end of the terminal body 5 of the internet of things slides into the sliding groove 4, and the sliding groove 4 is T-shaped, so that the sliding groove 4 can more stably limit the mounting seat 6, and the mounting stability of the terminal body 5 of the internet of things is better.
Please refer to fig. 2, a torsion spring is arranged inside the shielding curtain 8, and the connection mode between the shielding curtain 8 and the terminal body 5 of the internet of things is a rotating connection, so that when the shielding curtain 8 is downward, the winding roller inside the shielding curtain 8 can rotate at the rear side of the terminal body 5 of the internet of things, so that the shielding curtain 8 is conveniently pulled downward, and the shielding curtain 8 can play a shielding protection effect on the rear side connection port of the terminal body 5 of the internet of things.
Referring to fig. 3 and 6, the mounting plate 11 is provided with heat dissipation holes 14, and the heat dissipation device 15 dissipates heat from the internet of things terminal body 5 and dissipates hot air on the heat dissipation device 15 through the heat dissipation holes 14, so that the heat dissipation effect of the heat dissipation device 15 is better.
The working principle of the utility model is as follows: the base 1 is fixedly installed by using the screw rod 2, the base 1 is fixedly installed, the installation seat 6 at the bottom end of the Internet of things terminal body 5 is slidably arranged in the sliding groove 4 on the base 1, the installation seat 6 is fixed by using the first connecting screw 7, the Internet of things terminal body 5 is installed in a specified manner, when the Internet of things terminal body 5 is not used, the shielding curtain 8 is pulled downwards, the hanging ring 9 is pulled downwards to be connected with the hook 10, the hanging ring 9 is fixed, so that the shielding curtain 8 can shield the rear side connecting port of the Internet of things terminal body 5, the connecting port is protected, when the Internet of things terminal body 5 is used, the hanging ring 9 is taken down from the hook 10, the winding roller in the shielding curtain 8 can rotate to carry out Internet of things on the shielding curtain 8, a power line is conveniently connected with the rear side connecting port of the winding terminal body 5, and the Internet of things terminal body 5 can be used, let 11 bottom inserted blocks 12 of mounting panel insert 3 on the base 1 this moment in, reuse second connecting screw 13 to fix mounting panel 11, let heat abstractor 15 in time give off the heat that thing networking terminal body 5 produced simultaneously in time, let thing networking terminal body 5's use not influenced.
Although embodiments of the present invention have been shown and described, the present embodiments are merely illustrative of the present invention and are not intended to limit the present invention, and the described specific features, structures, materials or characteristics may be combined in any suitable manner in any one or more embodiments or examples, and those skilled in the art can make modifications, substitutions, variations, etc. of the embodiments as required without departing from the principle and spirit of the present invention, but within the scope of the claims of the present invention.
Claims (6)
1. The utility model provides a novel thing networking data collection terminal device, includes base (1), its characterized in that: the side surface of the base (1) is provided with a jack (3), the top end of the base (1) is provided with a chute (4), an Internet of things terminal body (5) is arranged above the base (1), the bottom end of the Internet of things terminal body (5) extends to the inside of the sliding chute (4) and is connected with a mounting seat (6), a shielding curtain (8) is arranged on the rear side surface of the Internet of things terminal body (5), the lower end of the shielding curtain (8) is connected with a hanging ring (9), the rear side surface of the Internet of things terminal body (5) is provided with a hook (10), the hook (10) is arranged below the hanging ring (9), the upper side of the base (1) is provided with a mounting plate (11), the bottom end of the mounting plate (11) extends to the inside of the jack (3) and is connected with an insert block (12), and a heat dissipation device (15) is installed on one side, close to the Internet of things terminal body (5), of the mounting plate (11).
2. The novel internet of things data collection terminal device according to claim 1, characterized in that: the screw rod (2) is installed on the outer wall of the base (1), and the screw rods (2) are provided with two groups.
3. The novel internet of things data collection terminal device according to claim 1, characterized in that: the sliding groove (4) is arranged between the insertion holes (3), the insertion holes (3) are just regarded as T-shaped, and the length of the sliding groove (4) is equal to that of the base (1).
4. The novel internet of things data collection terminal device according to claim 1, characterized in that: the mounting seat (6) is T-shaped, and the mounting seat (6) is connected with the base (1) through a first connecting screw (7).
5. The novel internet of things data collection terminal device according to claim 1, characterized in that: the interior of the shielding curtain (8) is provided with a torsion spring, and the shielding curtain (8) is rotatably connected with the Internet of things terminal body (5).
6. The novel internet of things data collection terminal device according to claim 1, characterized in that: the mounting plate (11) is provided with a heat dissipation hole (14).
