CN215900226U - An obstetrics and gynecology obstetrics examination bed board structure

Info

Publication number: CN215900226U
Application number: CN202122137399.6U
Authority: CN
Inventors: 肖利霞
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-09-06
Filing date: 2021-09-06
Publication date: 2022-02-25
Anticipated expiration: 2031-09-06

Abstract

The utility model discloses a shielding examination bed board structure for obstetrics and gynecology, which comprises a hospital bed main body, an auxiliary mechanism, a shielding mechanism and a curtain cloth device. The head pad increases the comfort of the patient, the auxiliary mechanism is installed on the main body of the hospital bed, and is located at the tail of the main body of the hospital bed, and controls the foot pedal to move on the main body of the hospital bed through a knob and a threaded rod, and the shielding mechanism is installed on the main body of the hospital bed. The two sides are close to the head of the bed, and the curtain device is placed in one side of the shielding mechanism, which is connected to the shielding mechanism through the internal plug strip. When in use, the shielding mechanism can effectively shield the patient and the doctor, so as to avoid embarrassment and discomfort for the patient. The stressful situation affects the examination results. The auxiliary mechanism can effectively support and adjust the position of the patient's legs, so as to avoid the inconvenience of placing the legs and affect the examination, which is convenient for the doctor to carry out the examination.

Description

Gynaecology and obstetrics is with sheltering from inspection bed board structure

Technical Field

The utility model belongs to the technical field of obstetrical examination bed boards, and particularly relates to a shielding examination bed board structure for obstetrics and gynecology department.

Background

The gynecological examination bed is also called as a gynecological operation table and is auxiliary medical equipment for various gynecological examinations, diagnosis operations and family planning examinations of hospitals, clinics, family planning stations and mobile gynecological examination vehicles, and the series of products can be used for randomly adjusting various body positions of patients during the treatment according to actual conditions;

however, most of current gynaecology and obstetrics's inspection bed boards need the patient to open both legs by oneself when examining the patient, expose the inspection position, do not have any to shelter from setting and safe setting on the bed, lead to patient's awkwardness and nervous psychology easily, patient's shank is easy to slide simultaneously, and the operation is inconvenient, brings inconvenience for medical personnel, therefore we need upgrade and reform transform on the basis of current gynaecology and obstetrics with sheltering from inspection bed board structure to overcome current problem and not enough.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a shielding examination bed board structure for obstetrics and gynecology department, which can shield a patient from medical staff, avoid tension and embarrassment of the patient during examination, limit the legs of the patient, and avoid the influence of the sliding of the legs and the feet on the examination of a doctor.

In order to achieve the purpose, the utility model provides the following technical scheme: a shielding examination bed plate structure for obstetrics and gynecology department comprises a hospital bed main body, an auxiliary mechanism, a shielding mechanism and a curtain cloth device, wherein the lower end of the hospital bed main body is supported and fixed through four groups of supporting legs;

the shielding mechanism comprises a side groove, a vertical rod is movably arranged in the side groove, an insertion groove is longitudinally formed in the inner side of the vertical rod, a group of limiting plates are arranged on one side of the tail end of the side groove, and a groove is formed in the other end of each limiting plate in a corresponding position.

As a further scheme of the utility model: the auxiliary mechanism comprises a knob, the knob is installed on the outer side of the sickbed main body, a threaded rod is arranged on the inner side of the sickbed main body, a moving block is arranged on the threaded rod, a pedal plate is arranged on the moving block, a baffle is arranged on the pedal plate, the feet of a patient can be conveniently fixed and shielded, and the leg of the patient can be prevented from moving randomly in an inspection process.

As a further scheme of the utility model: the lower end of the moving block is screwed on the threaded rod, and the upper end of the moving block penetrates through a sliding groove arranged in the sickbed main body and is fixedly connected with the pedal on the surface of the sickbed main body, so that the pedal can be controlled to linearly move on the surface of the sickbed main body.

As a further scheme of the utility model: the tail of the vertical rod is fixed with a rotating shaft which is rotatably connected with the side groove through the rotating shaft, so that the vertical rod can be conveniently turned.

As a further scheme of the utility model: the curtain cloth device comprises a shielding curtain and inserting strips, wherein the inserting strips are fixed on two sides of the shielding curtain and are connected with a shielding mechanism through the inserting strips, so that the shielding curtain is convenient to disassemble, assemble, clean and replace.

As a further scheme of the utility model: the head pad is arranged at the top of the sickbed main body, so that the use comfort of a patient is improved.

Compared with the prior art, the utility model has the beneficial effects that:

1. according to the utility model, the shielding mechanism is arranged on the sickbed main body, when the sickbed is used, the vertical rod is rotated to a vertical angle with the sickbed main body, then the limiting plate is turned over to enable the protruding part at the front end of the limiting plate to be clamped in the groove, at the moment, the vertical rod is limited and fixed, and the shielding curtain is inserted into the inserting groove through the inserting strips at the two sides, so that the sickbed can effectively shield the middle of a patient and a doctor, the condition that the patient is embarrassed and tense is prevented from affecting the examination of the doctor, and the examination result is prevented from being affected;

2. according to the utility model, the auxiliary mechanism is arranged on the sickbed main body, when the sickbed is used, a patient places two feet on the pedal plates, medical staff adjusts the feet through the knobs on the two sides, the knobs rotate to drive the inner threaded rods to rotate, the two groups of moving blocks which are screwed on the threaded rods respectively move towards the two sides and drive the pedal plates on the upper ends to move along with the threaded rods, and the feet are shielded by the baffle plates.

Drawings

The accompanying drawings, which are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this specification, illustrate embodiments of the utility model and together with the description serve to explain the principles of the utility model and not to limit the utility model. In the drawings:

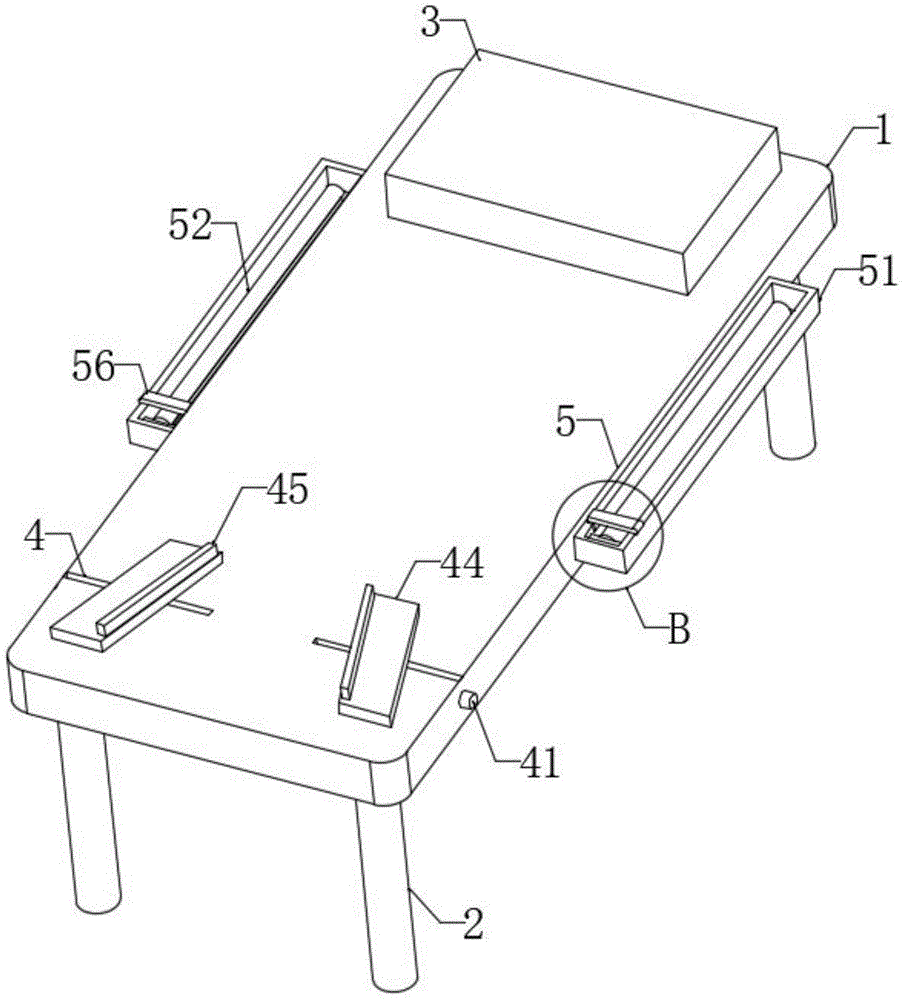

FIG. 1 is a perspective view of the overall construction of the present invention;

FIG. 2 is a perspective view of the curtain device of the present invention;

FIG. 3 is a perspective view of the assist mechanism of the present invention;

FIG. 4 is an enlarged view of the structure at A of the present invention;

FIG. 5 is an enlarged view of the structure at B of the present invention.

In the figure: 1. a hospital bed main body; 2. supporting legs; 3. a head pad; 4. an auxiliary mechanism; 41. a knob; 42. a threaded rod; 43. a moving block; 44. a foot pedal; 45. a baffle plate; 5. a shielding mechanism; 51. a side groove; 52. a vertical rod; 53. a rotating shaft; 54. inserting grooves; 55. a groove; 56. a limiting plate; 6. a curtain device; 61. a curtain; 62. and (4) inserting strips.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides a technical solution: a gynaecology and obstetrics is with sheltering from inspection bed board structure, including sick bed main part 1, complementary unit 4, sheltering from mechanism 5 and curtain cloth device 6, sick bed main part 1 lower extreme supports fixedly through four groups of supporting legs 2, sick bed main part 1 top position is equipped with headrest 3, increase the patient's comfort level in use, complementary unit 4 is installed on sick bed main part 1, and it locates at sick bed main part 1 afterbody, shelter from the mechanism 5 and install the position close to the head of a bed in both sides of sick bed main part 1, curtain cloth device 6 is placed in sheltering from mechanism 5 of one side, curtain cloth device 6 includes sheltering from curtain 61 and grafting strip 62, sheltering from curtain 61 both sides and fixing with grafting strip 62, it connects sheltering from mechanism 5 through grafting strip 62, it is convenient to dismantle the installation to shelter from curtain 61, it is convenient to wash and change the operation;

the shielding mechanism 5 comprises a side groove 51, a vertical rod 52 is movably placed in the side groove 51, an inserting groove 54 is longitudinally formed in the inner side of the vertical rod 52, a group of limiting plates 56 are arranged on one side of the tail end of the side groove 51, a groove 55 is formed in the corresponding position of the other end of each limiting plate 56, a rotating shaft 53 is fixed at the tail of the vertical rod 52 and is rotatably connected with the side groove 51 through the rotating shaft 53, the vertical rod 52 can be conveniently turned over, the vertical rod 52 is rotated to be perpendicular to the sickbed main body 1 when in use, then the limiting plates 56 are turned over, the protruding part of the front end of the limiting plate 56 is clamped in the groove 55, at the moment, the vertical rod 52 is limited and fixed, the shielding curtain 61 is inserted into the inserting groove 54 through the inserting strips 62 on the two sides, the middle of a patient and a doctor can be effectively shielded, and the condition that embarrassment and tension of the patient occur is prevented from affecting the inspection result;

the auxiliary mechanism 4 comprises a knob 41, the knob 41 is arranged at the outer side of the sickbed main body 1, a threaded rod 42 is arranged at the inner side of the knob 41, a moving block 43 is arranged on the threaded rod 42, a pedal plate 44 is arranged on the moving block 43, a baffle plate 45 is arranged on the pedal plate 44, the feet of a patient can be conveniently fixed and shielded, the leg movement of the patient during the examination can be avoided, the lower end of the moving block 43 is screwed on the threaded rod 42, the upper end of the moving block 43 penetrates through a chute arranged in the sickbed main body 1 and is fixedly connected with the pedal plate 44 on the surface of the sickbed main body 1, the pedal plate 44 can be conveniently controlled to linearly move on the surface of the sickbed main body 1, when in use, the patient places two feet on the pedal plate 44, the medical staff adjusts through the knobs 41 at two sides, the knob 41 is rotated to drive the inner threaded rod 42 to rotate, the two sets of moving blocks 43 screwed on the threaded rod 42 respectively move towards two sides, and drive the pedal plate 44 at the upper end to move along with the same, baffle 45 shelters from the foot, and this mechanism can effectively support and position adjustment patient's both legs, avoids its both legs to place inconvenient influence inspection, and the doctor of being convenient for detects.

The working principle of the utility model is as follows: when the device is used, a patient lies on the sickbed body 1 firstly, medical staff rotates the vertical rod 52 to a vertical angle with the sickbed body 1, then the limiting plate 56 is turned over to enable the protruding part at the front end to be clamped in the groove 55, at the moment, the vertical rod 52 is limited and fixed, the shielding curtain 61 is inserted into the insertion groove 54 through the insertion strips 62 at the two sides, the device can effectively shield the middle of the patient and a doctor, the condition that the patient is embarrassed and tense is prevented from affecting the examination result, at the moment, the doctor is positioned at one side of the tail of the sickbed, the patient places two feet on the pedal plates 44, the medical staff adjusts through the knobs 41 at the two sides, the knob 41 is rotated to drive the inner side threaded rod 42 to rotate, the two groups of movable blocks 43 screwed on the threaded rod 42 respectively move towards the two sides, the upper end pedal plates 44 are driven to move along with the movable blocks, the baffle plates 45 shield the feet, and the structure can effectively support and adjust the two legs of the patient, the inconvenience of placing the two legs of the patient is avoided, so that the examination is not influenced, and the doctor can conveniently detect the patient.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, those skilled in the art will understand that various changes, modifications and substitutions can be made without departing from the spirit and scope of the utility model as defined by the appended claims. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a gynaecology and obstetrics is with sheltering from inspection bed board structure, includes sick bed main part (1), complementary unit (4), shelters from mechanism (5) and curtain cloth device (6), its characterized in that: the lower end of the sickbed main body (1) is supported and fixed through four groups of supporting legs (2), the auxiliary mechanism (4) is installed on the sickbed main body (1) and is located at the tail part of the sickbed main body (1), the shielding mechanisms (5) are installed at the positions, close to the bed head, of the two sides of the sickbed main body (1), and the curtain cloth device (6) is placed in the shielding mechanism (5) at one side;

shelter from mechanism (5) including side groove (51), vertical rod (52) have been placed in side groove (51) inside activity, vertical rod (52) inboard vertically is provided with inserting groove (54), be provided with a set of limiting plate (56) on side groove (51) tail end one side, limiting plate (56) other end corresponds the position and is equipped with recess (55).

2. The shielding examining bed board structure for obstetrics and gynecology department according to claim 1, characterized in that: the auxiliary mechanism (4) comprises a knob (41), the knob (41) is installed on the outer side of the sickbed main body (1), a threaded rod (42) is arranged on the inner side of the knob (41), a moving block (43) is arranged on the threaded rod (42), a pedal plate (44) is arranged on the moving block (43), and a baffle plate (45) is arranged on the pedal plate (44).

3. The shielding examining bed board structure for obstetrics and gynecology department according to claim 2, characterized in that: the lower end of the moving block (43) is in threaded connection with the threaded rod (42), and the upper end of the moving block penetrates through a sliding groove arranged in the sickbed main body (1) and is fixedly connected with a pedal (44) on the surface of the sickbed main body (1).

4. The shielding examining bed board structure for obstetrics and gynecology department according to claim 1, characterized in that: and a rotating shaft (53) is fixed at the tail part of the vertical rod (52) and is rotatably connected with the side groove (51) through the rotating shaft (53).

5. The shielding examining bed board structure for obstetrics and gynecology department according to claim 1, characterized in that: the curtain cloth device (6) comprises a shielding curtain (61) and inserting strips (62), wherein the inserting strips (62) are fixed on two sides of the shielding curtain (61) and are connected with a shielding mechanism (5) through the inserting strips (62).

6. The shielding examining bed board structure for obstetrics and gynecology department according to claim 1, characterized in that: the top of the sickbed main body (1) is provided with a head cushion (3).
